Why OMSS's 3A Pipe Fittings?
- OMSS was founded in 2010 and focuses on sanitary stainless steel pipe fittings and valves.
- Certified by ISO 9001 quality management system, and possess relevant qualifications.
- Offer over 2,000 specifications covering a wide range of standard systems including SMS, DIN, etc.
- Use Japanese Mazak CNC equipment and multiple machining centers
- Widely used in production lines for beer, dairy, beverage and food processing.
Your Reliable 3A Pipe Fittings Source for Food & Dairy Projects
In food and dairy production systems, 3A pipe fittings must maintain dimensional stability and seal reliably under strict sanitation audits and frequent CIP cleaning.
OMSS offers more than 2,000 sizes, covering 3A and many other sanitary standards, to meet the need for uniformity throughout the production line. During the manufacturing process, raw materials are inspected at the factory, regular inspections are performed during processing, and finished products are helium vacuum tested. Meanwhile, we are equipped with spectrometers, dimensional measurement devices and surface roughness testers to ensure the accuracy of materials and that key dimensions meet tolerance requirements.

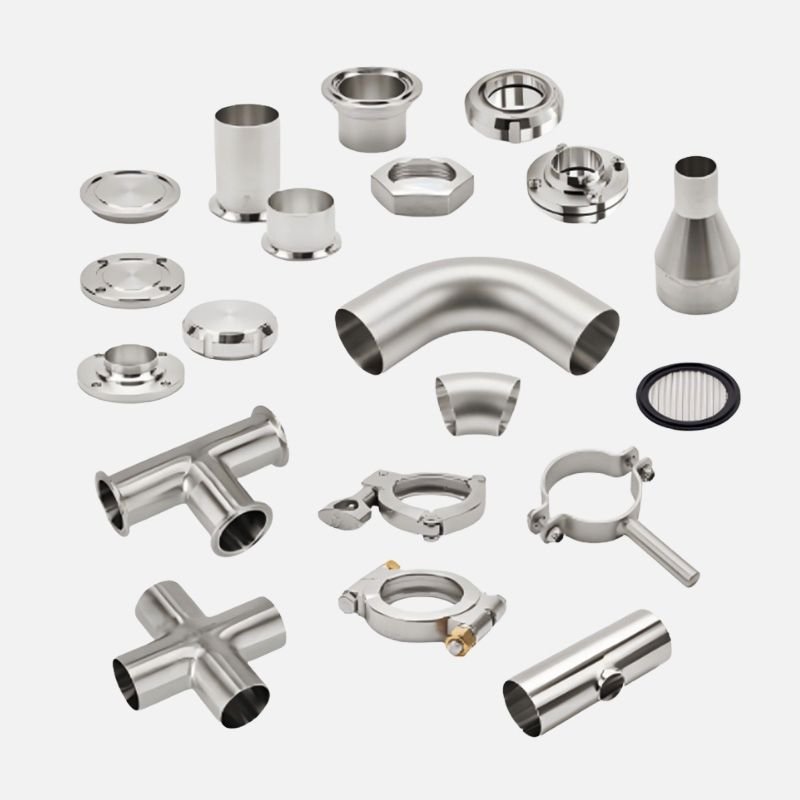

OMSS 3A Pipe Fittings Series

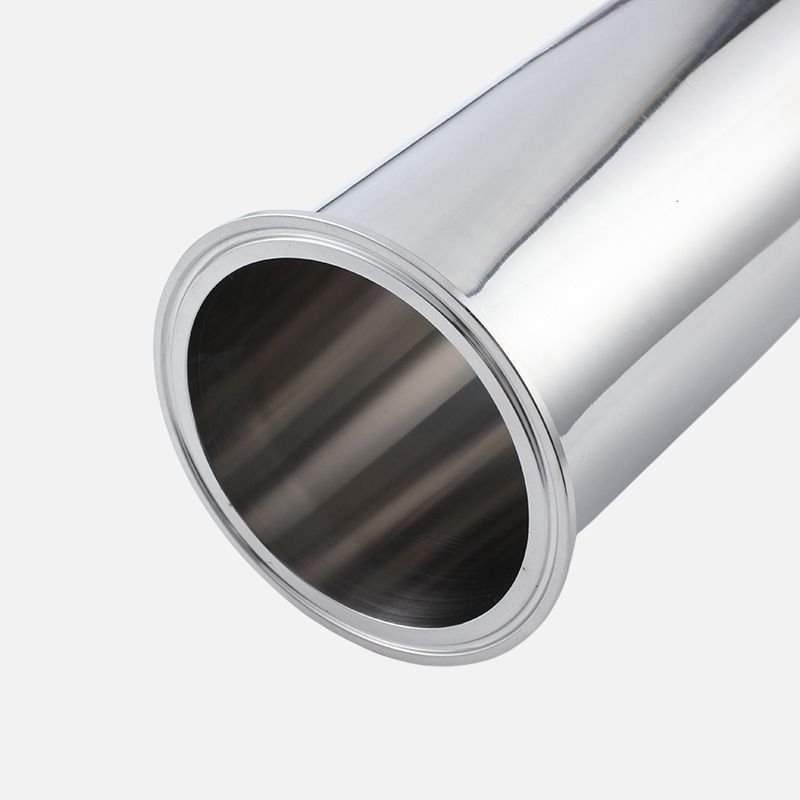

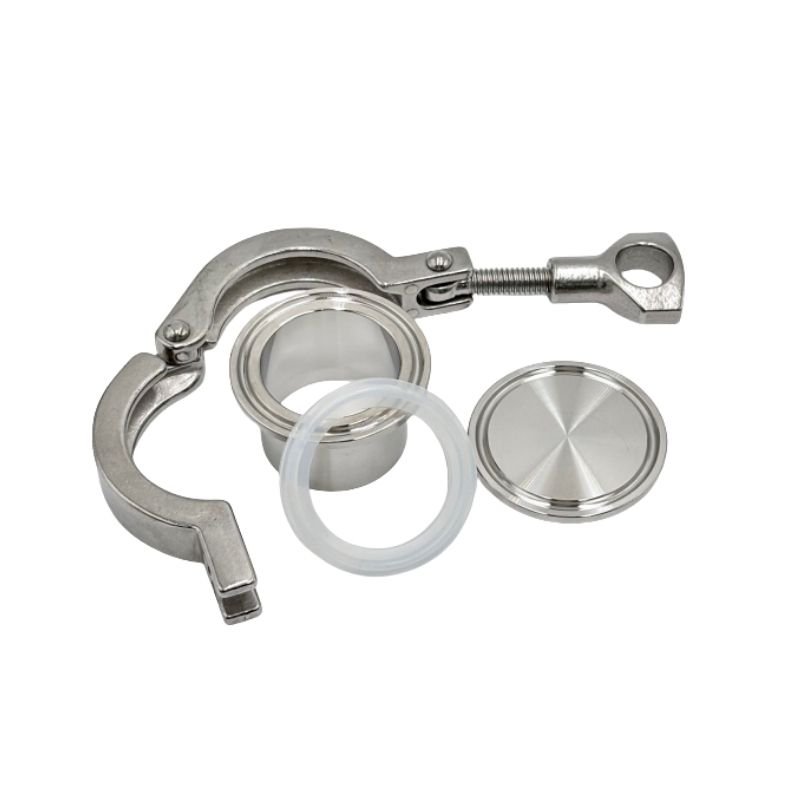

The clamp quick release construction allows for easy disassembly for sanitary piping systems that require frequent cleaning and maintenance.

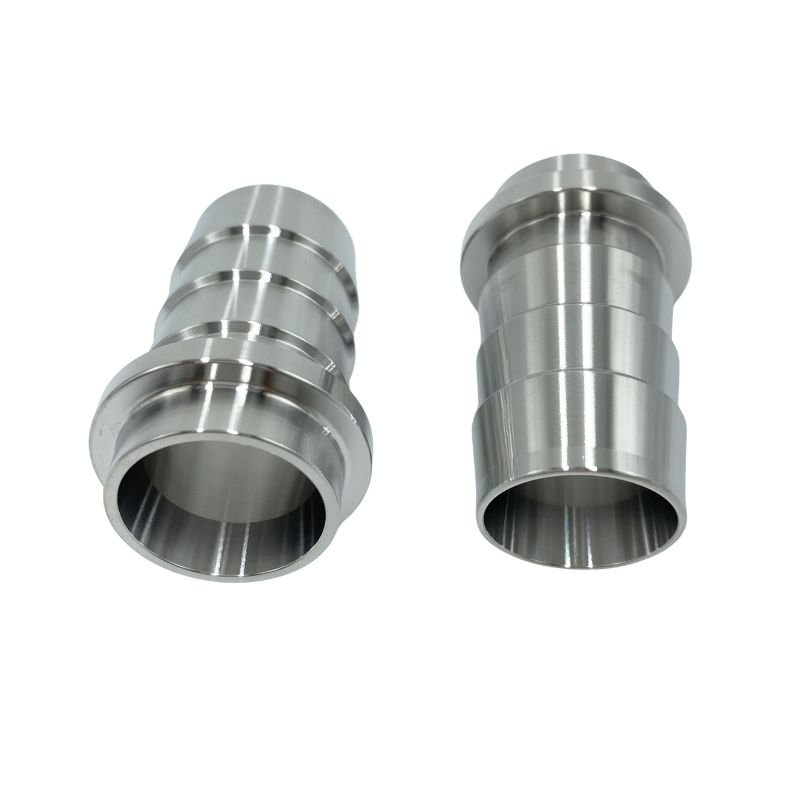

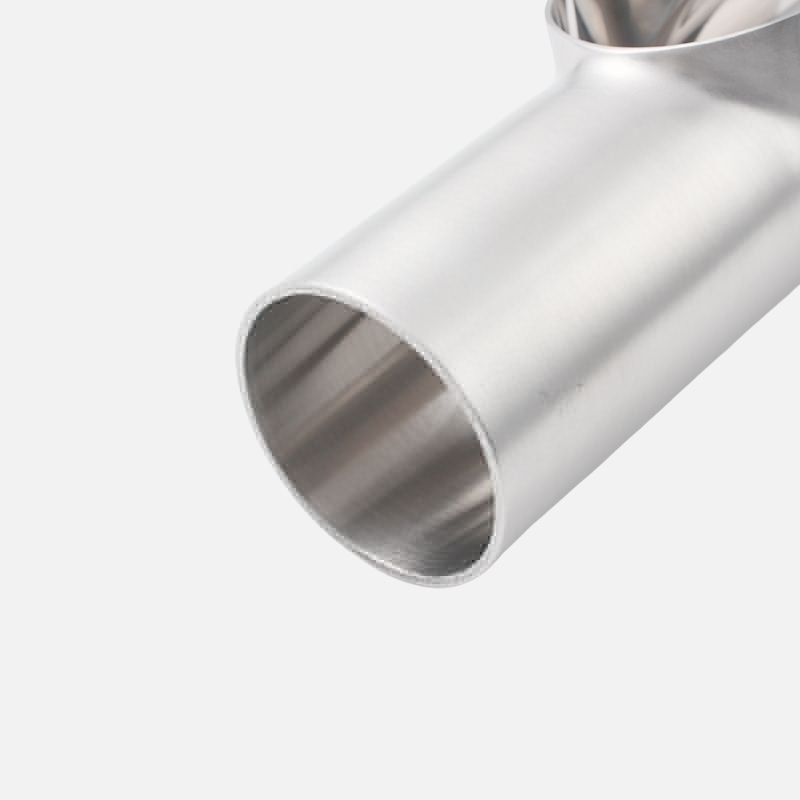

Butt-welded connections are robust and suitable for continuous food and dairy piping.

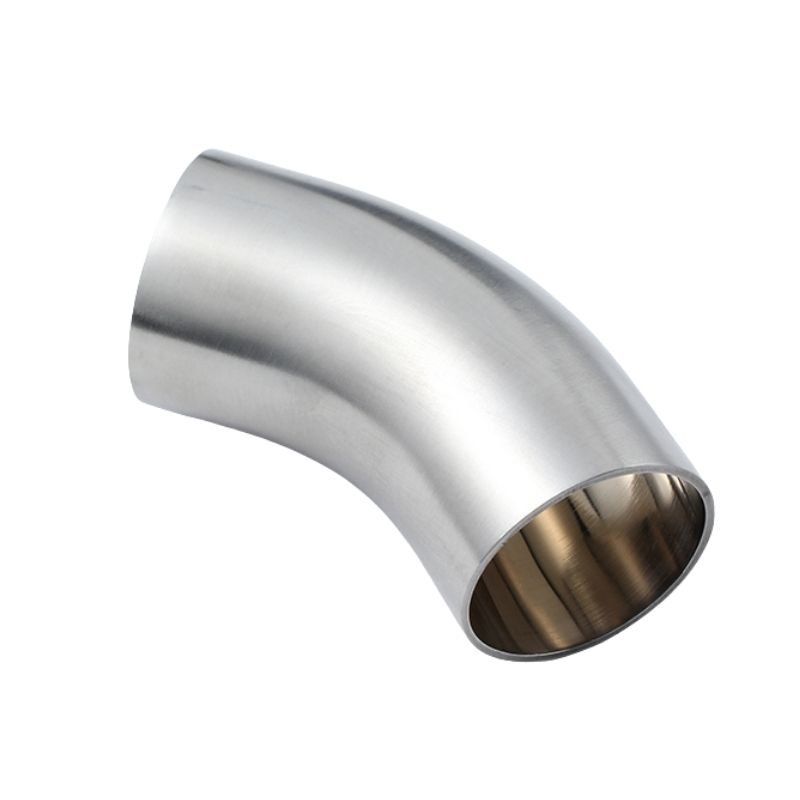

Are used to redirect flow and provide a smooth transition to minimize fluid retention and pressure loss.

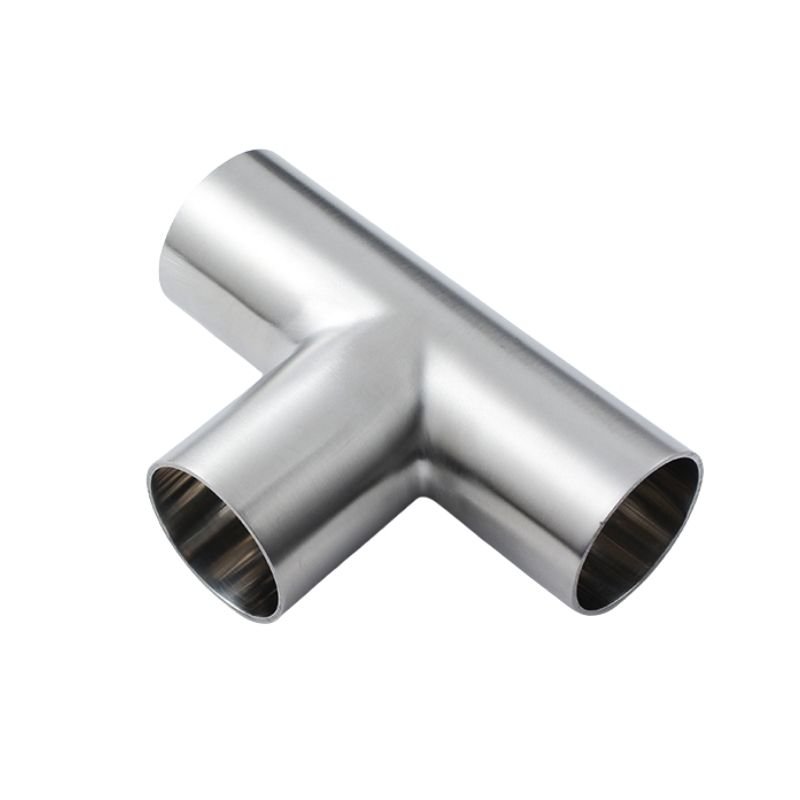

Enables mains and branches to diverge or converge, with a symmetrical structure that facilitates system layout adjustment.

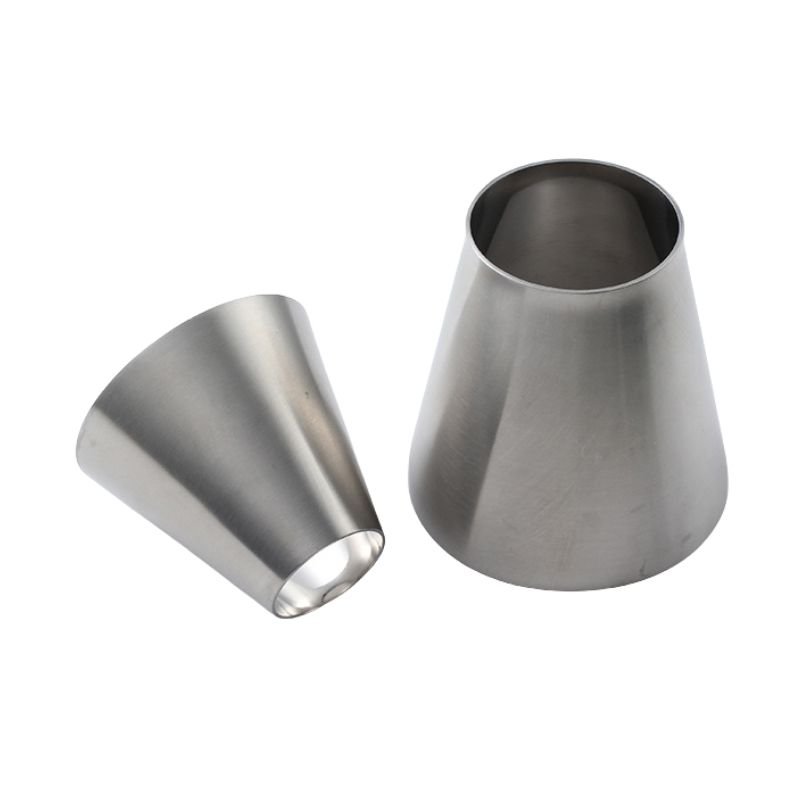

Are used to connect different pipe diameters with a smooth transition to ensure the stability of fluid transportation.

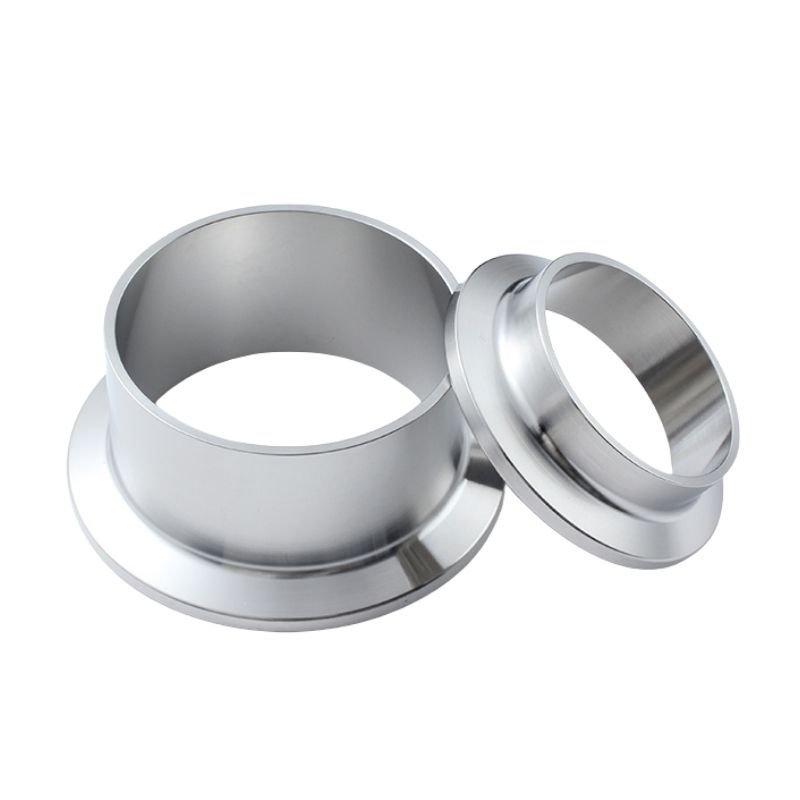

Are used as the core component of the clamp connection to ensure the accuracy of the sealing surfaces and the tightness of the system.

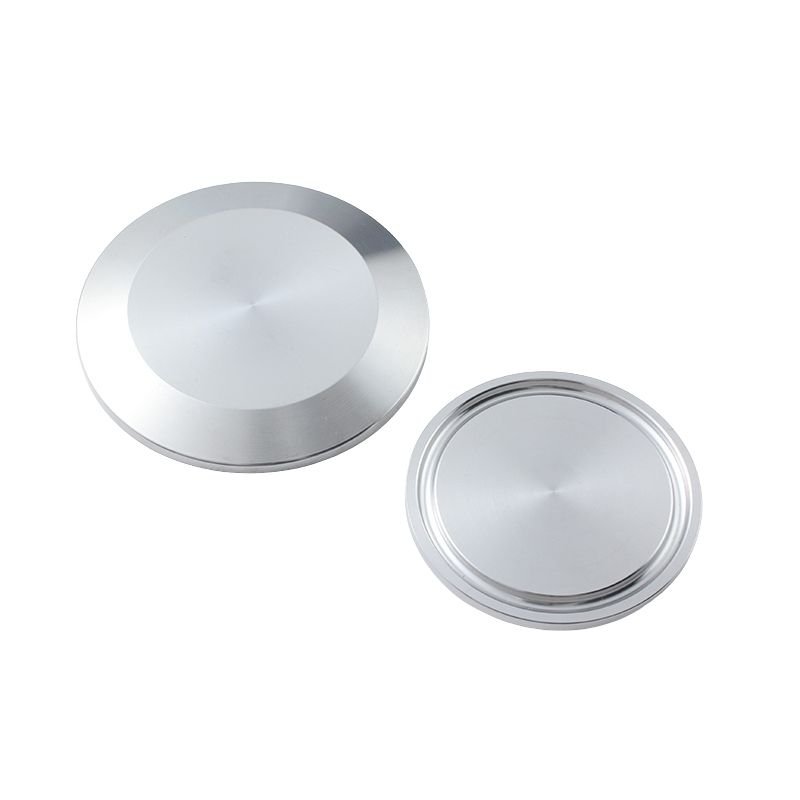

Are used for pipe end closures and have a simple structure for system expansion or maintenance.

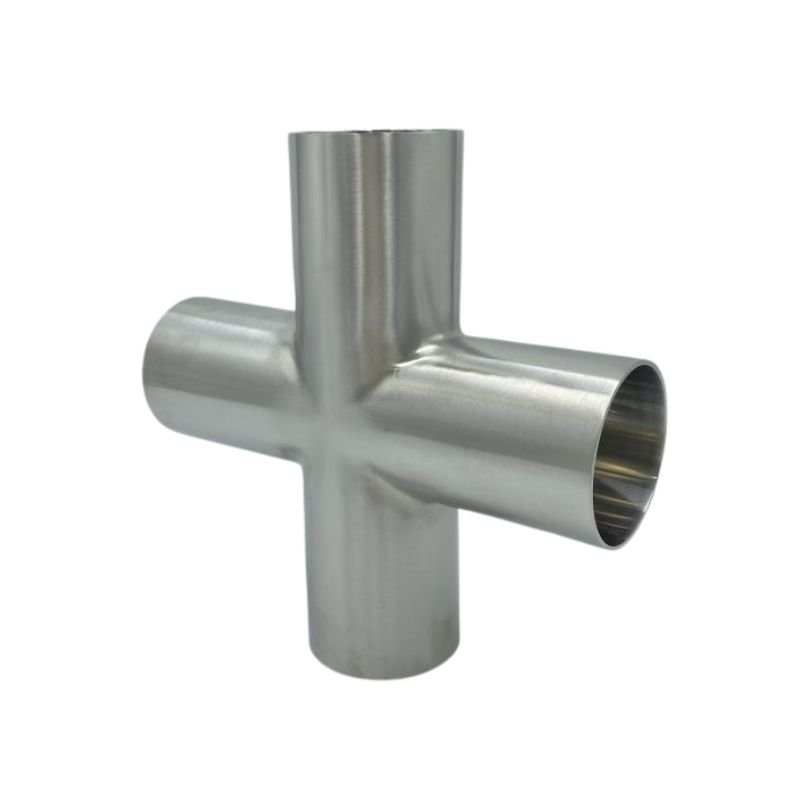

Are used for multi-directional manifold connections and are suitable for centralized distribution nodes in complex piping layouts.

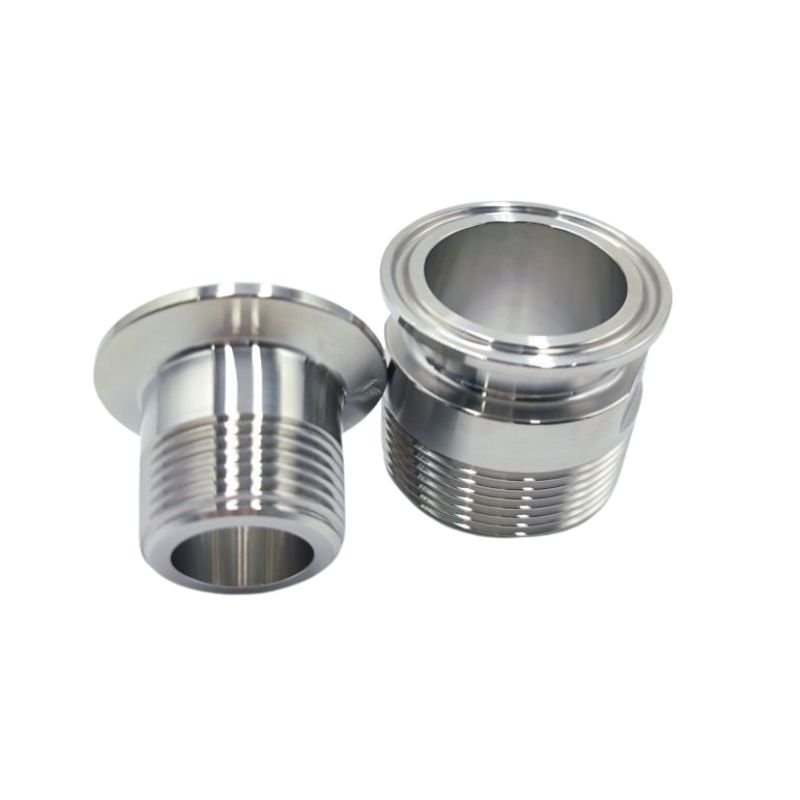

Are threaded connections for localized removable or equipment interface connections.
Features of 3A Pipe Fittings
In food and dairy production lines, where cleanliness of the fluid and stability of the conveying system are important, 3A Pipe Fittings are designed for such hygienic systems, guaranteeing that the fluid is not contaminated and that the system is sealed reliably, while supporting review requirements and continuous production.
Construction conforms to 3A hygienic design principles, minimizing the risk of dead spots and residue, and is compatible with CIP / SIP cleaning processes.
Controlled internal surface roughness meets sanitary cleaning requirements and reduces the potential for contamination buildup.
Made of 304, 304L, 316L stainless steel, material traceability and batch information can be traced for quality management.
Critical dimensional tolerances are controlled to ensure sealing stability of clamps and welded connections.
Reduces the risk of leakage during operation through sealing and leakage testing of the finished product.
Covers 3A and various sanitary standard systems, which facilitates uniform selection of the entire system.
Suitable for high-frequency on-line cleaning environment, stable structure, not easy to deform.
Controls batch differences through process inspection, facilitating later maintenance and replacement.

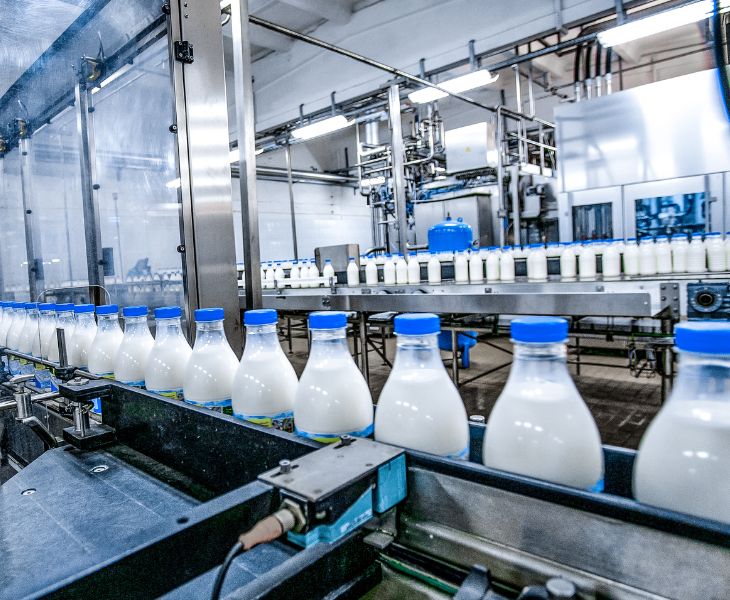

High Hygienic performance
In food and dairy production, hygiene risks often stem from details such as uneven welds or the formation of tiny stagnant areas at installed connections. OMSS’s 3A fittings feature optimized transitions at elbows, tees, and reducers, and control interior surface roughness. This allows for smooth flow of liquid and reduces the build-up of residues. This design makes it easier to meet cleaning requirements during high-frequency CIP cleaning and helps pass audits and third-party inspections.

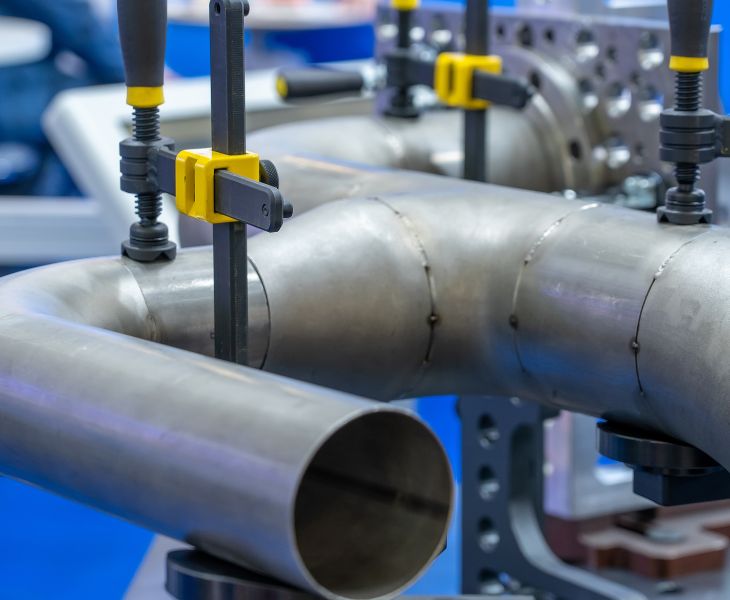

Dimensional Consistency
In food and dairy production, where sanitary risks often arise from details such as uneven welds or tiny stagnant areas at pipe connections, OMSS’ 3A Pipe Fittings are designed to meet the 3A standard, with optimized transitions at elbows, tees, and reducers to allow fluid to flow smoothly and reduce residue buildup.
This design makes it easier to meet cleaning requirements during high-frequency CIP cleaning and helps ensure consistent and reliable sanitary performance through customer audits and third-party inspections.
Applications of 3A Pipe Fittings
3A Pipe Fittings are primarily used in fluid transfer systems where stringent hygiene standards are required. These systems are designed to meet the requirements of 3A compliance while ensuring that the connections are reliably sealed, easily cleaned, and can be operated reliably over long periods of time. 3A compliant Pipe Fittings are often preferred in these industries.

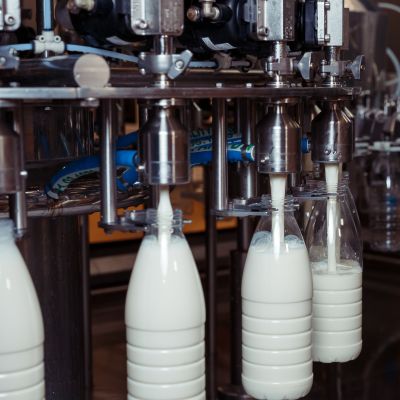

Milk and dairy products are susceptible to microbial growth, and any retention or sealing failure at pipe connections can lead to contamination. Therefore, 3A fittings are often used in pipes between storage tanks, heat exchangers and filling systems to reduce cleaning dead spots and maintain a stable seal under high-frequency CIP cleaning conditions to effectively reduce the risk of microbial contamination.

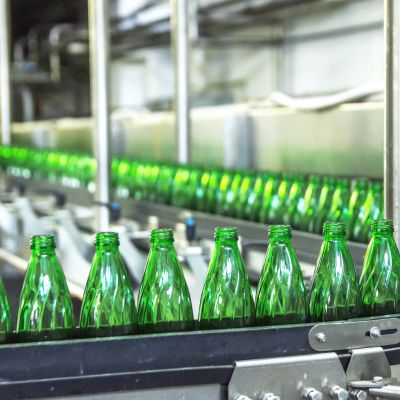

Beverage production lines, such high-speed filling and circulation systems, require dimensional accuracy and sealing performance of pipe connections. 3 A pipe fittings are commonly used to connect mixing systems, filter units and filling equipment. OMSS’s 3 A Pipe Fittings can guarantee stable connection, meet the cleaning and sealing requirements of beverage production.

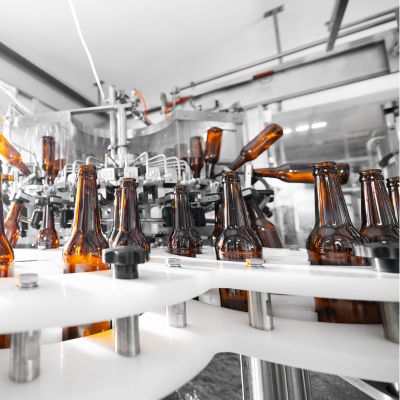

The beer production process consists of several cyclic stages in which the pipes need to withstand different temperature variations and cleaning intensities. If the joining surface is rough or the structure tends to remain, fermentation may be affected. Thus, OMSS’s 3 A pipe fittings can be used in critical transfer and transfer locations where the smooth inner surface structure is easy to clean and verify.

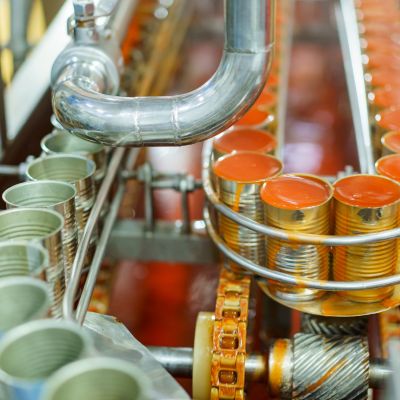

Sauces and some liquid food products have a certain viscosity that can be easily trapped at elbows or reducers. For this reason, these lines often use 3A Pipe Fittings at the conveying and filling nodes, where sanitary transitions improve fluid flow through the line and support in-line cleaning.
- Certificate of Compliance
Customer Reviews
We ordered stainless steel tank accessories and pipe fittings from OMSS for industrial fluid handling applications. The products arrived on time with proper protection, and the installation process was smooth. Their team was responsive whenever we needed technical information before and after delivery.
ThomasOMSS has become one of our trusted stainless steel component suppliers. We appreciate their fast communication, clear order updates, and careful packaging. Even for customized parts with different specifications, they maintain good consistency between samples and mass production.
SarahWe have strict requirements for surface finish and hygiene standards in pharmaceutical equipment. OMSS stainless steel fittings showed excellent workmanship, with smooth surfaces and precise machining. Their products helped us meet our equipment assembly requirements and maintain reliable production performance.
Michael
Yes. OMSS manufactures both Tri-Clamp (clamp quick release) and Butt-Weld 3A Pipe Fittings in our factory.
- If the system needs to be disassembled and cleaned frequently, Tri-Clamp is better because it is faster to disassemble and install and the labor costs are more manageable.
- If it is a long term fixed operation of the main line, butt-welded structure is more stable, more suitable for a continuous production environment.
You don’t need to modify the original system because of the connection method, we can supply it directly according to the existing pipeline structure.
The working pressure of the system is typically between 6-10 bar in normal food and beverage applications and the temperature range is typically -20°C to 150°C. The temperature resistance depends on the chosen seal material.
Before shipment, OMSS confirms the strength of the construction and the sealing compatibility with the actual usage scenario, with emphasis on the stability after thermal cycling.
Commonly used sealing materials include EPDM, Silicone, PTFE and FKM.
We do not default to a particular material, but rather recommend a match based on the nature of the media, frequency of cleaning and operating temperature.
Three key parameters need to be confirmed when selecting the tubing: outer diameter, wall thickness standard and connection method.
OMSS suggest that you provide the specification data of your existing tubing or physical samples, and we will process them according to the 3A standard tolerance to ensure that they can be directly replaced without the need for secondary adjustments on site.
If butt-welded constructions are used, hygienic welding methods such as automatic orbital welding are recommended. We control the accuracy at the end-face machining stage to ensure that automatic butt-welding can be carried out directly, reducing the need for on-site trimming. With welding process specifications in place, the system will be more stable in long-term operation.
Yes, but the choice of construction is critical. Highly viscous media is more likely to be trapped in elbows or reducer transitions during flow. OMSS control the structure of the transition on the inside surface of elbows and reducers to minimize dead space and thus reduce the risk of retention.
3A Sanitary Pipe Fittings Selection Guide
What is 3A Certified Pipe Fittings and Where Did It Come From
3A Sanitary Standards were developed by 3-A SSI in the U.S. Initially, they served the dairy processing industry, but have since been expanded to include food, beverage, pharmaceutical, and other fluid-handling systems requiring a high level of sanitation. 3A standards are based on the following logic. The core logic of the 3A standard is that equipment must be designed and constructed of materials that support thorough cleaning, with no dead spaces, crevices or rough surfaces to harbor dirt.
3A-compliant fittings are audited by a third-party certification body and marked with the 3A symbol, which means you can confirm compliance directly with the certification mark instead of having to verify each batch of material and process on their own.
Core Differences Between 3A Fittings and Sanitary Fittings
There are a large number of “sanitary fittings” on the market that look similar to 3A-certified fittings, but there are substantial differences between the two.
Material Requirements: The 3A standard requires the use of 304, 304L or 316L stainless steel for metal surfaces that come into contact with food, with specific minimum chromium and nickel content requirements. Non-certified fittings may use alternative alloys that match the appearance but do not meet the composition standards.
Surface Roughness: 3A requires product contact surfaces to have a Ra value of no more than 32 μin (approximately 0.8 μm), with some applications requiring less. Excessive surface roughness can lead to biofilm buildup that cannot be completely removed by CIP. There is no mandatory requirement for common sanitary fittings, only a manufacturer’s declaration.
Geometric design: 3A specifies tolerances for inside diameters, fillet radii, and fitting fits to ensure that there are no dead zones for fluid retention. Common fittings are designed with strength and sealing in mind and do not necessarily meet sanitary cleaning requirements.
Traceability: 3A-certified fittings are required to be accompanied by MTR and heat-treatment records. This is required for food safety audits and FDA inspections.
Scenarios for the 3A Standard and ASME BPE
The ASME BPE (Bioprocessing Equipment) standard was developed by the American Society of Mechanical Engineers and is geared toward biopharmaceutical, high-purity water and water for injection systems. The two standards share a common foundation in hygiene concepts, but have different emphases and distinct boundaries of application.
The core of the 3A standard is cleanability and food safety compliance, and its certification system is aligned with the FDA’s PMO (Pasteurized Milk Ordinance) regulatory framework, which is the de facto threshold for dairy, beverage and food processing equipment to enter the U.S. market.
ASME BPE, on the other hand, emphasizes sterility and system integrity, placing more stringent requirements on weld quality, endoscopy, bevel angles for aseptic preparation, cell culture and biofermentation systems, as well as BPE fittings and operator qualifications.
In food processing systems, 3A should be selected over ASME BPE in the following situations:
- The system is CIP/SIP cleaned rather than sterilized.
- The end product is a food or beverage and the regulatory agency is the FDA Center for Foods rather than the Center for Pharmaceuticals.
- The plant needs to be reviewed for equipment certification by the USDA or state dairy regulators.
- The system operates at pressures and temperatures that are within the range of conventional food processing and does not need to meet the high specification weld requirements of BPE.
Conversely, when the system involves water for injection, aseptic filling or API intermediates, ASME BPE should be selected; 3A certification is not sufficient to cover the appropriate regulatory requirements.
Choice of Elbows and Variable Diameter Joints
In sanitary piping systems, elbows and reducing fittings are critical nodes affecting the flow pattern, and improper selection can directly affect cleaning results and product quality.
- 3A Elbows: The standard bending radius shall not be less than 1.5 times the diameter of the pipe to minimize the impact and retention of the fluid in the turn.
Although the short radius elbow to save installation space, in viscous media or media containing particles will produce a dead zone, CIP flow rate is not enough to flush clean.
For low flow rates and high viscosity media such as syrups and sauces, elbows with a radius of 3D or greater should be preferred.
- Reducing Fittings: 3A specifies that the taper angle of concentric reducers shall not exceed a specified value to avoid turbulent separation and cavitation of the fluid in the expansion section and abnormal back pressure in the reduction section.
In lines for emulsions or gaseous products, reducers with non-standard taper angles can disrupt the fluid structure and affect product uniformity.
Eccentric reducers are used in lines that require self-venting and should be installed with the flat bottom facing up or down, depending on whether the system is to be fully vented.
The ID transition of the fittings must match the ID of the connecting piping. Misalignment of more than 1/32″ creates a step, which is a point of accumulation for particles and biofilm, and is a common failing condition in CIP validation.
