Optimizing industrial process requires precise real-time monitoring without stopping operations. Sight glasses serve as specialized windows, allowing engineers to verify flow and media integrity without costly downtime.
This guide explores the fundamental elements of sight glass technology – from design, best material option, and their practicality in your industrial setup.

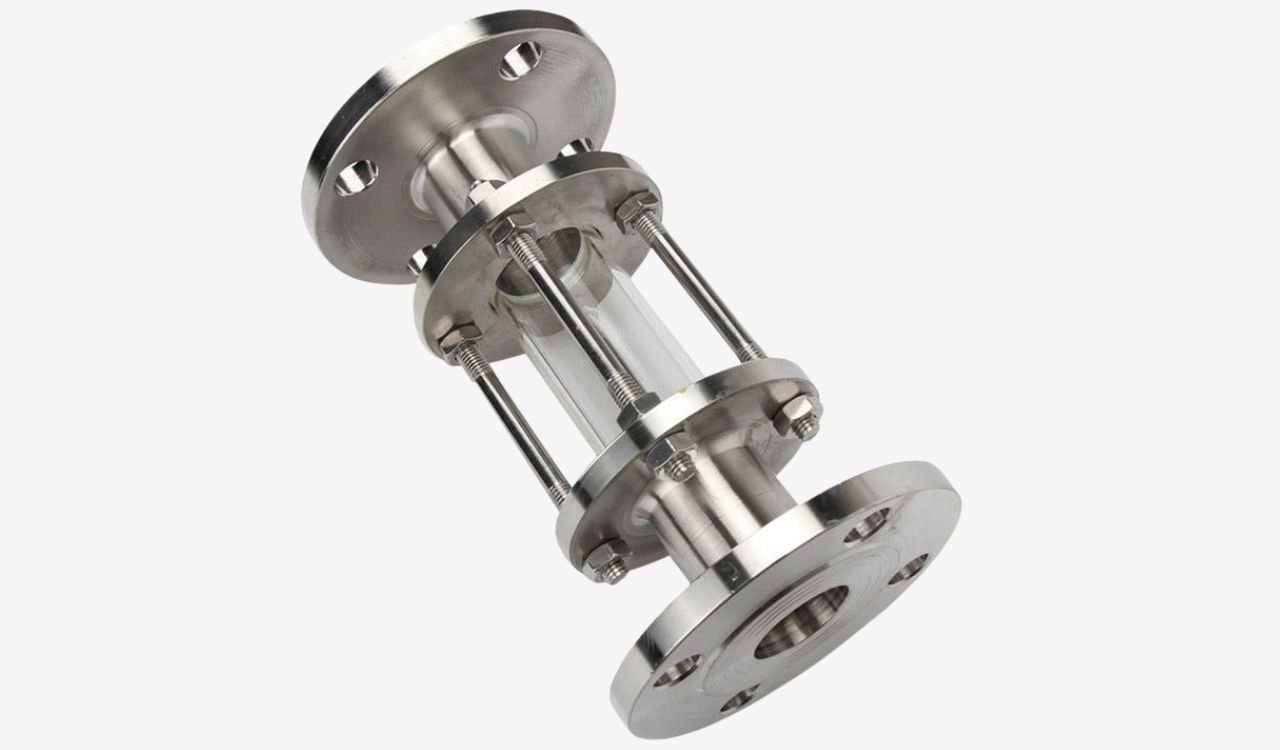

What is Sight Glass?
Sight glass is a transparent system that is installed in pipelines to allow operators to inspect fluid visually without opening the system. Ideally, it works as a viewing port or window, which serves as an important inspection point.
Function of Sight Glass
In most processes or piping systems, these systems are designed to serve many functions such as:
· Monitoring Flow Rate
Sight glass helps you to visually observe the movement of your fluid through a pipeline. When fluid flows through the pipeline, there is a faster flow resulting from rotor spins. This rotation will give you a rough indication of flow intensity giving you a qualitative flow monitoring.
· Check Liquid Level
When you install a sight glass in your pipeline industrial system, the liquid level visible in the sight glass corresponds to the actual level within the container.
· Monitor Color Changes
Sight glasses help detect color changes by providing a clear viewing window through which you can observe your fluid in real time.
· Check Presence of Contaminants or Bubbles
They provide a transparent viewing section where you can inspect the condition of your fluid with clarity without opening the system.
· Check Fluid Quality
Contamination, or chemical degradation can change fluid quality. Sight glasses enable you to detect such issues without interrupting your system.
· Observe Production Stages or Phase Separations
You can track how your fluids behave during mixing, reaction, settling, or separation processes by visually observing through sight glasses.

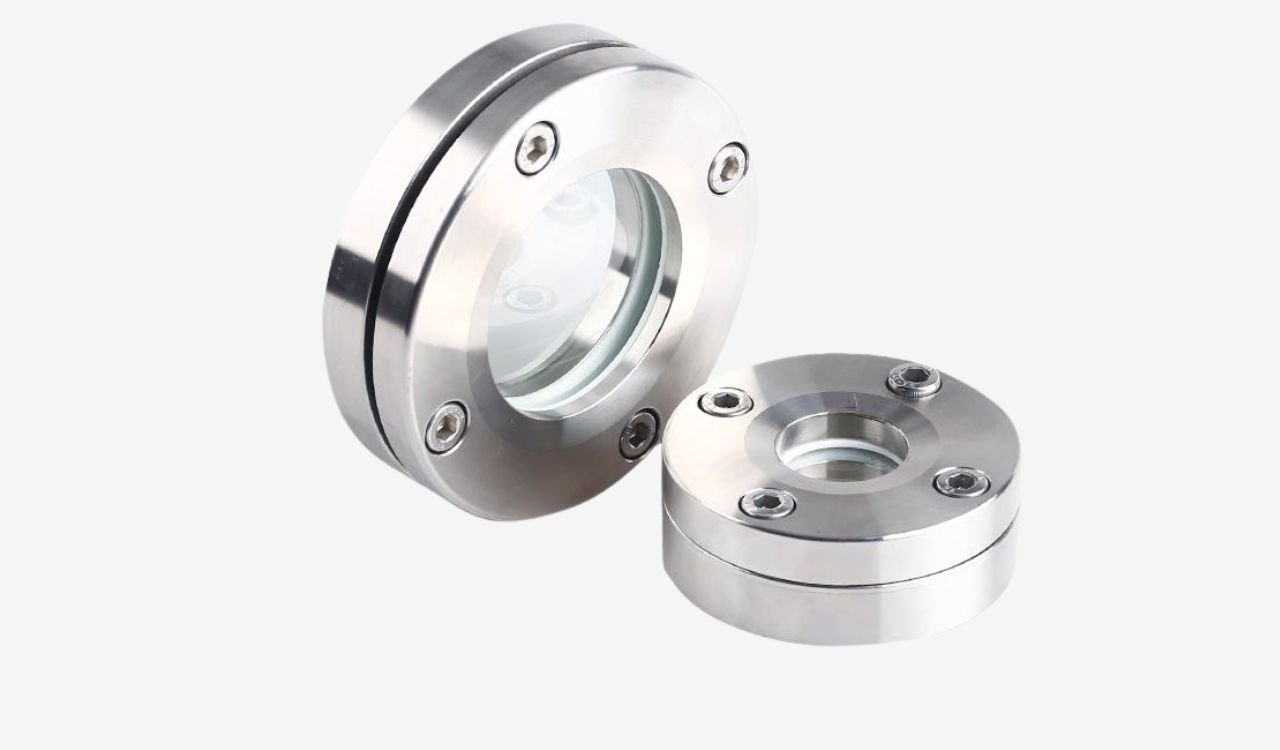

Key Components
A sight glass is an assembly of 4 main components. However, there are other advanced options which many have additional parts.
The most basic sections include:
· Window/Lense
This is the transparent section of a sight glass that acts as the viewing interface between the external environment and the process fluid. You can visually inspect the internal conditions of pipelines, vessels, or processing equipment through it.
· Housing/Body
It securely holds the sight glass in position and protects it from mechanical damage, vibration, and external impacts. It also ensures that the sight glass assembly can safely handle internal pressure without leakage or failure.
· Gaskets/Seals
They seal gaps between sight glasses, its housing, and connection points to prevent fluids or gases from escaping.
· Fasteners
They hold the sight glass” window securely in its housing, preventing movement or shifting under pressure, vibration, or thermal expansion. When in place, they compress gaskets evenly to maintain a leak-proof seal.

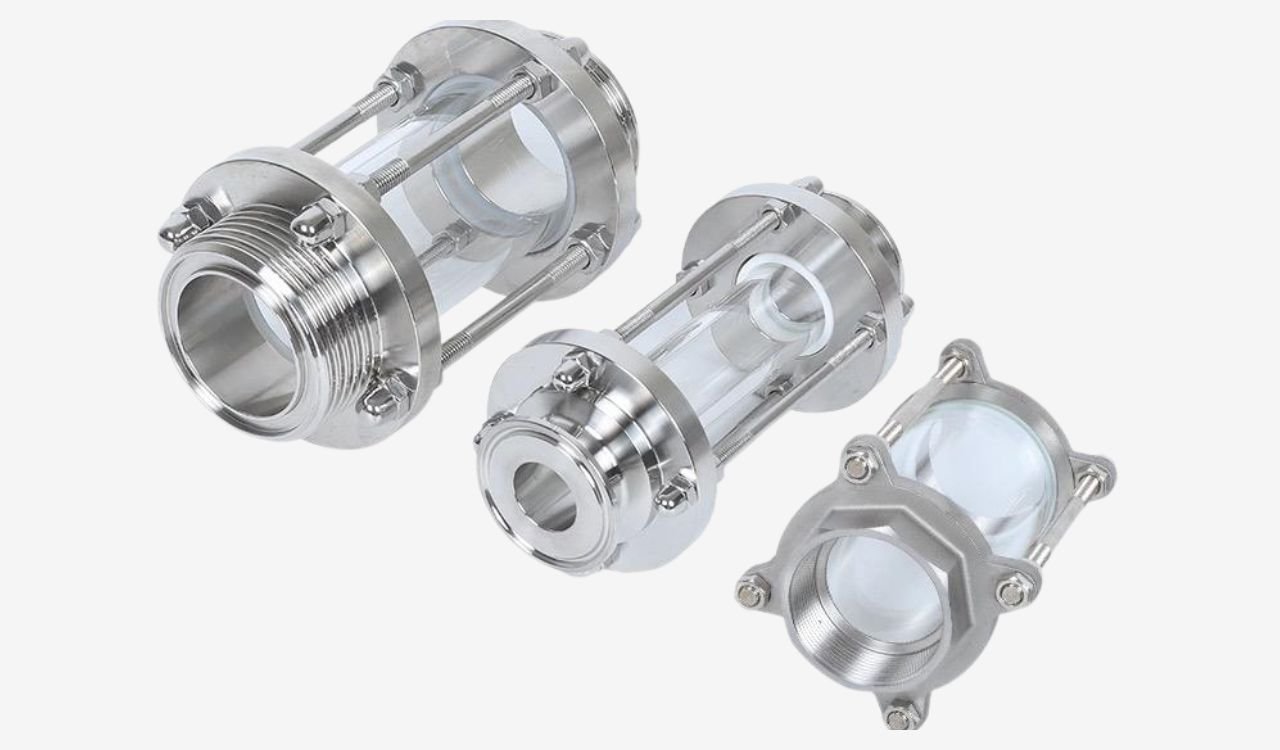

Types of Sight Glass
Broadly, we can classify sight glasses by window, mounting technique, reading technique or special application requirements.
By Window Design
Tube-style Sight Glasses
They are cylindrical and often mounted vertically between two metal end fittings. These types of glasses give you a continuous level indication where you can see the entire liquid level range along the length of the tube.
Transparent Sight Glasses
These are flow indicators that use two parallel transparent glass plates mounted in a metal frame. They allow light to pass through the liquid between its two glass plates. With these you can be able to monitor chemical reactions, color changes, and fluid behavior because they provide a clear view of the fluid and its properties.
Reflex Sight Glasses
It uses a single glass plate with grooved surface on the inside creating an optical effect that provides strong contrast between liquid and vapor. It also allows you to identify your liquid level without needing external illumination.
Circular Sight Glasses
It is a round shaped clear window that you can install in your process equipment and visualize internal conditions of your fluid without opening it. They provide a direct viewing port into your process chamber allowing you to observe internal conditions of your fluid.
By Mounting Technique
Flanged Sight Glasses
Flanged sight glasses are mounted within a metal housing then attached to a process system through standard pipe flanges. These glasses provide you with a strong bolted joint that can withstand high pressure and temperatures.
By Reading Method
Direct Reading Level Gauge
They allow you to instantly see your actual liquid level without relying on instrumentation. It displays readings directly through transparent flat glass panels.
Indirect Reading Level Gauge
Indirect reading level gauge operate by measuring a related physical property that changes with liquid level. You can instantly observe pressure difference between two points in a vessel.
Special Application
Vacuum Viewports
Usually installed in vacuum chambers or sealed systems to allow you visualize internal process as you maintain a vacuum environment. They are designed to handle pressure differentials and maintain vacuum stability.

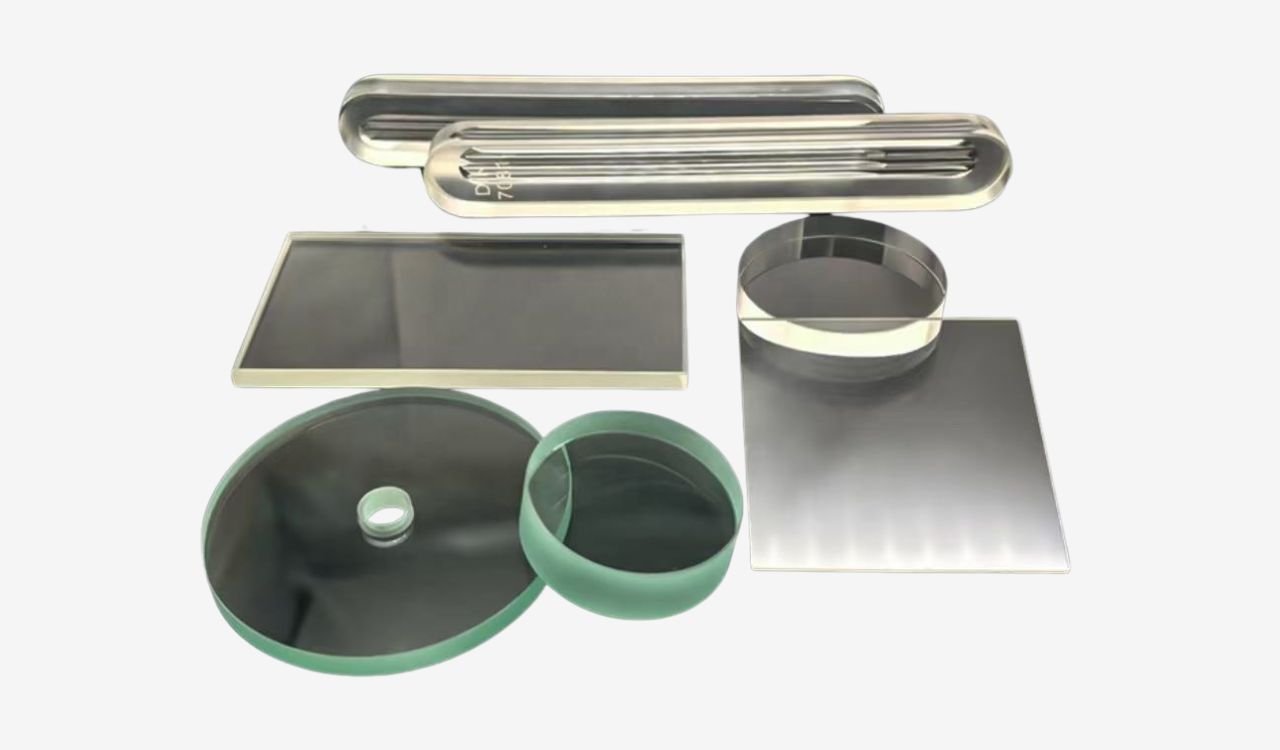

Heat Sight Glasses
They are made of heat resistant glass materials that enable them to operate in high temperature environments. They allow you to visually inspect process conditions in pipelines without exposing your system to atmospheric conditions.
How to Choose Sight Glass
Operating Temperature (Thermal Shock Resistance)
You need to understand thermal shock because rapid change in temperature creates internal stress that can crack or shatter the glass. Consider glass thickness by avoiding unnecessarily thick glass in high-temperature systems.
Operating Pressure
Identify the maximum process pressure the sight glass will experience by considering pressure surges which can exceed normal operating pressure. You must choose the appropriate material that can withstand pressure.
Abrasion Resistance
Different glass and transparent materials have very different wear resistance. Understand the abrasive conditions and choose abrasion resistant glass material. You can also consider protective coatings and guards for highly abrasive applications.
Chemical Compatibility
Identify the chemical properties of the process fluid and choose glass material based on chemical resistance. Consider process conditions as you evaluate seal and gasket compatibility.
Optical Clarity
Go for materials with high optical transparency and low color distortion. Ensure that surfaces are smooth and free from pits or micro-cracks, which can scatter light.
Material Grade
| Common Types of Glasses | Remarks |
| Soda-lime glass | · Max temperature: 280°C. · It has low chemical resistance and low thermal shock tolerance |
| Borosilicate glass | · Temperature range: 280°C to 350°C. · It has moderate thermal shock resistance and are widely used in chemical processes |
| Aluminosilicate glass | · Max temperature: 750°C · This glass has high thermal shock resistance and strength integrity. |
| Glass-ceramics | · Max temperature: 750°C · It has an excellent thermal shock resistance and can be used in extreme temperature gradients |
| Fused silica | · Max temperature: 1200°C · This glass has high thermal shock resistance with excellent chemical resistance |
| Sapphire glass | · Max temperature: 2000°C · It offers an exceptional thermal, chemical, and abrasion resistance |
Safety Standards Compliance
American society for testing and materials (ASTM E438) covers chemical durability, thermal shock resistance, and mechanical strength. On the other hand, ASTM F1125 focusses on safety requirements for flat glass in pressure vessels.
American society of mechanical engineers (ASME) B31.3 / B31.1 focuses on piping codes referencing sight glass components for chemical and process pipelines. They ensure that installations practices meet safety requirements.
International organization for standardization (ISO 9001/3580) covers quality management standards ensuring manufacturing consistency. It also states guidelines for safety, design, and materials for sight glasses in high-pressure systems.
Applications of Sight Glass
Piping Network
Sight glasses are installed in piping systems to monitor flow and verify that fluid is moving through your system. In horizontal pipeline, you can observe fluids to prevents pump dry-run, overfilling, or unintended process conditions.

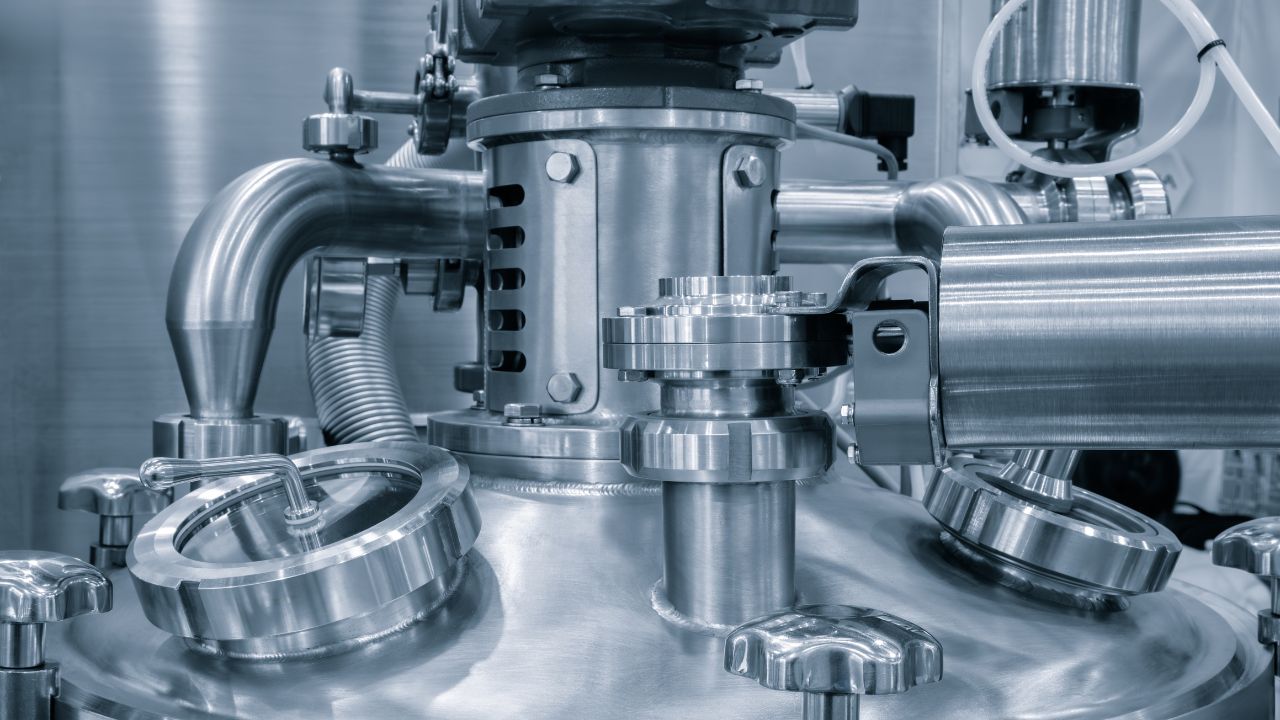

Storage Tanks and Vessels
They help in monitoring fluid levels to prevent overfilling, underfilling, or dry-run scenarios in pumps or downstream processes. Also, they ensure product meets quality standards and detects contamination because you can observe color, turbidity, or homogeneity in stored liquids.
Reactors and Separators
In reactors, sight glasses allow you to visually track the progress of your chemical reactions provides immediate feedback that instruments may miss. They also help you to visually monitor phase separation and confirm whether phases are separating correctly.
Machinery
Sight glasses in machinery allow you to see and verify that lubricating oil is circulating properly. When installed in coolants lines, they help you confirms that coolant is reaching critical components.
Material Processing Systems
These glasses help you to visually confirm the movement of materials through pipelines, conveyors, or processing equipment. This means you can be able to verify continuous material flow and detect blockage or interruptions.
Boiler Systems
In boiler systems sight glasses help you observe water level inside your stream drum or boiler shell. You can also be able to detect rapid changes in water level as well as irregular stream water interface.
FAQ
What causes sight glass to turn cloudy?
There are many variables that can cause cloudiness of sight glasses, and these include:
- Mineral buildupfrom hard water or process fluids
- Aggressive chemicals that react with the sight glass surface
- Abrasive materialsand particles that can scratch the sight glass
- Rapid temperature changes which can create microcracks in the glass
What causes sight glass to fail?
In most instances, the failure may be due to 4 main condition such as:
- Pressure surges and sudden valve closures causing pressure spikes
- Thermal shock as a result of rapid temperature changes
- Chemical corrosion which reduces glass thickness and structural strength
- Abrasive materials can gradually wear down the glass surface creating weak points
What is the difference between gauge glass and sight glass?
| Gauge Glass | Sight Glass |
| Indicates liquid level inside a vessel or boiler | Provides visual observation of fluid flow or condition |
| Installed on boilers, tanks, and vessels where level monitoring is required | Installed in pipelines, reactors, separators, or equipment |
| Provides direct level indication of liquid | Does not measure level precisely, mainly used for observation |
| Gives high accuracy because it directly reflects the liquid level inside the vessel | Gives low accuracy for level measurements mainly indicates qualitative observation |
