Choosing between a butterfly and ball valve for your industrial fluid control determines your system’s maintenance cycle, reliability and efficiency. Beyond simple on-off functionality, you must evaluate critical factors like pressure drops, installation footprint and torque requirements, among other process variables.
Therefore, to ensure your system operates optimally, you must examine how each valve handles your unique flow conditions.

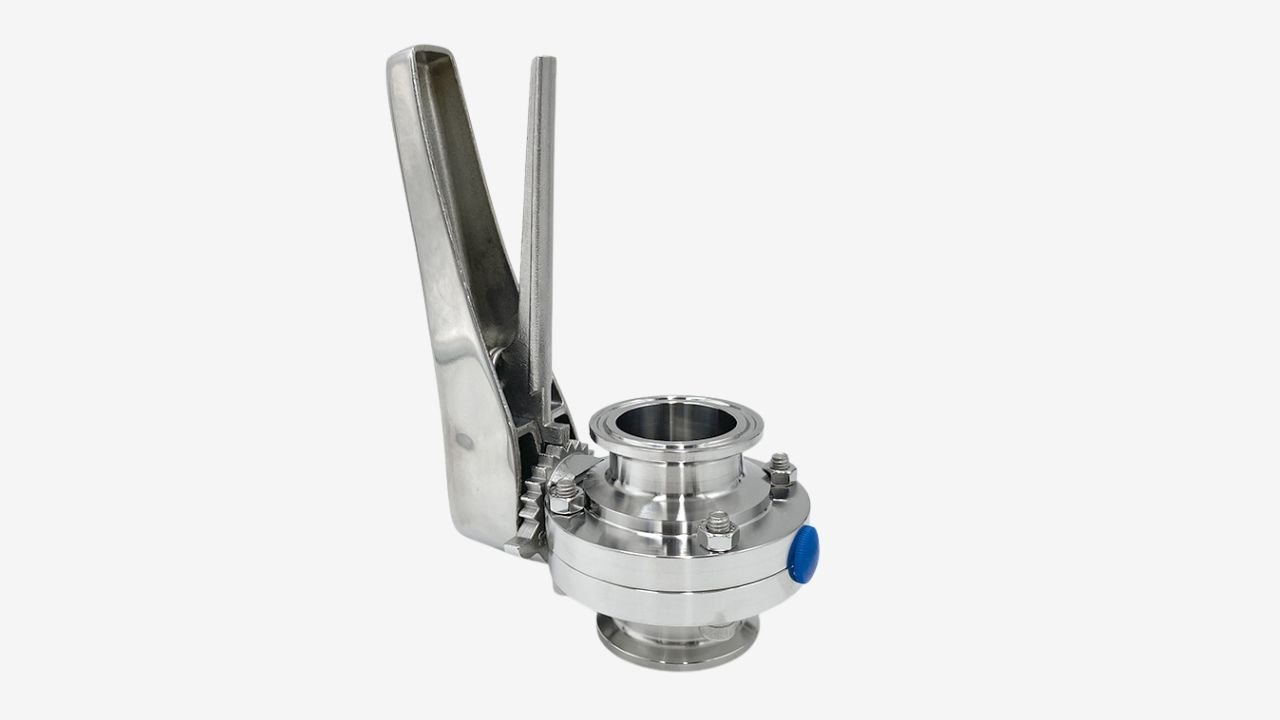

What is a Butterfly Valve?
A butterfly valve uses a rotating disc to control or block fluid flow in a pipeline. It operates with a quarter-turn mechanism, positioning the disc on a central shaft inside the valve body.
When the valve’s actuator or handle turns the shaft, the disc also turns accordingly, allowing full fluid flow. This occurs when it is oriented parallel to the flow path and blocks it entirely when turned perpendicular.
Because of this simple design, butterfly valves are very popular in industrial settings where quick shut-off, compact size, and cost-effectiveness are important. You can find these valves in many systems, such as HVAC pipelines, chemical processing plants or large diameter pipes.

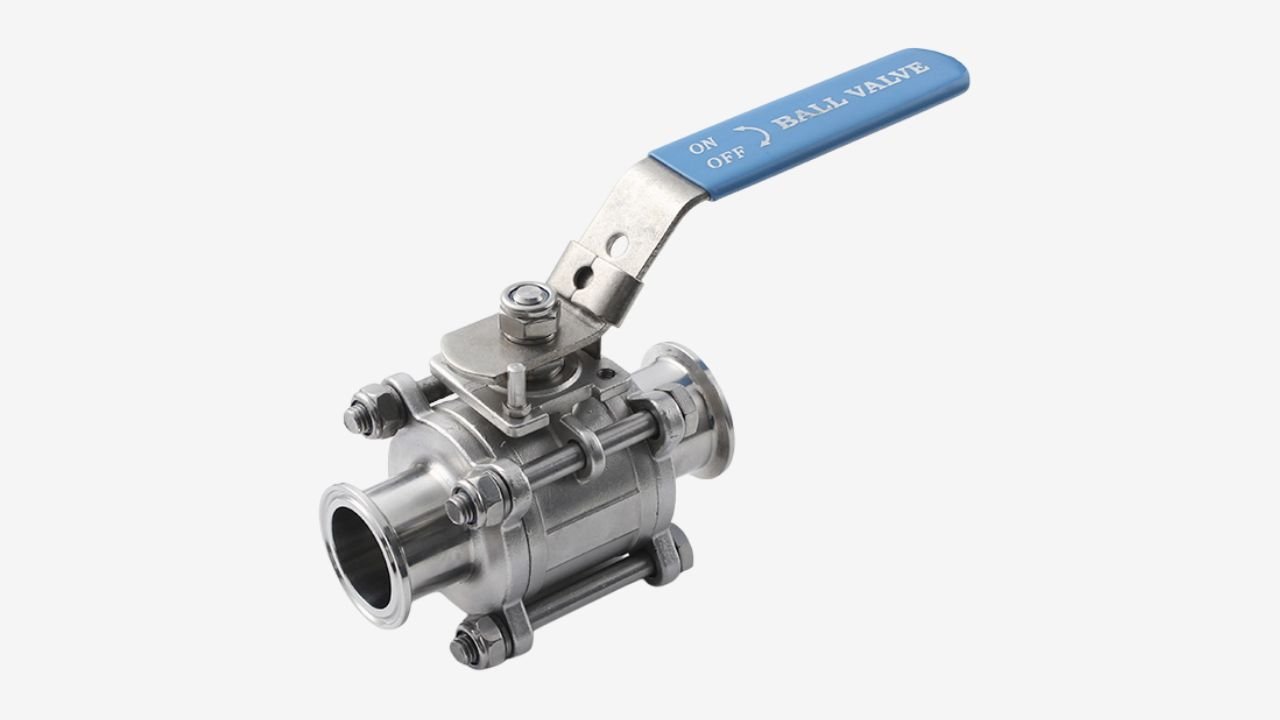

What is a Ball Valve?
As the name suggests, this valve uses a spherical ball to control fluid flow. This spherical ball that controls fluid flow has a bore drilled through its center making it a precise shut-off valve.
Just like the butterfly valves, ball valves also have a quarter-turn design, allowing them to close or open in a 90-degree rotation.
The hollow ball in the valve body allows fluid flow when the bore is in line with the cross-section of the pipe. However, when you turn the handle at 90 degrees, it completely prevents fluid flow.
You will find these valves mostly in chemical, food processing, oil, and gas systems, among other industrial settings.

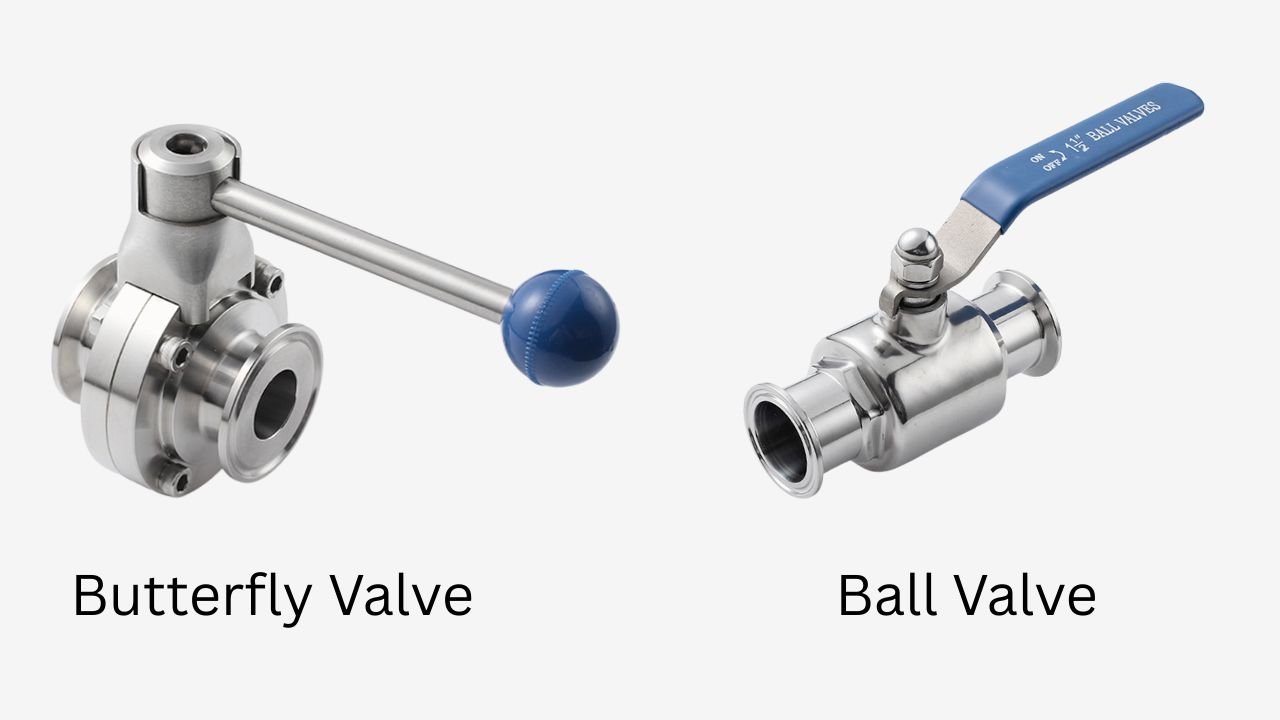

Differences between Butterfly Valve and Ball Valve
Understanding the differences between butterfly valves and ball valves will help you make an informed decision when choosing these pipe fittings. That is, you must analyze their differences based on design, performance, and working principle, among other features.
First, let’s have a summary in the table below:
| Features | Butterfly Valve | Ball Valve |
| Structure | · Uses a disc that rotated within the shaft | · Uses a ball with a bore at the center |
| Sealing capability | · Although it provides a good sealing, at higher fluid pressure, there is a possibility of leakages | · Offers a “bubble-tight” sealing, hence suitable for high-pressure applications |
| Size and weight | · Thin with compact size, which makes it lightweight | · Bulkier due to its spherical housing |
| Pressure drop | · Opening and closing the disc causes turbulence that may result in a higher pressure drop | · Pressure drop is minimal since the full post allows free fluid flow |
· Pressure Handling
Ball valves can be used in high-pressure environments because the rotating ball presses against the seats, creating a good seal. On the other hand, butterfly valves are suitable for low to medium-pressure systems. Nevertheless, the newer high-performance butterfly valves may operate in the industrial pipelines with higher pressure as well.
At the same time, it is important to note that butterfly valves are characterized by a higher pressure drop due to the disc, which tends to cause turbulence. This is not the case for ball valves, whose spherical ball with bore results in minimal pressure drop.
· Flow Control
Ball valves are frequently full-bored, that is, the flow around the ball is almost equal to the pipeline. This permits the flow of fluid with a low pressure drop. The flow of butterfly valves is such that the disc remains in the flow path even when open, and this forms a small resistance to flowing fluid.
In other words, as the flow in ball valves remains “straight and clear”, in butterfly valves the flow is bisected by the disc. Therefore, you can use butterfly valves for basic throttling.
· Shut Off
Ball valves have good shut-off characteristics. At a closed position, the ball presses the clamp firmly onto the valve seats, creating a tight seal that serves to prevent leakage. That is, it offers a bubble-tight sealing.
It is also possible to have a reliable shut-off using butterfly valves, particularly when the valve is designed with sturdy seats. Nonetheless, ball types of valves have a higher preference in the systems where an airtight sealing is necessary.
· Speed of Operation
The Butterfly valves and ball valves are quarter-turn types, i.e., they are supposed to be turned 90 degrees to either remain fully open or fully closed. The Butterfly valves do not need a lot of torque to operate, especially when working with large pipes; therefore, they are applicable in automated systems.
In most instances, when these valves are automated, it is critical to pay attention to:
| Feature | Ball Valve | Butterfly Valve |
| Torque requirement | · Torque requirement is high, hence, you will require large actuators, which may be costly | · Torque requirement is low, hence you may need a small and compact actuator |
| Cycle time | · Extremely fast, hence suitable for emergency and complete shut-off operations | · Although it is fast, but lower than the ball valve |
· Space and Weight
The butterfly valves are usually smaller and lighter than ball valves of the same size. This allows it to be installed easily, especially when it is installed in large pipeline systems where space and weight are paramount factors.
· Cost
Butterfly valves tend to be affordable, particularly on large pipe sizes. Their designs are simpler and lighter, which helps in minimizing manufacturing and installation costs. On the other hand, ball valves are more expensive, especially in the initial installation cost. This is because the ball valves’ internal components tend to be complex, besides being bulky.
· Maintenance
Butterfly valves have a simpler internal structure, which can reduce maintenance requirements. However, ball valves have more internal parts, but both types can last a long time if properly maintained.
When to Choose the Right Valve

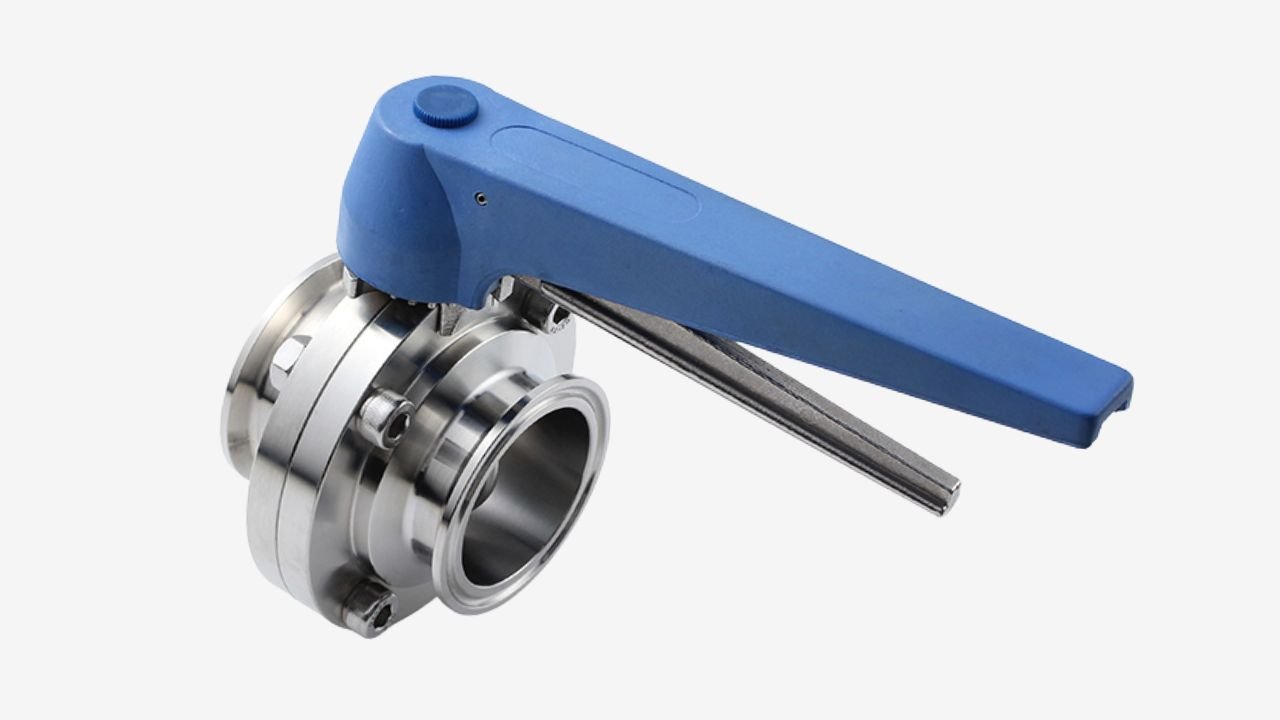

Choose Butterfly Valve when:
Butterfly valves are preferred in applications where compact design and cost efficiency are important. You should consider using a butterfly valve when:
- The system involves large pipe diameters
- Installation space or weight is limited
- The application mainly involves water or low-pressure fluids
- A cost-effective valve solution is required
- The system requires fast and simple operation
These valves are commonly used in water treatment facilities, HVAC systems, and large industrial pipelines.

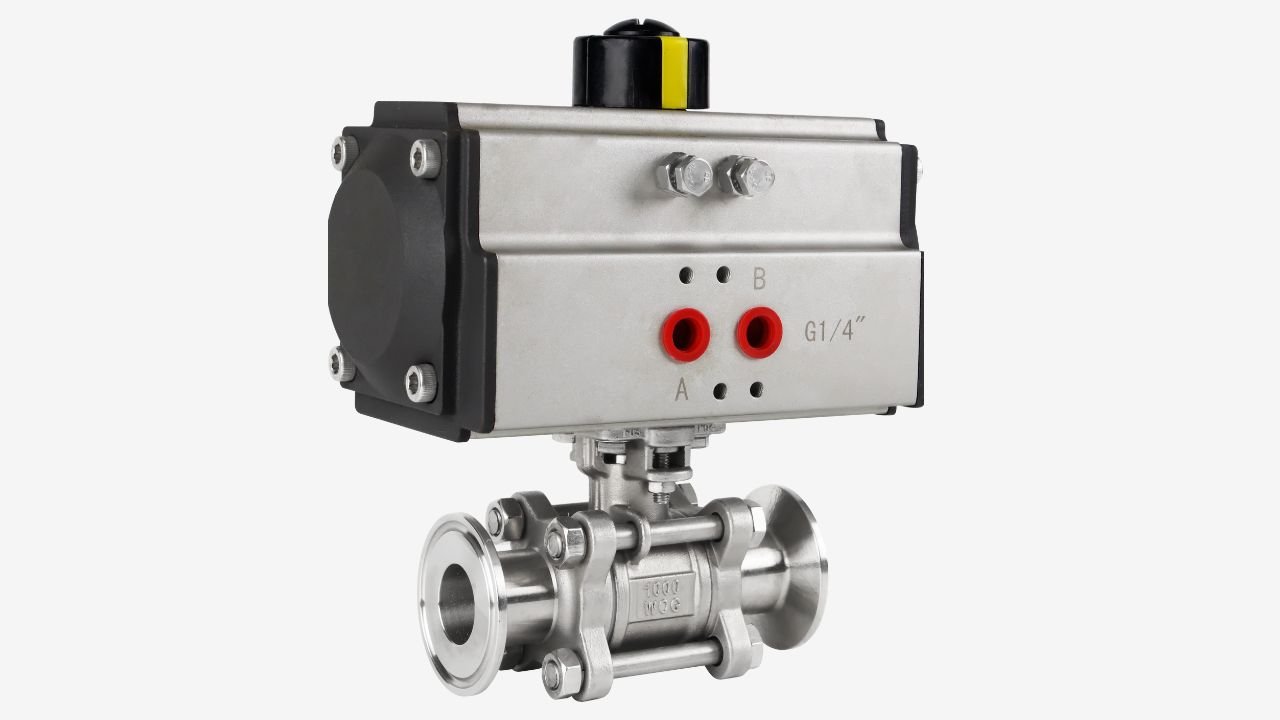

Choose Ball Valve when:
Ball valves are commonly chosen for demanding systems that need dependable sealing and high-pressure capacity. Consider using ball valves when:
- The system operates under high pressure
• Leak-tight shut-off is essential
• The pipeline transports gas or petroleum products
• A minimal pressure drop is necessary
• The system must function in demanding conditions
Ball valves are commonly used in oil and gas pipelines, chemical processing plants, and high-pressure industrial systems.
In summary, here is a quick checklist on how butterfly valves and ball valves handle different fluid media:
| Type of Fluid Media | Butterfly Valve | Ball Valve |
| Clean water or air | · Excellent, and it guarantees a cost-effective solution even for high volume | · Excellent since it also provides the best leak-proof sealing mechanism |
| Slurry or mud | · Best choice due to the thin disc that will allow particles to flow freely | · Poor since the solid particles may clog the bore cavity |
| Gases or steam | · Not highly recommended since the disc is susceptible to vibration under high velocities | · Best choice considering the spherical ball creates a bubble-tight sealing |
| Viscous oil | · Although it is a good option, the disc may cause flow resistance | · Excellent, especially for the full-bore configuration, since the flow will have virtually no resistance |
| Sanitary application | · A perfect choice due to a few dead zones | · When the product gets trapped in a hollow bore, it may be difficult to clean |
FAQs
Why should you use a butterfly valve instead of a ball valve?
Butterfly valves are smaller, lighter, and more affordable, especially when you want to use them in large pipes. They are ideal in water systems and where there is a lack of space.
What are the disadvantages of butterfly valves?
The butterfly valves may lead to a reasonable amount of pressure drop since the disc remains in the flow. They may not perform so well in extremely high-pressure or high-temperature circumstances.
What are the disadvantages of a ball valve?
Ball valves are expensive, particularly large ones. They are also weightier and may require additional space to be installed.
How much pressure can a butterfly valve handle?
The butterfly valves of standard type are commonly used with a low to medium pressure system, but high-performance types may be used with higher pressure depending on their construction and materials.
Do butterfly valves need flanges?
Butterfly valves are commonly left between pipe flanges by people. The mode of mounting will be different when it comes to the valve type; it may be a wafer, lug, or flanged design.
