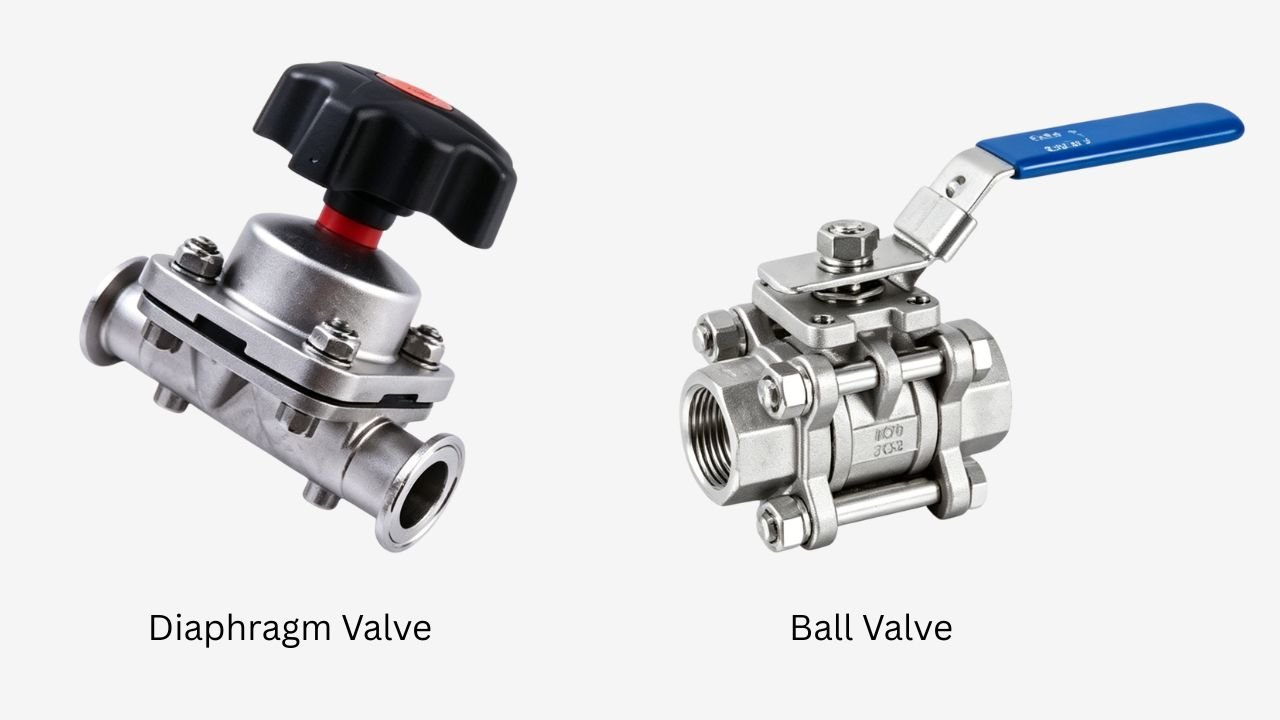

In complex piping systems, the choice between a ball valve and a diaphragm valve determines whether you experience costly downtimes or seamless operation.
Selecting the right flow valve involves more than material compatibility, connection types or matching pipe sizes. You must understand the valve working mechanism, pressure rating, and specific design advantages.
This guide will help you navigate through technical trade-offs and practical selection criteria to ensure you choose an ideal valve for your project.
What is Diaphragm Valve?
Diaphragm valve controls fluid flow using a membrane that moves up and down to seal against a seat inside a valve body. It is made from polymer materials such as PTFE. Usually, it is connected to a compressor and stem assembly in the valve bonnet.
Types of Diaphragm Valves
Weir-type Diaphragm Valve
This type of diaphragm valve has a raised ridge built in its body. This design reduces the amount of diaphragm movement required to achieve sealing, improving durability and control performance. It works like an on/off valve but can also do moderate throttling without damaging the diaphragm.
Straight-through Diaphragm Valve
It has a straight passage from inlet to outlet with a flexible barrier that passes directly onto the valve seat to stop flow. Its handwheel usually pushes the diaphragm down or lifts it to open the valve.

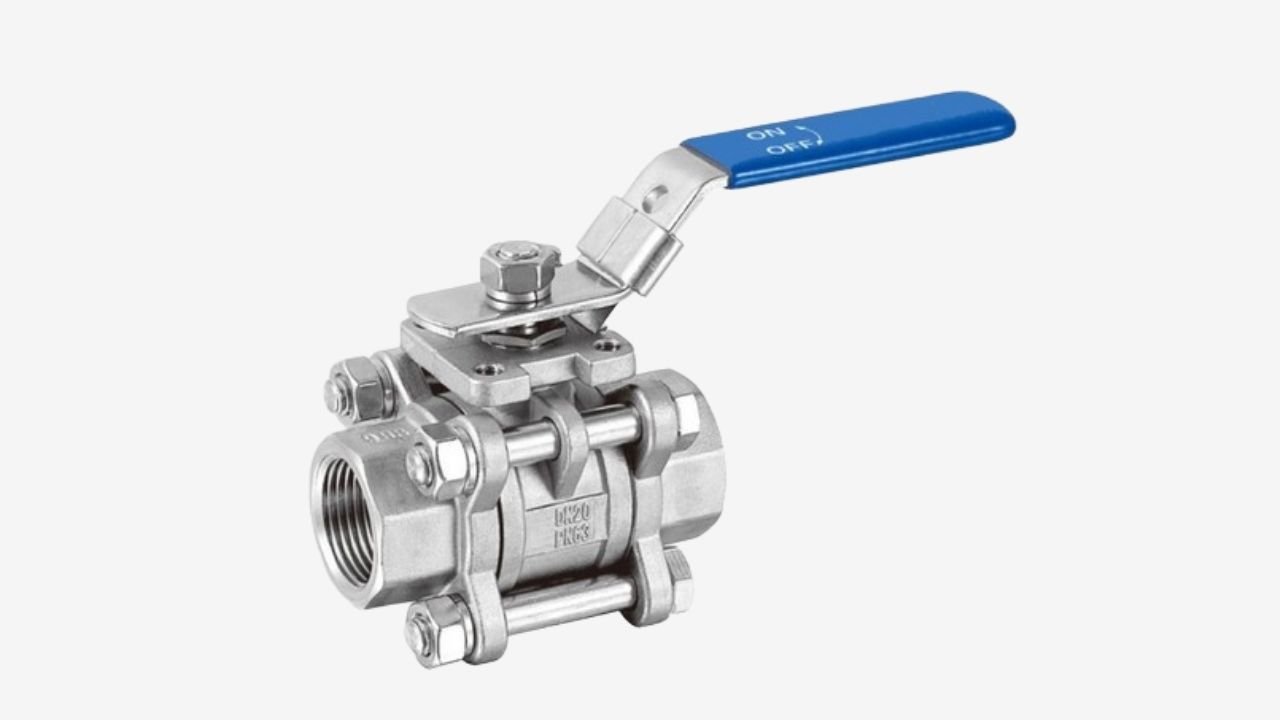

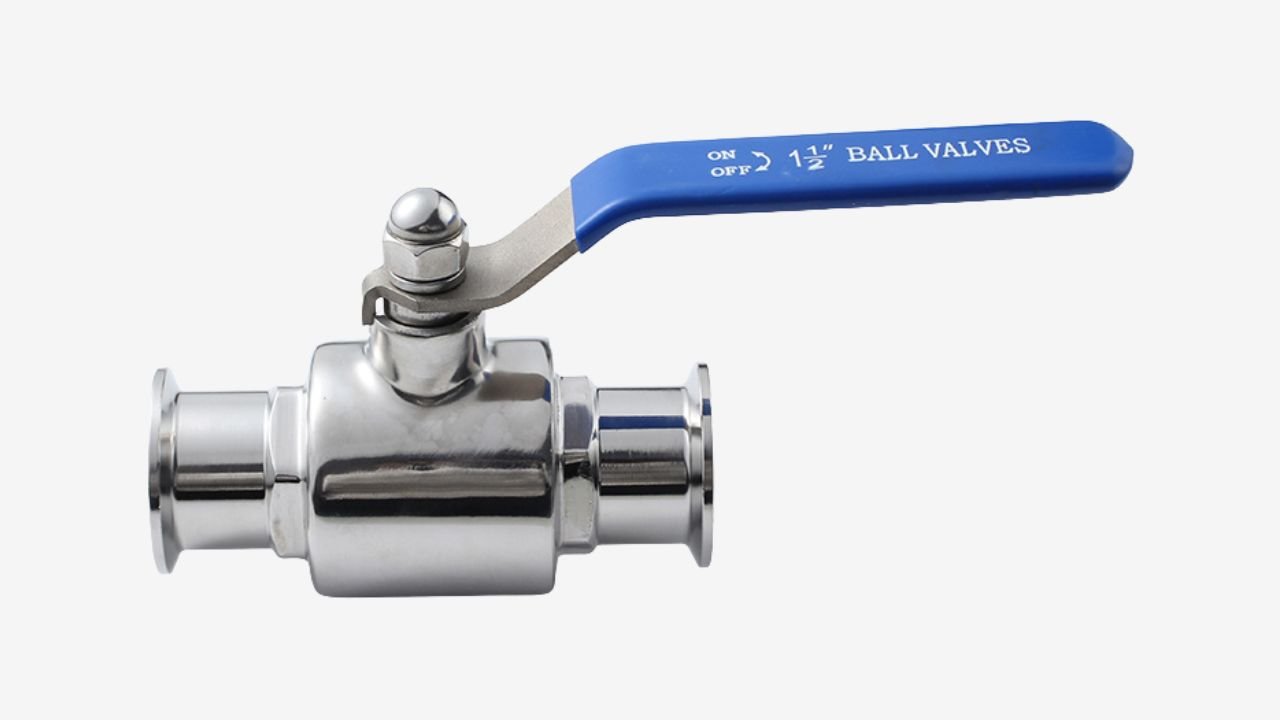

What are Ball Valves?
This is a valve that turns at 90 degrees using a ball with a hole through its center to control the flow of liquids or gases in a pipeline. They are often available in various materials, sizes, and structural types, making them suitable for almost any industrial application.
Types of Ball Valves
| Type of Ball Valve | Description |
| Full-port Ball Valve | · Its internal bore diameter matches the pipeline diameter, allowing free fluid flow. It provides minimal pressure drop with high flow capacity. Most areas of applications are pipelines since it requires flow efficiency.
|
| Reduced Port Ball Valve | · The internal bore here is smaller than the pipe diameter, creating a slightly restricted flow path. This results to a small pressure drop in the valve. It is more compact and cost effective making it valuable in industrial pipelines. |
| Quarter-turn Ball Valve | · It works by rotating its ball at 90 degrees to open or close it providing a quick shut off and simple operation. • Can be widely used in systems requiring fast isolation of flow. |
| High-pressure Ball Valve | · Uses its reinforced body construction and durable sealing materials to withstand high operating temperatures. · You can use it in oil and gas, hydraulic systems, and high-pressure fluid transport. |
| Top-entry Ball Valve | · This is a valve which its internals can be accessed from the top of the valve body, allowing maintenance without removing the valve from the pipeline. · It is suitable for critical applications where in-line servicing is necessary. |
| End-entry Ball Valve | · The ball and internal components are inserted from one end of the valve body during assembly. · This makes it economical and reliable for many industrial services. |
Key Differences between Diaphragm and Ball Valves
Design and Working Mechanism
Ball Valve
This valve has a rotating ball with a hole at the center that aligns with the pipeline to either block fluid flow or allow fluid to pass through freely. It uses a quarter turn rotational mechanism where the solid part of the ball blocks the alignment with the pipeline causing blockage.
Its seats press tightly against the ball surface causing a complete blockage. In its open position, the ball rotates at 90 degrees as the stem rotates gradually aligns with the pipeline allowing fluid to pass through freely.
Diaphragm valve
Its operating mechanism is based on compression and release of a flexible diaphragm against a seat. This valve operates through a linear motion by controlling fluid using a flexible diaphragm. The flexible diaphragm moves up and down to open or close flow path.
Flow Control Precision
Ball valve
They provide moderate flow adjustment in low-pressure systems and systems that require occasional throttling. Their multiple designs allow them to have more gradual changes in flow rate, improving control precision.
Diaphragm valve
In diaphragm valves, flow change is usually gradual and smooth, which can help in throttling applications. They perform best in low to medium-pressure systems.
Temperature Limits
Ball valves
They can operate across a wide temperature range, but their actual limit is determined by their seat and sealing material. Its seat materials control the maximum and minimum operating temperature. Their valve body also determines how well the valve tolerates structural stress at extreme temperatures.
Diaphragm valves
They are temperature sensitive however, they tolerate process temperature and pressure. At high temperatures, elastomer diaphragms lose flexibility, which affects sealing performance. Repeated flexing combined with heat also accelerates diaphragm wear.
Pressure Limits
Ball valves
They are classified according to pressure rating standards, which define how much pressure a valve can withstand at a given temperature. Its seat material also influences pressure limits because it must maintain sealing integrity under load.
Diaphragm valves
Most diaphragm valves are designed for low to medium pressure service. Diaphragm material strongly affects pressure resistance because it must flex repeatedly while maintaining a tight seal. Exposure to higher temperatures lowers the pressure rating of the valve.
Maintenance Requirements
Ball Valves
They require regular inspection to avoid complete valve failure. Periodic internal cleaning and maintenance of the valves to prevent particles from damaging the ball surface.
Diaphragm valves
Require routine visual inspection to determine degradation due to environmental exposure. They also require maintenance on their fasteners and bonnets regularly to avoid diaphragm distortion and premature wear.
Cost
Ball Valves
Their cost varies widely depending on material and design type. In small domestic or light-duty ball valves, the price ranges between 5 dollars to 30 dollars. Heavy industrial and pipeline ball valves price ranges between 2000 dollars to 80,000 dollars.
Diaphragm Valve
Cost varies on material, valve type, and automation level. Typical diaphragm valve cost ranges between 100 dollars to 300 dollars for the economical materials and those of automated industrial processes, 600 dollars to 6000 dollars.
Key Applications
Choose Diaphragm Valves in:
- Corrosive and aggressive chemical environments.
- Suspended solids
- Sterile systems
- Contamination-sensitive processes.
Choose Ball Valves in:
- High temperatures and high-pressure systems.
- Processes that require minimal maintenance
- Applications that require full flow
- Corrosive but non abrasive fluids
How to Choose the Right Valve for your Piping System
Fluid Type & Compatibility
Understand the chemical nature of your fluid which determines whether your valve materials will resist corrosion or degrade over time.
Consider fluid phase i.e. liquid, gasses or slurry which may significantly affect your valve performance.
Check the thickness or resistance to flow of your fluid. Thickness can cause build up inside valve cavities of pressure drop.
Go for appropriate valve designs which must minimize turbulence and protect sealing surfaces especially in high abrasive environments.
Valve Material
Analyze the chemical compatibility of your fluid to determine the valve material will react chemically with the process fluid.
Consider temperature resistance since valve materials should maintain mechanical strength and sealing performance at operating temperatures.
Your valve body material must withstand operating pressure and mechanical stresses in the pipeline. This means you need to consider pressure and mechanical strength.

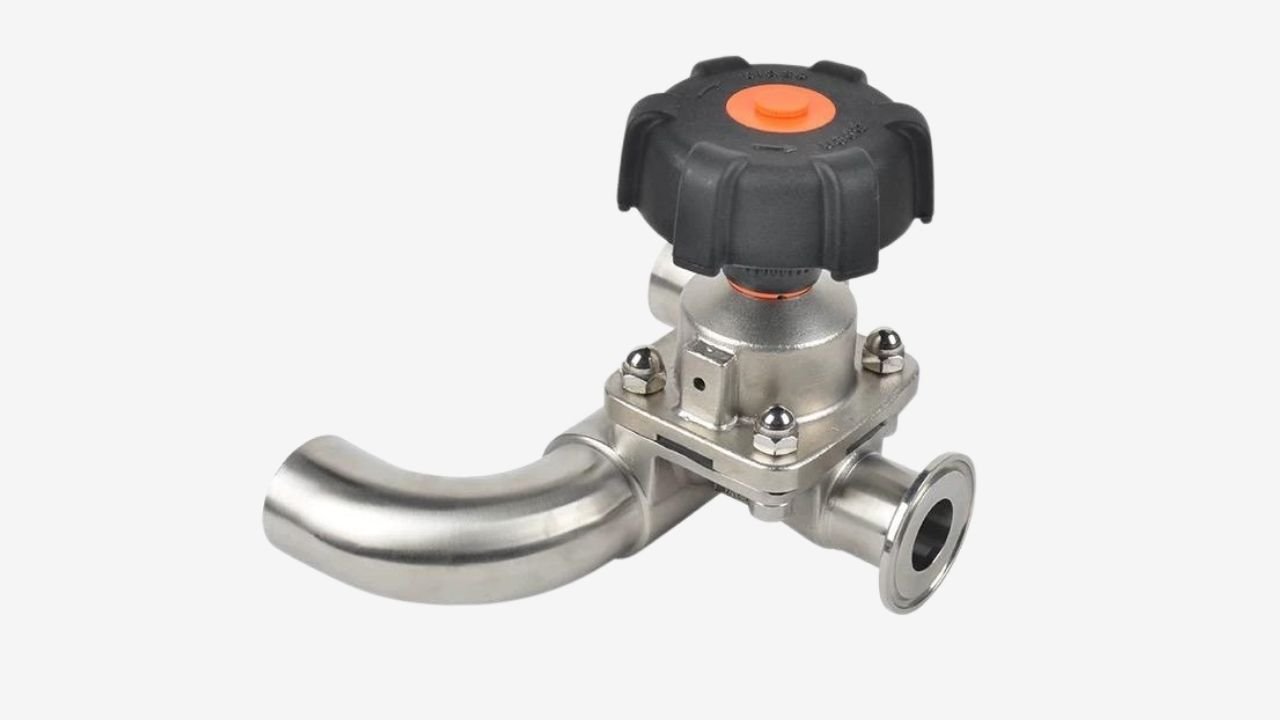

Pressure Range
Determine your system operating pressure by identifying the normal operating pressure of the pipeline.
Understand your valve pressure rating to define the maximum pressure your valve can handle.
Consider pressure cycling and mechanical stress because fluctuations in them can cause fatigue stress on your valve components.
Temperature Range
Start by determining the minimum and the maximum temperatures your valve will experience during the operation.
Evaluate temperature limits of your valve materials to avoid damage or degradation during processes.
Consider thermal expansion effects to avoid leak or operational stiffness due to temperature variations.
Flow Control Requirements
Identify the exact control function required to determine the valve function of your system.
Consider the required flow coefficient of your valve to avoid insufficient flow capacity.
Maintenance Accessibility
Evaluate where your valve will be installed.
Inspect if the internal inspection and repair of your valve will be easily done without removing the entire valve from the pipeline.
FAQs
What are the limitations of diaphragm valves?
They have limited suitability for very high flow rates since they can restrict flow path increasing pressure drop in certain systems.
Can deform or get damaged when exposed to high temperatures and pressure.
They require regular inspection and periodic diaphragm replacement which makes them expensive.
What are the limitations of ball valves?
They have poor throttling capability since overtime use on throttling causes seat damage and leakage.
Cannot be used in high temperature applications
when in closed position, fluid can be trapped inside the valve body cavity causing seat damage.
Can diaphragm valves handle higher pressure?
No. Diaphragm valves cannot handle higher pressure because they are made of polymer materials like PTFE, which, when exposed to high pressure they degrade completely.

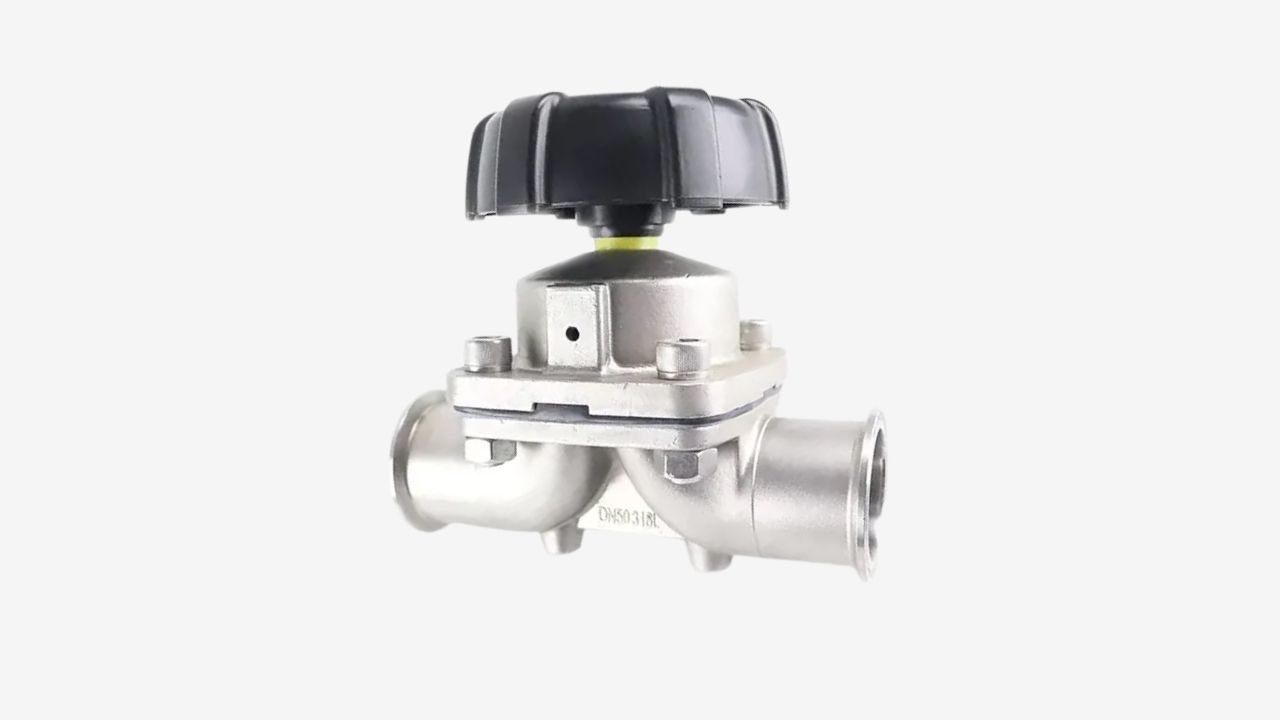

Partner with OMSS
