Stop operating processes in your factory like a “black box”. Install a sight glass to help you monitor production parameters in real-time. From boilers and complex piping systems to high pressure vessels, this accessory will help you control quality and improve efficiency.
In case you are wondering how a sight glass works, we shall explore this in detail, while giving practical industrial examples.
What is a Sight Glass?

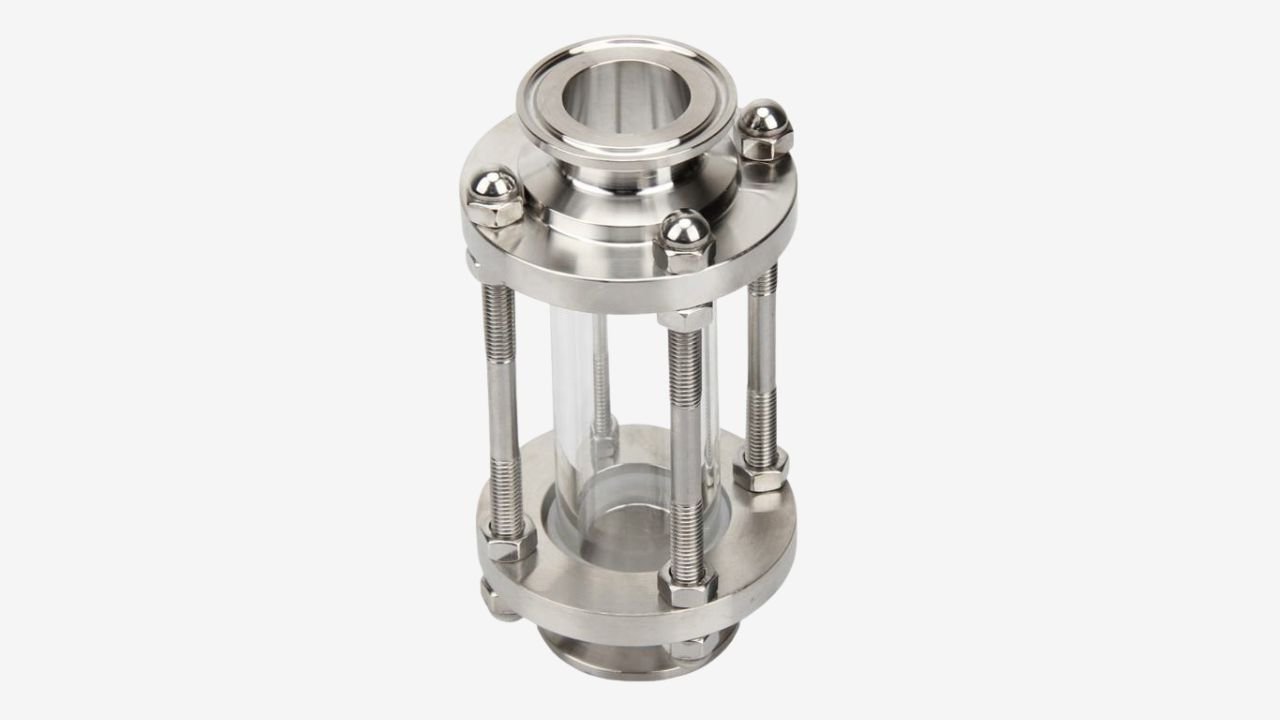

A sight glass is a transparent device that engineers mount on tanks, pipelines, and vessels to help operators view the condition of the internal fluids. It enables operators to monitor real-time liquid levels, flow behavior, and fluid quality without opening a closed system or stopping the running of any process.
Key Components of a Sight Glass
In challenging industrial conditions, sight glass components work together to deliver both visual clarity and structural safety. Below are the functions of different parts of a sight glass;
| Main Part | Function |
| Glass disc | · Commonly tempered borosilicate glass for thermal-shock-resistance and transparent material to serve as the barrier through which operators monitor internal process conditions. · They transmit light into the system, which makes level lines and flow patterns clearly visible, reflecting the appearance of the fluid back to the observer. |
| Metal frame | · Typically holds the glass disc in position firmly and distributes clamping force evenly across the assembly. · It strongly connects the entire sight glass unit to the vessel or pipeline while maintaining the rigidity and structure under high-pressure and temperature conditions. |
| Sealing gasket | · Provide a leak-proof barrier between the glass disc and the metal frame. · It absorbs both mechanical vibrations and thermal expansion that the process constantly generates while also preventing process fluids or pressurized gases from escaping the system. |
| Connection | · The nuts and studs tightly secure the sight glass assembly to the engineered system. · They ensure the unit remains properly aligned with the vessel opening for the glass to receive an unobstructed, accurate view of the process inside the vessel. |
How a Sight Glass Works
Engineers install transparent windows, vessels, or pipes in critical locations to provide real-time visual confirmation of liquid level, color, moisture, flow conditions, and process integrity.
Recognizing that sight glass performs two critical monitoring functions simultaneously helps you understand how it works in an industrial environment.

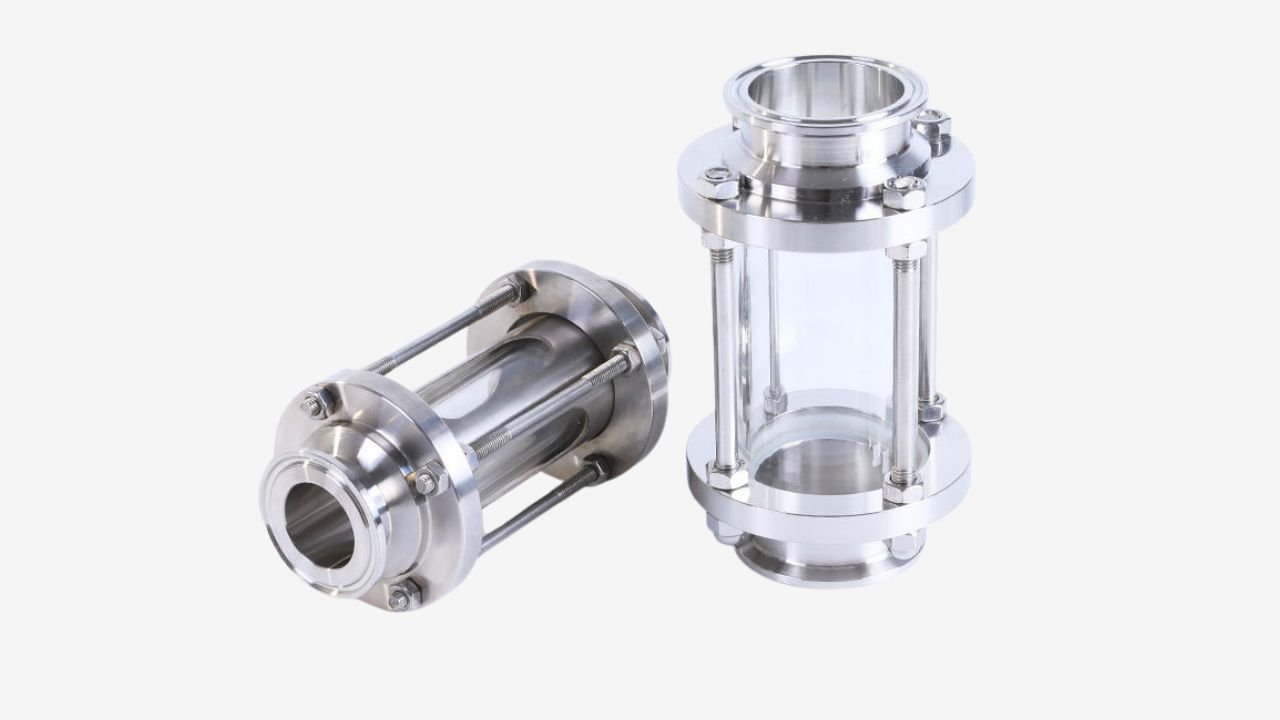

As Level Monitoring
Fluid level monitoring is one of the most valuable roles a sight glass plays in industries.
When you install a sight glass in a vertical manner on a boiler or storage vessel, it normally displays the exact position of the liquid surface inside.
Boiler operators use a sight glass to ensure the water level for steam generation inside the steam drum does not run low. The glass consistently provides visual feedback to prevent several damages that occur when running a boiler with insufficient water.
In a pipeline application, a sight glass indicates when a line is running full, partially filled, or carrying air pockets that are disrupting flow. Consequently, the engineers adjust pump speeds, valve positions, and system configurations using this information without guesswork.
For chemical processing plants, a sight glass monitors reaction vessel fill levels to ensure that, before operators initiate any chemical reactions, the correct quantities of reagents are present.
These systems in chemical applications directly influence product quality and reaction safety.
In sectors such as food processing facilities, where hygiene is paramount, you must confirm using a sight glass whether a mixing tank is holding the correct volume of liquid ingredients before blending anything inside.
Food manufacturers are keen on ensuring that monitoring does not introduce contamination into the product stream by installing sanitary sight glasses that comply with hygiene standards.
As Flow Monitoring
Apart from observing the levels, a sight glass also monitors fluid movement actively through pipelines and process systems. The work of an operator is to observe visible motion, turbulence, color changes, or the rotation of a built-in mechanical indicator as fluid flows through a sight glass.
When you check inside the viewing chamber, some sight glasses are designed with a small spinner or flapper that rotates whenever fluid is passing through, providing immediate visual confirmation of active flow.
At pipeline sites where you are dealing with thin-walled vessels, operators use flow monitoring sight glasses to know whether a pump is delivering fluid successfully or a blockage is forming somewhere downstream.
In cases of foam formation, air entrainment, or phase separation in the pipe due to electronic sensor failure, a technician watching the sight glass will instantly recognize it. Within chemical plant applications, a sight glass with a flow-monitoring system confirms that reagent feeds run correctly throughout a continuous reaction process.
Chemical engineers and operators use the color and clarity to verify the consistency of the mixing ratios of the fluid through the glass.
Food processing sectors are highly benefiting from flow-monitoring sight glasses because hygiene standards strictly require operators to visually verify product movement without opening sealed lines.
In short, a sight glass makes work easier for the food production supervisor and operators to confirm that a beverage, sauce, or dairy product is flowing cleanly and consistently through filling or pasteurization equipment.
This visibility reduces contamination risks, hence supports compliance with food safety regulations.

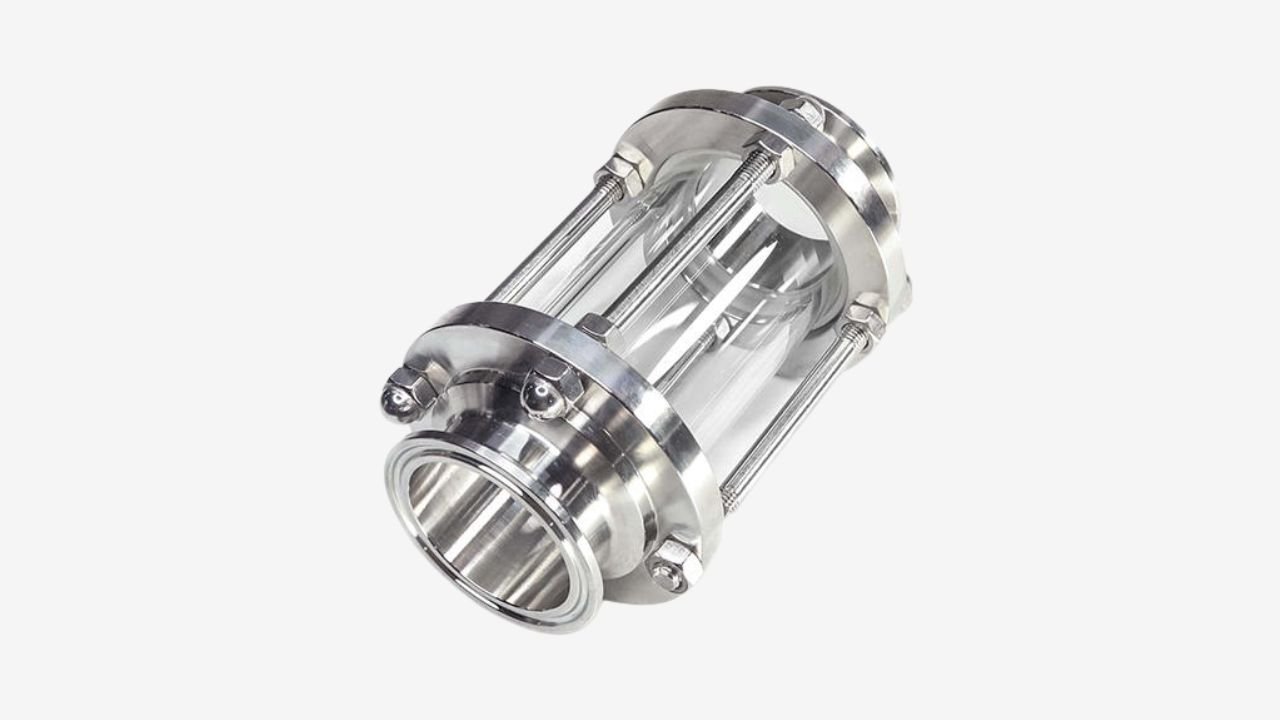

FAQs
1. How do you match a sight glass to its job?
To match a sight glass, start by evaluating the system’s pressure rating, temperature range, and fluid chemistry. Then, check the compatibility between your specific process conditions and the gasket type, glass material, and frame material.
2. Which are the common types of sight glasses?
There are several top-most common types, including transparent sight glasses, flat glass sight glasses, reflex sight glasses, and tubular sight glasses. Each type of glass serves different temperature, pressure, and visibility requirements across industrial applications.
3. What is a sight glass used for?
Operators and technicians use a sight glass to visually monitor fluid conditions, levels, and flow rates inside sealed pipelines, tanks, boilers, and process vessels without interrupting or shutting down anything.
4. What causes sight glasses to become frosty or cloudy?
Over time, corrosive fluids, mineral scaling, thermal stress, and physical erosion from abrasive particles can cause sight glass surfaces to become opaque.
