Why Choose Our ISO Clamp
- Our stainless steel ISO Clamp has passed the SGS material inspection.
- Equipped with Japanese CNC precision turning.
- It was tested with 1.5 times the rated water pressure.
- Establish a quality inspection to keep the defect rate below 0.1%.
- Obtained the FDA, 3-A, and CE certifications.
- Subject the product to a full temperature range cycling test.
Your Reliable ISO Clamp Manufacturer
Our sanitary ISO clamps are made of imported 316L,304and304stainless steel, with a precision tolerance of ±0.05mm. The products maintain their performance capabilities at a maximum pressure of 16 Bar and a maximum temperature of 180°C. They undergo complete water pressure testing at the factory while serving more than 300 food and pharmaceutical clients throughout the world. We provide sample delivery within seven days to support your production line development and maintain product quality. Click the home page link right now to get the latest discounts!

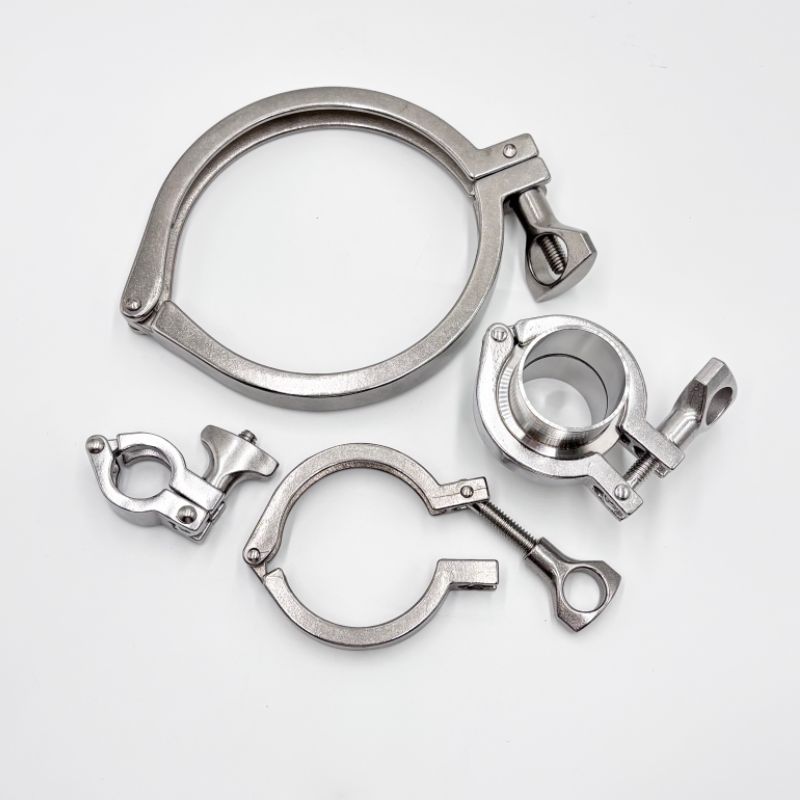

Products By Structural Form

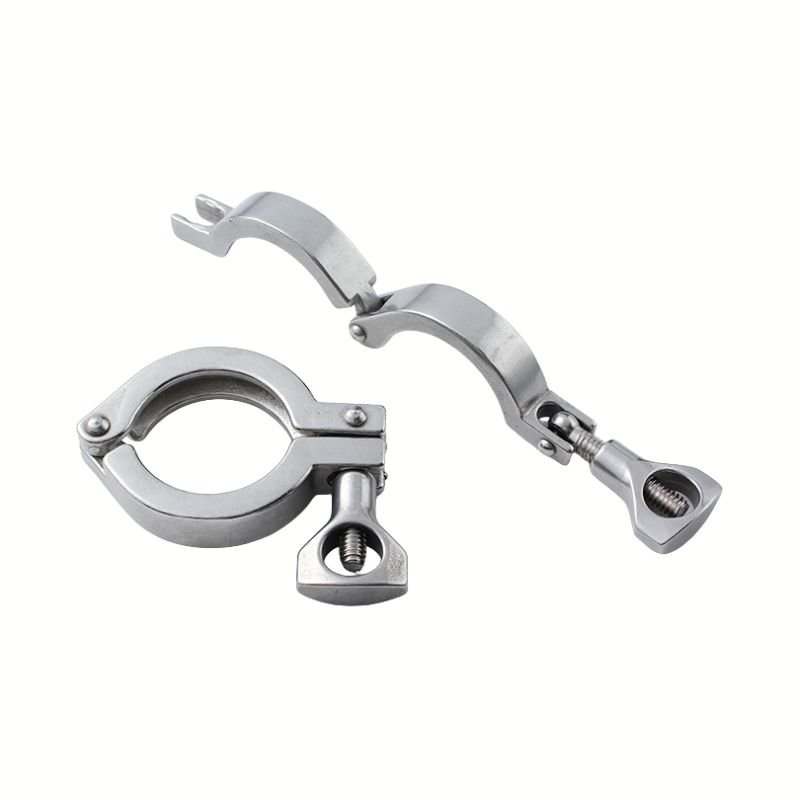

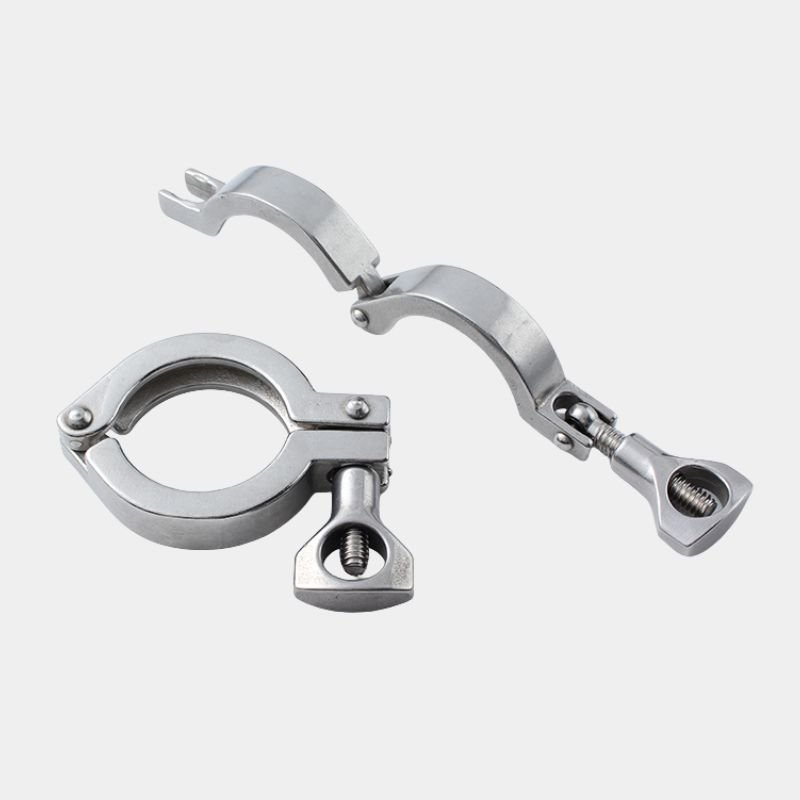

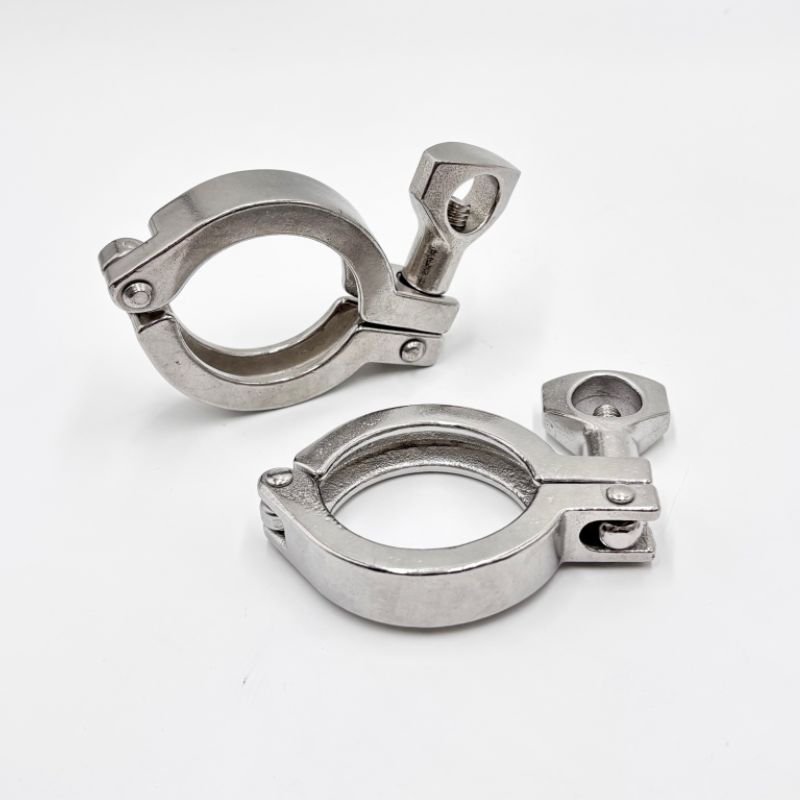

The structure has lightweight design characteristics and a one-point locking system, which enables it to function in rapid connection situations that require using small diameter pipes under low-pressure conditions.

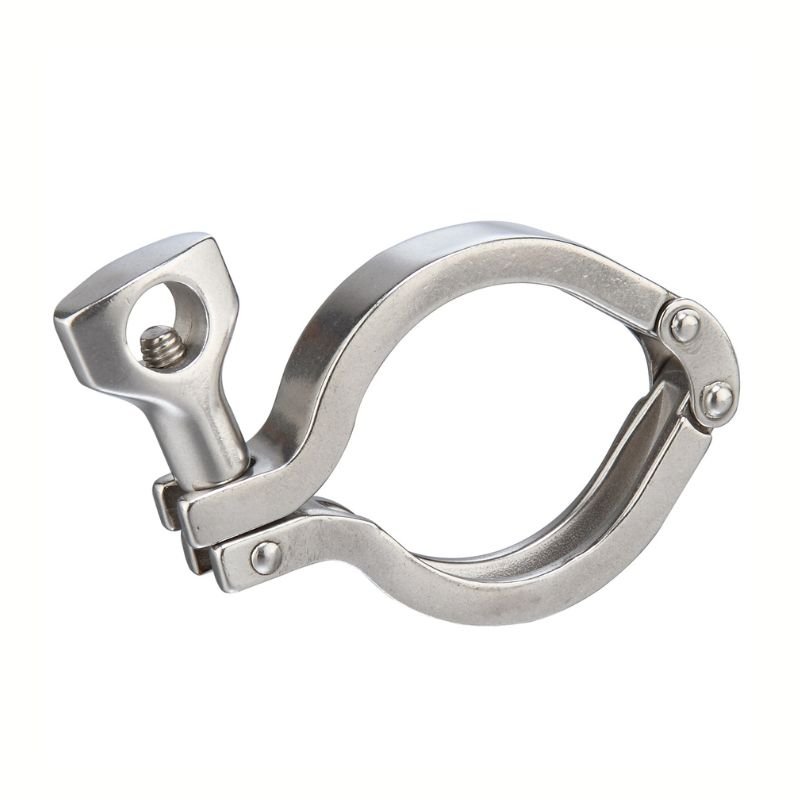

Double-point symmetrical locking provides better sealing performance because it creates more even sealing results, which makes it appropriate for medium-pressure pipeline systems that require stable connections.

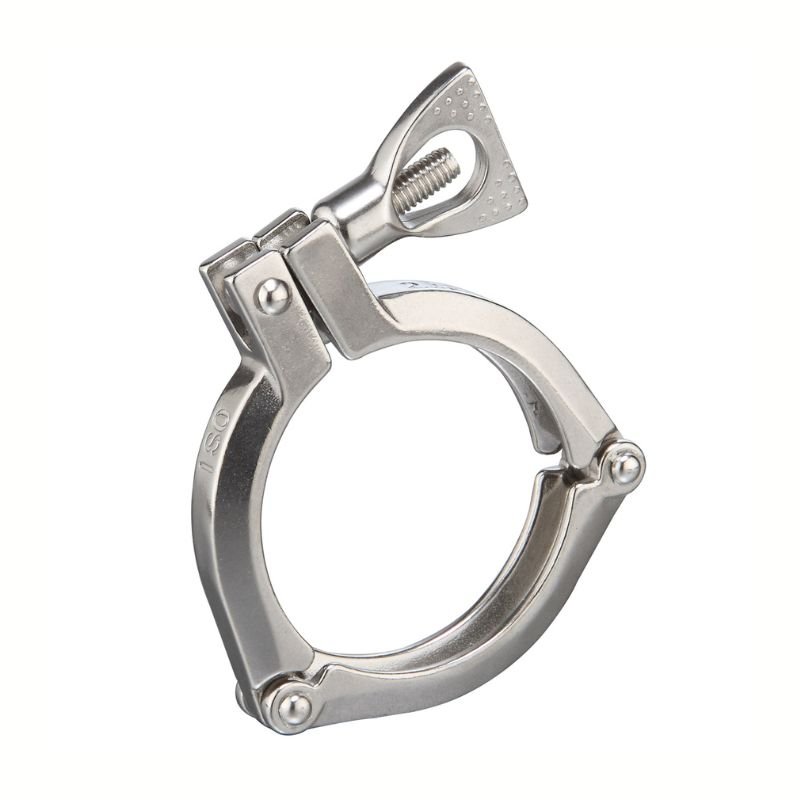

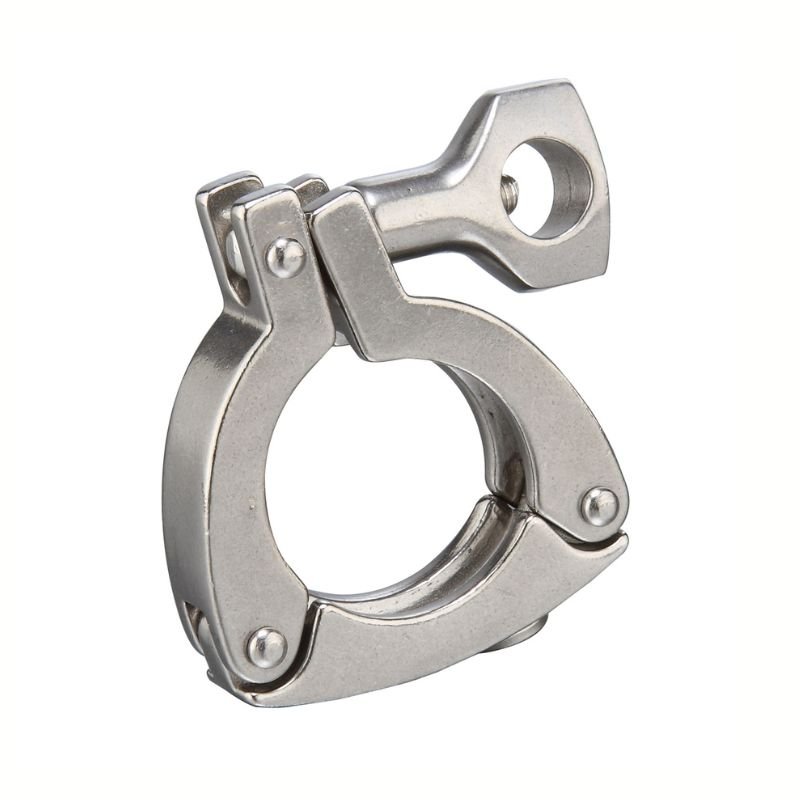

The three-section design, which can be detached, offers flexible installation options and simplified cleaning procedures. It serves as the primary option that you select for CIP and SIP operations.

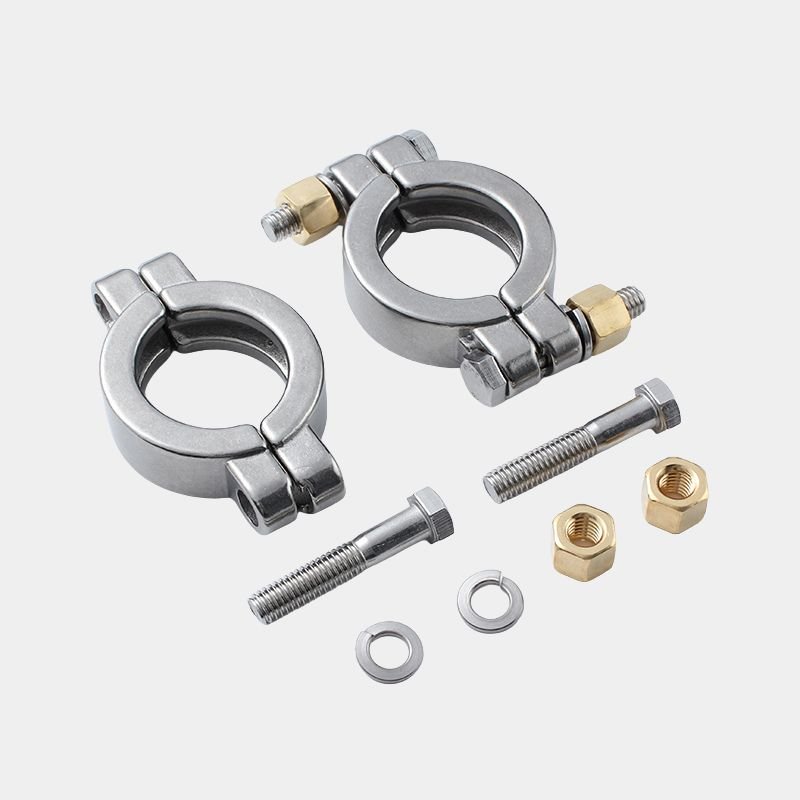

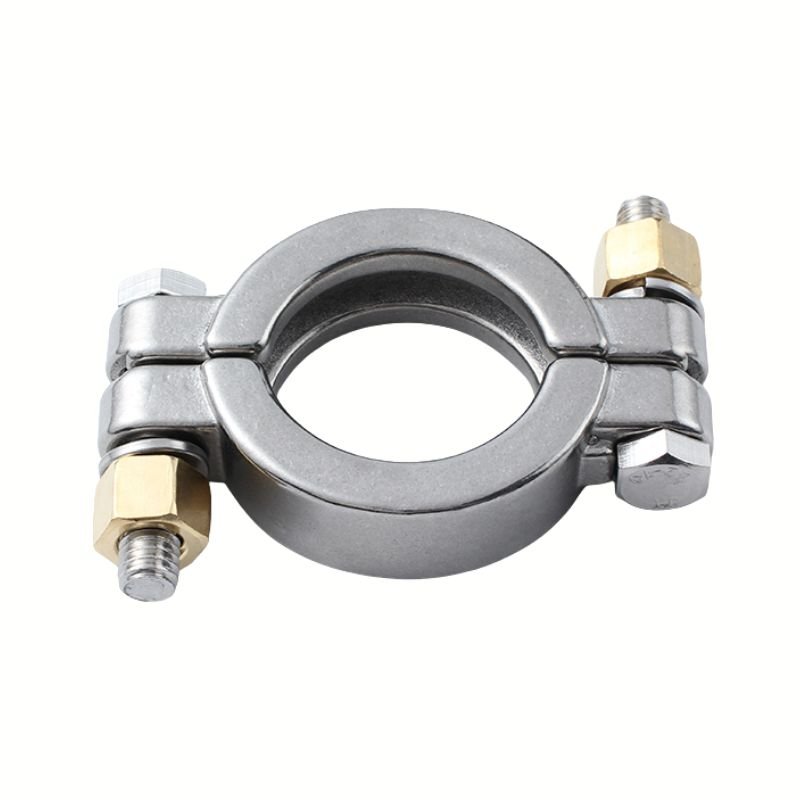

The bolts are held in place through a strong locking force. It provides stable operation through its special design, which enables it to work under conditions of high pressure and high vibration without experiencing connection failures.
The hinge functions as a complete system that permits you to open and close it with only one hand, which increases efficiency for procedures that require multiple assemblies and disassemblies throughout the day.

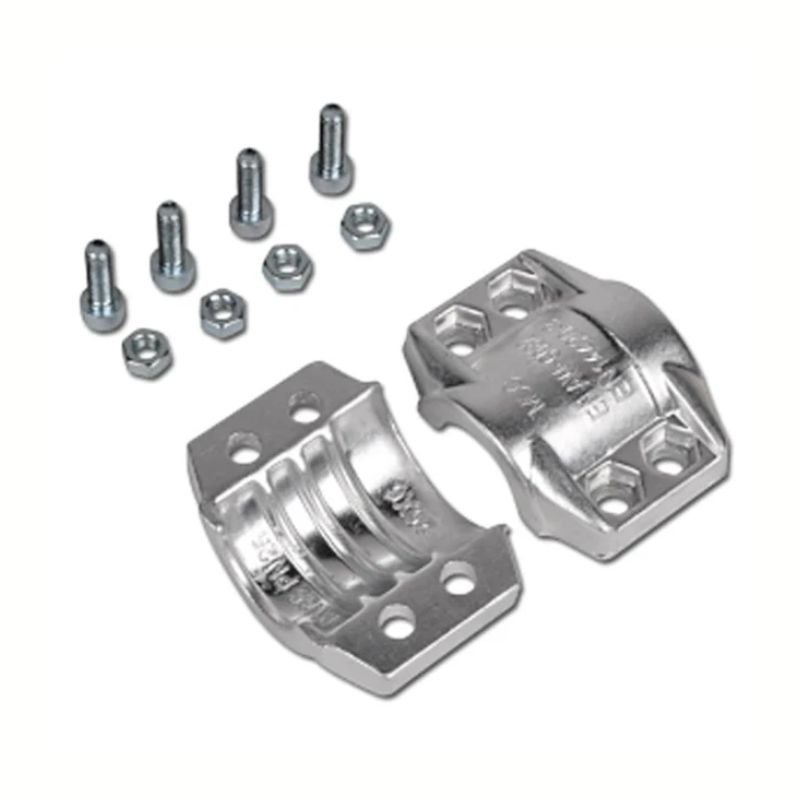

It includes a mechanical interlock protection system, which prevents unauthorized opening under pressure conditions. The design prevents accidental opening, which occurs when users apply pressure to the device.
Features of ISO Clamp
It requires no special tools because it takes 15 seconds to disassemble and install the equipment, which results in shorter production downtime.
Its complete gasket seal guarantees that the sealing surface will create an impermeable barrier that stops leaks and prevents outside contamination.
The inner wall of the structure exhibits a completely smooth surface, which has no threads or grooves and creates no points where liquids can build up residue.
It provides excellent protection against chloride ion corrosion. The surface maintains its original brightness after extended contact with both acidic and alkaline substances.
The weight of the system drops more than 40% when using threaded flange connection pieces. This leads to a lighter overall pipeline system load.
It can withstand pressures up to 16 Bar. ISO clamp provides high structural strength, which enables safe connections between high-pressure fluid pipelines.

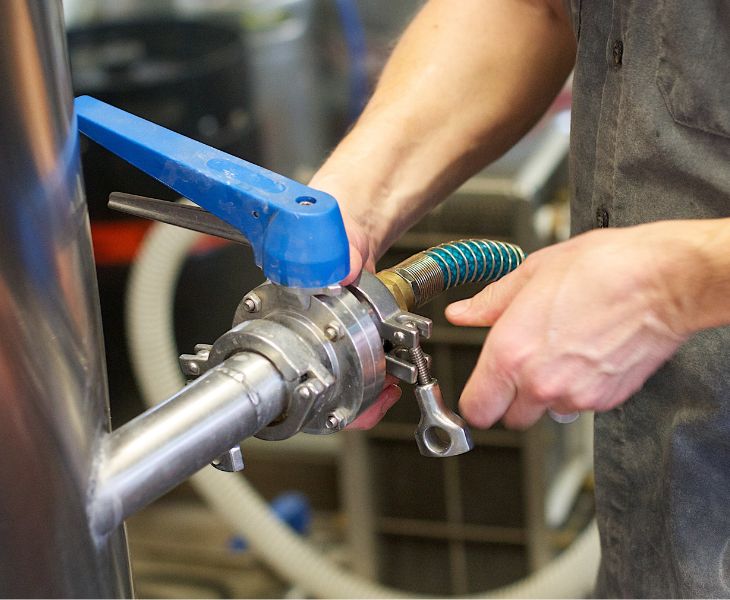

Quick Disassembly and Assembly
Your workers can perform their cleaning and maintenance tasks without requiring any tools because ISO Clamps can disassemble equipment within 15 seconds and reassemble it within another 15 seconds. The production line can save sufficient time throughout the year and generate the most visible profit for you.

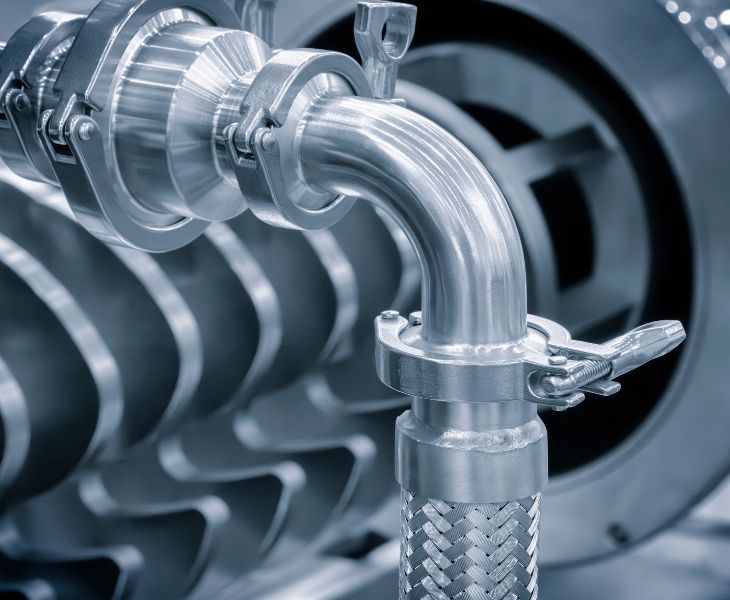

Sealed with Zero Leakage
The ISO clamp provides 360-degree clamping, which creates an even force. It uses strong mechanical energy to press down on the elastic material, which results in the blockage of the liquid flow. The stainless steel material provides the clamp with enough strength to maintain its fixed position, and the clamp remains locked in place without becoming distorted or losing its holding power over time.

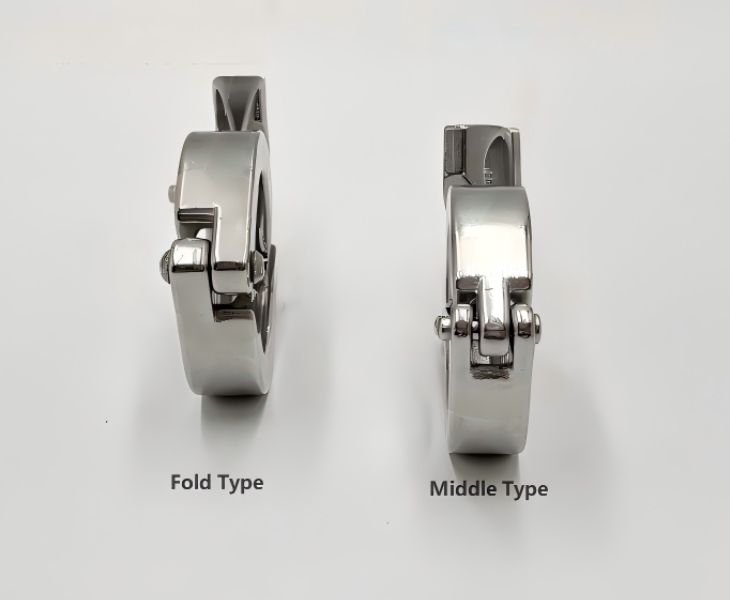

Global Standard Compatibility
The OMSS ISO fixture has extremely strong compatibility and can be perfectly matched with DIN, SMS, and 3-A pipe fittings. Whether you are a customer from Europe, America, or Southeast Asia, you can pair our pipe fittings with your products. If your pipe fittings have special dimensions, we can also customize the specifications of the ISO clamp for you.
Applications of the ISO Clamps

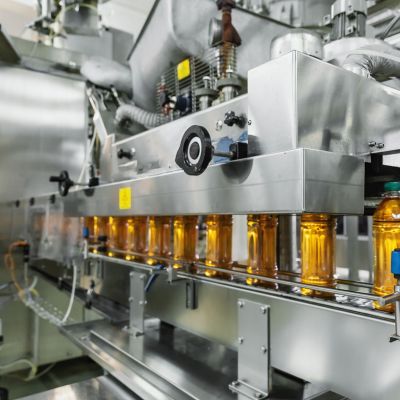

The ISO clamps guarantee that all connections in your beverage filling line and your dairy homogenization pipeline remain uncontaminated and free from any residual materials. This will thereby increase your repeat customers and customer satisfaction.

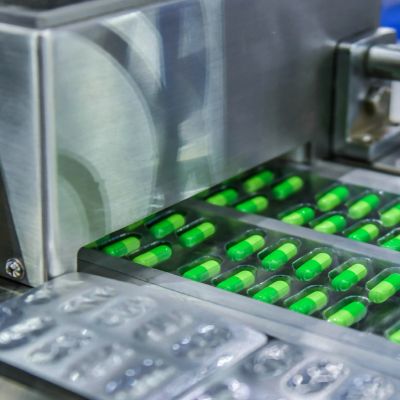

Your raw material drug conveying pipelines undergo GMP audits every day. The ISO fixtures, which meet FDA standards, enable your factory inspections to proceed without any operational difficulties.

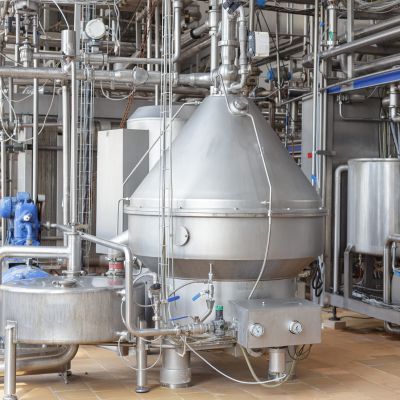

The ISO clamps, which can endure high-temperature steam sterilization, maintain their operational capacity from milk collection through the complete pasteurization process to protect all dairy products.

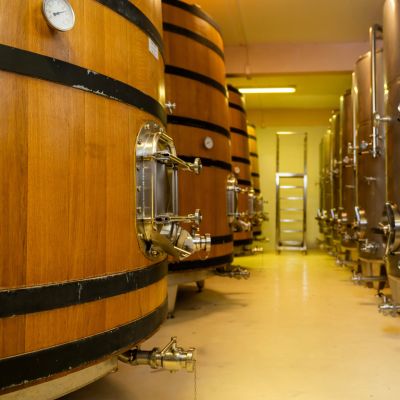

Your fermentation tanks and wine delivery pipelines must undergo cleaning and disassembly procedures on a regular basis. The ISO clamp requires only 15 seconds for assembly and disassembly, which permits your CIP cleaning operations to be enhanced in efficiency.

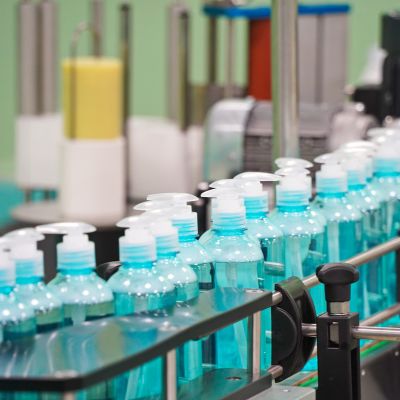

Your cream and lotion delivery pipelines must maintain the highest possible standards of cleanliness. The ISO stainless steel clamps with their mirror-polished inner surfaces safeguard the medium from contamination while maintaining its pure state.

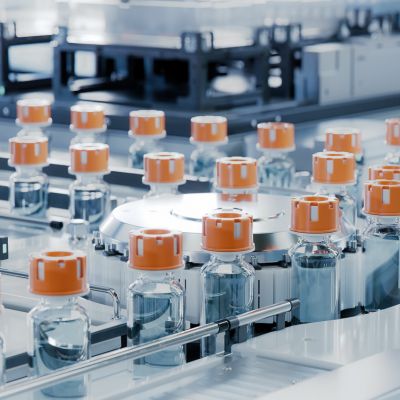

Cell culture medium, etc must be completely free from any cross-contamination. The ISO clamp can achieve 360° full sealing, and its stainless steel material ensures stable performance, which can effectively prevent cross-reactions of your biological samples.

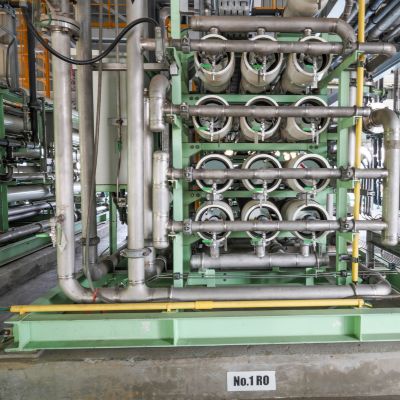

The ISO fixtures maintain a complete connection from water purification equipment to pure water delivery pipeline, which guarantees that all water delivered to end users maintains its safety and dependability.

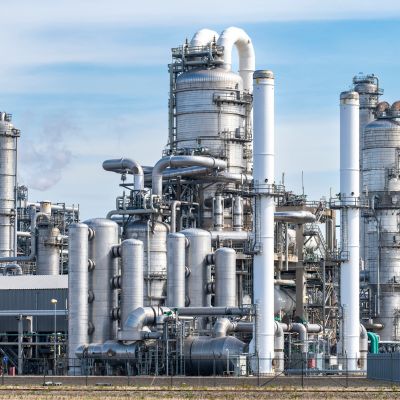

Acid and alkali medium pipelines require materials that can withstand corrosion to the highest possible degree. The 316L material ISO fittings will maintain their original condition and they will resist corrosion after being submerged in water for an extended period.
- Certificate of Compliance
Customer Reviews
We purchased sanitary tri clamp fittings and stainless steel ferrules from OMSS for our beverage processing system. The dimensions were accurate, the polishing was clean, and the fittings connected smoothly with our existing pipes without additional adjustment. The consistent quality helped us improve installation efficiency.
EmilyOMSS supported our custom stainless steel fitting project from drawing confirmation to final production. Their engineers provided useful suggestions on material selection and processing details. The finished components matched our requirements well and performed reliably in our food equipment applications.
JohnWe have strict requirements for surface finish and hygiene standards in pharmaceutical equipment. OMSS stainless steel fittings showed excellent workmanship, with smooth surfaces and precise machining. Their products helped us meet our equipment assembly requirements and maintain reliable production performance.
Michael
This ISO hygiene fixture uses 316L,304, and 304L stainless steel as its primary material, which uses a silicone or PTFE gasket that can resist temperatures up to 180°C and meets all SIP steam sterilization requirements. It maintains consistent performance during all stages of the sterilization procedure. If your project requires a high-temperature sterilization process, simply choose the ISO stainless steel clamps.
They are not exactly the same. Tri-Clamp (the three-piece fixture) operates as an ISO hygiene fixture because its design includes three separate parts. It is the most common type on the market. ISO fixtures create a comprehensive standard system that includes single-needle fixtures, double-needle fixtures, and bolt-type fixtures. Tri-Clamp is just one of the mainstream representatives within this system.
If you find water leakage, it usually occurs because of four specific reasons that cause the problem.
- The gasket loses its ability to maintain a seal because it has reached its maximum age and has deformed beyond its original shape.
- The fixture fails to provide proper locking strength, which leads to incomplete contact between the sealing surfaces.
- The pipe end displays its rough processing through visible scratches and open spaces between its sections.
- The size mismatch creates a situation where the two parts have too much space between them.
You can investigate one by one to solve the water leakage problem.
The main reasons are three:
- In the extremely corrosive environment, choose SS304 rather than SS316L
- Non-compliant surface treatment (no electrolytic polishing or passivation)
- Excessive chloride ions in the usage environment accelerate corrosion.
When making your purchase, please pay attention to the matching of the usage environment and the material of the clamps.
If the ISO fixture main body contains 316L stainless steel material, which provides reusable functionality for more than 10 years under standard operating conditions. The only part that you need to replace regularly is the gasket. The elasticity of the gasket and the sealing surface condition should undergo checking every 6 to 12 months. The aged gasket needs replacement at regular intervals to ensure it maintains long-term sealing performance.
The ISO vacuum pipe fitting standard applies to both systems. ISO-K uses an active claw-type fixture for connection, which allows users to easily disassemble and assemble the system, thus making it suitable for maintenance work that requires frequent access. ISO-F uses fixed flange bolts for connection, which creates more permanent sealing protection, thus making it appropriate for use with permanent pipeline systems. The two systems maintain identical flange dimensions when their pipe diameters match, allowing users to exchange them through adapter components.
- In addition to the standard ISO clamp sizes, we also support your customization of other size specifications.
- The material selection allows for three options, which include 304, 316L, and 304L.
- The surface treatment options include mirror polishing, electrolytic polishing, and sandblasting.
- We offer various sealing ring materials such as EPDM and silicone.
- We allow you to create customized laser logo markings and traceability QR codes, which will help their brand identity and compliance needs.
Durable and Hygienic Pipe Connectors – ISO Clamp
What is an ISO Clamp
The ISO clamp is a sanitary-grade fastening component that complies with international ISO standards. It achieves its sealing function through the process of clamping flanges, which connect both ends together with an intermediate gasket. And it enables installation and removal without welding requirements.
So it has widespread applications in industries that demand maximum cleanliness standards, which include food, pharmaceutical, and dairy product sectors. It will provide the most dependable connectivity option for your pipeline system production needs.
What Materials Are Used in an ISO Sanitary Clamps
304 Stainless Steel
The most cost-effective and practical choice. The material provides sufficient protection against corrosion, which meets standard requirements for hygienic use. 304 stainless steel provides budget-friendly procurement costs for your pipeline needs when handling low-corrosive media.
304L stainless steel
The material displays better welding capabilities because it contains less carbon than 304. The 304L material enables your production line to perform extensive welding operations without requiring annealing treatment because it reduces post-processing work and cracking risks.
316L Stainless Steel
The industry standard for sanitary-grade pipes. The material achieves three times better chloride corrosion resistance through the addition of 2% molybdenum, which boosts its chloride resistance. The material exhibits low carbon content together with excellent welding capabilities.
316L serves as the exclusive material option required for products entering food and pharmaceutical, and dairy markets or needing approval from the FDA or 3-A certification.
Different Surface Treatments for the ISO Clamp
Mechanical polishing
It can achieve Ra values of 0.8μm, which satisfies essential hygiene standards, and stainless steel provides economical benefits for standard food-grade applications.
Electrolytic polishing
It achieves Ra values of 0.4μm, which creates a surface that contains no micropores and achieves a bacterial attachment rate of almost zero for its dedicated pharmaceutical industry process.
Mirror polishing
Ra values of 0.2μm, which creates an extremely smooth surface that will receive instant approval from your factory inspection officer.
Sandblasting treatment
delivers a matte texture which prevents fingerprints and slippage while providing an attractive yet long-lasting look for your exposed pipes that match your premium production line display.
Which Gasket Materials are Compatible with ISO Clamps
- EPDM: EPDM material shows resistance against hot water, steam, and alkaline solutions. The food and beverage production industry prefers this material as its most commonly used option.
- Silicone: Silicone material has FDA certification as a food-grade material, which maintains its performance across a wide temperature range while remaining odorless and non-hazardous. The dairy and beverage sectors use this material as their primary choice.
- PTFE: Polytetrafluoroethylene (PTFE) material demonstrates complete chemical resistance, which enables it to endure extreme acid and base conditions. The material serves as the perfect solution for use in pharmaceutical and chemical manufacturing systems.
- Viton: Viton (Fluororubber) material provides exceptional protection against oil and solvent exposure. The solution has been developed specifically for chemical and petrochemical pipeline systems that you operate.
- NBR: Nitrile Butadiene Rubber (NBR) material provides manufacturers with superior oil protection. The material offers an affordable solution for transporting edible oils and oil-based products.
