In any industrial or commercial environment, a piping system represents both a significant capital investment and an operational lifeline. Whether you are installing high-pressure steam lines, high-temperature water circuits or complex gas lines, their efficiency entirely depends on the quality of fittings and connections.
Consequently, selecting the right components is a critical strategic decision that can yield higher ROI, while reducing maintenance costs and ensuring longevity.
In this guide, we will examine every critical aspect of pipe fittings and connections.
What Are Pipe Fittings?

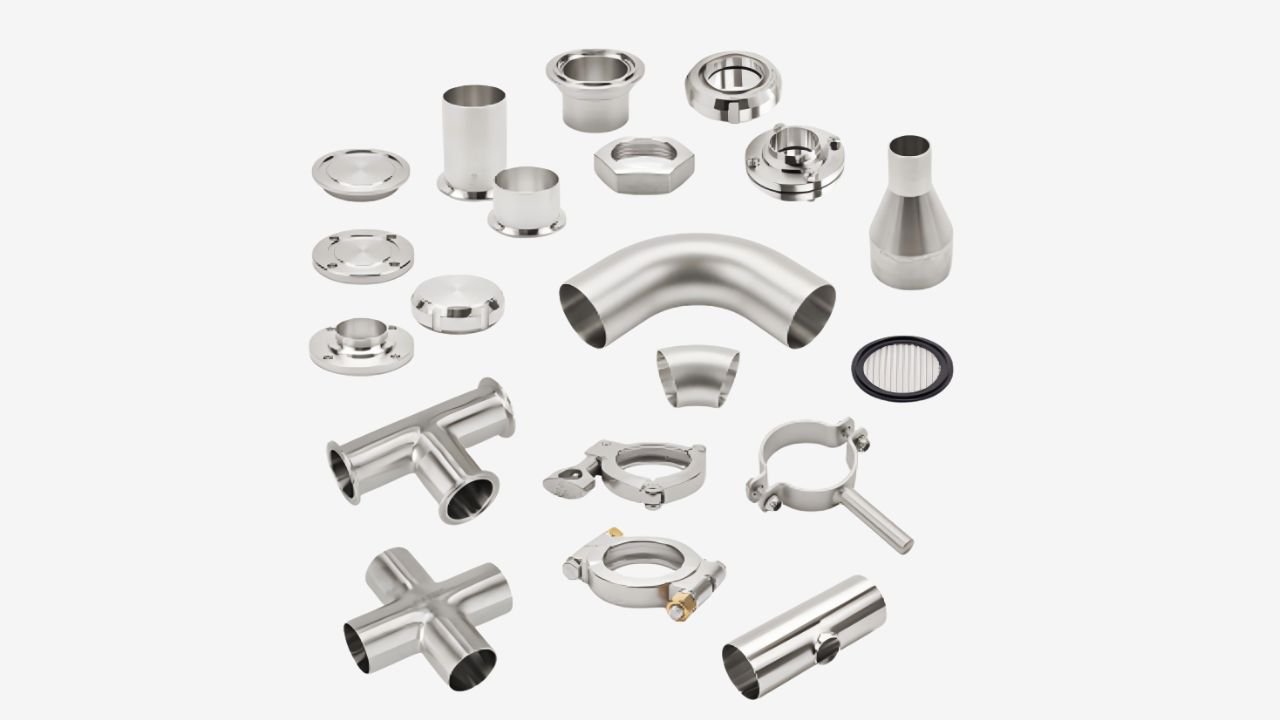

Pipe fittings are connectors in piping systems that are used to connect, divert, or regulate the flow of fluids in these systems. They help change the direction of flow, decrease the pipe size, or close the ends of pipes. Appropriate selection of pipe fittings increases the system’s efficiency, reliability, and reduces the possibility of leakages.
Common Types of Pipe Fittings
· Unions
Unions allow the connection of two pipes and also permit quick disassembly for the purpose of maintenance or repair work. Each union fitting is comprised of a threaded nut that can be tightened to join two pipe lengths and provide a leak-proof seal. This makes it possible to separate sections of pipe without the need to cut one of the pipes or disturb the adjacent piping system.
· Elbows
Elbows provide the ability to change the direction of a fluid flow within a piping assembly. The two most common types are 45 and 90-degree elbows. Properly selected elbows help to maintain a steady flow and minimize the amount of fluid flow pressure that is lost when moving around corners.
· Reducers
Reducer fittings are used to connect and control fluid flow between pipes that have different diameters. To do this, the fitting has a tapered design that moves gradually from a larger pipe to a smaller diameter pipe. This design helps to manage rapid changes in pressure and ensures stable velocity and balanced flow within the pipe system.
· Caps and Plugs
When the flow must stop (temporarily or permanently), caps and plugs seal the ends of pipes. These fittings make sure no leakage, no contamination, and no pressure loss occurs. Closed ends also protect unused pipe sections from debris and corrosion.

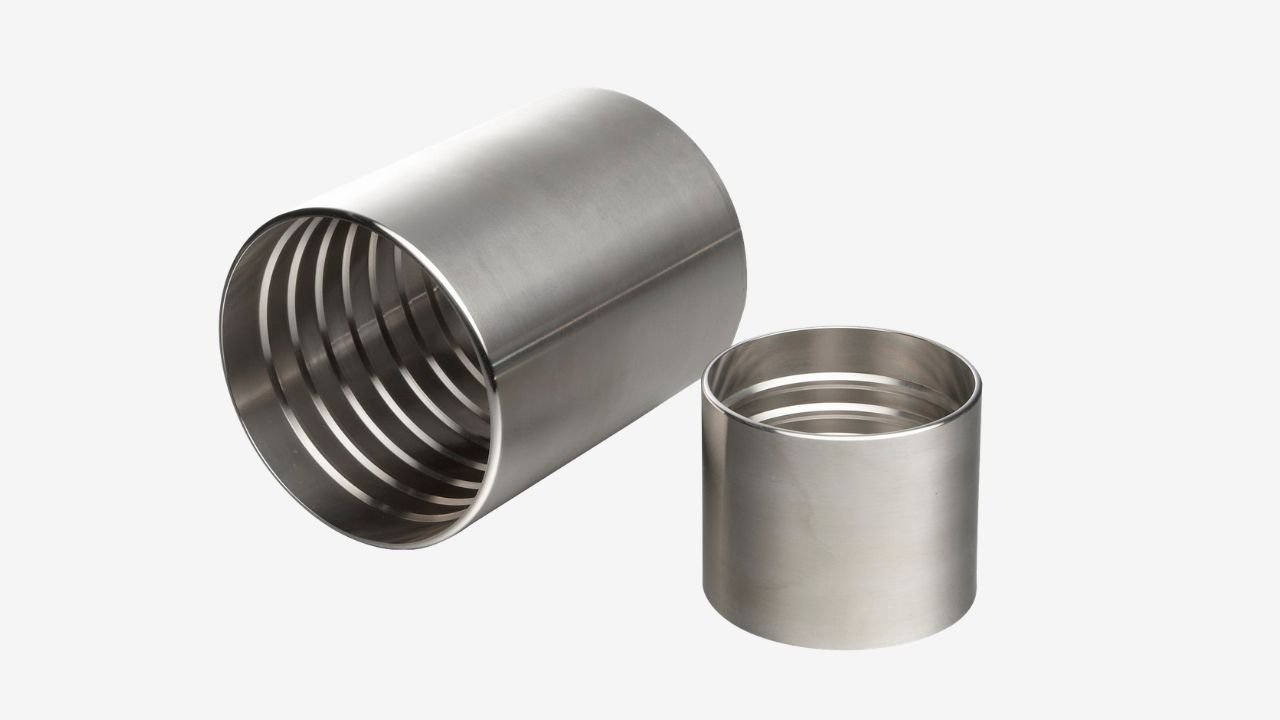

· Couplings
Couplings are used to connect two pipes in a straight line without changing the flow direction. The fitment provides a complete seal to ensure fluid flow through the pipe is uninterrupted. The ease of use and installation of the fitment is the reason they are widely used in domestic and commercial piping.
· Tees
Tees are used to join 3 pipe sections to create a branch in the pipe system. The fitting makes a T-shaped connection to Split or merge the flow of fluid. The built-in balance is designed to distribute equal pressure through all connected branches of the pipe.
Types of Piping System Connections
· Welded Connections
Welded connections permanently bond pipes and fittings by melting the surfaces that are to be joined. Such connections can sustain high temperature and high-pressure conditions. The strength of the fusion makes welded connections suitable for demanding conditions.
The risk of leaks with welded joints is so small that they are the most preferred in industrial pipelines. The internal surfaces of pipes remain smooth because weld seams connect to the pipe walls without interruptions.
· Compression Connections
To secure pipes using compression connections, parts are tightened to compress the sealing rings around the pipe edges. The fitting compresses the internal ring against the pipe, thus forming a seal to stop leakage. There is no need to weld or thread pipes.
No special heating tools or complicated apparatus are needed for installation. Adjustment of the connections is also easy, and that is what makes maintenance easy. Because of the sealing flexibility, compression fittings are very popular in plumbing systems.

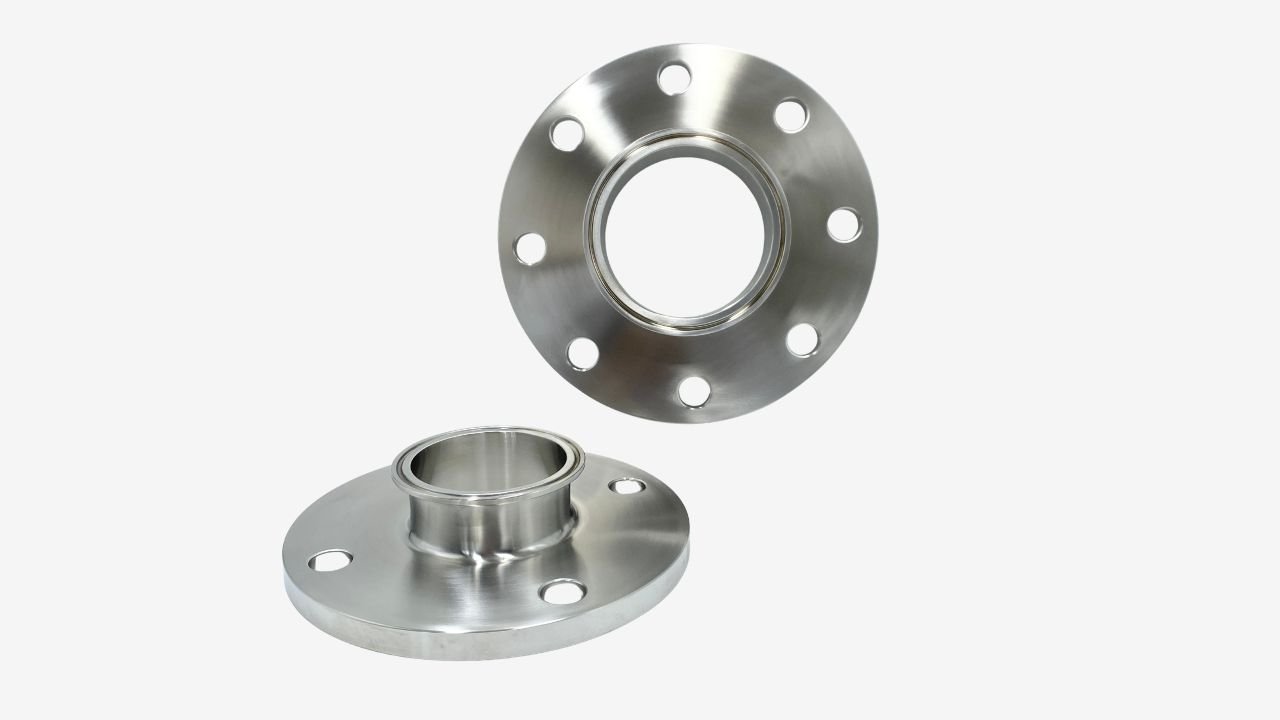

· Flanged Connections
Flanged connections connect two pipes through the use of flat flanges, which secure the pipes together by means of bolts and gaskets. The bolts are tightened around the joint to compress the gasket that is situated between the two flanges to make a seal. This seal can withstand high pressure.
Due to the ease of inspection and maintenance, flanged joints are used in large piping systems. During repairs or the replacement of components, the bolts can be easily removed to separate the pipes. The combination of strong sealing properties and simple access methods makes flanged connections a good choice for large industrial piping.
· Grooved Connections
Grooved connections feature mechanical couplings that grip onto grooves located on the ends of pipes. An internal coupling gasket blocks leakage as the clamps are shut on the grooves. This creates a connection without the need for welding or threading.
The flexible joints assist with the absorption of vibration created by moving equipment or pumps. Less time is needed for the installation of these joints compared to other connectors. The ability for quick assembly makes these joints ideal for large construction jobs where speed and reliability are needed.
· Threaded Connections
Threaded connections anchor pipes by means of a series of spiral indentations that are made at the ends of the pipes. The ends of the pipes have complementary threads that allow the fittings to be screwed tightly onto the pipes. This creates a mechanical seal that is further complemented by the use of a thread sealant at the joint.
Threaded connections are used in many small plumbing systems as they are simple and uncomplicated to install. Assembly can be done without the use of specialized tools. In moderately pressurized systems, the threads provide a reliable seal in the plumbing systems of homes and businesses.
But more importantly, for a reliable mechanical seal, you may need PTFE tape or plumber’s tape. You should wrap the tape in the direction of the thread. Then assemble your fittings.
However, in situations where your system is handling gas lines that are prone to vibrations, using a pipe thread sealant will offer a robust sealing mechanism. You can use it alongside the PTFE tape.
Pipe Fittings and Connections Comparison Table
| Fittings/Connections | Primary Function | Advantages | Common Applications |
| Elbow | Changes the direction of the pipe in a piping system | Streamlines flow and helps to reposition pipes conveniently | Water supply network, industrial piping, HVAC piping systems |
| Reducers | Join pipes of varied diameters. | Helps maintain pressure balance while enabling fluid movement to pass through different pipe sizes | Water supply network, chemical industry |
| Flanged connections | Join pipes through bolted flanges and gaskets | Seals can easily be inspected and dismantled | Works best with large pipelines, power generation stations, and processing facilities |
| Threaded connections | Join pipes using screw fittings | Quick installation and equally simple maintenance | Water supply network and gas piping |
| Tees | Create branch connections for fluid distribution | Enables controlled flow distribution across multiple pipeline branches | Water supply network and irrigation piping |
| Welded connections | Meld pipes and fittings permanently into a single unit | Most robust, leak-proof, and durable | High-pressure pipelines, oil and gas piping systems |
Common Problems in Piping Connections
There are many problems encountered in piping connections, especially when the connections are subjected to stress. Most common problems include:
- Poorly aligned connections in pipe joints cause stress, resulting in leakage.
- In more demanding environments, the fittings and joints are attacked by corrosion. Remember, when you are connecting two dissimilar pipe fittings or pipe connectors, there is a high probability of galvanic corrosion.
- Inadequate connections are prone to excessive pressure and lead to deformation and cracks.
- Incorrect installation tends to leave openings where the fluid can leak slowly.
- Metal pipes are normally affected by temperature variation, which causes thermal expansion. You must account for this thermal expansion since it may cause immense stress on pipe fittings and connections. Therefore, depending on your design, you can incorporate offsets or expansion loops.
- When dirt is deposited inside the fittings, the flow will be impeded, and the efficiency of the system will be decreased.

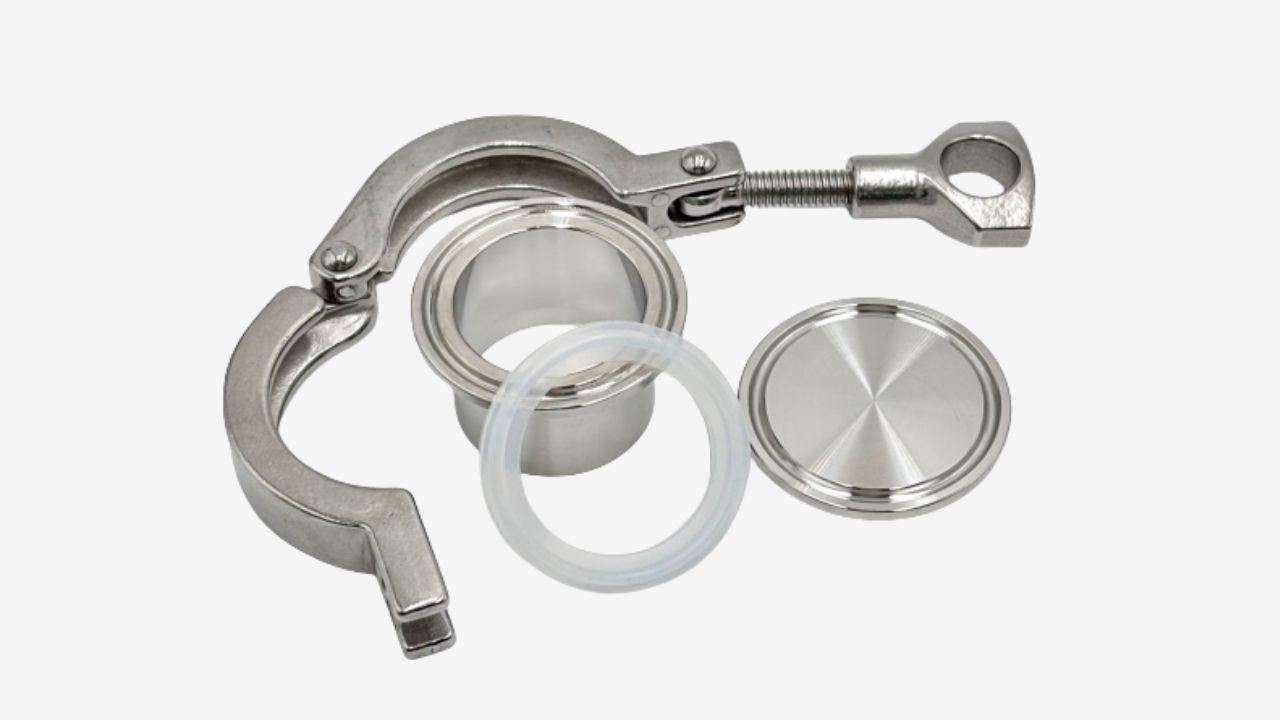

How to Choose the Right Pipe Fittings
From experience, choosing the right pipe fitting and pipe connection systems is a major challenge in many projects. As mentioned earlier, failure to select the right system can result in costly maintenance or a safety hazard, especially for high-pressure steam pipelines.
Below are important factors to consider when choosing pipe fittings and connections.

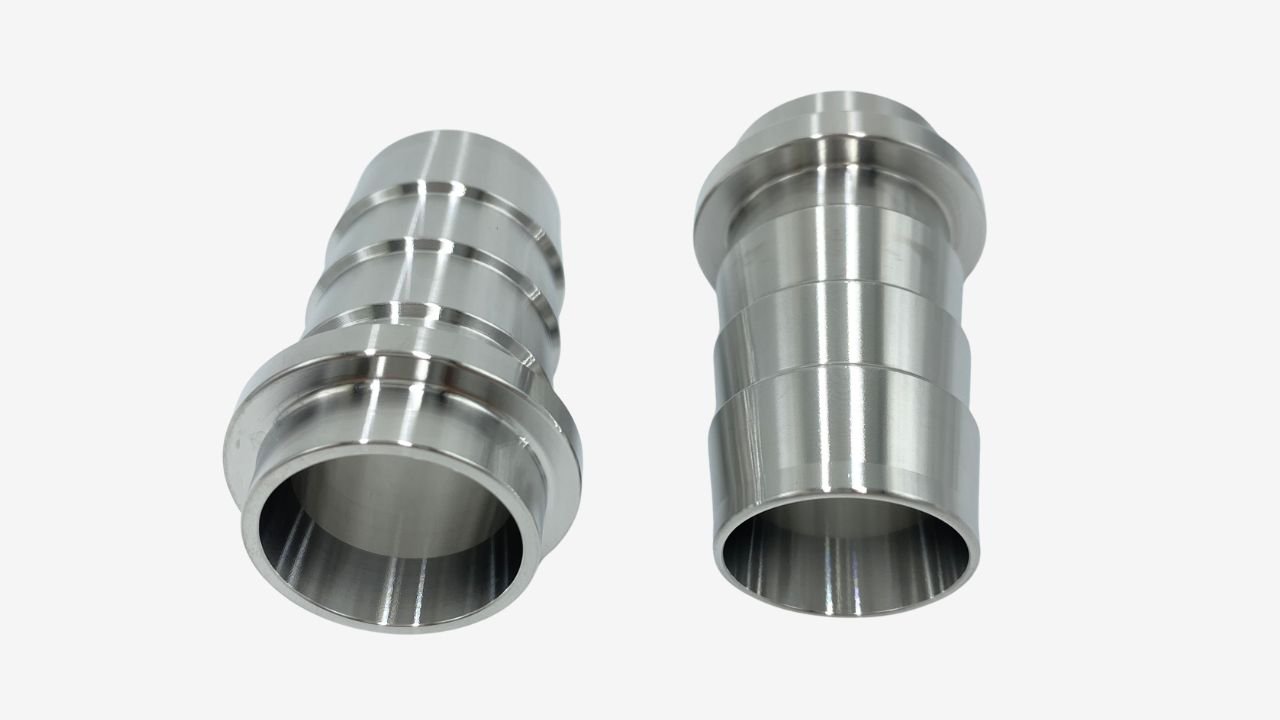

· Consider the Standards
Different jurisdictions and industries have specific standards that determine the safety threshold for any piping setup. Therefore, as you buy the pipe fittings and connectors, you must ensure they comply with the stipulated safety standards.
Among the universally acceptable industry standards are:
- ASTM B88 for seamless copper water tube.
- ASME B31 Code for pressure piping which includes many sections such as B31.1 for power piping, B31.3 for chemical and refining plants piping, B31.4 for liquid pipelines, B31.8 for gas transmission and B31.9 mainly for building and service piping
- Compliance with the international plumbing code (ICP)
- UL 207 for refrigerant piping components
- CSA B1800 for thermoplastic non-pressure piping
- CSA Z662-23 for oil and gas pipeline
As you can see, every industry has unique standard specifications. You must countercheck and ensure compliance with the necessary standards.
· Compatibility of the pipe and fitting materials
In order to avoid corroded or weak pipe joints, the pipe fitting must be made of the same material as the pipe. For example, metal pipes need to be fitted with metal fittings, and plastic pipes need to be fitted with polymer fittings. Correct system fitting protects pipelines from the effects of chemical reactions, as well as the breakdown of the system.
· Pressure Rating Requirements
Fitting strength should be suitable for the pressure conditions of the pipe system. With the right fitting for the pressure conditions, leaks, cracks, and premature failure at the joint can be avoided.
· Temperature Rating
Sealing and the fittings of a piping system perform best in certain temperature conditions. Heat-resistant fittings are able to withstand high-temperature environments. For low-temperature environments, the fittings and seals that are used should be able to withstand low temperatures. These temperature conditions should be considered in order to avoid the deformation and breakdown of the system.
· Maintenance and Inspection
Systems that may require inspection or maintenance should be fitted with components that can be disassembled, such as unions or flanges. Systems that do not require disassembly at any point can use permanently welded joints in a pipeline system.
· Always Work Experts
As a disclaimer, piping system design, choosing fittings, and connections are such a critical process that an untrained individual must not handle at all costs. Remember, high-pressure and high-temperature systems carry significant risks. It is even worse when your piping system is handling highly hazardous materials.
Therefore, only work with experienced experts who will help you select the right piping system.
Installation and Maintenance Tips
All connection and fitting components have a longer life if they are properly installed and regularly maintained. Some of the tips that you need to follow include:
- Ensure proper alignment of all pipes to protect fittings from unnecessary stresses and leakage.
- Before installation, pipes should be cleaned for a better and tighter seal between joints.
- Use proper sealants or gaskets on all threaded and flanged connections.
- When tightening bolts on flanges, do it evenly to prevent unbalance on sealing surfaces.
- Regular inspection of joints can help identify issues before they lead to catastrophic failures of the piping system.
- Worn fittings should be replaced as soon as possible to ensure that the system can continue to transport fluids safely.
FAQS
1. What is the difference between a coupling and a union?
Couplings join pipes together in a permanent fashion and in a straight line. Unions join pipes together but allow for quick disassembly during maintenance or repair.
2. Why are flanged connections widely used?
Flanged connections provide good sealing ability, and the joint can be easily inspected, unsealed, and reassembled.
3. What is the most common pipe fitting used in piping systems?
In the piping systems, the fittings that are mostly in the use are the elbows due to their need in making change of direction.
4. When should welded pipe connections be used?
Welded connections are used in high-pressure pipes.
