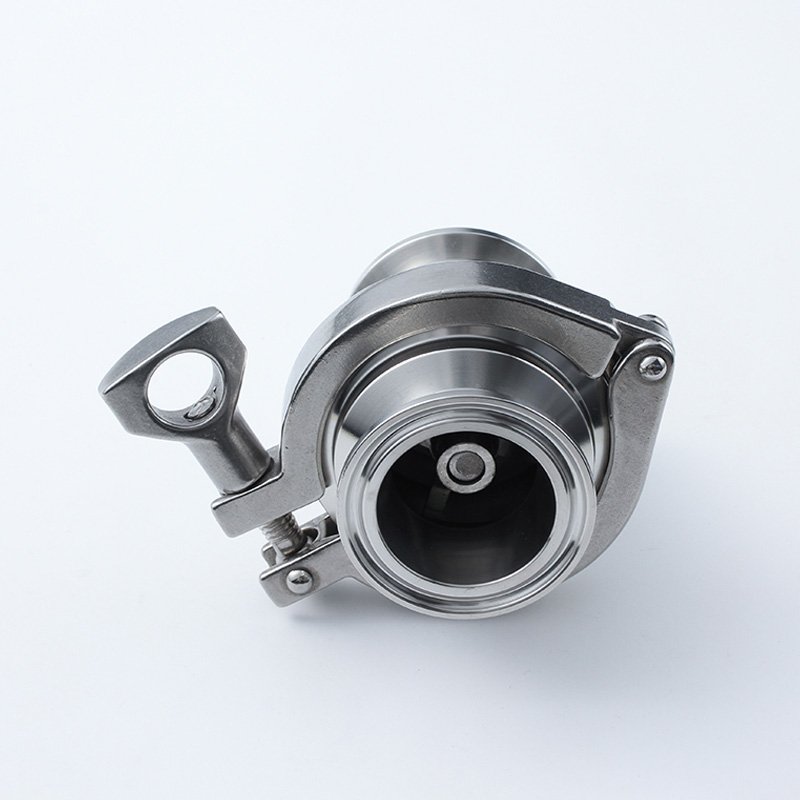

Sanitary Check Valve: Types, Selection, and What We Learned from 250 Returns
[Meta: Guide to sanitary check valves. Spring-loaded vs Y-type vs ball-type. How to choose, install, and what causes failures. Based on OMSS production data and return analysis.]
The Valve Nobody Talks About Until It Fails
A check valve is the only valve on a sanitary line that operates itself. No handle, no actuator, no operator input. It sits there, opens when flow goes forward, closes when flow stops or reverses. When it works, nobody notices. When it fails — backflow contaminates a batch, a pump starts hammering, or product drains back through the line.
The failures are almost never about the valve body. The spring is wrong for the application. The valve is installed in the wrong orientation. Or someone ordered a ball-type check for a viscous fluid that needed a spring-loaded Y-type. All preventable.
How a Sanitary Check Valve Works
The principle is simple: flow pushes the disc or ball off its seat. When flow stops, a spring (or gravity) pushes it back. The valve closes before reverse flow can start. The three common types do this differently:
Spring-loaded (most common): a spring pushes the disc closed. When forward flow pressure exceeds the spring force, the disc lifts. When flow stops, the spring closes it. Pros: works in any orientation. Cons: the spring adds pressure drop, and the wrong spring rate causes problems.
Y-type (straight-through): the disc moves in line with the pipe, giving better flow characteristics. Lower pressure drop, less turbulence. Better for viscous fluids. But larger and more expensive than compact spring-loaded types.
Ball-type: a ball rests on a seat. Forward flow pushes the ball off the seat. When flow stops, the ball rolls back. Pros: simple, cheap, easy to clean. Cons: only works in horizontal pipes with flow upward. The ball can stick if the fluid leaves residue.
(We only make the first three. Dual-plate check valves do not meet sanitary design requirements.)
What We See from the Factory
A customer called us once because a check valve was making a loud hammering noise every time the pump shut off. The spring was too weak — the valve closed slowly, and the backflow slammed the disc shut. We sent them a stiffer spring. Problem solved in 10 minutes.
The rest were seal related. EPDM or FPM seals worn out or chemically attacked. Same story as every other valve type — wrong seal for the fluid.
How to Pick the Right One
Three questions to answer:
What orientation? If the pipe is vertical, you need a spring-loaded or Y-type check. Ball-type checks do not work in vertical pipes — the ball falls back onto the seat and blocks flow before it starts.
What fluid? Clean, low-viscosity fluids work with any type. Viscous fluids (syrup, honey, cream) need a Y-type with a light spring or no spring at all. Fluids with suspended solids need a Y-type — ball checks can jam.
What pressure? The spring rate must match the line pressure. Too stiff and the valve never fully opens — you lose flow capacity and wear out the seat. Too light and the valve does not close fast enough. Our standard spring is set for 0.5 bar cracking pressure. We offer lighter (0.2 bar) and heavier (1.0 bar) springs.
Installation Mistakes We See Repeatedly
Most common: wrong orientation. Ball-type check valves must be installed horizontally with the flow direction upward. Spring-loaded checks work in any orientation, but the arrow on the body must point in the flow direction. We have seen spring-loaded checks installed backwards — the valve acts as a closed block. This happens more often than it should.
Second: no straight pipe before or after the valve. Check valves need about 5-10 pipe diameters of straight pipe upstream to settle the flow. Turbulent flow from an elbow or pump discharge can cause the disc to flutter, leading to premature seat wear. We have seen seats wear out in under a year because the valve was installed too close to a pump.
Third: wrong spring for the application. A customer ordered our standard check valve for a low-pressure gravity-feed line. The spring was too stiff — the valve barely opened. We sent a light spring, and it worked fine. We now ask about line pressure before shipping check valves.
Questions That Come Up
Q: Ball-type or spring-loaded?
A: Ball-type is cheaper and easier to clean. But it only works in horizontal pipes with clean fluids. Spring-loaded works anywhere and handles more fluids. If you are ordering one type to stock for multiple jobs, get spring-loaded.
Q: What cracking pressure do I need?
A: Standard 0.5 bar works for most applications. If the pipe is gravity-fed or very low pressure, go with 0.2 bar. If there is a pump upstream, 0.5 bar is fine. If the backflow risk is high (tall vertical risers), 1.0 bar gives faster closure.
Q: Why is my check valve hammering?
A: The spring is too light or too slow. When the pump shuts off, backflow accelerates before the valve closes, then slams it shut. Stiffer spring or a dampened closure mechanism fixes it. Call us and we will send the right spring.
Q: Can a check valve be installed vertically?
A: Spring-loaded and Y-type: yes. Ball-type: no. The ball needs gravity to roll back onto its seat, which only works in horizontal pipes.
Q: How often to replace the seal?
A: Depends on the fluid. Clean water or CIP: 12-18 months. Aggressive chemicals: 6-12 months. Check once a month by listening for leakage — a leaking check valve makes a hissing sound or allows backflow that can be heard downstream.
Technical Review
Zhang Wei, Senior Valve Engineer — oversees check valve production and spring selection.
onemo@onemoss.com
Data Sources
Production records: check valve specifications from current product line.
Field feedback from 20+ site visits and customer follow-ups on check valve issues.
| Type | Orientation | Pressure drop | Best for | Limitation |
|---|---|---|---|---|
| Spring-loaded | Any | Medium | General purpose, vertical pipes | Spring adds resistance |
| Y-type (spring) | Any | Low | Viscous fluids, high flow | Larger, more expensive |
| Ball-type | Horizontal only | Low | Clean fluids, low temp | Orientation dependent, sticky fluids |
| Dual-plate | Any | Very low | High flow, low pressure drop | Not for sanitary (hard to clean) |
| Condition | Spring rate | Cracking pressure | Best type |
|---|---|---|---|
| Vertical pipe, water-like fluid | Standard | 0.5 bar | Spring-loaded |
| Vertical pipe, viscous fluid | Light | 0.2 bar | Y-type |
| Horizontal pipe, clean fluid | Any | N/A | Ball-type (cheapest) |
| Horizontal pipe, viscous fluid | Light | 0.2 bar | Y-type |
| High backflow risk | Heavy | 1.0 bar | Spring-loaded |
| Pump discharge | Standard | 0.5 bar | Spring-loaded or Y-type |
