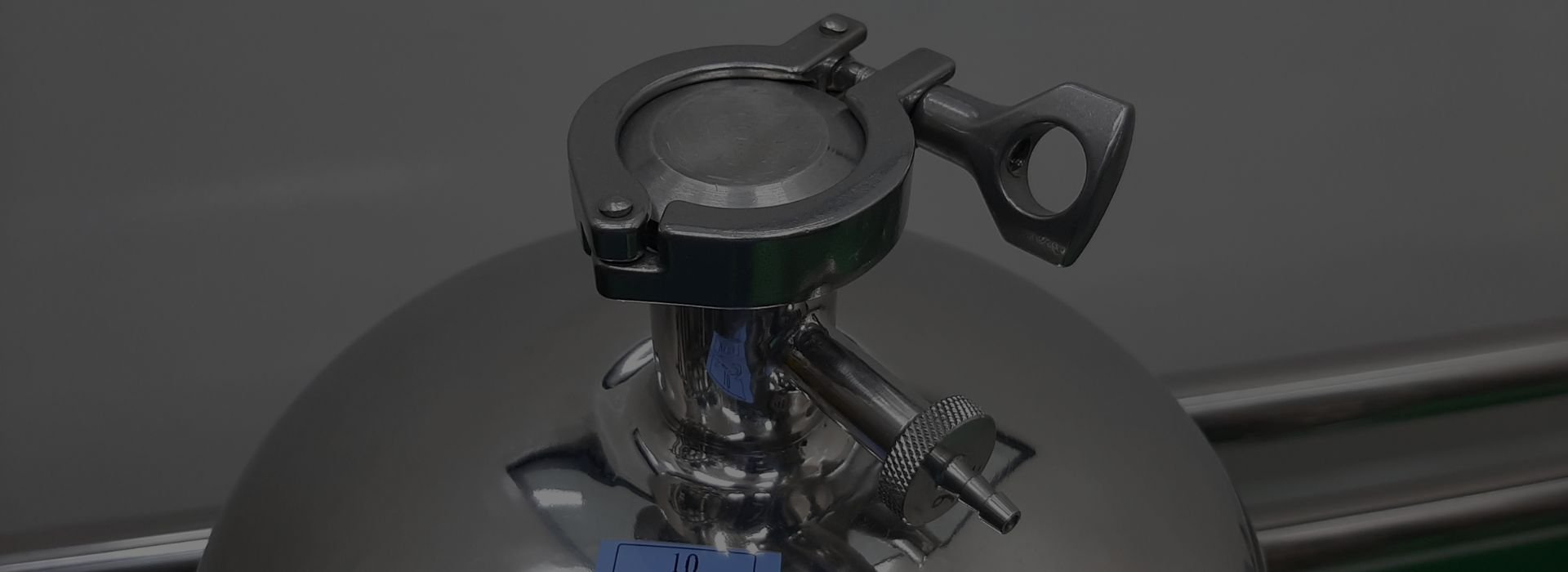

Why Choose Our Sanitary Clamp Ferrule
- Our products are made of certified 304, 316, and 316L stainless steel. We can provide an EN10204 3.1 material certificate.
- The sealing end face and flange dimensions are processed by CNC equipment to guarantee stable dimensional tolerances.
- The internal surface roughness can reach Ra 0.8 μm, meeting the needs of hygienic systems and CIP cleaning.
- We support multiple international standards like BS4825, SMS, DIN, ISO, and ASME, and are well-suited for different markets worldwide.
- We provide complete components like rings, clamps, gaskets, and connection rings, guaranteeing a perfect overall seal.
OMSS — Your Reliable Supplier of Sanitary Clamp Ferrule
OMSS focuses on providing high-precision sanitary clamp ferrules, which are extensively applied in food, beverage, pharmaceutical, and biotechnology industries. Our products are made of 304 and 316L stainless steel and comply with international standards like BS4825 and ASME. Through CNC precision processing and strict size inspection, we guarantee that all materials can be traced, and the surface roughness can meet the needs of high-level hygiene systems. Whether it is standard specifications or customized solutions, OMSS can provide reliable and continuous supply guarantees for your projects.

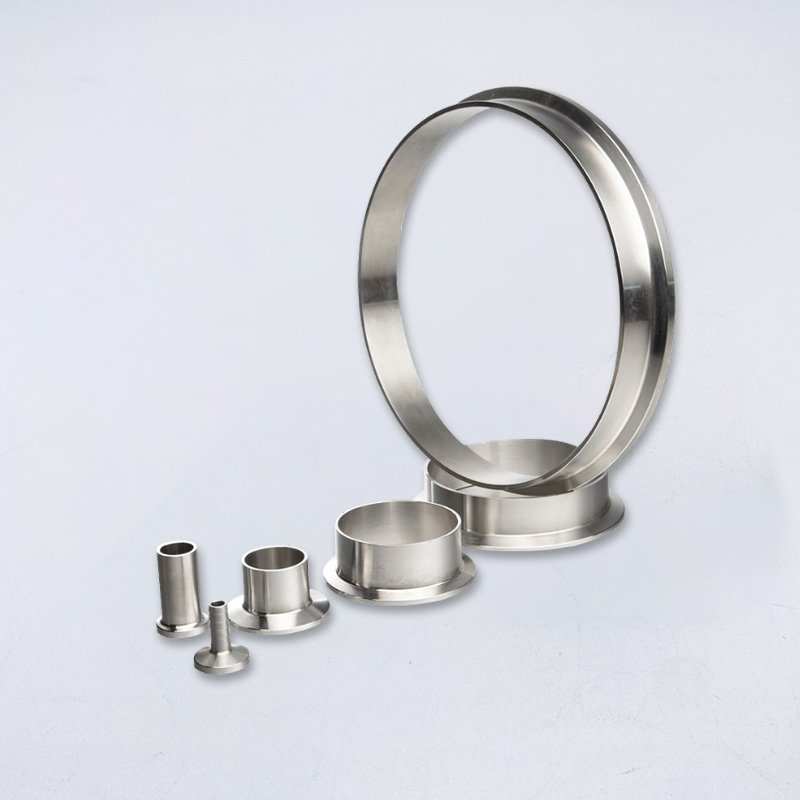

Types of Sanitary Clamp Ferrule

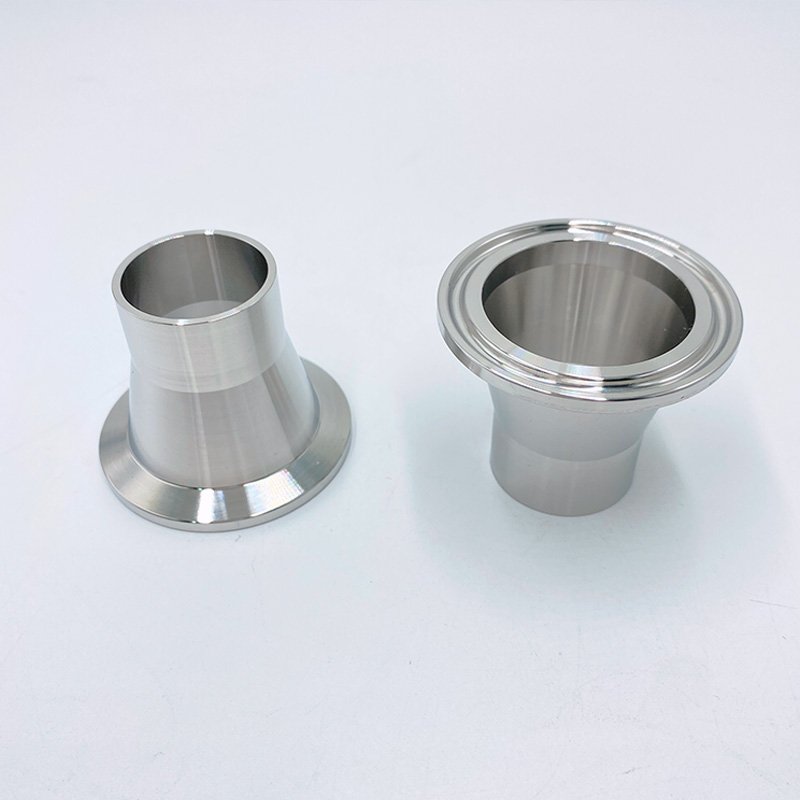

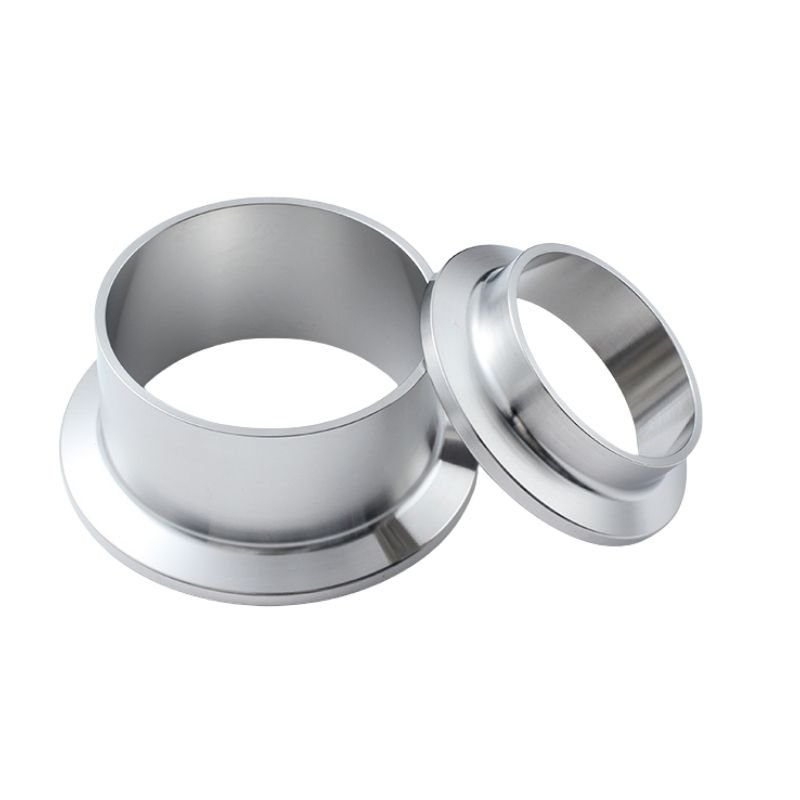

It is the most common type, with a shorter welding section, and is well-suited for conventional sanitary pipe connections.

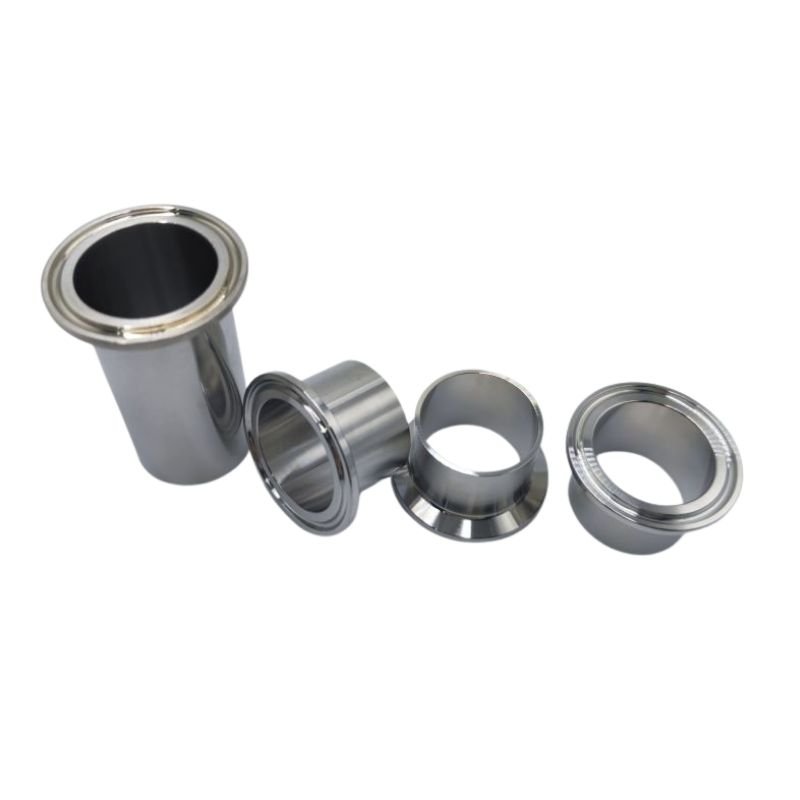

It has a longer weld length, providing a larger welding contact area, so it is perfect for sanitary piping systems with high flow rates or high-intensity operation.

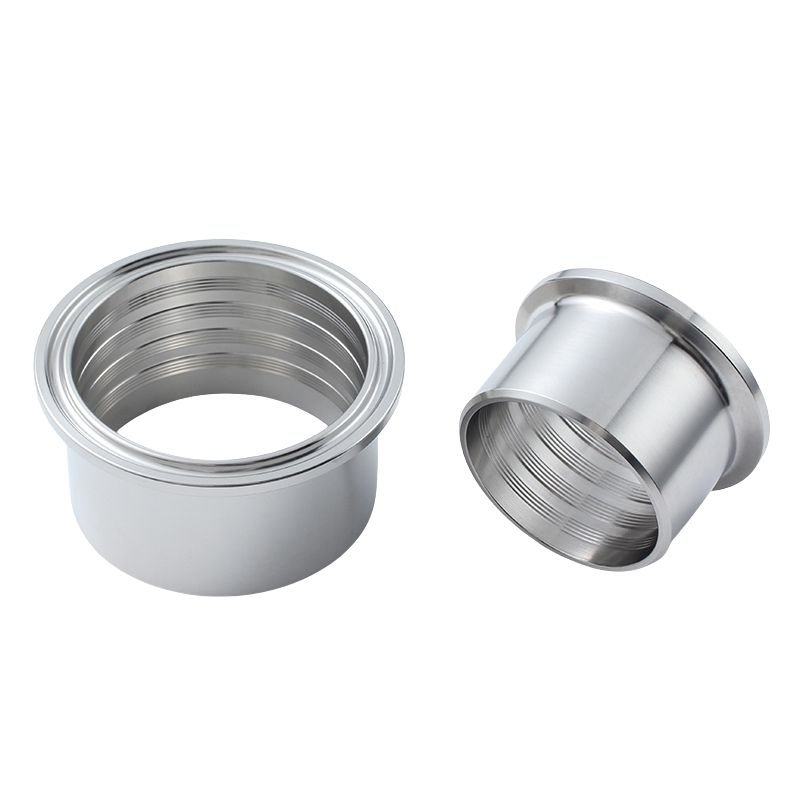

It has an expanded/flare design at the welding end, which increases the welding area and improves installation stability.

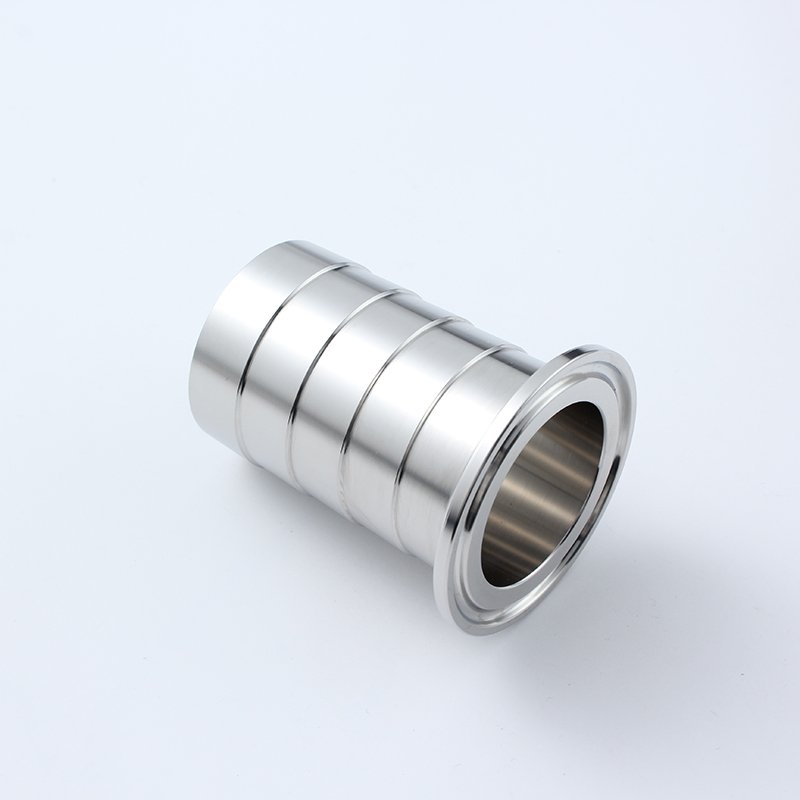

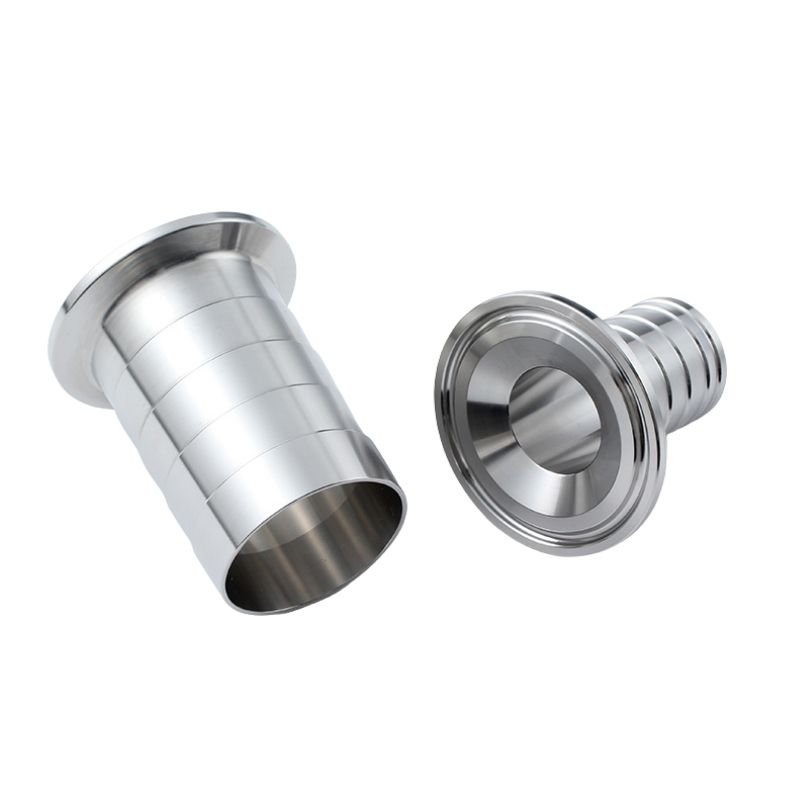

It is always used for connecting rubber hoses or silicone hoses, and it can always be found in cleaning and fluid transportation systems.
Features of Sanitary Clamp Ferrules
The smooth conical flange surface guarantees that the gasket is evenly compressed, forming a stable seal.
We provide polished treatment that cuts the danger of contamination and is convenient for frequent cleaning.
The butterfly nut structure supports tool-free disassembly, so it is convenient for frequent inspections.
An optional heavy-duty clamp configuration is available, suitable for high-demand pressure systems.

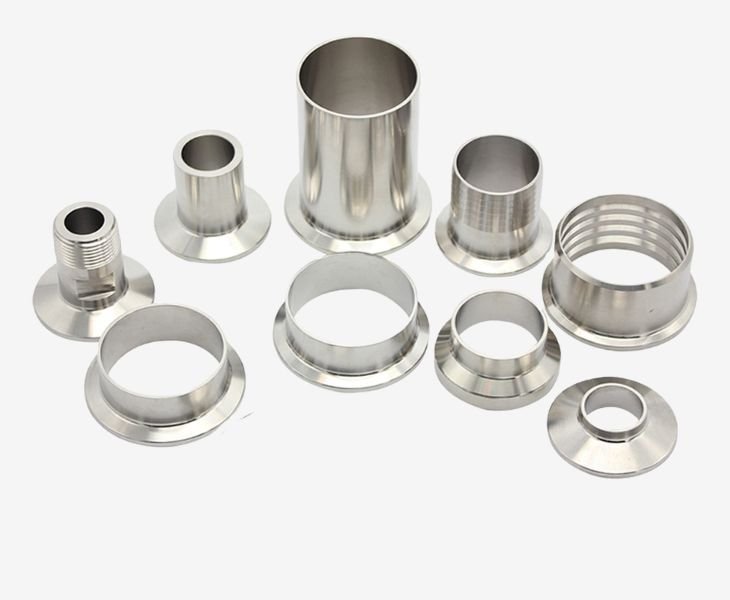

Engineered for Leak-Free Hygienic Connections
A set of clamp ferrules usually consists of two clamps, one gasket, and one three-clamp. Through the conical flange design, an even force-distribution structure is formed when the clamps are tightened, guaranteeing reliable sanitary sealing. Precise size control guarantees no misalignment during assembly and can reduce the leakage. This structure is always applied in high-value fluid systems, which can guarantee safe production and continuous operation.
Built for Inspection and Maintenance Efficiency

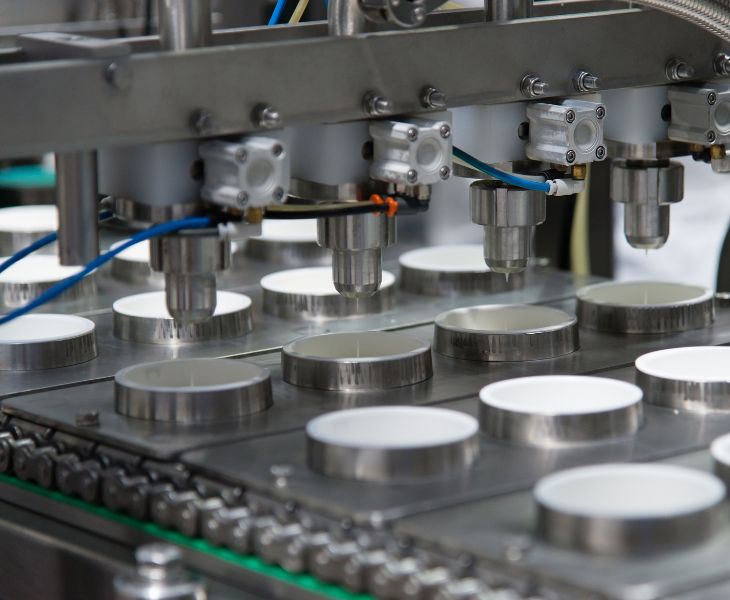

On food, dairy product, and pharmaceutical production lines, regular inspections are a routine practice. Our clamp system supports quick disassembly, and operators can complete maintenance simply by loosening the butterfly nut without special tools. This design greatly cuts downtime and improves production line efficiency. Meanwhile, it also meets strict hygiene audit requirements.
Certified Materials for Regulated Industries

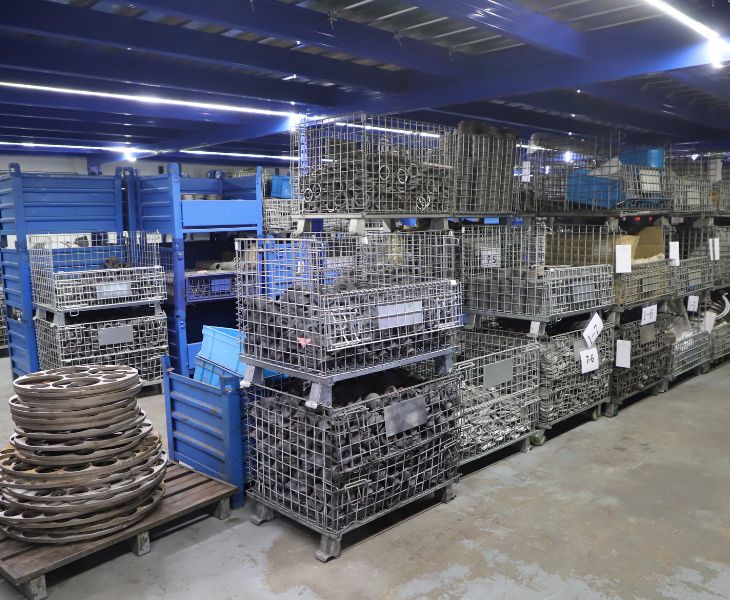

Our key components adopt traceable stainless steel materials, offering options of 304, 316, and 316L. The surface roughness of the inner part meets the hygiene standards. The product complies with the CE requirements of the Pressure Equipment Directive 97/23/EC and Machinery Directive 98/37/EC. Some models are cast in 316 stainless steel and are specially designed for the pharmaceutical and biotechnology industries, well-suited for applications like pressure vessels and filtration systems.
Applications of Sanitary Clamp Ferrules

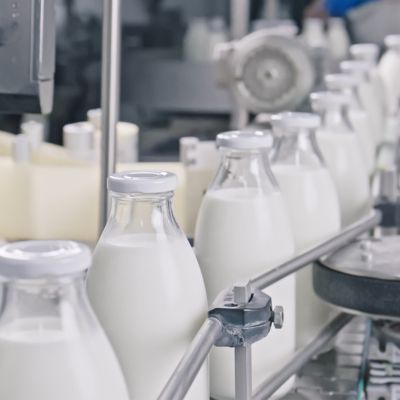

In milk, yogurt, cheese, and liquid food production lines, the piping system needs to be frequently cleaned and hygienically inspected by CIP. OMSS’s clamp ferrules can prevent dead corners through a precise sealing structure. The inner surface with a Ra 0.8 μm polishing treatment is conducive to reducing bacterial adhesion.

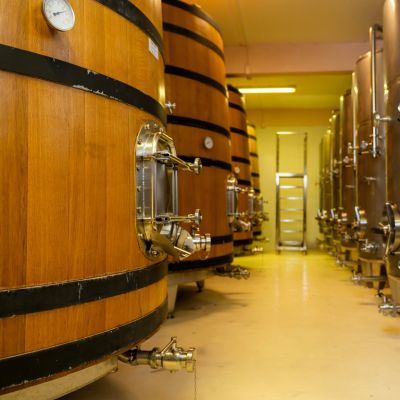

During the processes of brewing, fermentation, filtration, and filling, the purity of the fluid is of vital importance. We have tri-clamp ferrules that can accomplish a stable seal by pressing the conical flange against the gasket, greatly preventing air and impurities from entering the system.

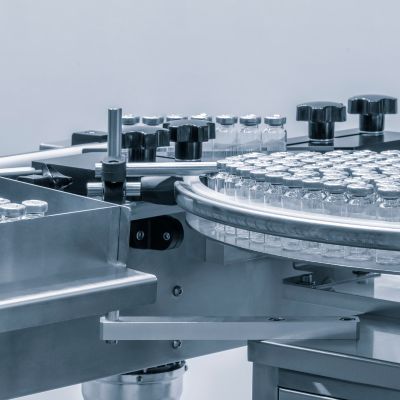

The pharmaceutical and bioreactor systems have high requirements for material traceability, cleanliness, and pressure grades. The 316L stainless steel material and ASME specification design can meet the needs of a sterile environment. OMSS’s clamp ferrules can be used in the bioreactors, filter housings, and sterile conveying systems, which will guarantee no leakage, no contamination, and support rapid verification and disassembly.

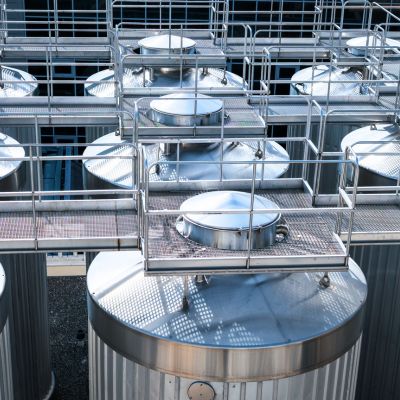

In systems for transporting paints, fertilizers, adhesives, and other chemical media, the pipeline components require good corrosion resistance and reliable sealing performance. Our 316 or 316L stainless steel clamp ferrules are able to adapt to different corrosive fluid environments. What’s more, the stable sealing structure can prevent leakage and guarantee safe production in the factory.

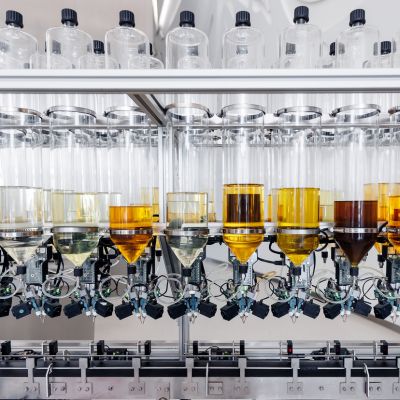

Our clamp ferrules can also be used in the filling system for emulsions, essences, fragrances, and skin care products. Its hygiene grades and appearance cleanliness are equally significant. The clamp ferrule can be quickly disassembled and reassembled, which facilitates formula changes and equipment cleaning. In addition, the highly polished inner wall can prevent cross-contamination and strengthen the stability of every product.
- Certificate of Compliance
Customer Reviews
We ordered stainless steel tank accessories and pipe fittings from OMSS for industrial fluid handling applications. The products arrived on time with proper protection, and the installation process was smooth. Their team was responsive whenever we needed technical information before and after delivery.
ThomasOMSS has become one of our trusted stainless steel component suppliers. We appreciate their fast communication, clear order updates, and careful packaging. Even for customized parts with different specifications, they maintain good consistency between samples and mass production.
SarahWe have strict requirements for surface finish and hygiene standards in pharmaceutical equipment. OMSS stainless steel fittings showed excellent workmanship, with smooth surfaces and precise machining. Their products helped us meet our equipment assembly requirements and maintain reliable production performance.
Michael
The sanitary clamp ferrule is the core component that is welded at the end of the pipe and provides the sealing surface. While the tri clamp is an external locking device. The sleeve is responsible for forming the sealing interface, and the clamp is responsible for applying pressure and fixing the connection. Both must be used together to form a complete sanitary clamp connection system. Without the sleeve, the clamp cannot form an effective seal.
In the food and beverage industry, the inner surface of the sleeve usually requires Ra 0.8 μm or lower. In the pharmaceutical system, some applications have higher surface finish requirements. Lower surface roughness can reduce bacterial attachment and improve CIP (Continuous In-Line Cleaning) and SIP (Continuous In-Line Sterilization) effects, so it will guarantee the hygiene safety of the production process.
The short-weld type has a compact structure and is suitable for conventional sanitary pipe systems. The long-weld type has a longer welding end, providing a larger welding area, and is perfect for high-vibration or high-pressure environments. For systems with more stringent operating conditions, the long-weld type has an advantage.
Yes, the Sanitary clamp ferrule is designed for sanitary systems and is suitable for CIP and SIP processes. The clamp connection method supports quick disassembly, so it is convenient for inspection and verification. When using 316L material and reaching the appropriate surface roughness, it can meet the needs of high-temperature sterilization and repeated cleaning.
What Is a Sanitary Clamp Ferrule?
Sanitary clamp ferrule is a precision stainless steel connection component for sanitary piping systems, and is usually welded at the end of a pipe or at the interface of a piece of equipment. It is connected to another end ferrule through a gasket and three clamps, forming a detachable, cleanable, and reusable sealing connection structure.

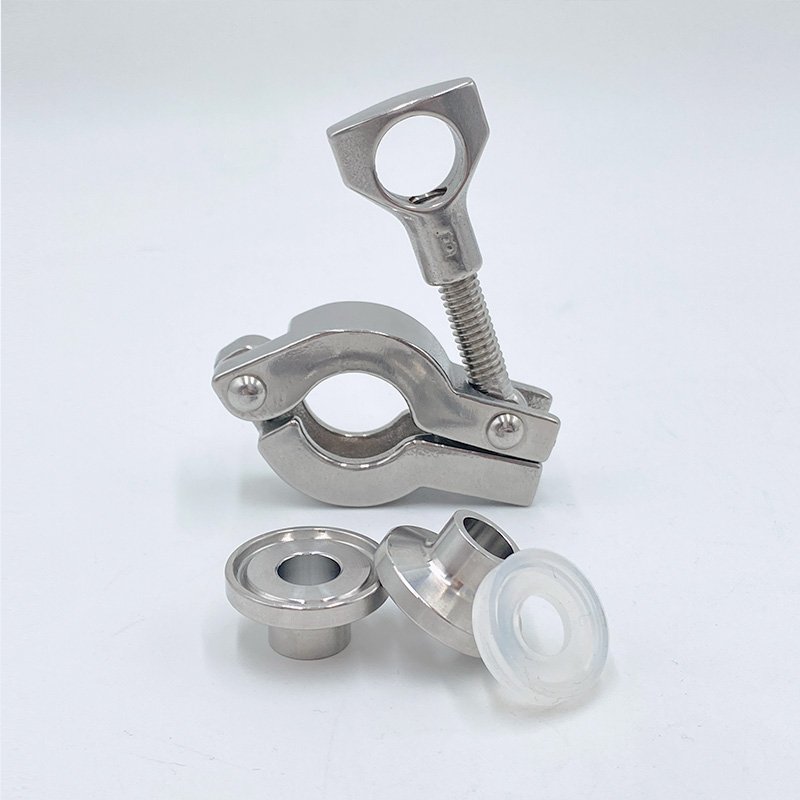

A complete clamp ferrule usually consists of four parts:
- Two ferrules are welded at the end of the pipe
- A sanitary gasket located in the middle
- A Tri Clamp (three clamp) is used for locking purposes
The sealing principle of the sanitary clamp ferrule is based on “axial compression + uniform force”.
When the clamp is tightened, the flange surfaces of the rings are uniformly compressed, and the gasket is compressed to fill the gap, forming a sanitary-level leak-free sealing structure at the interface. This design avoids the multi-bolt structure in traditional flange connections, simplifies the installation process, and improves the disassembly and assembly efficiency.
How to Choose the Right Sanitary Clamp Ferrule?
Pipeline Standard System
Different countries adopt different sanitary piping standards, and the sizes and sealing structures are not universal. Common standards include ASME BPE, 3-A Sanitary Standards, ISO 2852, and DIN 11850. Before purchasing, you should confirm whether the outer diameter, wall thickness, and clamp interface type match the existing system. Choosing the wrong standard will lead to installation failure or leakage.
Stainless Steel Material
Common materials are 304 and 316L. 304 can be chosen when the environment is not highly corrosive. If the system involves acid-base cleaning, high-temperature steam, or pharmaceutical processes, you should select 316L. 316L contains molybdenum, which has a stronger corrosion resistance. For export projects, you need to provide a 3.1 material report because it will guarantee material traceability.
Surface Roughness Grade
Surface roughness determines the cleaning effectiveness. The food industry usually requires Ra ≤ 0.8 μm. In pharmaceutical and bioengineering systems, it may require Ra ≤ 0.6 μm or electro-polishing treatment. The smoother the surface, the easier it is to clean. Do not overlook this point, because it will affect the hygiene level of the system.
Connection Type
Clamp ferrules are always applied in butt-weld type, short-weld type, and custom-made type. The butt-weld type is suitable for fixed installation and has a more stable structure. The short-weld type suits locations with limited space. When choosing, you should consider the pipe thickness and installation environment. If the welding length is unreasonable, stress concentration problems may appear.
Work Pressure and Temperature
Although the Clamp system is often used in medium and low-pressure circumstances, the different thickness of the material can influence its ability to withstand pressure. If the system has high-temperature steam or undergoes frequent thermal cycles, you should confirm whether the material is suitable. Ignoring temperature changes can cause deformation or seal failure.
Sealing Fit Accuracy
The ferrule itself does not provide sealing. The true sealing comes from the gasket and the clamping pressure. However, the machining accuracy of the sealing surface is crucial. If there are burrs or knife marks on the sealing surface, even with high-quality gaskets, leakage may still occur.
