The Cleanest Valve in the Plant

A diaphragm valve isolates the valve mechanism from the fluid completely. No stem seal, no threads, no springs in the flow path. The fluid touches only the body and the diaphragm. That makes it the cleanest option for any line where contamination cannot be tolerated.

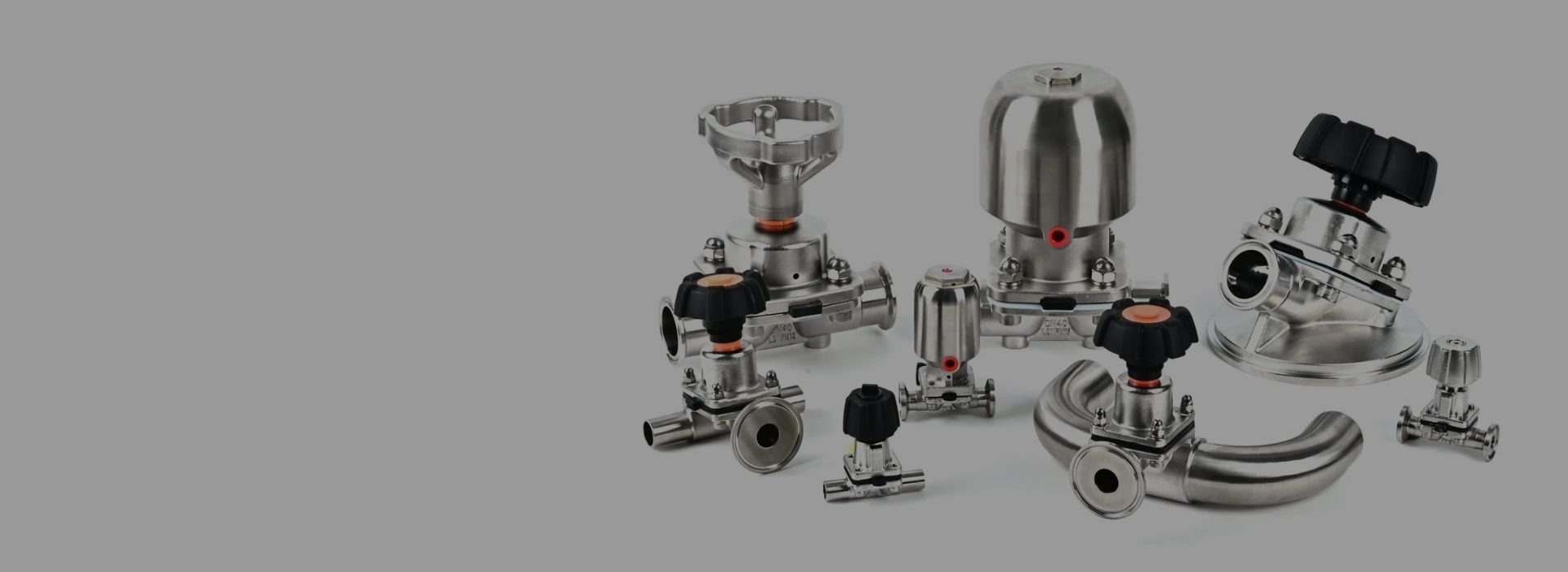

We make diaphragm valves — straight-through, weir-type, multi-port — and we ship them mostly to pharma and biotech. A growing number go to food and beverage lines where the customer wants a higher level of hygiene than a butterfly valve can offer.

They cost more and they need more attention. A butterfly valve gasket costs a few dollars and takes five minutes to replace. A diaphragm costs more and takes longer to swap. But if your line cannot tolerate a single contamination event, the diaphragm valve is the only real option.

How It Works

A flexible diaphragm is clamped between the valve body and the bonnet. The actuator pushes the diaphragm down onto a weir (a raised dam in the body) to shut off flow. When the actuator lifts, the diaphragm pulls away and fluid passes through.

The fluid never reaches the stem, the spring, or the actuator. There is no place for bacteria to hide. That is why diaphragm valves are standard in pharmaceutical sterile filling, bioreactor feed lines, and any aseptic process.

(Weir-type accounts for about 70% of what we ship. Straight-through is second, mostly for viscous fluids.)

Diaphragm Materials: What We Have Tested

The diaphragm is the key component. A diaphragm valve is only as good as its diaphragm compound. We tested four materials across 10,000 cycles at 135C SIP conditions to see how they hold up.

Peroxide-crosslinked EPDM is our standard for most applications. It handles daily SIP at 135C and lasts about 12-18 months under normal use. PTFE lasts longer but costs more and requires higher actuation force. FPM is for chemical resistance. Silicone is for dry-heat sterilization.

Diaphragm Valve vs Butterfly Valve: When Each Makes Sense

We make both, so we do not have a bias. The choice depends on the risk you are managing.

The price difference is not small. A DN50 diaphragm valve with a pneumatic actuator costs roughly double what a DN50 butterfly valve costs with the same actuator. But if you are running a sterile filling line at 135C SIP daily, the diaphragm valve pays for itself in avoided contamination risk.

Common Failures We See

A pharma customer was replacing diaphragms every 5-6 months. The previous supplier had specified standard EPDM, but the line ran SIP at 135C daily — above standard EPDM limits. We supplied PTFE diaphragms instead. Replacement intervals went to 18 months.

About 12% had stem misalignment from improper bonnet tightening during assembly. The stem was off-center, causing uneven diaphragm wear. We now include a torque specification for the bonnet bolts with every diaphragm valve order.

Installation issues: 8% had the bonnet bolts over-tightened, distorting the diaphragm and causing leaks. The remaining 3% were miscellaneous.

Maintenance: What We Recommend

Diaphragm replacement interval: 12 months under daily SIP, 18-24 months under less aggressive conditions. We supply a cycle-counting sticker on every diaphragm valve. Count cycles, not calendar days. Under daily SIP (2 cycles per day, 5 days per week): roughly 500 cycles per year. Replace at 400-500 cycles.

Signs that replacement is due:

Valve does not close fully — the diaphragm has stretched or taken a set.

Weeping at the closed position — the diaphragm seal surface is worn.

Increased actuation force required — the diaphragm has hardened.

Annual replacement is cheap insurance. A diaphragm costs a fraction of what a contaminated batch costs.

Questions

Q: Diaphragm valve or butterfly valve for a dairy aseptic line?

A: If the line carries aseptic product post-pasteurization, use a diaphragm valve. The risk of contamination through a butterfly valve stem seal is low but not zero. For CIP circuits and product transfer lines before the pasteurizer, butterfly valves are fine.

Q: How long does a PTFE diaphragm last under daily SIP?

A: About 18-24 months in our experience. PTFE does not degrade from steam exposure the way elastomers do. But it does take a compression set over time, and it requires higher actuation force. Plan annual inspection.

Q: Can a diaphragm valve handle viscous fluids?

A: Yes, but use a straight-through type, not weir-type. Weir-type creates a flow restriction at the dam. Straight-through has full bore flow, better for syrups, creams, and slurries.

Q: What happens if the diaphragm ruptures?

A: The process fluid can enter the bonnet and actuator. In a sterile line, that means contamination. We recommend installing a leak detection port between the diaphragm and the actuator for critical applications.

Q: Why does my diaphragm valve weep when closed?

A: Most likely the diaphragm has reached end of life — it has stretched and no longer seats properly. Less common: debris on the seat surface or chemical attack causing swelling. Replace the diaphragm first, then check the seat if it still weeps.

Technical Review

Zhang Wei, Senior Valve Engineer — runs diaphragm valve production and testing.

onemo@onemoss.com

Data Sources

OMSS diaphragm wear test: 10,000 cycles across 4 materials at 135C.

Production and field data from 500+ diaphragm valve installations.
