Why Choose Our Sanitary Diaphragm Valve
- Have over 15 years of production experience and exported to 20+ countries.
- Using Japanese Makino CNC equipment to improve 100% production accuracy and efficiency.
- Offer customized solutions including structure, connection method, actuator and diaphragm material.
- Provide comprehensive one-stop services from selection suggestions, installation guidance and debugging support.
Reliable Sanitary Diaphragm Valve Supplier
OMSS always pays attention to our customers’ actual needs and delivers high-quality and highly compliant products and services. From product customization to installation and commissioning, we ensure that every customer can experience unparalleled support and protection. Whether you require standardized products or customized solutions for specific working conditions, we can give you ideal products and services.
Types of Sanitary Diaphragm Valves

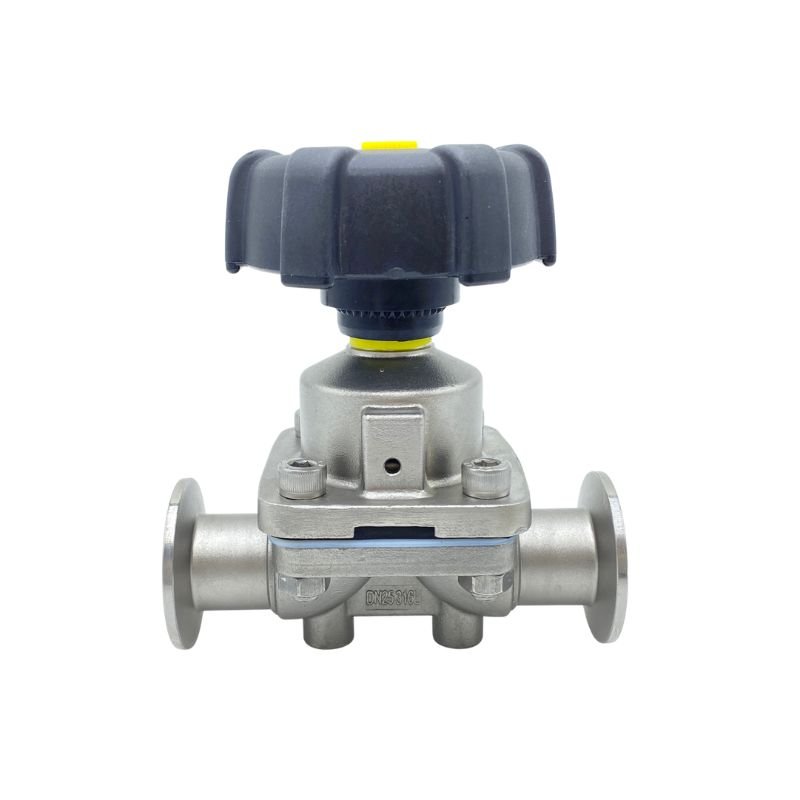

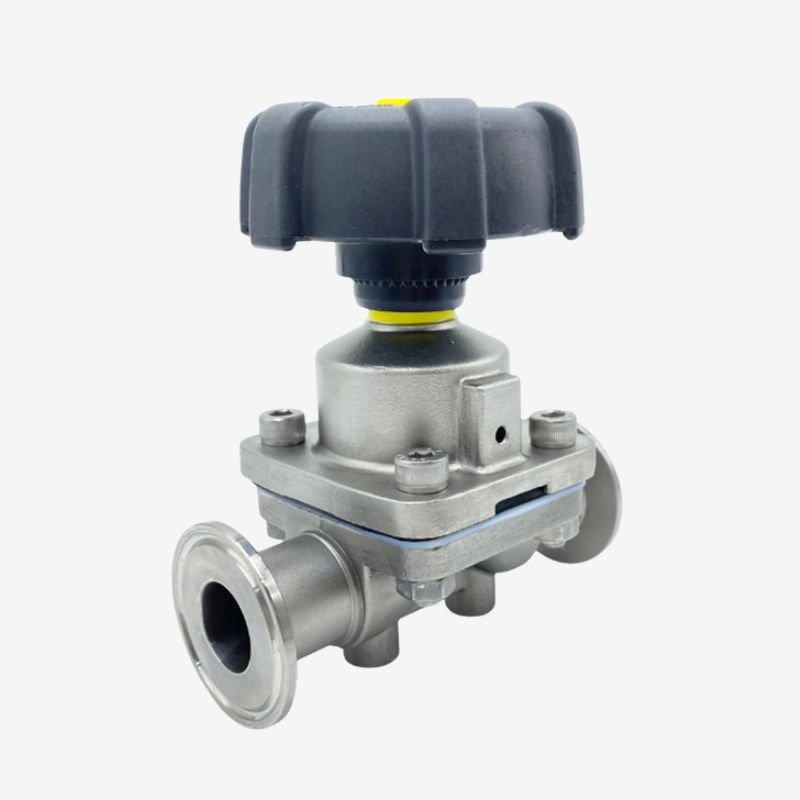

Comes with ports and can be sealed in both forward and reverse directions, particularly suitable for clean pipelines that require sampling, testing, exhaust, and cleaning.

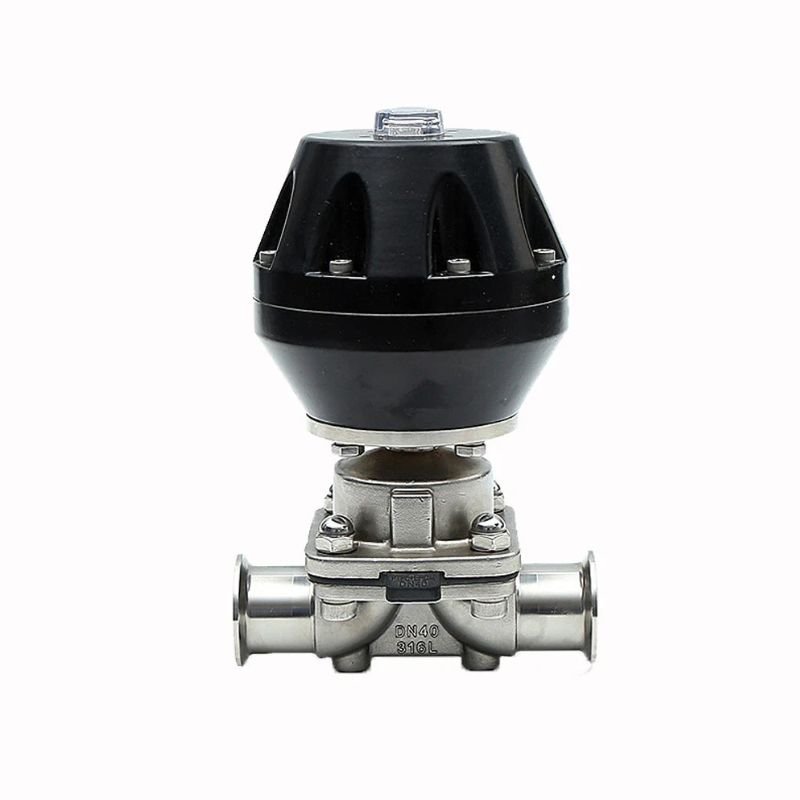

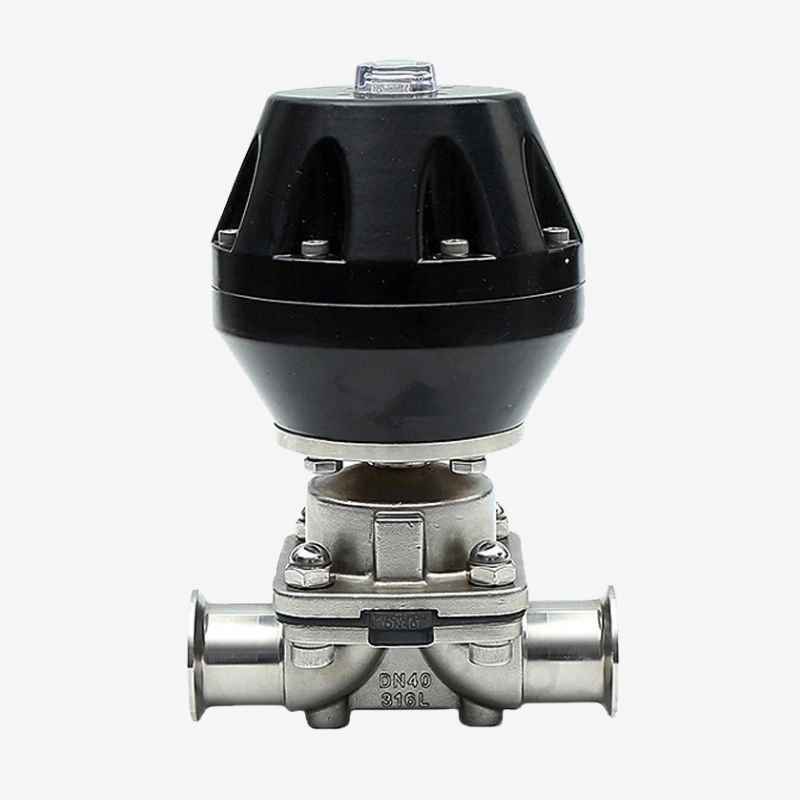

Have a weir-shaped protrusion structure in the middle and achieve sealing on the weir surface. Even under a lower air source pressure, it can realize reliable shut-off.

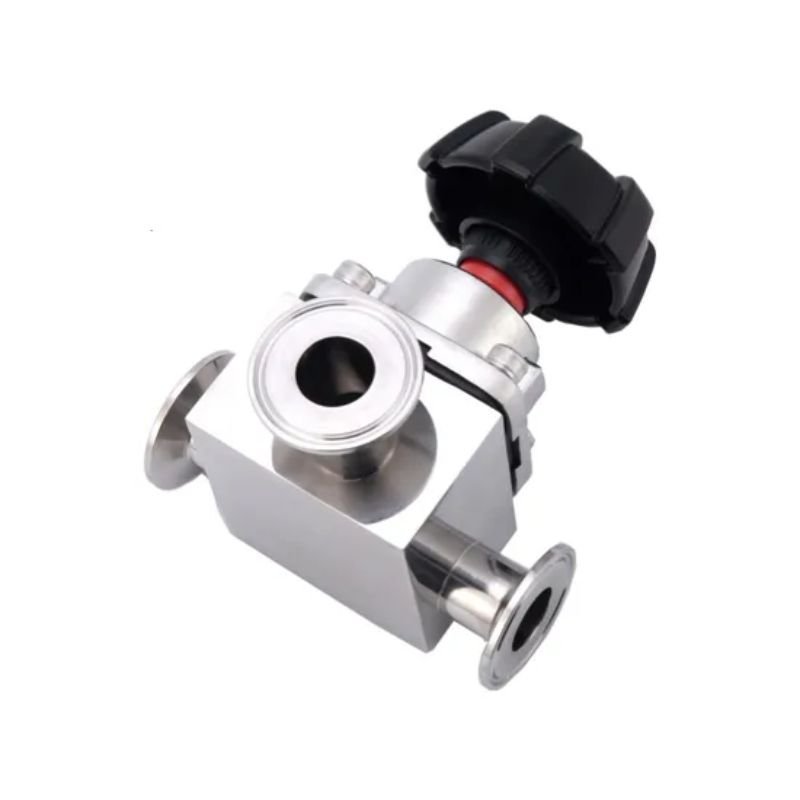

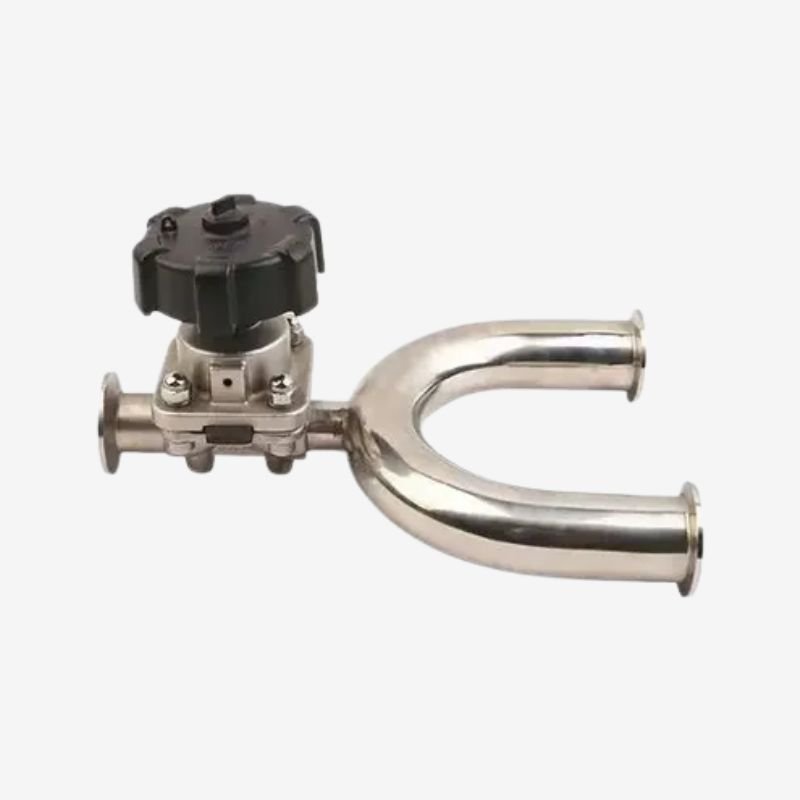

Achieve flow diversion, convergence, and direction change functions, suitable for systems requiring multiple process path transitions. Static pressure-free design makes fluid flow smooth.

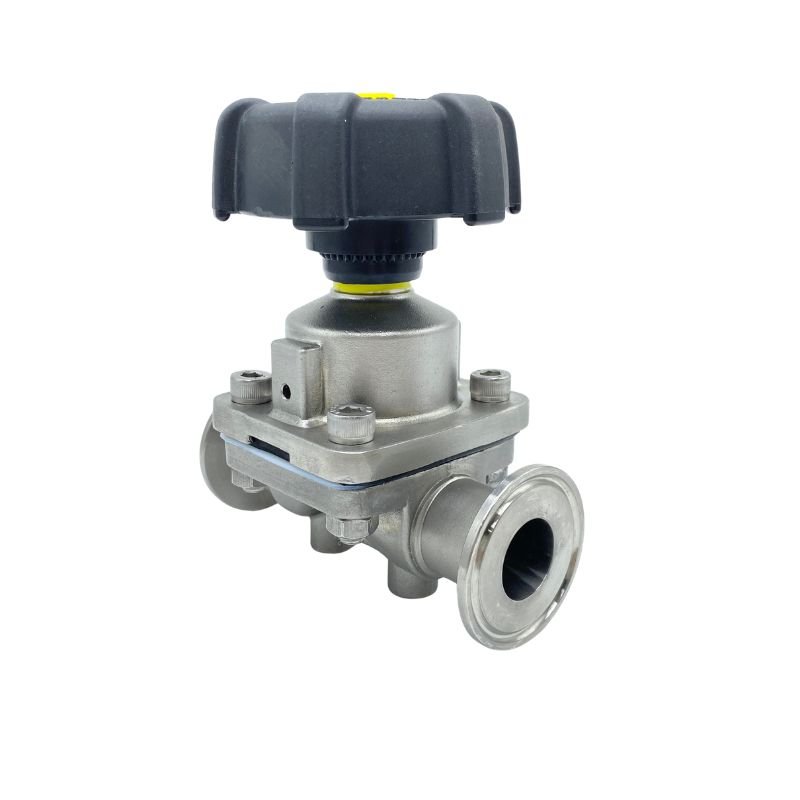

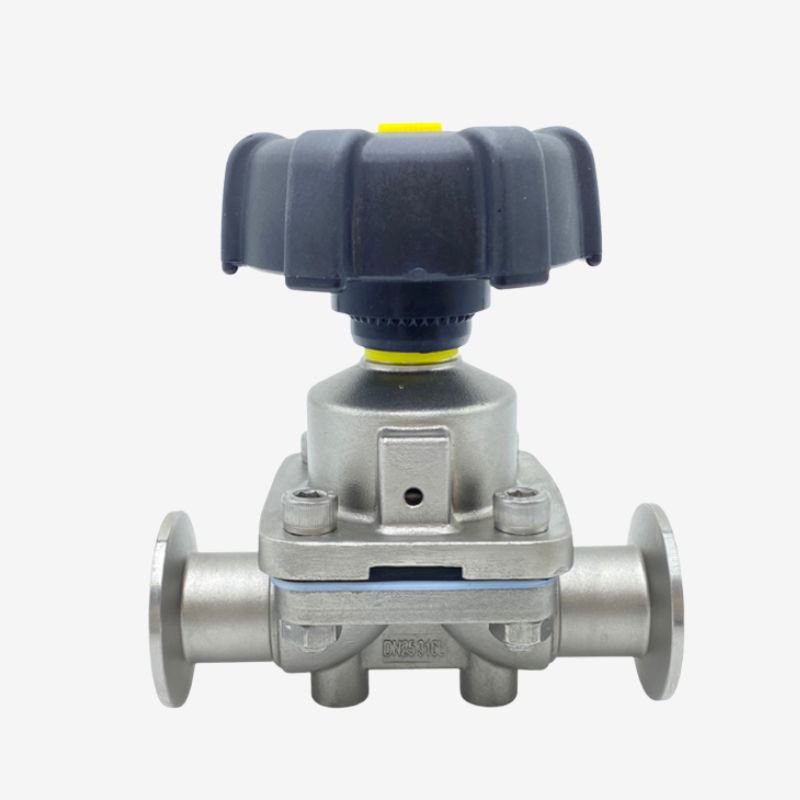

Both directions realize sealing and have bidirectional zero-leakage performance. With no need to consider the installation direction, suitable for sterile filling, batching and conveying systems.
Features of Sanitary Diaphragm Valves
The diaphragm has a large sealing surface and ensures extremely high reliability and sealing performance. Even in high-pressure or complex environments, it can guarantee no leakage.
It is suitable for various liquid media, including corrosive liquids, sterile fluids, and hazardous gases, which can meet various industrial requirements.
The sanitary diaphragm valves are resistant to high temperatures, cleaning, and sterilization. It withstands repeated SIP cycles over extended periods and can be applied to vacuum systems.
Regardless of horizontal or vertical installation, their internal part could deliver a good draining effect, reducing residual liquid retention and keeping your system hygienic and safe.
The flow path has a smooth transition without grooves, threads, or hidden dirt storage space, which is convenient for you to carry out thorough cleaning.
In the sanitary membrane valve, the medium does not come into contact with the valve stem, bearings, or springs, so it will not be contaminated and ensure your material is stable.
Due to simple structure, just replacing the top diaphragm can restore the sealing performance with no need to dismantle the main pipeline body, which saves maintenance costs and time.
With the assistance of specific actuators (such as pneumatic heads with a positioner) and flow channel designs, sanitary diaphragm valves can achieve precise flow regulation.
Raw Material Guarantee
The sanitary diaphragm valve body is uniformly made from 304 or 316L stainless steel. The diaphragm is made of materials such as EPDM, PTFE, silicone, and so on, which comply with hygiene standards like FDA. Each batch of raw materials comes with material reports and quality assurance documents, supporting project traceability and auditing requirements. If your project requires verification or export compliance, we can prepare relevant technical documents in advance to reduce your time cost in data organization.
High Customization Capability
The valve opening diameter covers 0.5 inches to 6 inches. The structure includes straight-through type, three-way type, tank bottom valve and multi-channel valve. And you can choose connection methods such as quick-installation, welding, or other forms, facilitating your matching with existing pipeline systems. We can customize the diameter, wall thickness, and sealing structure according to your working condition parameters to ensure that sanitary diaphragm valves can directly adapt to your system integration solution.
Production Quality Guarantee
We adopt precise CNC processing technology and strictly control key dimensions. The valve’s structural length tolerance is controlled within ±0.5 mm, with an inner wall roughness of Ra ≤ 0.8 μm (mechanical polishing) or Ra ≤ 0.5 μm (electropolishing). The dimensional tolerances are strictly maintained within ±0.1 mm, ensuring each valve meets high precision standards. At the same time, it can ensure that the sanitary diaphragm valve has high interchangeability, and will not cause installation difficulties or sealing abnormalities due to size deviations.
Applications of Sanitary Diaphragm Valves
The pharmaceutical industry has extremely strict requirements for the hygiene of pipeline systems, especially when it comes to biological products, drug production, or aseptic operations. Sanitary diaphragm valves have good sealing performance and no dead corners. So it could effectively avoid drug contamination and ensure the aseptic nature during the production process.
During the production process of food and beverages, your valves need to control the flow of fluids and also must avoid becoming sources of contamination. Our sanitary diaphragm valve ensures that your materials do not come into contact with the valve stem and mechanical transmission components. It is commonly used in filling lines, ingredient systems and conveying pipelines.

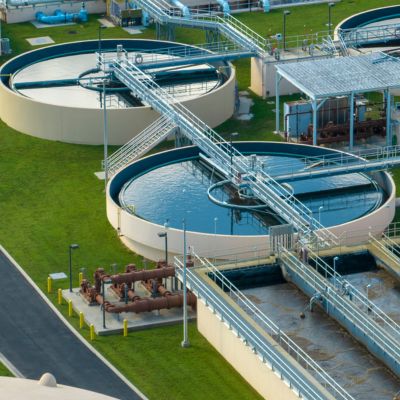

Whether it is regulating the flow in a sewage treatment plant or ensuring precise control of water flow in a water purification plant, sanitary diaphragm valves can provide you with reliable solutions. Their corrosion resistance and sealing performance can adapt to changes in different water qualities, ensuring stable fluid control during the water treatment process.
The sanitary diaphragm valves’ corrosion resistance and sealing performance make it an ideal choice in fine chemicals or special chemicals. Their internal partition design can handle strong acids, strong bases or corrosive media conditions. Moreover, they precisely regulate the flow rate to keep the liquid stable flow and guarantee the reaction smooth.
- Certificate of Compliance
Customer Reviews
OMSS supported our custom stainless steel fitting project from drawing confirmation to final production. Their engineers provided useful suggestions on material selection and processing details. The finished components matched our requirements well and performed reliably in our food equipment applications.
JohnWe purchased sanitary tri clamp fittings and stainless steel ferrules from OMSS for our beverage processing system. The dimensions were accurate, the polishing was clean, and the fittings connected smoothly with our existing pipes without additional adjustment. The consistent quality helped us improve installation efficiency.
EmilyOMSS has become one of our trusted stainless steel component suppliers. We appreciate their fast communication, clear order updates, and careful packaging. Even for customized parts with different specifications, they maintain good consistency between samples and mass production.
Sarah
For sanitary systems, the greatest advantage of diaphragm valves lies in their controllable cleanliness. Traditional ball valves or globe valves often have dead corners inside and make cleaning difficult. However, diaphragm valves adopt a diaphragm structure, effectively avoiding dead corners and complex cavities, ensuring easier complete emptying and thorough cleaning.
If your production requires CIP/SIP cleaning verification, sanitary diaphragm valves usually can pass the relevant process audits more easily, providing higher hygiene guarantees.
The diaphragm is a wear-prone component and its lifespan depends on the medium characteristics, temperature, pressure, and opening and closing frequency. In conventional food or pure water systems, the diaphragm can be stable for a long period. While in steam or corrosive medium environments, the lifespan will be shortened accordingly.
The sanitary diaphragm valve’s overall structure is relatively simple. Their maintenance work mainly focuses on diaphragm inspection and replacement. It is recommended for you to formulate a regular inspection plan based on your production cycle, such as checking whether the diaphragm has aged, bulged, cracked, or deformed the sealing surface.
What Are Sanitary Diaphragm Valves
Sanitary diaphragm valves regulate fluid flow through a flexible diaphragm. Their core principle is to control the flow and shut-off of the medium by the movement of the diaphragm. They are widely used in industries such as pharmaceuticals, food, beverages, chemicals, and water treatment.
The most common structure is the two-way type (also known as a bidirectional diaphragm valve), which is suitable for conventional on-off control. Three-way or three-port configurations are more adopted for diverting, merging, or switching flow directions. For complex process systems, it supports multi-port designs incorporating multiple weirs, diaphragms, and actuators that can be engineered to facilitate mixing, drainage, online sampling, or feed control.
The Components of Sanitary Diaphragm Valves
Valve
The valve body is usually made from 304, 304L or 316L stainless steel. To prevent material residue and bacterial growth, high-precision polishing treatment is usually carried out on the inner surface that comes into contact with the medium. For example, the surface roughness is less than 0.5 micrometers (electrolytic polishing).
Diaphragm
The diaphragm is made from EPDM, PTFE, or composite materials. It achieves complete dynamic isolation between the internal medium and the valve stem and drive mechanism. This makes the medium not come into contact with the mechanical transmission components, structurally preventing lubricant contamination or wear particles from entering the process fluid.
Driving Mechanism
The driving methods can be manual, pneumatic or electric. Automated production lines usually use pneumatic or electric actuators and can be equipped with position feedback or control modules. This enables your connection better with PLC or control systems to realize precise control.
Sealing Chamber
The sealing chamber design ensures that the medium flows only between the valve body and the diaphragm, completely avoiding the contact of the valve stem and the spring with the medium.
The Process of Sanitary Diaphragm Valves
When evaluating a sanitary diaphragm valve, the manufacturing process often directly determines its subsequent service life, cleanliness level, and verification difficulty. For bidirectional valves, the valve body can typically be manufactured using either forging or casting techniques. There are significant differences in cost and performance between the two methods.
Forged Sanitary Diaphragm Valves
Forged valve bodies feature a denser metal structure and lower internal porosity. In high-purity media or sterile conditions, this low porosity enhances pressure resistance and fatigue strength while lowering your microbial contamination caused by micro-pores in the material.
Therefore, forged sanitary diaphragm valves could offer you with higher-grade surface finishing, achieving polished surface roughness as low as 10 Ra. This makes them suitable for systems demanding exceptional internal surface cleanliness, such as pure water, fermentation broth, or high-end food fluid transfer systems.
Casting Sanitary Diaphragm Valves
Valves manufactured through casting show better sealing performance and durability. They effectively eliminate stress concentration or potential leakage issues associated with welded connections and make your comprehensive polishing more easy.
For you, this means cast sanitary diaphragm valves can keep more stable structural integrity, extended service life, and reduced unplanned downtime during CIP/SIP cycles, high-frequency switching operations, or prolonged continuous operation.
The Working Principle of Sanitary Diaphragm Valves
When the valve is closed, the valve stem moves downward, pressing the flexible diaphragm against the flow channel (weir section) of the valve body, completely cutting off the medium. Since the sealing is achieved through the contact between the diaphragm and the valve body surface, rather than relying on packing boxes or complex sealing components. So they has shorter sealing path and fewer risk points.
When the valve is opened, the valve stem rises, and the diaphragm relies on its own elasticity to rebound, completely releasing the flow channel, allowing the medium to flow smoothly. The entire flow chamber structure is relatively simple without complex cavities, enabling your equipment to easily achieve complete emptying.
How to Choose Sanitary Diaphragm Valve
Operating Conditions
You must clear the production conditions, particularly the characteristics of the medium and the temperature range. Because these factors will determine your selection of the diaphragm material and the valve body structure for the sanitary diaphragm valve.
For example, when handling water, neutral pharmaceutical solutions, or clean fluids, sanitary diaphragm valves with EPDM diaphragms offer both cost-effectiveness and steam resistance. However, for corrosive media like strong acids, strong alkalis, or applications requiring high-temperature sterilization, sanitary diaphragm valves featuring PTFE composite diaphragms deliver superior corrosion resistance and high-temperature tolerance to make them better suited for demanding conditions.
Fluid Characteristics
Different sanitary diaphragm designs are suited for distinct application scenarios. The common weir-type diaphragm valve is commonly adopted for most clean media and has a high cost-effectiveness, but for high-viscosity or particle-containing fluids, it may accumulate materials at the weir, affecting the flow performance.
Sanitary Requirements
The sanitary requirements will determine your material and surface treatment. In pharmaceuticals and bioengineering which usually require a sterile environment, it is commonly found to use 316L stainless steel and perform electrolytic polishing and passivation treatment to meet stringent demands for corrosion resistance and cleanliness. While most food and beverage industries use 304 stainless steel and combined with mechanical polishing to ensure fluid safety with lower cost.
Connection Method
The sanitary diaphragm valves’ connection method directly affects the convenience of installation, disassembly and maintenance. If frequent disassembly and cleaning are required in the production environment, clamp connections are recommended for their quick assembly, disassembly, and maintenance convenience. But when pipelines need to be fixed permanently and ensure a permanent seal, especially in a sterile environment, welded sanitary valves could offer you superior zero-leak performance.
Drive Mode
Choosing the appropriate driving method is also important to keep valve operation efficient. Manual driving is an economical and reliable option. Meanwhile, sanitary diaphragm valves with pneumatic driving are the mainstream for most automated production lines.
