Why Choose OMSS ’s Sanitary Fermenter Sample Valve?
- Anti-drip outlet design for your purchased sample valve.
- Support CE, ISO9001, 3A certificated sanitary fermenter sample valves.
- Sealing material supported: EPDM, FPM that meet FDA 117.2600.
Professional Sanitary Fermenter Sample Valve Supplier in China
OMSS is a factory specializing in manufacturing sanitary products. We can provide you with sanitary fermenter sample valves certified to ISO, DIN, and 3A standards. After precision machining and strict tests for the surface roughness, dimensional accuracy, and helium leak detection, our fermenter sampling valves deliver reliable sealing performance and support CIP/SIP sterilization processes. They are widely applicable in food fermentation, cheese production, and biomedical applications.

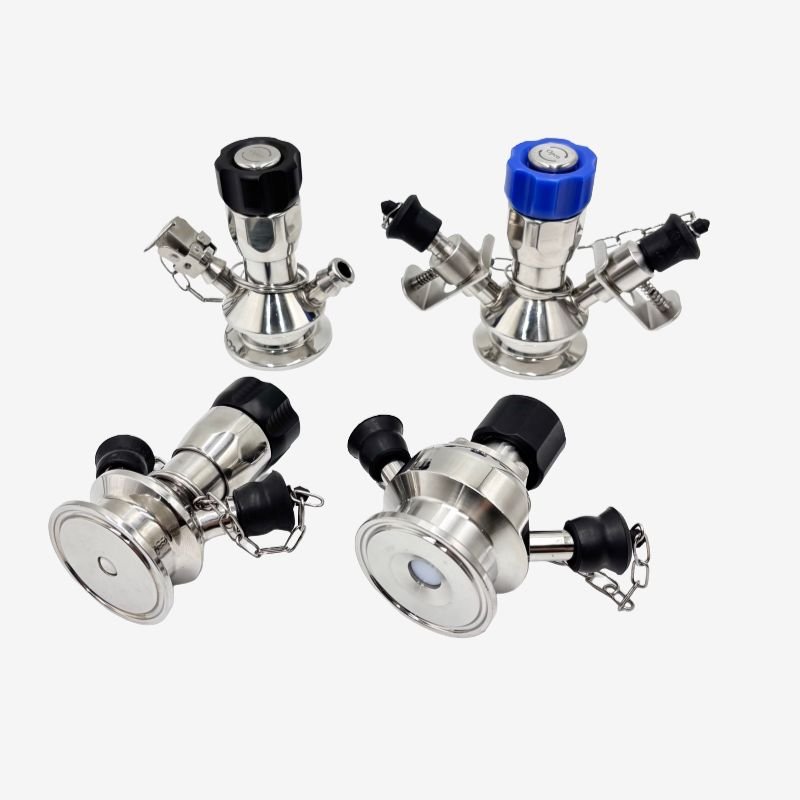

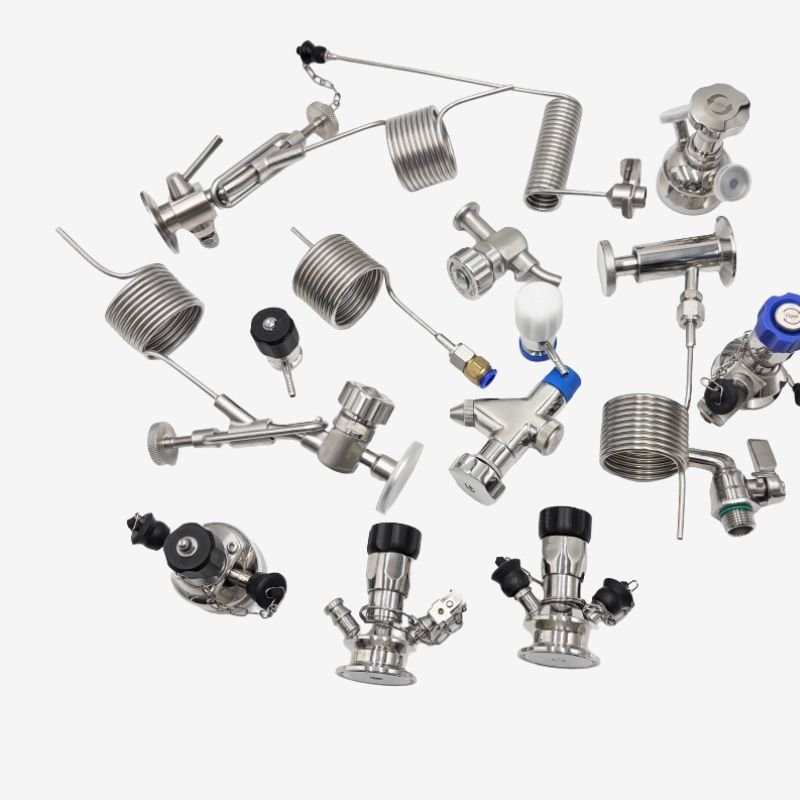

Our Products

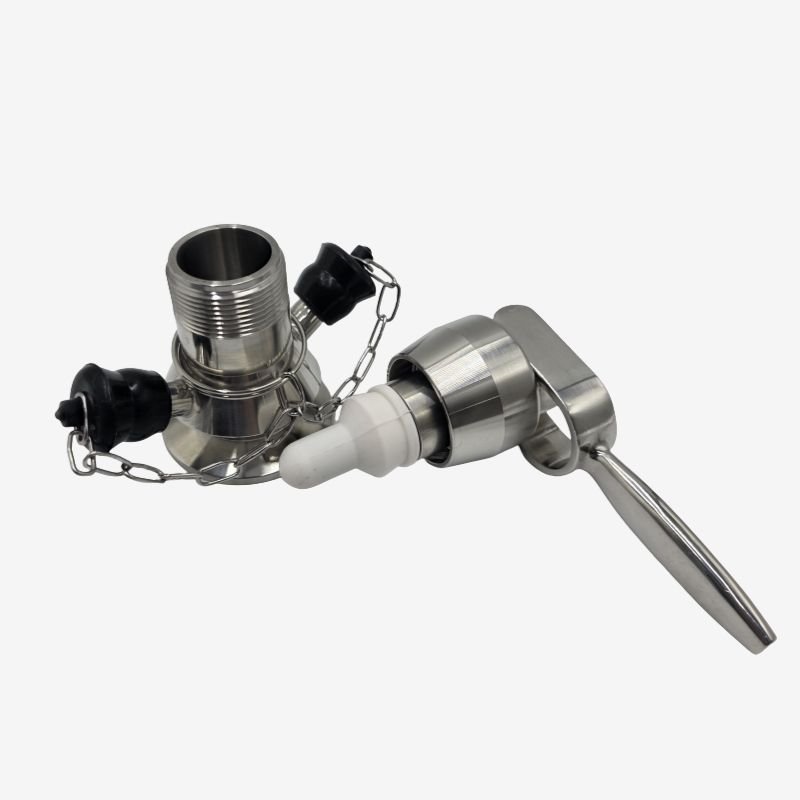

It adopts threaded connection methods, supporting fast installation for your small laboratory equipment or fermentation systems.

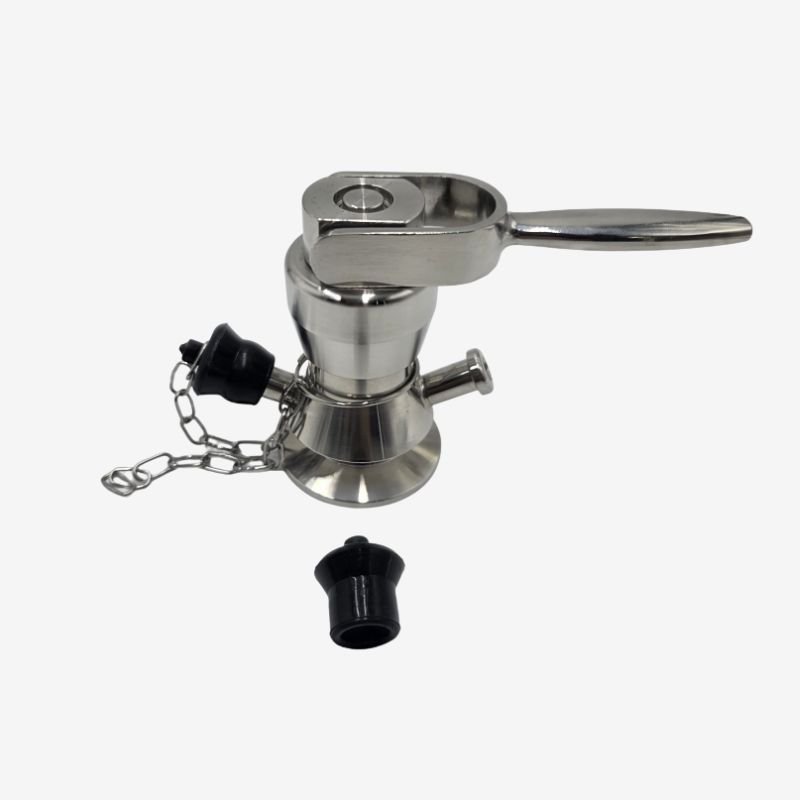

Clamp style interfaces offer easier installation and cleaning maintenance.
Welded construction enables a more secure and stable installation.

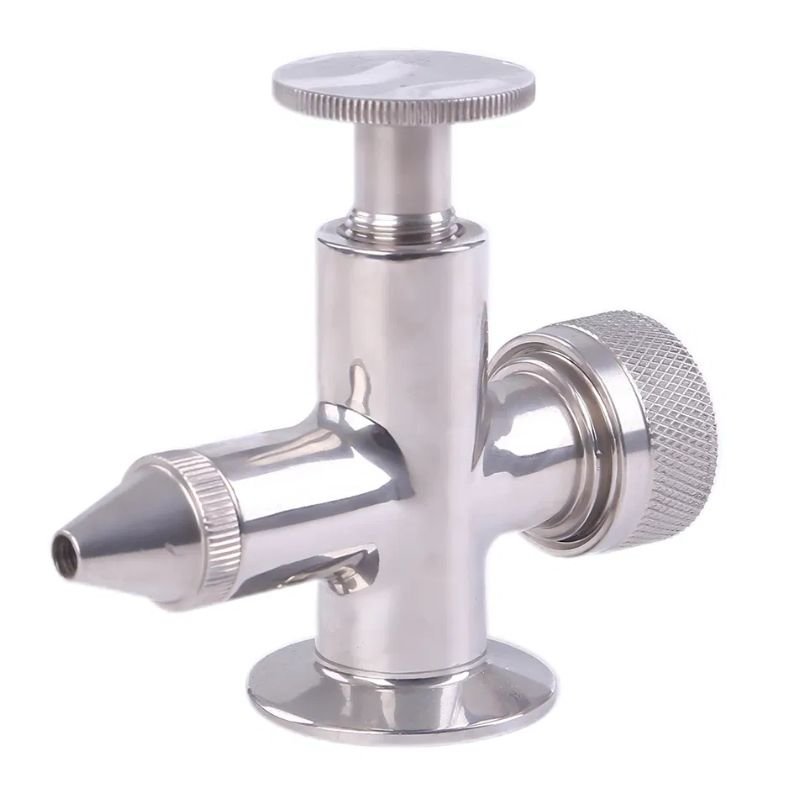

The sanitary level gauge provides real time tank liquid level display during sampling, enabling more precise fermentation process control.
Features of Sanitary Fermenter Sample Valve
Inner wall roughness Ra ≤ 0.8 um, which ensures residue free passage of your sample liquid.
Available installation methods include threaded/welded/clamp connections, allowing you to choose based on sampling volume and other factors.
Internal valve seals are available in EPDM or FPM to meet various sterilization and corrosion resistance requirements.
Robust valve body design with thickened inner walls ensures long lasting durability.

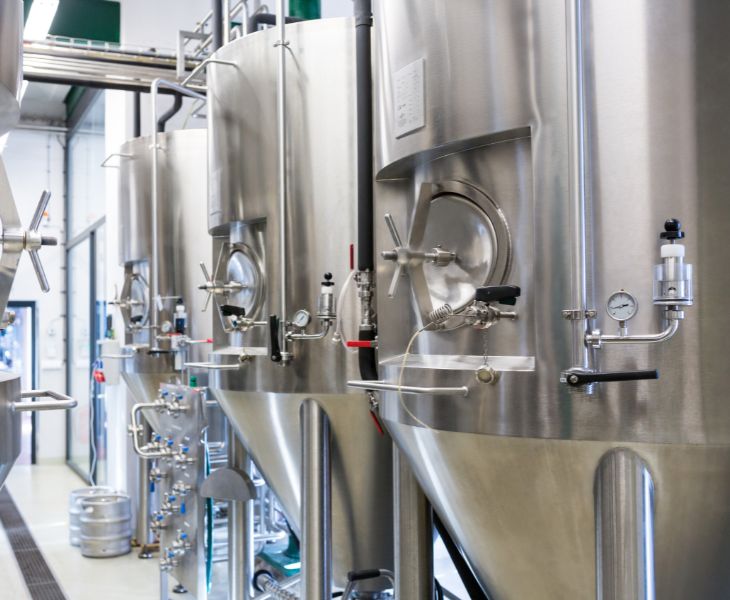

Support Safe and Reliable Sampling Process
Throughout the entire sampling process, you will not need to directly handle the sample liquid with your hands, effectively preventing contamination caused by sampling. Furthermore, due to the pressure difference between the fluid and the external atmosphere during sampling, air will not enter the fermenter through our sanitary fermenter sample valve, enabling stable and safe sample extraction.

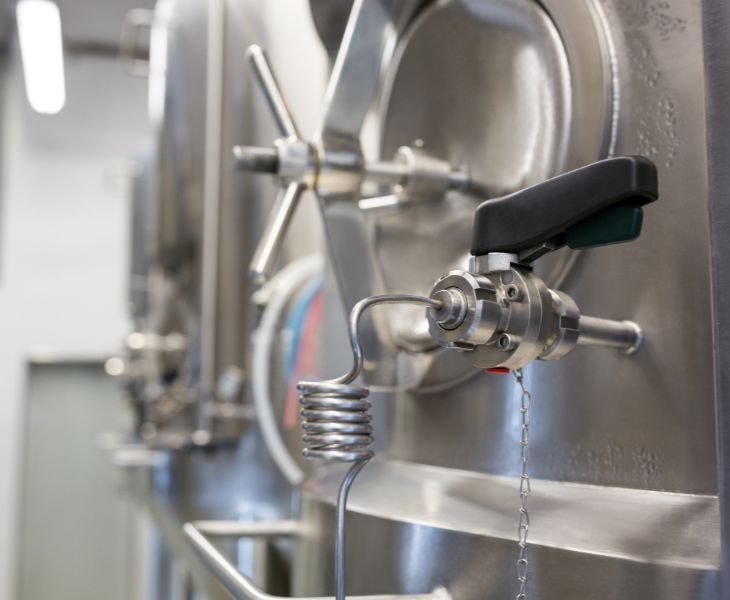

Hygienic Design
Our sanitary fermenter sample valves have a sleek, streamlined design that enables thorough cleaning in all areas during future use, leaving no sanitary dead zones. They support CIP/SIP operations, allowing you to take prompt steam sterilization after every use. These valves can withstand the sterilization process of up to 150°C for 20 minutes.

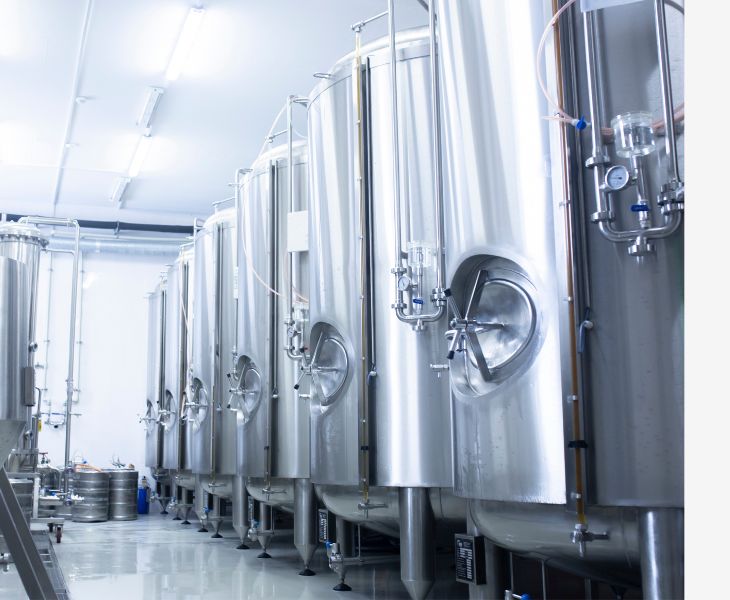

High Compatibility
OMSS stainless steel sanitary fermenter sample valves are compatible with various types of substances, including dairy products, alcohol, bioreactor fluids, and more. The 316L stainless steel we utilize offers exceptional corrosion resistance, preventing rust formation during prolonged use while maintaining stable performance and structural integrity. This ensures long term, reliable sampling functionality.
Applications of Sanitary Fermenter Sample Valve

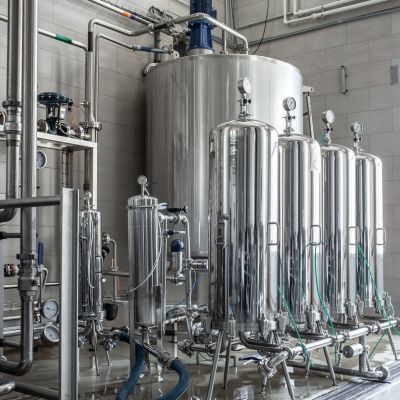

It can be used for liquid sampling in pickle production to measure parameters such as salt concentration and lactic acid content in fermentation broth. This helps operators confirm the production status of the product.

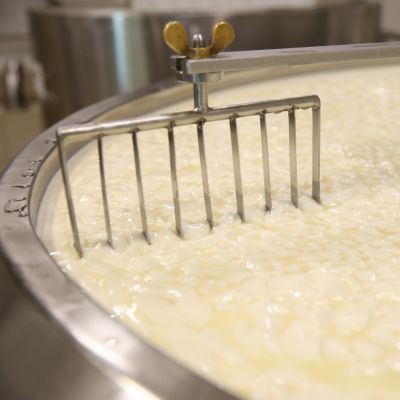

During cheese making, operators use sanitary fermenter sample valves to determine pH levels and lactic acid bacteria status in sample solutions, thereby assessing the fermentation progress. This enables better control of the production process to ensure the desired texture and flavor of the final product.

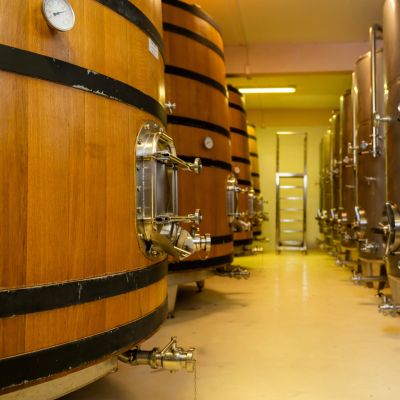

Sanitary fermenter sample valves also work in wine production by enabling real-time monitoring of yeast activity, fermentation progress, alcohol content, and sugar levels.

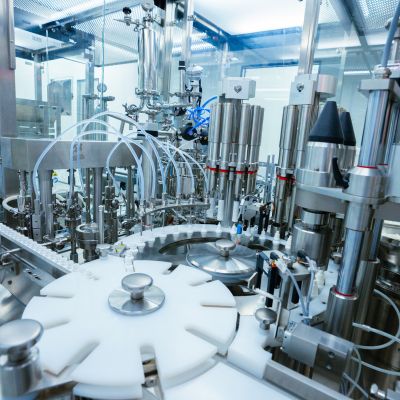

In biopharmaceutical manufacturing, operators use sanitary fermenter sample valves to maintain aseptic conditions during sampling. This allows for observation of cell growth, metabolic activity, and other parameters, ensuring stable reaction processes.
- Certificate of Compliance
Customer Reviews
We have strict requirements for surface finish and hygiene standards in pharmaceutical equipment. OMSS stainless steel fittings showed excellent workmanship, with smooth surfaces and precise machining. Their products helped us meet our equipment assembly requirements and maintain reliable production performance.
MichaelOMSS supported our custom stainless steel fitting project from drawing confirmation to final production. Their engineers provided useful suggestions on material selection and processing details. The finished components matched our requirements well and performed reliably in our food equipment applications.
JohnWe purchased sanitary tri clamp fittings and stainless steel ferrules from OMSS for our beverage processing system. The dimensions were accurate, the polishing was clean, and the fittings connected smoothly with our existing pipes without additional adjustment. The consistent quality helped us improve installation efficiency.
Emily
The OMSS sanitary fermenter sampling valve achieves sealing through the gaskets (EPDM/FPM) used in our valves. When the valve is closed, the valve stem and sealing gasket completely block the outlet port, forming a barrier between the internal liquid and the external environment.
When the valve is opened, the pressure of the flowing liquid is bigger than the external atmospheric pressure, which effectively prevents air from entering the tank through the valve. After the sampling, you should close the valve promptly to achieve the block effect again.
The installation methods OMSS can provide include the threaded, clamp, or welded connections. You can select according to the using period and maintenance needs.
Typically, the sanitary fermenter sample valve should be installed in the middle or lower location of the fermenter, but it should not be too low, as sediment in the tank may affect the sampling results.
Before the installation, both the fermenter and sample valve must undergo cleaning and sterilization to prevent contaminants or dust from compromising installation integrity and the hygiene.
First, you need to confirm the required connection standard. OMSS can provide sanitary fermenter sample valves manufactured according to DIN and 3A standards. Before making your selection, you must verify its compatibility with your existing tank interface specifications.
Additionally, you should choose the proper sample valve inner diameter based on the required sampling volume and flow rate. You can describe your specific application to our customer service team and receive professional recommendations.
Compared to standard valves, sanitary fermenter sample valves are smaller in size, so that you can better control the fluid flow while preventing waste from excessive sampling. Additionally, sanitary fermenter sample valves need to achieve higher hygiene standards. This includes using materials capable of withstanding high temperature cleaning and sterilization (such as 304/304L/316L stainless steel, EPDM, FPM, etc.) , as well as maintaining a surface roughness of Ra ≤ 0.8 um to ensure safety throughout the processing.
Why Do You Need a Sanitary Fermenter Sample Valve?
Extracting Samples From The Tank Without Affecting Its Internal State
During food fermentation and microbial cultivation processes, you need to take a real time monitor about the fermenter inside condition. And the parameter you need to know about includes the pH level, acidity/alkalinity, humidity, and dissolved oxygen content. Thus you do need to extract the sample from the fermenter. And a sanitary fermenter sample valve can help you finish this process well.
An important function of a sanitary fermenter sample valve is that it enables the sample extraction without disrupting the tank’s reaction progress or affecting the state of its contents. So that you don’t need to open the whole fermenter to take a sample, which makes the reaction more stable.
Ensuring Sanitary Sampling
Another function of sanitary fermenter sample valves is maintaining the cleanliness during sample extraction. These valves typically have internal diaphragms that isolate the tank contents from the external environment. This design preserves the fermenter ‘s sealing effect even when the valve is open, preventing air exchange that could introduce contaminants and compromise the integrity of the reaction mixture.
Furthermore, sanitary fermenter sample valves support cleaning and sterilization operations. They are made from stainless steel that enable CIP and high temperature stream sterilization, further guaranteeing safety and hygiene throughout the sampling process.
How to Use a Sanitary Fermenter Sample Valve?
Clean and Sterilize Before Opening the Valve
Before opening the sterile fermenter sample valve and taking the sample fluid, you must clean it to prevent any impurities inside it from affecting the sample cleanliness and testing results. After the valve is cleaned and sterilized, you can open it to perform sampling.
Take The Sample
The sampling process for sterile fermenters is simple, you just need to pull the valve stem, and the liquid inside the fermenter will flow smoothly into the test tube or sterile bottle.
Close Valve And Perform Cleaning and Sterilization
It is equally important that you should also clean and sterilize the fermenter sample valve after the sampling and promptly closing the valve. So that you can prevent residual sample liquid from contaminating future use.
What Connection Methods Are Available For The Sanitary Fermenter Sample Valve?

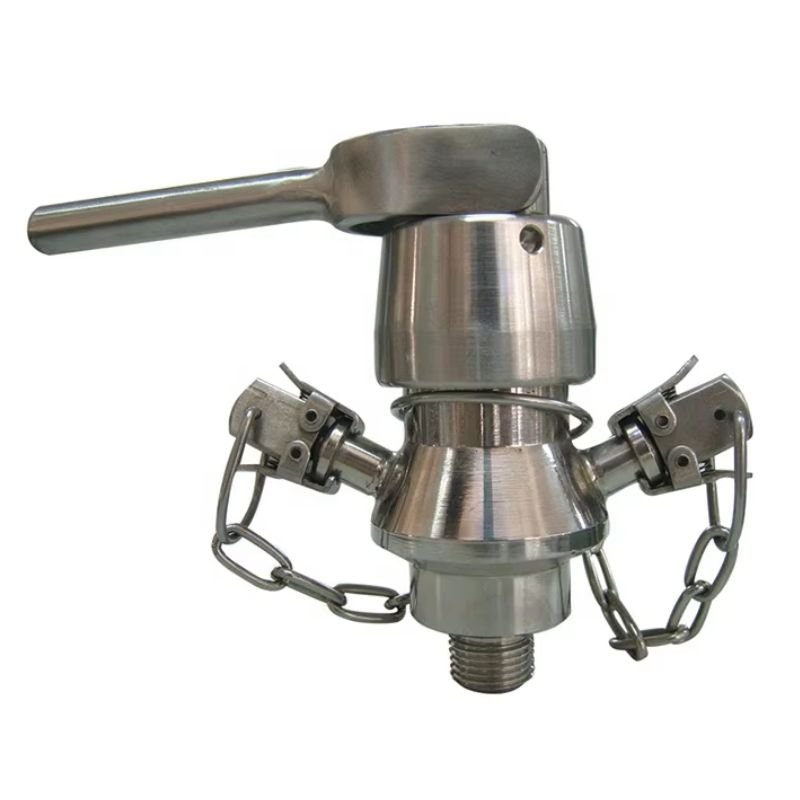

Threaded Methods
Threaded fermenter sample valves have threaded connections at the valve joint. They connect and secure to the valve seat at the tank’s discharge point through a rotating action.

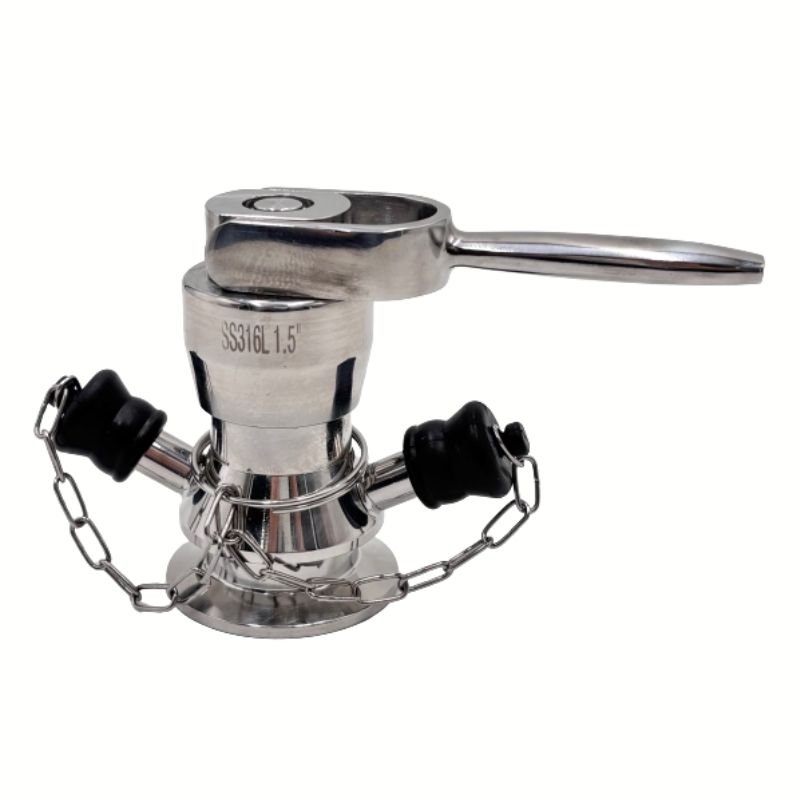

Clamped Methods
Clamping involves securing your sanitary fermenter sample valve by first positioning it at the desired location on the vessel using clamps. The valve and gasket are then fixed to the vessel by tightening the bolts on the clamps.
When installing clamped sanitary fermenter sampling valves, you need to take care to avoid over tightening, which can damage the gasket and compromise sealing, or the excessive looseness that may result in poor sealing effect.

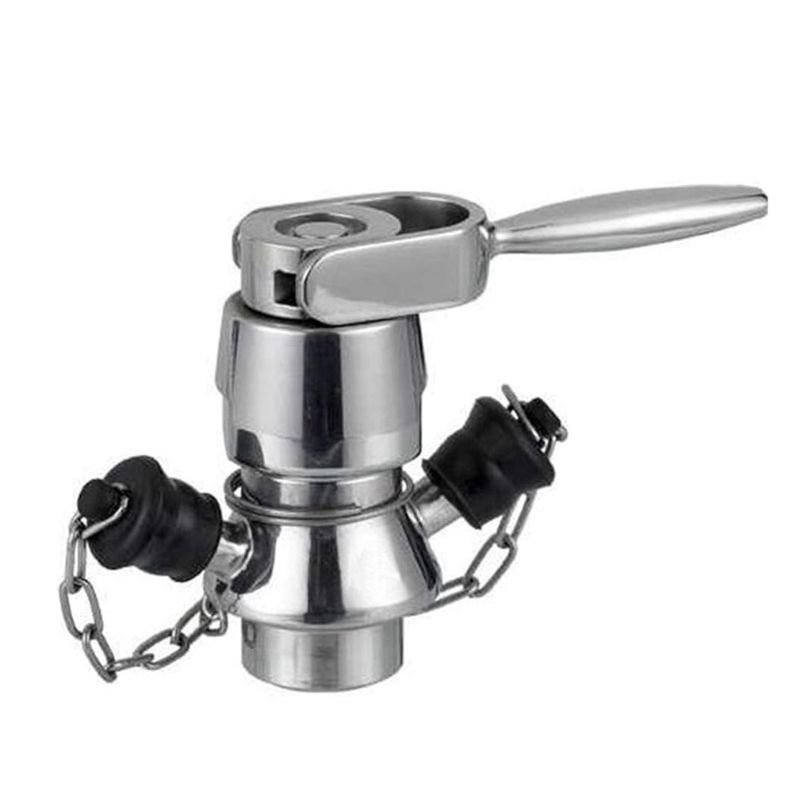

Welded Methods
Welding involves attaching the valve to your fermenter through high temperature fusion. It can achieve highly reliable sealing and long term installation stability. This method is suitable for applications with strict sanitary requirements.
Comparison Between These Connection Methods
| Features\Installation Methods | Threaded Heads | Clamped Heads | Welded Heads |
| Installation Hardness | Easy | More easier and faster | More harder and need professional welding equipment |
| Sealing Effect | Better | Good | The best |
| If It Can Be Installed And Removed Repeatedly | Yes, but it is prone to wear during repeated disassembly. | Yes | No |
| Applications | Small to medium fermenter | Bigger fermenter of food, beverage, etc | Fields with higher hygienic needs(medicine, biotechnology, etc.) |
Tips to Choose Reliable Sanitary Fermenter Sample Valve
Verify the Material Safety
When selecting a sanitary fermenter sampling valve, you must ensure its material meets sanitary grade requirements. Common materials used in sanitary applications include 304, 304L, and 316L stainless steel, which can be resistant to both corrosion and rust.
These materials are able to maintain structural integrity and performance stability during frequent high temperature cleaning and sterilization cycles.
Inspect Its Design
You also need to pay close attention to the design details of sanitary fermentation tank sampling valves, including confirming the absence of sanitary blind spots and the presence of anti-drip features.
- Confirm No Sanitary Blind Spots
The design of sanitary fermentation tank sampling valves typically has smooth, rounded transitions.
If you notice any sharp angles or corners, you need to consider whether these could become difficult-to-clean sanitary blind spots during routine cleaning. The presence of such blind spots on sterile sampling valves may lead to dust accumulation and bacterial growth, compromising usage safety.
- Check For Leak-Proof Design
Leak-proof design is also crucial for sampling safety. High quality sample valves have comprehensive sealing methods, including self draining design and necessary sealing gaskets (e.g., EPDM). This sealing not only prevents air ingress into the tank but also avoids waste or corrosion from excess liquid leakage during sampling.
Confirm Compliance With International Standards
When selecting a sanitary fermenter sample valve, you should know that the sanitary fermenter sample valve must comply with international standards such as 3A, ISO, DIN, and CE. These specifications represent the baseline requirements for sanitary sampling valves, indicating that the valve meets acceptable standards for safety, sealing integrity, and surface roughness. Thereby they can ensure reliable performance during the use.
