Why Choose OMSS Sanitary Stainless Steel Pipe Fittings
Adopting mature manufacturing processes and equip it with Mazak CNC machining center for precise processing to stably control sanitary stainless steel pipe fittings’ size, accuracy and concentricity.
With over 15 years manufacturing experience and has obtained ISO 9001 quality management system certification, as well as EU CE certification and 3-A Sanitary Standards certification.
Offer you with complete specifications for sanitary stainless steel pipe fittings, including elbows, tees, reducers, blind plates, flanges, and various non-standard custom components.
Our products have been exported to 20 countries, including the United States, Mexico, Germany, Australia, , and other industrial markets.
Reliable Sanitary Stainless Steel Pipe Fittings Supplier Partner
Except for offering sanitary stainless steel pipe fittings products, we also strive to become your long-term supply partner. Whether you are purchasing for a new project or looking for a more stable alternative supplier, OMSS can provide you with reasonable material and structural suggestions based on your application environment, pressure level and medium conditions.

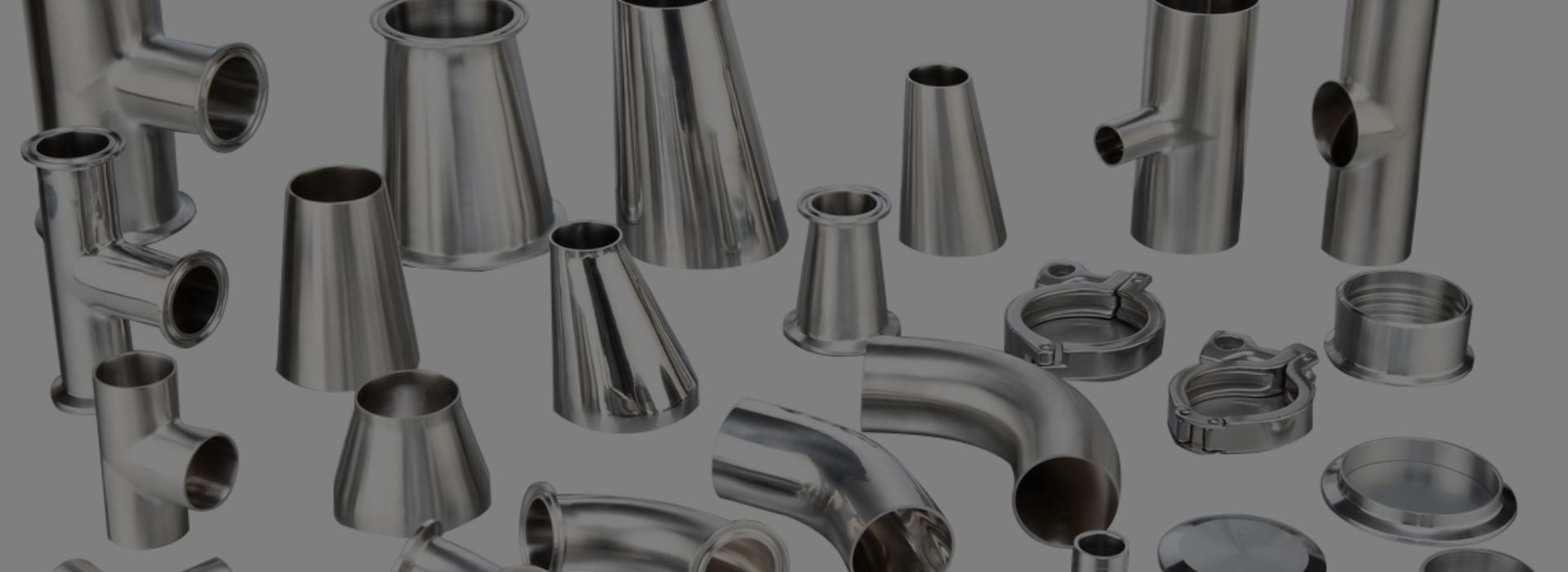

Types of Sanitary Stainless Steel Pipe Fittings

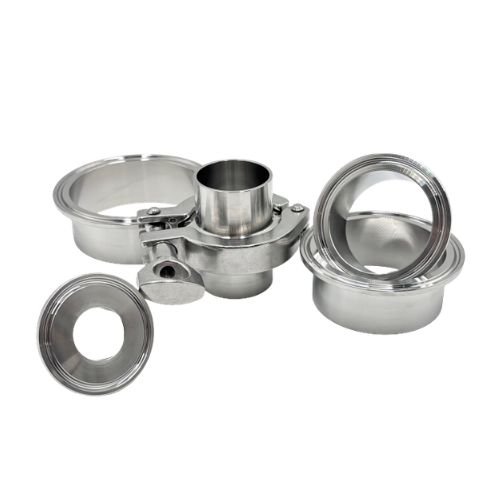

The clamp type structure offers you rapid installation, allows repeated disassembly and reassembly without welded blind spots. They are highly suitable for piping systems in food processing, pharmaceutical manufacturing, and cleanroom facilities.

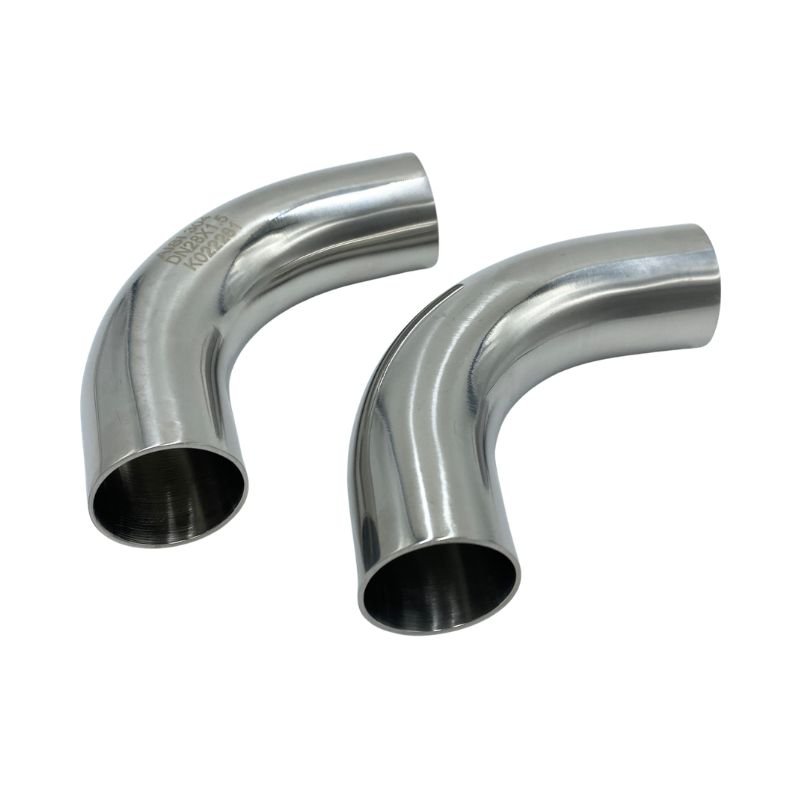

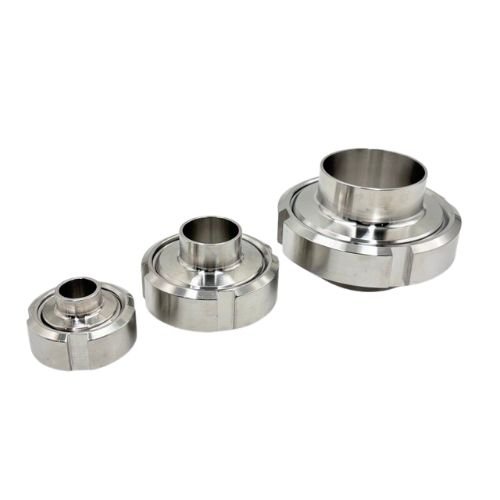

Create an integral structure by directly welding with the pipeline with high strength, good sealing performance, and almost no leakage risk. Therefore, in petrochemicals, power, energy and long-term operation equipment, staple-welded pipe fittings are usually the preferred solution.
The pipeline is inserted into the socket and then welded, which simplifies the alignment requirements and improves construction efficiency. If your project requires rapid installation of small-diameter high-pressure systems, the socket-welded structure will be more suitable.

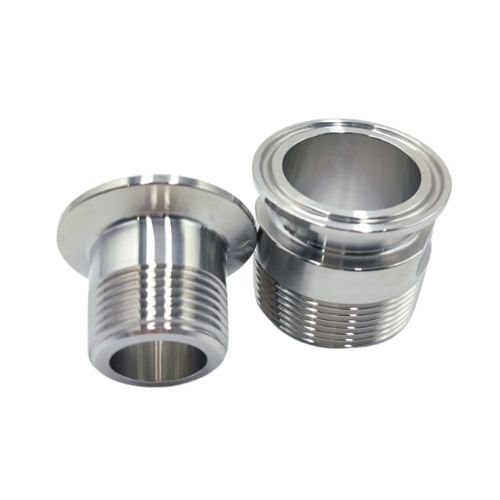

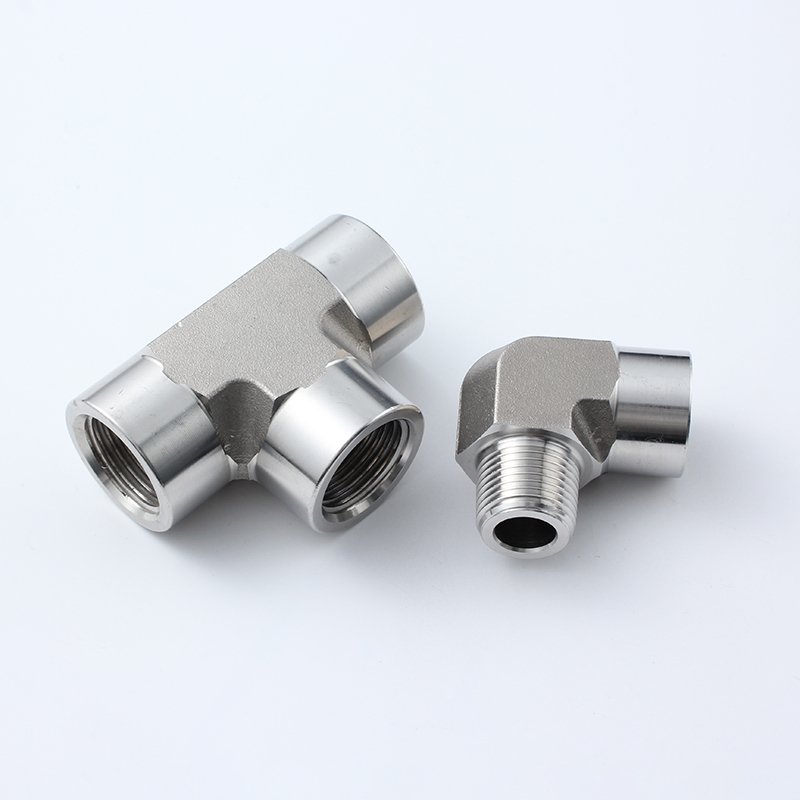

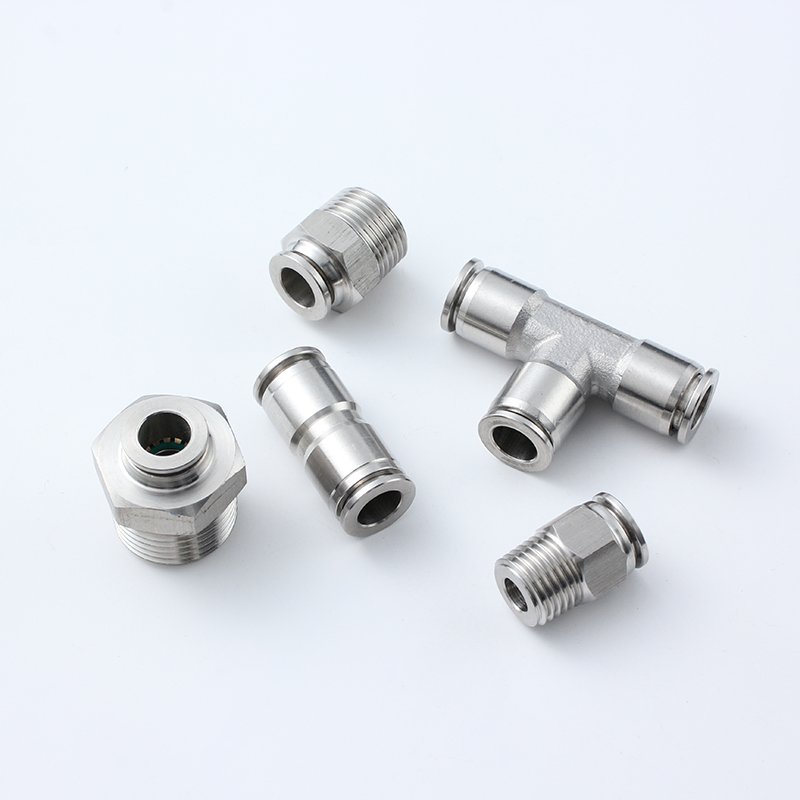

Standard thread such as NPT, BSP or BSPT, and can be installed without welding. The construction is simple and easy to disassemble and assemble. However, compared with welded structures, they are more suitable for water supply petrochemical, food, pharmaceutical, laboratory precision equipment and so on.

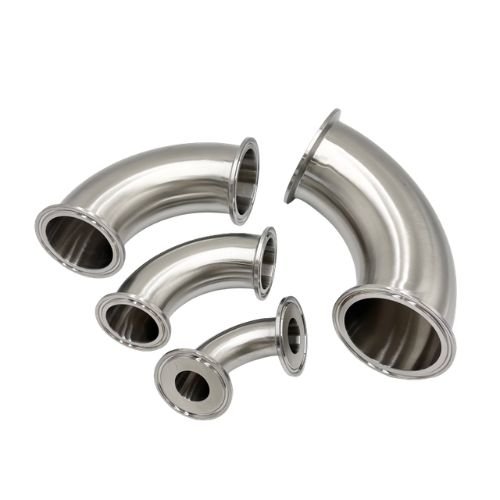

It can change the direction of the pipeline, commonly 45°, 90°,or U-shaped. If you are in a high-pressure system, it is recommended to prioritize using seamless elbows, which have uniform wall thickness and stable force-bearing, and can reduce local stress concentration.

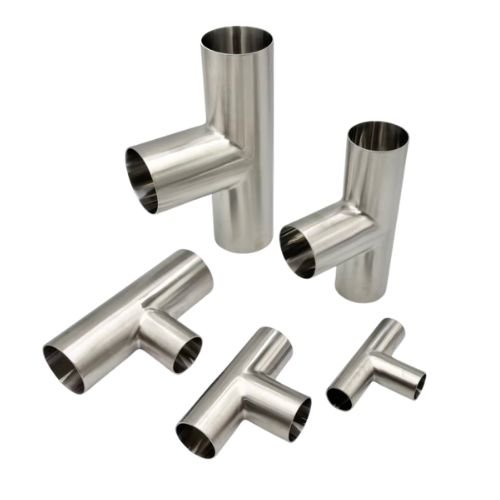

Connect two pipes into a T-shaped structure and can be divided into equal-diameter and unequal-diameter types. It is commonly applied in fluid distribution, branch line extraction, and equipment connection.

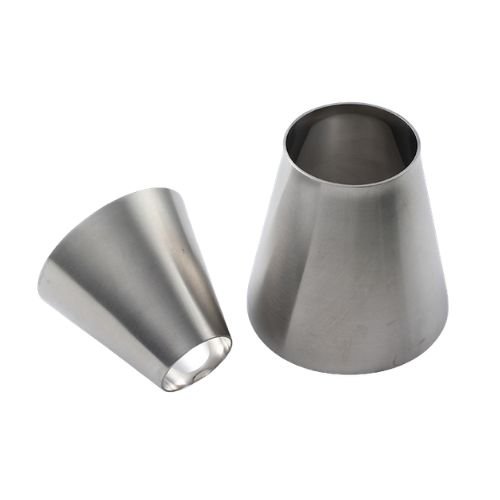

Reducer is used to connect different diameter pipes to achieve a smooth transition of fluid. If your system involves pump inlet or horizontal pipelines, choosing an eccentric or concentric structure reasonably to effectively avoid cavitation or liquid accumulation problems.

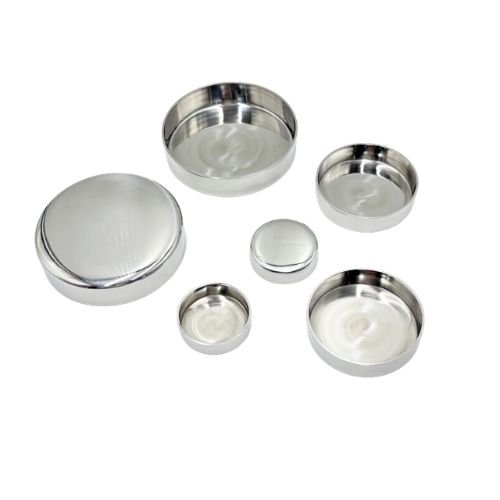

The pipe cap seals the pipes’ end, convenient for you to test and clean system pressure, or future expansion. Its arc-shaped or elliptical sealing head design ensures uniform stress distribution and high pressure resistance, ideal for equipment interfaces and temporary plugging applications.
Features of Sanitary Stainless Steel Pipe Fittings
The inner walls of sanitary stainless steel pipe fittings can be polished to a mirror finish, reducing fluid stagnation and dead corners, and significantly lowering the bacterial attachment rate.
Even in steam systems, heat transfer oil pipelines, flammable medium transportation, or corrosive fluid conditions, they can still operate stably and reduce shutdown risks due to material failure.
Whether handling high-temperature steam, hot oil transport, or low-temperature fluid systems, it maintains stable thermal expansion and contraction properties, resisting cracking or deformation.
The high-strength structure and stable welding or connection methods ensure your pipe fittings show good sealing performance throughout their long-term operation.

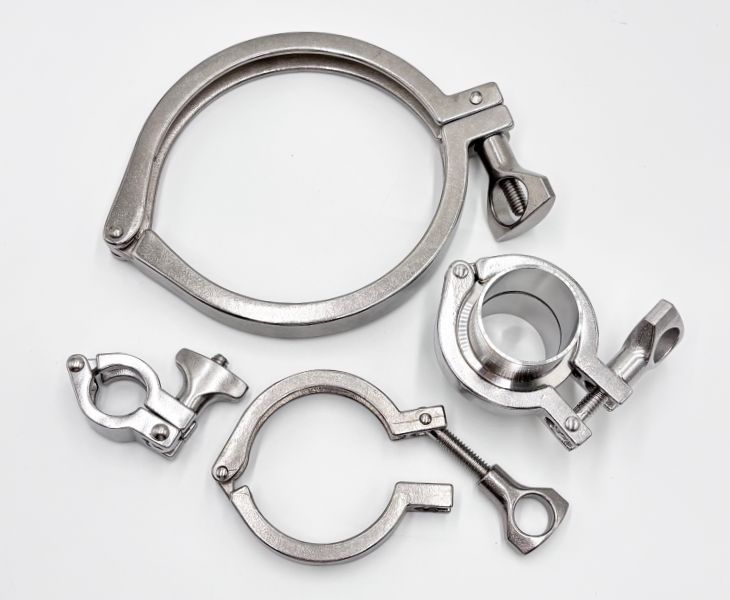

Highly Customized Capabilities
OMSS sanitary stainless steel pipe fittings can be designed specifically according to your system pressure rating, medium characteristics, and installation space.They support various sizes, structural forms, and offer surface treatments such as acid washing and passivation, mirror polishing, sandblasting, as well as internal cutting services. The nominal pipe diameter typically covers NPS 1/8″ to 48″ and even larger, meeting different needs.

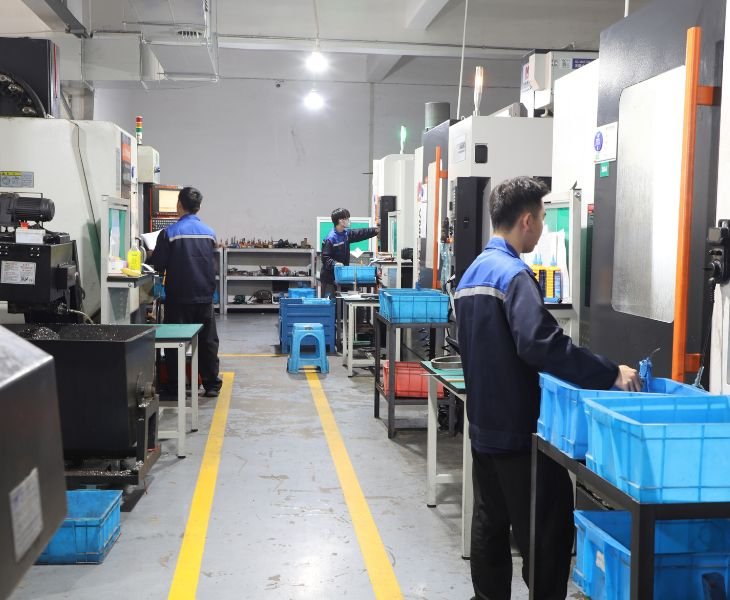

Advanced Production Level
We use high-precision CNC processing equipment and automated processing centers for production. Our facility houses dozens of CNC lathes, machining centers, and supporting welding, polishing, and inspection equipment. This setup ensures precision and boosts production efficiency and reduces scrap rates at the same time, which could deliver you more stable delivery schedules, more controllable quality, and lower project risks.
Comprehensive Quality Inspection

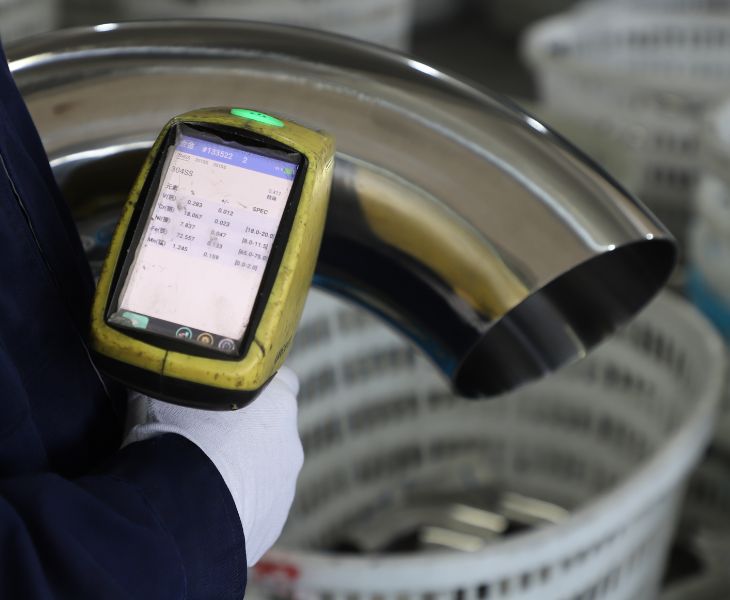

Every batch pipe fittings undergo a dual inspection process of material and size, including spectral material analysis, size and concentricity inspection, roughness measurement, and sealing performance verification. And the products comply with ISO quality system requirements. OMSS can also provide relevant certifications or inspection reports according to project needs, helping you more smoothly pass audits and project acceptance.
Application of Sanitary Stainless Steel Pipe Fittings

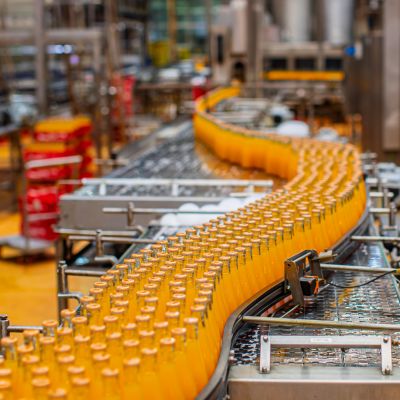

Food companies often use sanitary-grade stainless steel flange pipe fittings with polished inner walls. This design ensures your fluid cleanliness and also facilitates quick disassembly and cleaning at the same time. It is suitable for production environments that require frequent cleaning and line changes.

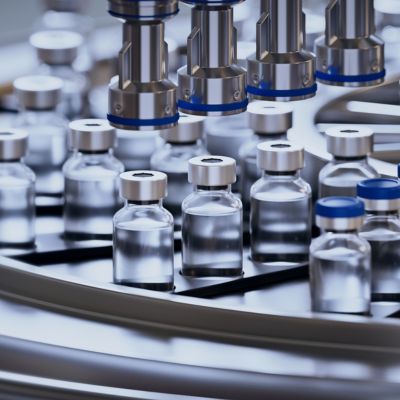

In pharmaceutical and medical systems , they have high requirements for the sterilizability, corrosion resistance, and batch traceability of materials. Sanitary stainless steel pipe fittings can meet the verification system and clean production needs and are a common standard configuration.

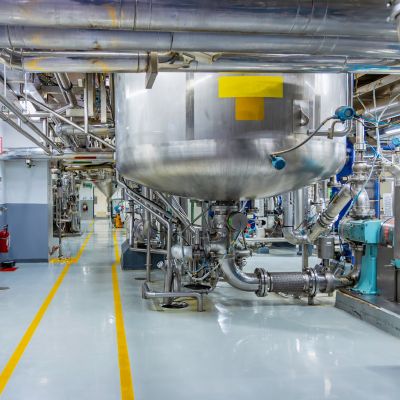

In environments involving the transport of acids, alkalis, or solvents, sanitary stainless steel pipe fittings resist chemical corrosion while maintaining structural integrity. This extends your piping systems’ service life and reduces the maintenance-related downtime frequency.

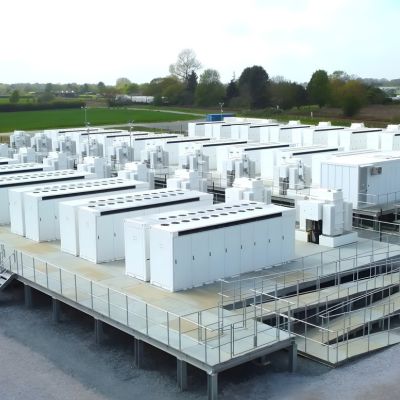

The power system involves complex operating conditions such as steam, high-temperature water, heat transfer oil and flue gas treatment. So they demand strict requirements for pipe fittings’ resistance to high temperatures, erosion, and thermal fatigue. Sanitary stainless steel pipe fittings are widely used in boiler steam systems, desulfurization pipelines and new energy fluid transportation systems.
- Certificate of Compliance
Customer Reviews
We purchased sanitary tri clamp fittings and stainless steel ferrules from OMSS for our beverage processing system. The dimensions were accurate, the polishing was clean, and the fittings connected smoothly with our existing pipes without additional adjustment. The consistent quality helped us improve installation efficiency.
EmilyOMSS supported our custom stainless steel fitting project from drawing confirmation to final production. Their engineers provided useful suggestions on material selection and processing details. The finished components matched our requirements well and performed reliably in our food equipment applications.
JohnWe have strict requirements for surface finish and hygiene standards in pharmaceutical equipment. OMSS stainless steel fittings showed excellent workmanship, with smooth surfaces and precise machining. Their products helped us meet our equipment assembly requirements and maintain reliable production performance.
Michael
Sanitary pipe fittings are mainly used in food, pharmaceutical, bioengineering and dairy systems, with higher requirements for surface roughness, weld treatment and structural cleanliness. Compared with ordinary industrial pipe fittings, our sanitary stainless steel pipe fittings usually show a polishing inner wall, no retention structure design, and meet CIP/SIP cleaning verification requirements. They can significantly reduce the contamination risk from the source.
If your system needs to pass hygiene audits or validations, it is recommended to choose the sanitary solution first.
Common connections include clamp connection, welding connection and threaded connection. You can choose based on the cleaning frequency, maintenance cycle and pressure grade.
Clamp connection is convenient for your frequent cleaning and is commonly adopted in systems that need regular maintenance.
Welding connection has the best sealing performance and is suitable for long-term fixed pipelines.
Threaded connection is mostly used for auxiliary pipelines or instrument interfaces.
Generally speaking, 316L sanitary stainless steel pipe fittings can withstand high-temperature steam sterilization (SIP), but it is still necessary to conduct a comprehensive assessment considering the sealing material, system pressure and temperature cycling conditions.
If your system has frequent steam cleaning conditions, it is recommended to provide operating parameters during the selection stage, and we can help you to quickly confirm the structural and material matching scheme.
Material Selection for Sanitary Stainless Steel Pipe Fittings
When choosing sanitary stainless steel pipe fittings, the material directly affects your system’s corrosion resistance, service life, and maintenance costs. Therefore, it is necessary to make a comprehensive judgment based on the medium characteristics, environmental conditions, and hygiene standards.
304 Stainless Steel
304 stainless steel is the most widely used general material with good resistance to atmospheric corrosion. It can be applied in freshwater, weak acid and alkali environments, and most food processing scenarios. Due to its stable processing performance and moderate cost, if the system medium is relatively mild and not sensitive to chloride ions, 304 is often a cost-effective choice for you.
316L Stainless Steel
316L stainless steel is enhanced with molybdenum and reduced carbon content compared to 304, making it more stable in resistance to chloride ion corrosion, pitting, and crevice corrosion. And 316L is more suitable for long-term operation for environments with salt content, humid workshops, pharmaceutical clean systems, or production lines requiring frequent steam sterilization. It can handle conditions with temperature from -20°C to 250°C and withstand 121°C high-pressure steam sterilization repeatedly (usually over 1000 times), which is safer in sanitary piping systems.
317L Stainless Steel
317L stainless steel has a higher molybdenum content and is more resistant to corrosion in strong corrosive media or high chloride ion environments than 316L, but it is also more expensive. Therefore, it is typically used in systems with particularly strict corrosion resistance requirements in chemical or pharmaceutical industries.
Duplex Stainless Steel
Duplex stainless steel combines both austenitic and ferritic structures, offering you with higher strength and excellent resistance to stress corrosion cracking. If you are a customer in the fields of marine engineering, oil and gas transportation, or strong acid chemical processing, duplex steel can provide longer structural stability.
How to Produce Sanitary Stainless Steel Pipe Fittings
Sanitary stainless steel pipe fittings are made from seamless tubes or high-quality welded tubes. The raw materials undergo chemical composition testing and material confirmation to ensure compliance with ASTM or EN standards.
Then they are processed through CNC cutting, cold forming, or precision forging. During the bending, expansion, or reduction processes, the deformation amount and forming parameters are strictly controlled to deliver you with uniform wall thickness, no cracks, and no wrinkles.
After processing, the pipe fittings will generate stress, and the intergranular structure may also change. The solution treatment involves rapid cooling after high-temperature heating, allowing the material to return to a uniform austenitic structure and maximizing its corrosion resistance. This ensures the sanitary stainless steel pipe fittings maintain stable performance in long-term running, steam sterilization, or corrosive media environments.
The heat-treated pipe fittings’ surface will form an oxide layer. We remove this oxide layer through acid washing and perform passivation treatment to generate a dense passivation film on the surface.
Finally, the inner and outer surfaces are mechanically polished or electrochemically polished to achieve a roughness of the inner wall that meets hygiene standards.
These processes ensure your sanitary stainless steel pipe fittings have both excellent corrosion resistance and meet the cleanliness and washability requirements of the food, dairy, beverage, and pharmaceutical industries.
How to Choose Sanitary Stainless Steel Pipe Fittings
Pipe Dimensions and Types
First to ensure your sanitary stainless steel pipe fittings match the outer diameter, wall thickness, and interface standards of the pipeline, such as common ISO, DIN, SMS, or ASME BPE specifications. Incompatibility in dimensions can lead to leakage and also cause system failures during pressure fluctuations at the same time.
Material Type
For ordinary food or general pharmaceutical applications, 304L sanitary stainless steel pipe fittings usually meet the requirements. However, if your system contains high levels of chloride ions, requires frequent steam sterilization, or is planned for long-term continuous operation, 316L would be more reliable, which could also significantly reduce the corrosion risk and maintenance costs.
Pressure
The pressure rating is the maximum pressure that sanitary stainless steel pipe fittings can withstand. You need to ensure that the pipe fittings’ design pressure can cover the peak pressure of the system and leave a safety margin, especially at pump outlets, in high-speed fluid areas, or in regions with significant temperature fluctuations. It is recommended for you to leave a safety margin of more than 20%.
Operating Temperature
The operating temperature can affect the material stability and the lifespan of the seals. In high-temperature steam or alternating hot and cold conditions, materials must be higher temperature resistance and sealing structures.
Connection Method
If your pipeline needs frequent disassembly and cleaning, the clamp-type Sanitary Stainless Steel Pipe Fittings would be more suitable. When the project places greater emphasis on long-term sealing and structural strength, then you might consider using welded connection sanitary stainless steel pipe fittings.
