The Valve Is Half the System

A valve body without an actuator is just a pipe fitting. The actuator is what makes it useful — opening and closing on command, throttling flow, or responding to a process signal. We ship about equal numbers of manual and actuated valves. But the actuated ones generate more questions.

The three options are straightforward, but each has a specific job. Picking the wrong one means either paying too much or fighting with the valve every day.

Manual Actuation

A handle or handwheel attached directly to the valve stem. No air, no electricity, no control signal.

Best for: valves that operate a few times per shift. Isolation valves. Backup manual override on actuated valves. Lines where the operator is already standing next to the valve.

Not for: automated processes, remote valves, frequent cycling (more than 5-10 cycles per shift), or any application where you need to control flow rate.

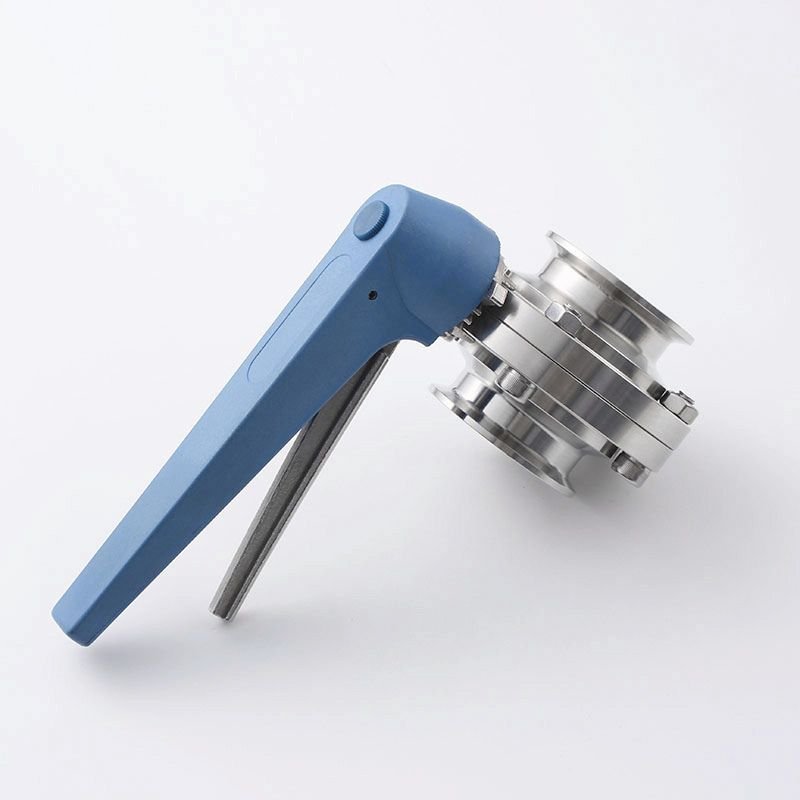

What we see: manual butterfly valves with lever handles get over-tightened. Operators crank them closed as hard as they can, which compresses the seal unevenly and causes premature wear. A simple stop on the lever handle prevents this — we include them on request.

Cost: 1.0x (baseline). No air supply or wiring needed. Lowest maintenance.

Pneumatic Actuation

Compressed air moves a piston or diaphragm inside the actuator, which rotates the valve stem. The most common type for sanitary valves.

Two configurations:

Double-acting: air opens and air closes. Uses air in both directions. Faster cycling. No fail-safe position.

Spring-return: air opens, spring closes (or vice versa). Uses air to open, spring to close. Fail-safe: if air supply is lost, the spring moves the valve to the safe position (normally closed or normally open).

What we pre-assemble: we mount pneumatic actuators on butterfly valves and test the assembly at 1.5x line pressure before shipping. Actuator torque must exceed valve break torque by 25% minimum. We calculate this based on the line pressure and valve size you specify.

Torque sizing is where most mistakes happen. Running torque (the torque to HOLD a valve open) is about 40% of break torque (the torque to START opening it). If you size the actuator for running torque, it will not break the valve open. We have fixed about a dozen installations where this was wrong.

(NC = normally closed. This is the standard for CIP circuits and safety-critical lines.)

Electric Actuation

An electric motor drives the valve stem through a gear train. Slower than pneumatic but more precise.

Best for: modulating control (precise flow regulation), remote locations without compressed air, applications where 0.5% positioning accuracy matters.

Not for: fast cycling (electric actuators take 5-30 seconds per stroke), explosive environments (unless explosion-proof rated), or budgets (electric costs 2-3x pneumatic).

Electric actuators often include a positioner with 4-20mA feedback, so the control system knows exactly where the valve is. Some include battery backup for fail-safe positioning. This is useful, but it adds cost and complexity.

How to Choose

Start with three questions:

How often does this valve cycle? More than 10 times per shift → pneumatic or electric. Less than 10 times per shift → manual is fine.

Does it need fail-safe positioning? If losing air or power means the valve must close (or open), use spring-return pneumatic. Double-acting stays in position, which is not fail-safe.

Do you need to control the flow rate between on and off? Yes → electric (most precise) or pneumatic with a positioner (good enough). No → pneumatic on/off or manual.

One more thing we see: people use electric actuation because they think it is cleaner or simpler than pneumatic. Pneumatic is more reliable for on/off service, costs less, and cycles faster. Use electric only when you need precise modulating control or when compressed air is not available.

Questions

Q: Can I add a pneumatic actuator to an existing manual valve?

A: Yes, if the stem keyway matches. Our standard is 11x11mm for DN50-100. The actuator torque must exceed break torque by 25%. If the valve has been in service for more than 5 years, inspect the stem seal first — old valves with stem wear will leak faster under automated cycling.

Q: What air pressure do I need for pneumatic actuation?

A: 5-8 bar at the actuator inlet. Lower pressure reduces torque. Higher risks damaging the actuator seals. We include a filter-regulator-lubricator unit with every pneumatic valve package.

Q: How fast does a pneumatic actuator cycle?

A: Under 1 second for a quarter-turn butterfly valve. Slower for larger valves or longer stroke. Adjustable speed controls are available.

Q: Is electric actuation worth the extra cost?

A: For modulating control, yes. For on/off service, no. Pneumatic does the same job at half the cost. Use electric only when you need precise positioning or compressed air is unavailable.

Q: What is the most common actuation mistake?

A: Under-sizing the actuator. Running torque is not the same as break torque. We have replaced actuators that were sized correctly for running torque but could not break the valve open after a shutdown. Size for break torque plus 25% margin.
