Optimizing piping infrastructures requires a careful balance of safety, cost and structural integrity. Therefore, when choosing seamless or welded BW fittings, it is important to analyze the features and technical aspect of each pipe connectors.
This guide explores the key features of these pipe fittings, while exploring the advantages and differences to help you determine the perfect choice for your specific applications.

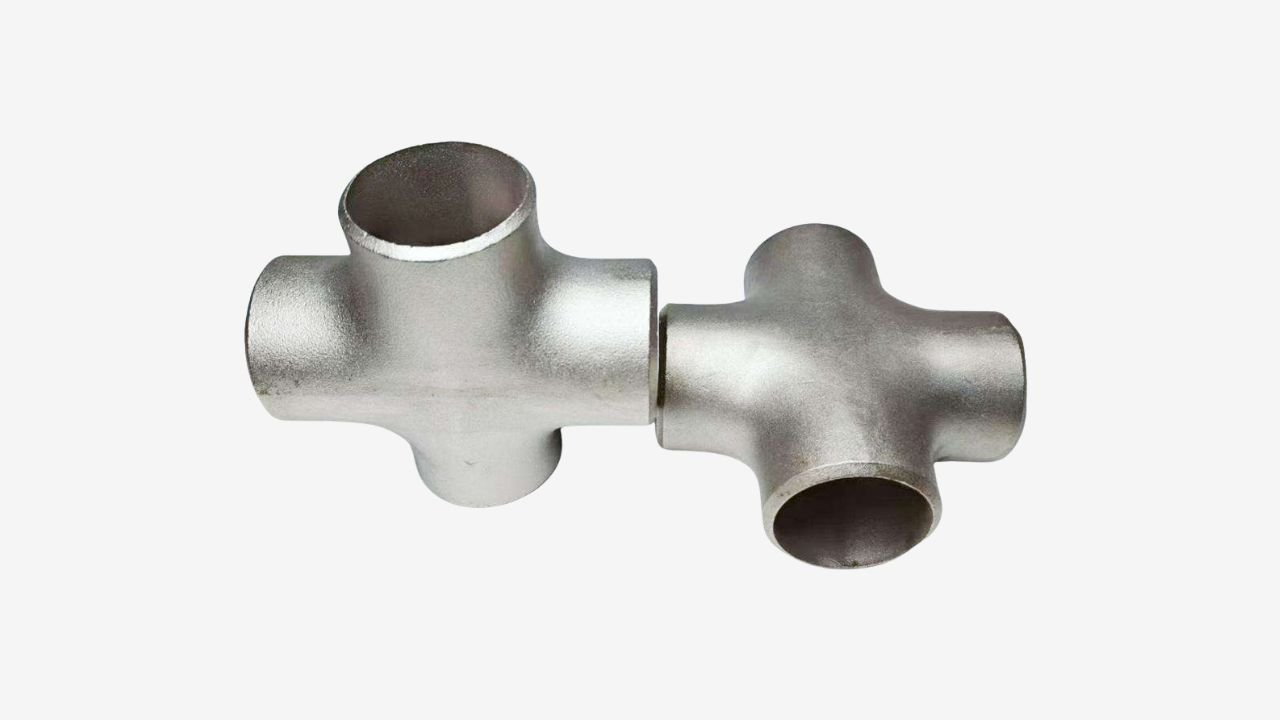

What Are Welded Butt Weld (BW) Fittings?
Welded butt Weld fittings Pipe fittings welded butt Welded butt fitting are created by welding steel plates or pipes into the necessary shape by using a welding process. In the manufacturing process, metal plates are pressed or rolled into characters of elbows, tees, reducers, or caps. The edges are then welded and this forms the final fitting.
What are Seamless BW Fittings?
Seamless butt weld fittings are pipe fittings made using seamless pipes or solid steel billets without welding joints. The material is heated and mechanically shaped into the preferred shape of fitting either through forging, extrusion or hot forming. This structural consistency increases their mechanical stability and their capacity to resist high pressure, high temperatures and cyclic stresses.
Differences Between Seamless and Welded BW Fittings.
The seamless and welded butt weld (BW) fittings vary in a number of significant dimensions, such as manufacturing, structural properties, cost and suitability in practice. Knowledge of these variations enables engineers to choose the fitting type that suits the project requirements in terms of pressure rating, size of the pipes, and the budget.
· Manufacturing Process
Seamless BW fittings are created using seamless pipes or solid steel billets. Hot forming, forging, or extrusion processes are used to heat and shape the material in the way it is required. The fitting is a continuous piece of metal, and as such it has no welded joints.
Welded BW fittings are made instead by bending sheets or pipes of steel into the required shape and welding the edges together. Welding forms a visible line where metal pieces are welded. The current welding methods make such welds high in quality and safety.
· Strength and Structural Integrity.
Seamless fittings typically have greater structural integrity since they are solidly constructed of a single metal part without welded joints. The lack of welds removes any weak areas and offers a more consistent structure of the grain in the entire fitting.
Unlike bonded fittings, welded fittings can still exhibit good performance when well manufactured, although the weld seam could be a concentration of stress. The welding processes and post welding treatments are used to ensure that the welded material is strong enough to withstand most industrial uses.
· Pressure Handling Capability.
In high-pressure and high-temperature systems, seamless BW fittings are usually preferred. Their homogeneous nature enables them to sustain high internal pressure and cyclic loading conditions.
Welded fittings tend to be used in moderate pressure applications and larger pipe systems. Produced to industry standards, they can still resist high levels of pressure, although they might not be the first option in the case of very critical high-pressure pipelines.
· Cost Considerations
The seamless fittings are also costlier since they are produced using specialized equipments and quality raw materials. It is also less economical in terms of energy usage and time spent in the production process.
Welded fittings tend to be more affordable, especially in large sizes. They can be fabricated using steel plates or pipes, making it easy to produce them and reduces the overall cost of production.
· Size Availability
Fittings that are seamless are usually provided in smaller to medium sizes of pipes that are usually up to about 24 inches across depending on the production capacity.
Large-diameter piping systems are also commonly fitted with weld fittings, where seamless fittings are impractical and expensive to produce technically. This makes welded fittings possible when dealing with large pipelines in infrastructure and industrial projects.
· Testing Requirements
Both the seamless and the welded BW fittings are required to comply with the industry testing standards to maintain quality and safety.
Tests that seamless fittings usually are subject to include:
- Hydrostatic testing
- Non-destructive examination (NDE)
- Dimensional inspection
Welded fittings can be subjected to extra testing to confirm the quality of the weld, including:
- Radiographic testing (RT)
- Ultrasonic testing (UT)
- Dye penetrant testing (PT)
These tests are used to verify the integrity of the weld seam and also to ensure that the fitting is up to the pressure and performance standard.
Advantage of Seamless and Welded BW Fittings
| Type | Seamless BW Fittings | Welded BW Fittings. |
| Structural Integrity | Increased structural integrity because of no welds being made | Sufficient structural strength when welds are made correctly. |
| Pressure and Temperature Performance | Improved performance under high pressure and high temperature conditions | Best to low pressure and high temperature applications. |
| Risk of Failure | Minimized risk of failure due to weld joints because welds are not involved at all on the component. | The quality of the weld leads to the potential risk at the weld seam in case of not inspected properly |
| Reliability | Enhanced reliability in critical systems like refineries, power plants, and high pressure pipelines | Reliable in large construction projects and other infrastructure projects. |
| Cost Efficiency | Usually More expensive to manufacture since complex production process is involved | Usually less expensive, particularly large-diameter fittings. |
| Size Availability | Usually comes in smaller to medium sizes | Still wider size range, and particularly large-diameter fittings. |
| Production Flexibility | Small customization because of constraints in manufacturing. | Large scale projects and small customization in terms of dimensions |
| Common Applications | High-pressure, high-temperature and severe industrial systems | Lower to moderate pressure systems and massive pipeline systems. |
When to Choose:
Seamless BW Fitting
- Seamless BW Fitting Where high-pressure or high-temperature regimes are involved with piping.
- In crucial applications where utmost reliability and safety are required.
- In the oil and gas industry, refineries, power stations, and other structures that cannot afford to compromise structural integrity.
- When there is a need to minimize the possibility of defects during the weld or failure.
- The size of the pipe used is smaller to medium and the seamless fittings are readily available.
Welded BW Fitting
- Welded BW Fitting When working with larger piping systems, where seamless fittings are difficult or expensive to produce, welded BW fittings are employed.
- Where cost efficiency is important in a project.
- Where welded fittings are sufficiently strong.
- Where special sizes or dimensions are required to accommodate some piping arrangement.
- In large-scale infrastructure projects such as water distribution systems and industrial pipelines.
FAQs

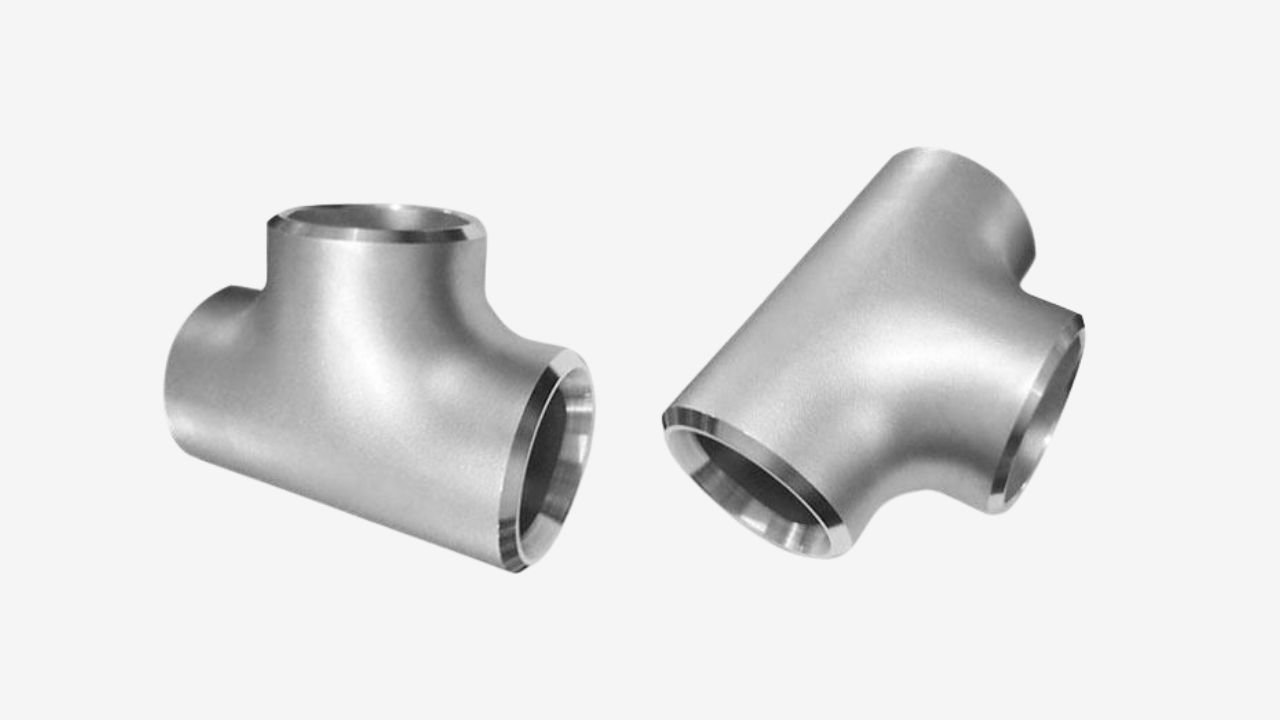

1. What are BW fittings used for?
Butt weld (BW) fittings are fittings that are constructed through welding fittings to the ends of pipes to form a piping system. They are applied to bend the pipes or branches, reduce the size of the pipe or close the end of a pipe.
2. Are seamless fittings stronger than welded fittings?
Yes, seamless fittings are usually stronger because the fittings are made up of only one piece of metal without metallic welds.
3. When should welded BW fittings be used?
Welded BW fittings are typically used when it is large-diameter piping systems or when cost effectiveness is a major factor to consider.
4. How can you identify a welded fitting?
The presence of a weld seam on the surface of a welded fitting is often used to identify it. This type of junction is created during production at the point where the edges of metal plates or pipes converge.
5. Which is more cost-effective: seamless or welded fittings?
Welded fittings are more affordable, particularly for larger pipe diameters.
