Why Choose Our Single Pin Clamp
- 304/316L stainless steel with full certification ensures long-term reliability.
- Supports 0.5–4 inch pipe diameters with Ra ≤ 0.8 μm, customizable to meet your needs.
- Automated cutting, grinding, and inspection reduce assembly errors and improve shipment pass rates.
- Monthly production of 50,000+ units guarantees consistent product quality and reliable delivery.

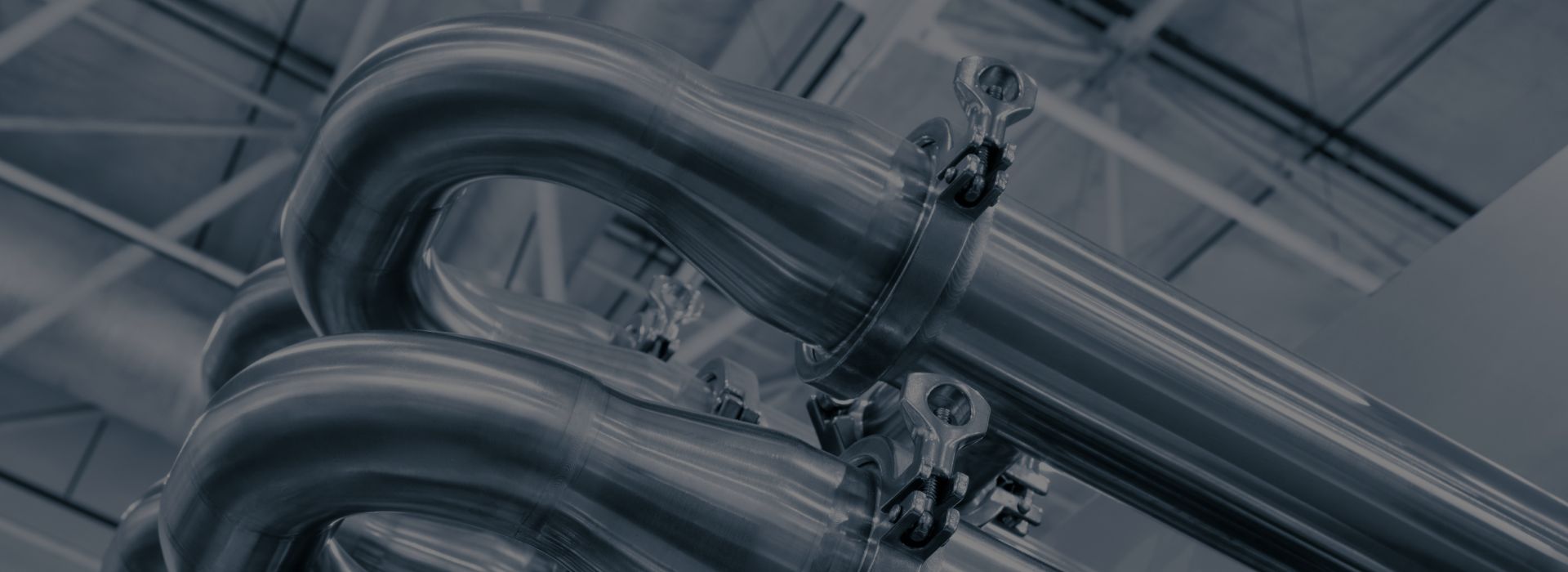

Your Reliable Single Pin Clamp Supplier in China
OMSS single pin clamps utilize materials that provide complete material traceability. The manufacturing process complies with ISO quality management system requirements and can be produced according to sanitary piping standards such as DIN, ISO, SMS, and 3A. Leveraging advanced manufacturing processes and CNC machining centers, we precisely control tolerances for each component, ensuring seamless assembly and batch consistency. Every unit undergoes final inspection for dimensional accuracy, structural strength testing, and seal integrity verification to guarantee product quality. This makes your system safer, more reliable, and easier to maintain. Contact OMSS today for your customized solution.

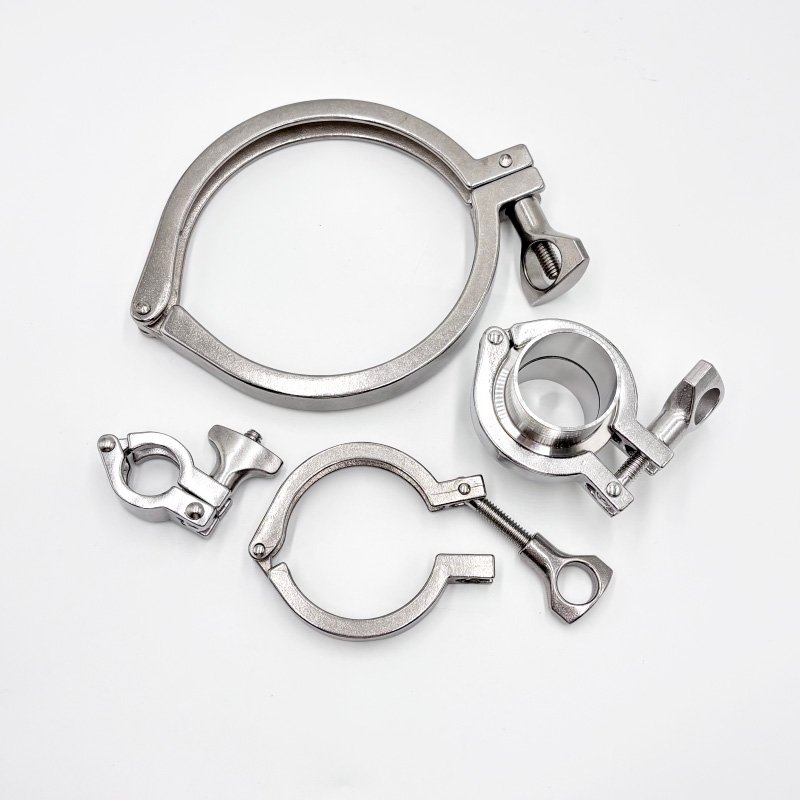

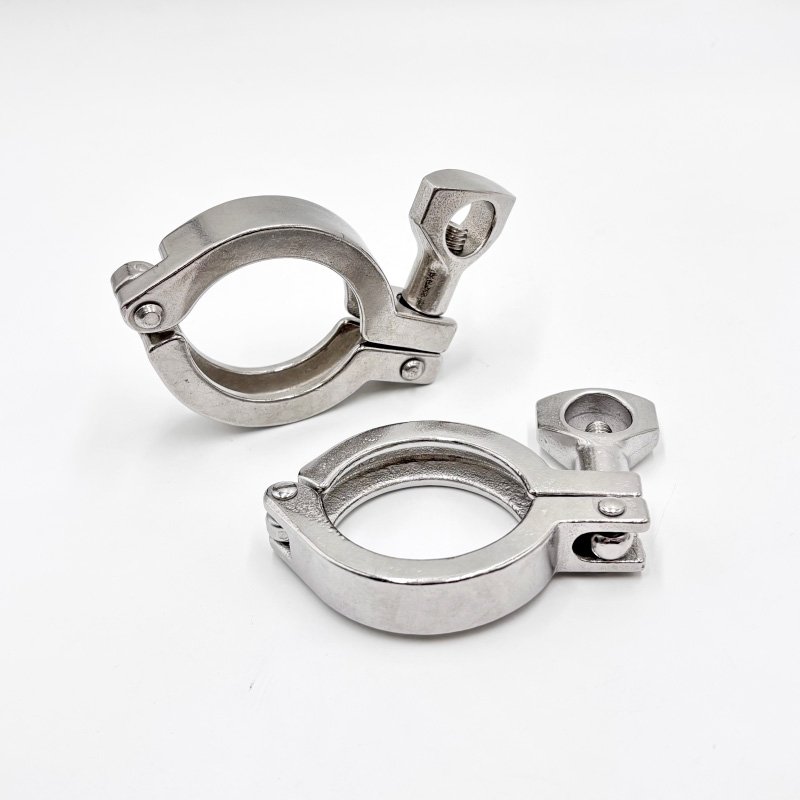

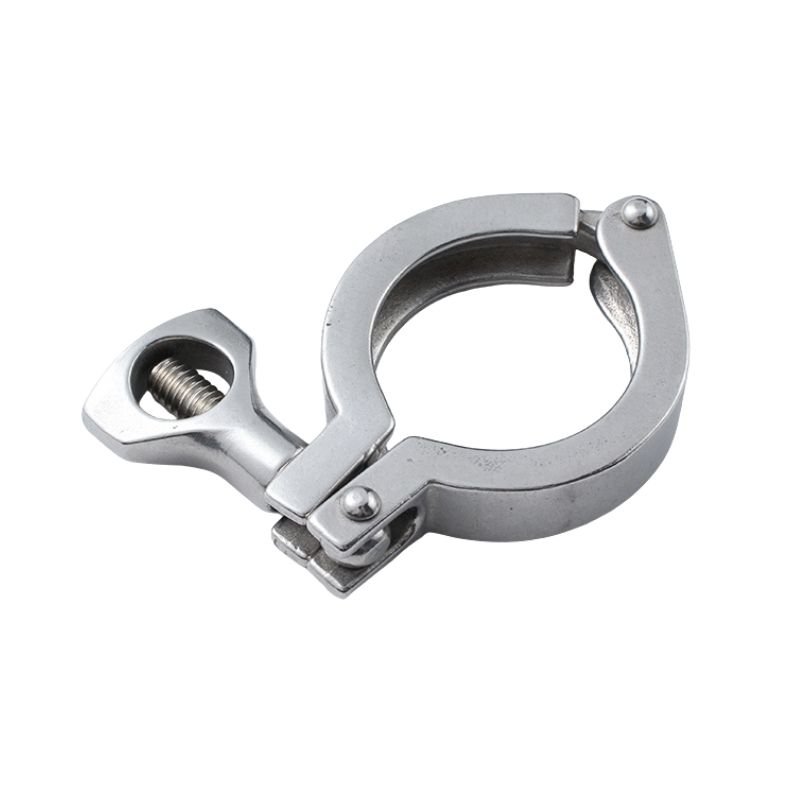

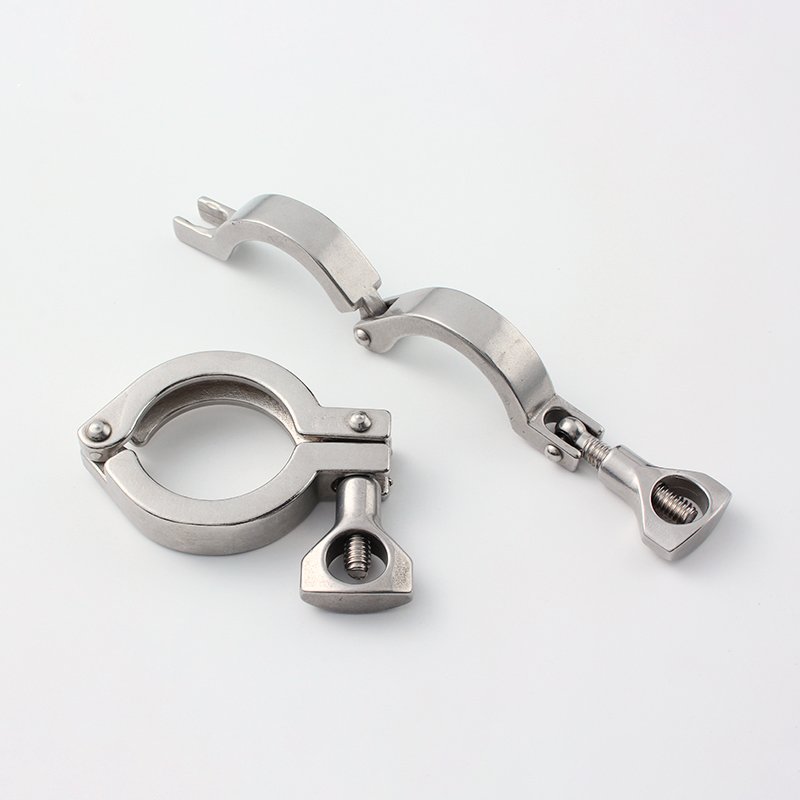

Types of Single Pin Clamp
Engineered for sanitary systems, featuring single-pin quick-locking for efficient assembly/disassembly and thorough cleaning.

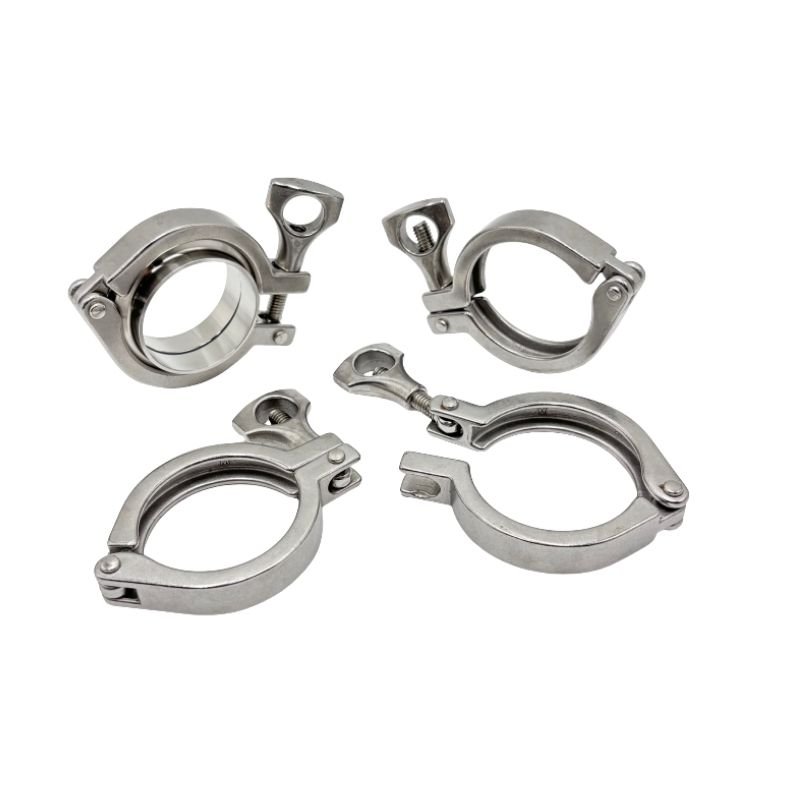

High-strength flange connection ensures secure compression sealing, effortlessly handling high-pressure conditions.

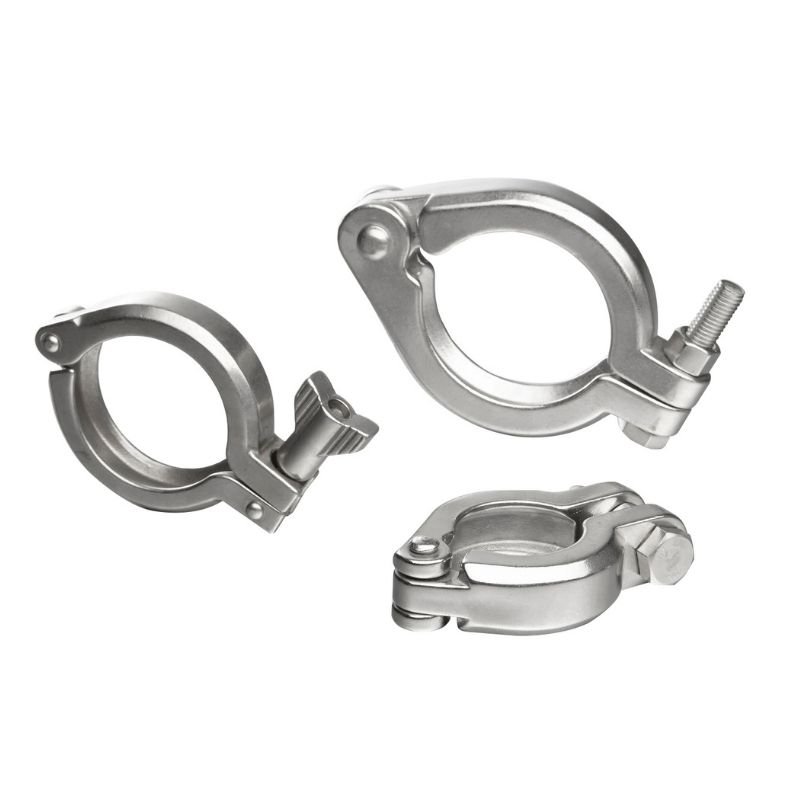

Compact threaded design for easy installation and cost control, ideal for small-diameter systems.

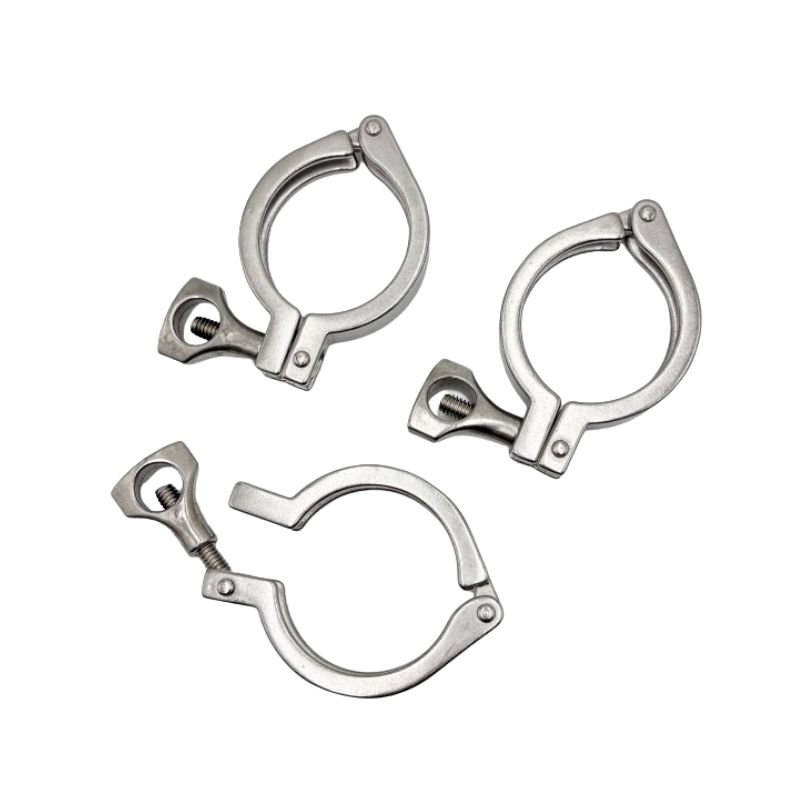

Tool-free opening and closing enable rapid assembly/disassembly, significantly boosting maintenance efficiency.
Features of the OMSS Single Pin Clamp
Single-pin design delivers accurate alignment and smooth, compact installation.
Delivers stable operation over repeated cycles and long-term operation for an extended lifespan.
304/316 stainless steel resists corrosion, tolerates high temperatures, and meets international standards.
Uniform clamping force ensures tight seals and minimizes leakage risk.
Simple structure facilitates disassembly without additional tools.
Accommodates various pipe diameter standards for enhanced versatility.

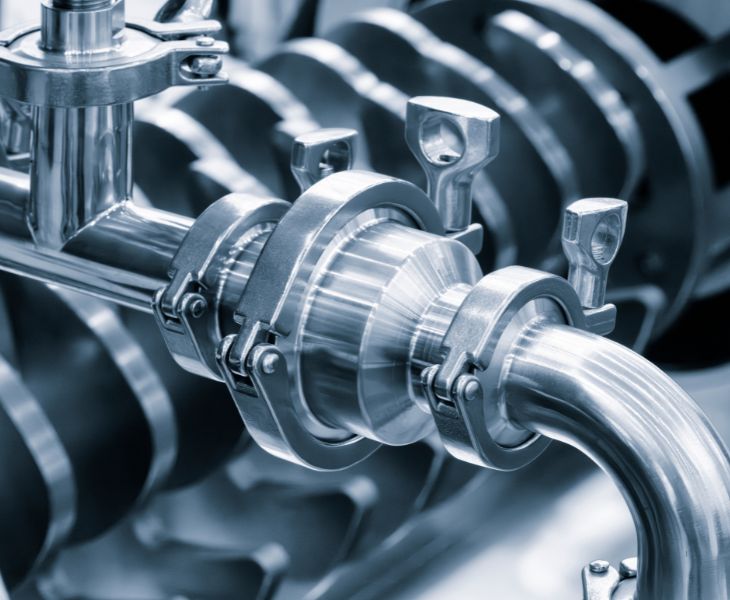

Precision Fit
OMSS single pin clamps feature precision engineering. Interfaces are perfectly aligned to ensure a reliable seal. Clamping force is evenly distributed, with a simple engineered for simple installation. They deliver stable sealing reliable operation in extreme conditions, minimizing uneven compression and minimizing the risk of leaks. This guarantees consistent performance of your entire system, compatible with sanitary and industrial piping applications.

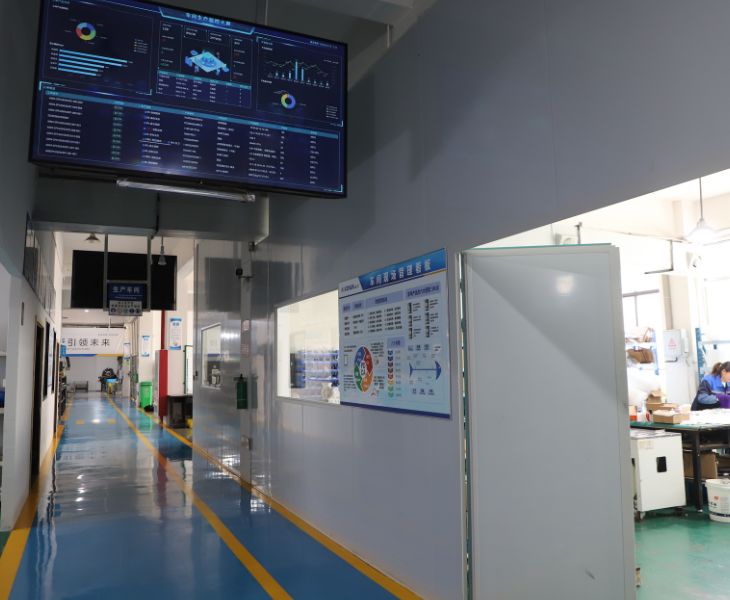

Strict Quality Control System
OMSS has a strict quality management system. Every batch of single pin clamps undergoes dimensional inspection, structural stability checks, and sealing fit tests to ensure uniform clamping force. Our production process follows strict standardization and the machining equipment is precise. This guarantees that the product dimensions are highly consistent and batch stability is maintained. Products undergoes extensive performance testing before leaving the factory to ensure secure assembly and reliable sealing.
Believable After-Sales Service
OMSS provides you with single pin clamps, guaranteeing operational safety and dependability use. We focus on long-term cooperative support, offering one-stop services. We provide technical consultation, selection advice, installation guidance, and other services. Moreover, our delivery schedule is stable, coordinating with your timeline. If problems emerge during this period, we respond immediately and implement corrective measures.
Applications of Single Pin Clamp

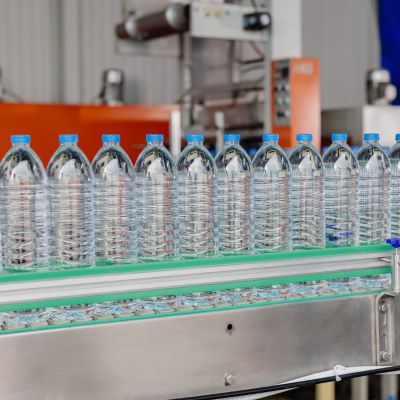

In this field, sanitary sealing is of paramount importance. Any leakage or cross-contamination could result in product scrap. OMSS’s single pin clamp features precision engineering, accurate interface alignment, and uniform sealing. It maintains the proper sealing of your system even under high-temperature, high-pressure conditions. Its simple structure facilitates quick disassembly and cleaning. It is ideally suited for high-temperature, high-frequency production lines.

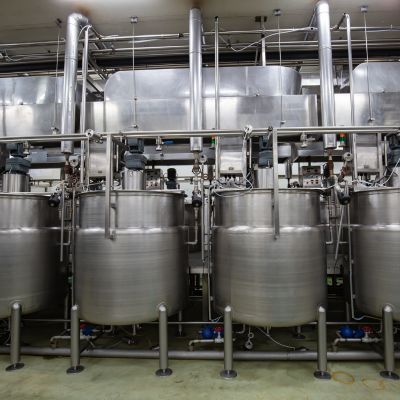

For pharmaceutical and biotechnology piping systems, sterile and secure sealing demands are extremely stringent. OMSS’s single pin clamp delivers uniform clamping force and stable sealing performance, maintaining reliable operation even when exposed to high temperatures and pressures. Its compact design facilitates easy disassembly and maintenance, reducing your system downtime and maintenance costs.

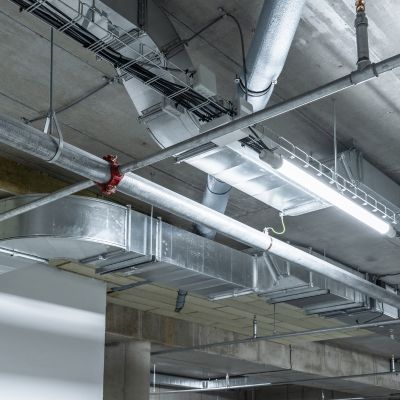

Prolonged exposure to liquids can cause corrosion in liquid and water systems, compromising seal integrity. Furthermore, these systems feature diverse pipe diameters and models, making it difficult to find suitable specifications. OMSS’s single pin clamp is constructed from corrosion-resistant materials and offers flexible support for matching and customizing to your system’s varying pipe diameters, while also providing easy installation and removal.

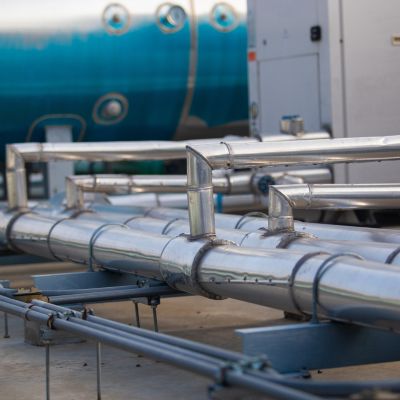

These piping systems operate in complex environments, frequently subjected to high pressure and corrosive fluids. Poor sealing leads to leaks and production damage. OMSS’s single pin clamp interface is precision-engineered and durable, minimizing leakage risks. Our products support multiple pipe diameter specifications for seamless compatibility and easy installation/removal, ensuring long-term stable operation of your system.
- Certificate of Compliance
Customer Reviews
We have strict requirements for surface finish and hygiene standards in pharmaceutical equipment. OMSS stainless steel fittings showed excellent workmanship, with smooth surfaces and precise machining. Their products helped us meet our equipment assembly requirements and maintain reliable production performance.
MichaelOMSS has become one of our trusted stainless steel component suppliers. We appreciate their fast communication, clear order updates, and careful packaging. Even for customized parts with different specifications, they maintain good consistency between samples and mass production.
SarahWe ordered stainless steel tank accessories and pipe fittings from OMSS for industrial fluid handling applications. The products arrived on time with proper protection, and the installation process was smooth. Their team was responsive whenever we needed technical information before and after delivery.
Thomas
The relevant test reports can be viewed to check whether the clamp has been rigorously tested, such as multiple opening and closing cycles (generally more than 10,000 times), high-pressure sealing tests, and thermal stress assessments. The materials are 304, 304L and 316L stainless steel and have relevant complete certification information and test reports.
Yes, single pin clamp is compatible with sealing gasket materials. What material is affected by the pipe medium, temperature, and pressure. It is necessary to match the gasket material according to the working conditions to ensure reliable sealing.
The first is to check whether the clamping force of the clamp is uniform; it is also necessary to regularly check whether the clamp is worn, corroded, or deformed; regular cleaning and maintenance can maintain the hygiene of the material, prevent corrosion, and extend its life. In some cases of high resistance, adding some lubricating oil appropriately can ensure smooth opening and closing.
Single Pin Clamp is ideal for system upgrade and old system retrofit projects. It can flexibly adjust specifications and sizes to suit the original size, and is flexible in disassembly and assembly, simple in structure, and does not require large-scale modifications to install and replace. For hybrid standard or old interface systems that lack original dimensions and information, you can find a professional team to conduct on-site measurements and customize a set of suitable solutions.
Single pin clamps can be adapted to common hygiene-grade standards such as DIN, ISO, SMS, and 3A. It also supports other industrial interfaces and accurately adapts to pipes. And fitting the relevant suitable gasket can maintain the seal reliably for a long time.
What is A Single Pin Clamp?
Single Pin Clamp is a fastening device for pipe connections and seals. Mainly adopts single pin locking, which can be assembled quickly to achieve sealing. It is often used in sanitary grade pipelines, pharmaceuticals, food and beverage, chemical, and industrial liquid systems.
Good sealing can also be maintained in high temperature and high pressure environments, because it is made of 304/316 L stainless steel material, so the corrosion resistance is also very good. It has several interface standards that guarantee compatibility.
Common Problems Solved by High-Quality Single Pin Clamps
Leakage and Seal Failures
Often, there are piping systems in which the uneven clamping force of the sealing components causes liquid or gas to leak from the interface, seal failure, and product contamination. It is also accompanied by a drop in system pressure, which can easily cause safety accidents.
High-quality single pin clamps mainly solve the problem of uneven clamping force, and the structure is locked and matched with suitable sealing gaskets, which greatly reduces the risk of leakage and can maintain reliable sealing in long-term use.
Misalignment and Installation Issues
If the structure and clamping force of the sealing component itself are fine, the interface will be misaligned when installing multiple sections due to the uneven tolerances of the pipeline interface, making assembly difficult or the interface seal unstable. There is a possibility of continuous leakage and seal failure in the long term.
The high-quality single pin clamps are precision machined and have strict tolerance control, which will avoid the above situation, accurately align the interface, install smoothly, and are also very suitable for installing multiple sections of pipelines.
Material Corrosion and Wear
During use, low-quality sealing components may gradually corrode due to the chemical medium, steam, cleaning agent, and other environments in the pipeline system. It is easy to rust and fail due to fatigue in the long run. This results in increased time and economic costs for later repairs.
The high-quality single pin clamps are made of 304, 304L, and 316L stainless steel, which are corrosion-resistant and high-temperature resistant. They have good resistance to complex environments, maintain reliable performance, and have a long service life.
Pressure and Temperature Limitations
If the working conditions of the pipeline system are complex, excessive pressure will make it impossible for low-quality clamps to withstand, which will also lead to seal failure. Because this low-quality material cannot adapt to complex working conditions, it has long-term thermal expansion, cold contraction, and fluctuations.
This causes structural fatigue, and leakage and interface damage will slowly occur. High-quality clamps can optimize materials and structures to adapt to complex working conditions, withstand high pressures, adapt to working conditions fluctuations, and ensure stable system operation.
Operational Downtime and Maintenance Costs
Ordinary clamps are complicated to remove and install, and changing gaskets and repairing them is very time-consuming. If the frequency is high, it will consume a lot of manpower and material resources. High-quality single pin clamps have a simple structure and are easy to disassemble and install. They are suitable for inspection and maintenance at any time, reducing pipeline system downtime and labor costs, and improving overall production efficiency.
How to Choose the Right Single Pin Clamp
Pipe Diameter & Interface Standard
You need to actually select the corresponding single pin clamp type and specifications based on the pipe diameter size and structure class, which is the first step to ensure accurate matching and smooth installation. Do this step well to achieve reliable sealing.
Operating Pressure & Temperature
The pressure environment of different pipeline systems is different, and low-quality clamps are not suitable for high-temperature and high-pressure working conditions. You need to choose clamps with rated pressure and temperature resistance higher than or equal to the system design working conditions based on the working pressure of your own pipeline system.
You also want to confirm the effect of thermal expansion on the seal. This ensures that the clamp can maintain a stable seal during operation and avoid accidental shutdown.
Material Grade
The material of the clamp is also important; you need to determine if the material is corrosion-resistant, hygienic, or industrial standard. Low-quality materials are prone to oxidation, rust, and contamination of the medium, affecting production efficiency and safety.
304,304 L, and 316 L stainless steel materials can cope with complex working conditions and maintain good performance. However, you also need to make sure that you have completely certified materials to confirm the authenticity of the materials.
Sealing & Gasket Compatibility
Reliable sealing performance requires the cooperation between the clamp and the sealing gasket to maintain long-term tightness. You need to choose a gasket material that is compatible with the pipe medium, temperature, and pressure to ensure even clamping. The following are recommendations for compatible gaskets for different application systems and operating conditions.
| Pipeline Condition / Dimension | Recommended Gasket Material | Compatibility Notes | Example Application |
| Chemical Media (Acid / Alkali) | PTFE | Corrosion-resistant, chemically inert | Chemical pipelines, acid/alkali solution transfer |
| Food & Beverage | EPDM / Silicone (Food Grade) | FDA / LFGB compliant, easy to clean | Milk, juice, and beverage transfer lines |
| High-Temperature Steam (>120°C) | PTFE / Silicone | Heat-resistant, prevents softening | Steam sterilization piping |
| High-Pressure Systems (>5 bar) | High-pressure rubber / PTFE | Ensures uniform clamping, prevents slippage or compression | High-pressure liquid handling pipelines |
| Size Matching | Standard diameter gasket | Inner/outer diameter matches the pipe and clamp for seamless sealing | 1.5-inch pipe using 1.5-inch gasket |
Quality & Inspection
Sealing failure can also occur if there is a large difference between batches. You need to choose products that have undergone strict quality control and factory testing, provide dimensional inspection, stress testing and material certification reports. This ensures batch consistency and the project can proceed smoothly.
Quality Control Standards Behind Reliable Single Pin Clamps
Material Traceability & Certification
High-quality single pin clamps are generally made of 304, 304L, and 316L stainless steel and have complete certification for related accessories. These materials can withstand the test of complex working conditions, high temperature resistance and corrosion resistance.
Precision Machining & Tolerance
In order to control the tolerance of each product specification within ±0.05 mm, CNC precision machining technology is used and strictly controlled. This can ensure precise adaptation of the interface and smooth installation.
Sealing & Pressure Testing
In the process inspection of the production process of the product, each process link will be checked online, such as cutting, welding, grinding, etc. Real-time monitoring and control can ensure that the structure of single pin clamps is stable and the clamping force is uniform.
Batch Consistency & Documentation
After the production of the product, its finished product will also be strictly tested for sealing, clamping force test, and multiple opening and closing life test (more than 10,000 times high), which can ensure that the performance may remain stable even with frequent operation at high temperature and high pressure.
Final Inspection & Random Sampling
Each product of high quality single pin clamps can trace the source of raw materials, production records, inspection data, which can allow you to confirm the consistency of different batches of products. These data records provide assurance for smooth project delivery and after-sales support.
