Why Choose OMSS Stainless Steel Clamp Fitting?
- All our products are certified by ISO 9001, which ensures stable quality.
- OMSS has a strong production capacity and can meet order needs on a large scale.
- With more than 15 years of industry experience, and providing reliable solutions.
- More than 90% of repurchase rates, which proves the high trust in our products.
- Respond to customer inquiries within 24 hours, ensuring fast communication and service.
- Meet FDA certification standards and can serve the food and drug industry.

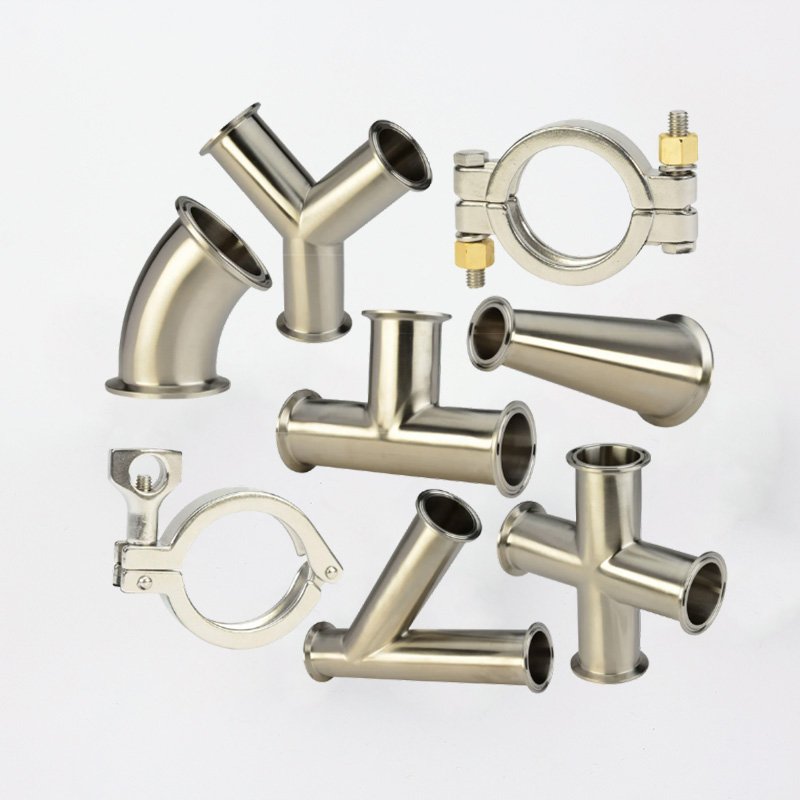

OMSS-Reliable Chinese Stainless Steel Clamp Fitting Manufacturer
Our stainless steel clamp fittings provide a precise and reliable pipeline connection to industries with high hygiene standards. Its smooth inner surface reduces fluid residue to prevent spoilage
We offer a wide range of sizes and can provide customized products according to different requirements. The surface of any type of fitting is precisely machined to ensure stable compression of the gasket.
Our factory can strictly control the quality and costs of the stainless steel clamp fittings and guarantee that the price is affordable. If you need stainless steel clamp fittings, contact OMSS. Our experts will answer your questions in detail.
Our Products

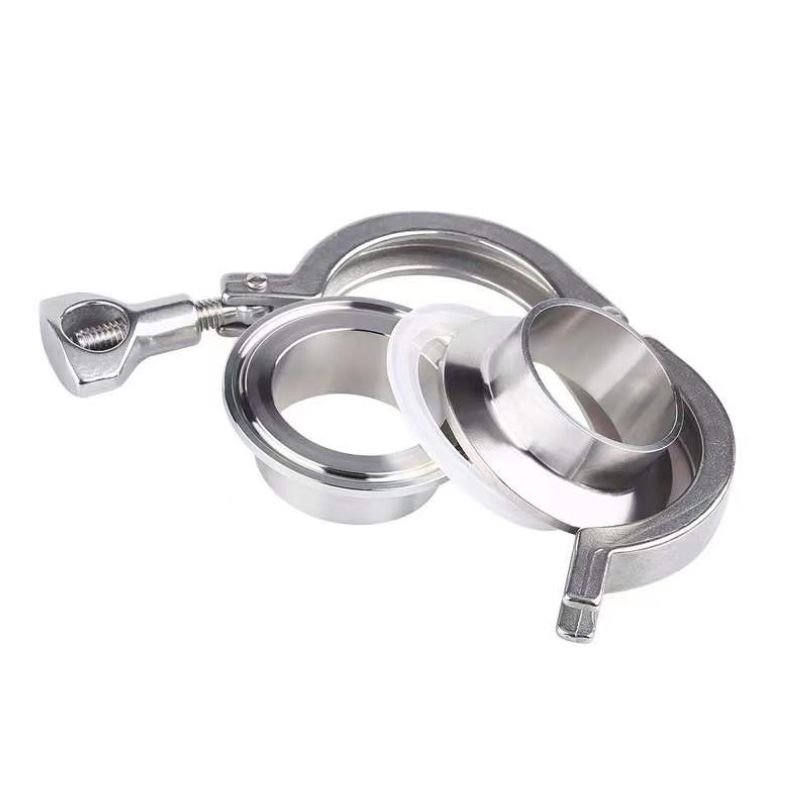

They weld securely to the pipe end to provide a smooth, flat mating surface. Fewer dead spots make cleaning and maintenance easier

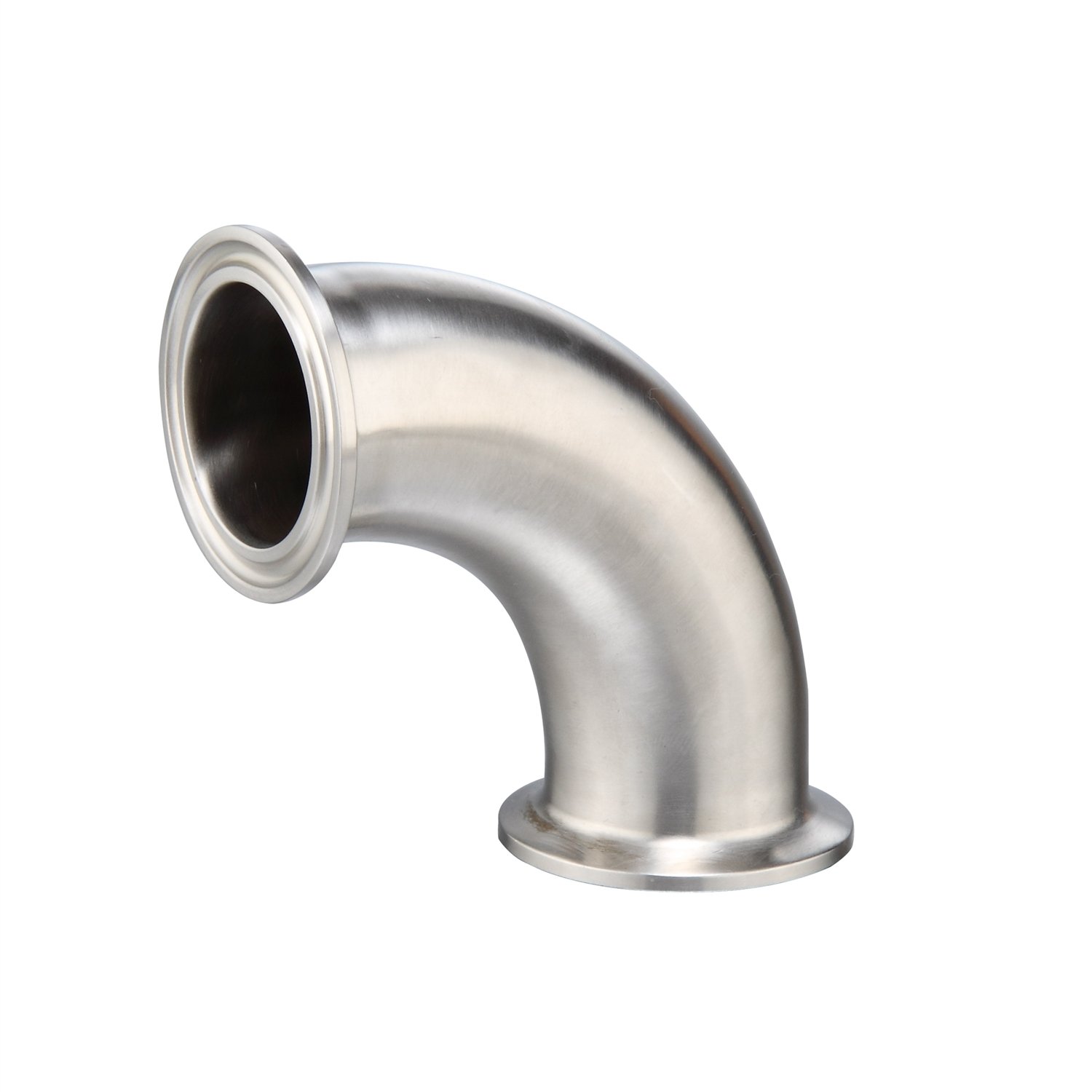

Designed to change the direction of the pipe, these curved fittings have various angles, such as 45 or 90 degrees, while ensuring liquid flows smoothly.

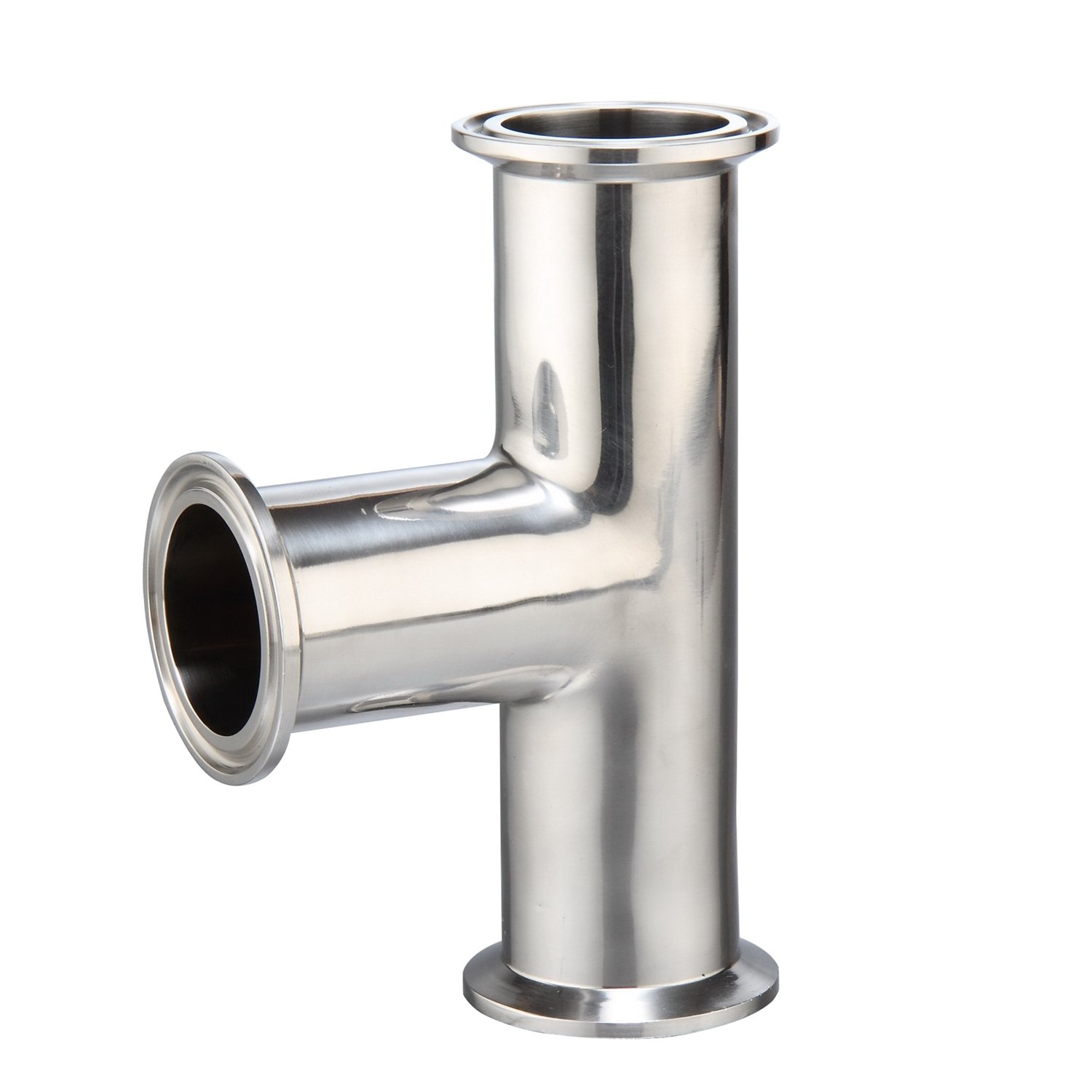

These T-shaped fittings connect pipe branches to achieve fluid branching or merging, and have three clamp ports for the ease of complex layouts.

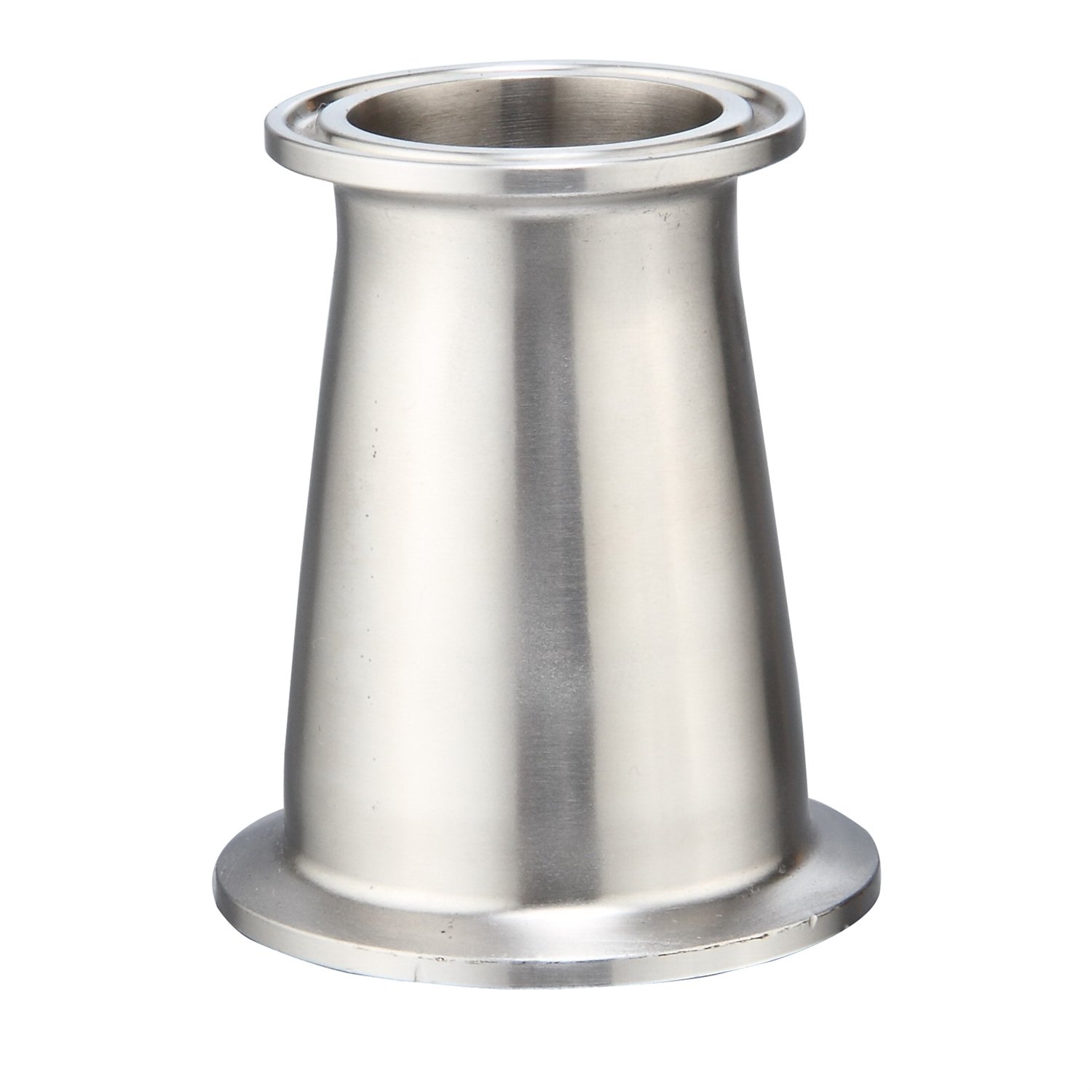

Seamlessly connect pipes of different diameters, ensure smooth transitions, and prevent liquid accumulation in horizontal pipes. There are concentric or eccentric designs.

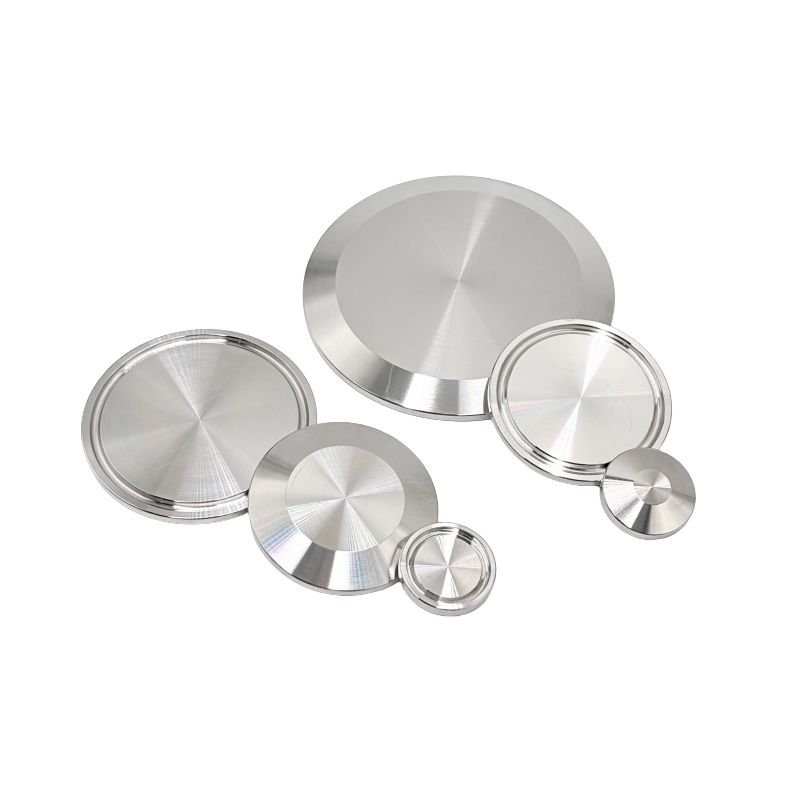

Solid round plate for clamping to the end of the pipe. It seals the end safely and hygienically and halts the flow effectively.

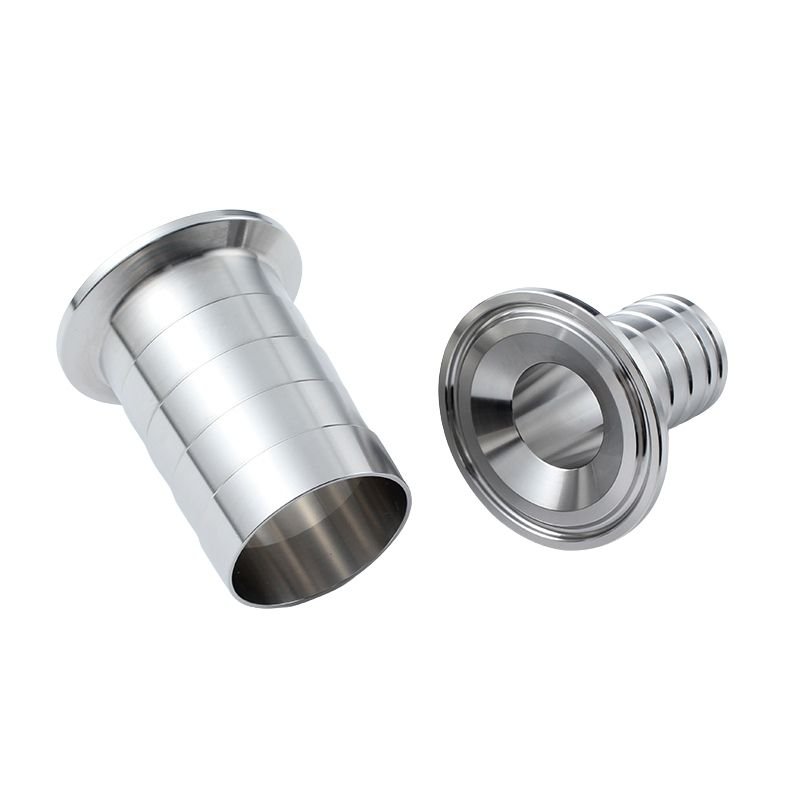

On one side is the clamp flange, and on the other side is the ribbed barb. It can bridge the rigid pipe and hose.

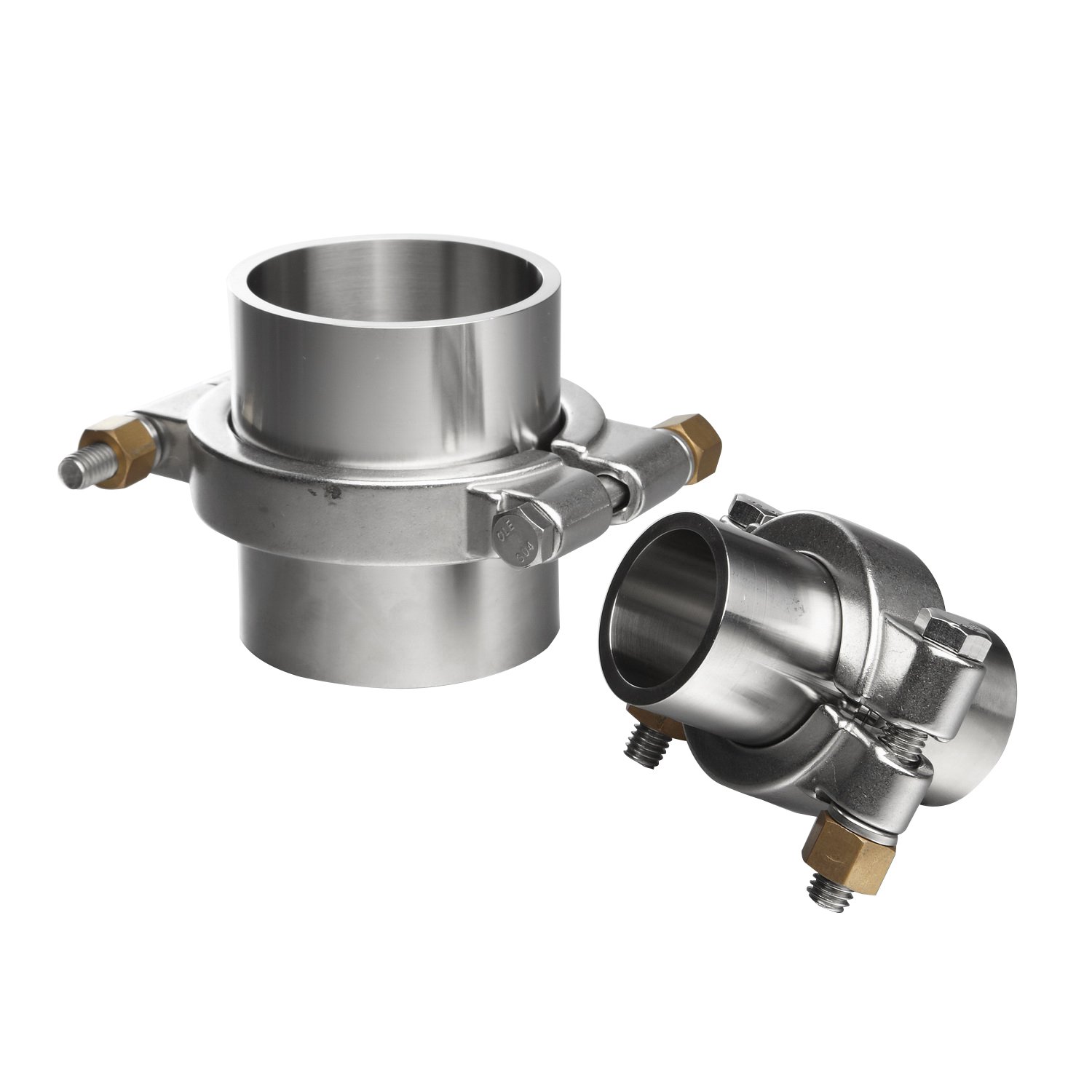

With reinforced walls and heavy geometry, it is possible to maintain structural stability under extreme working pressures and avoid leakage.

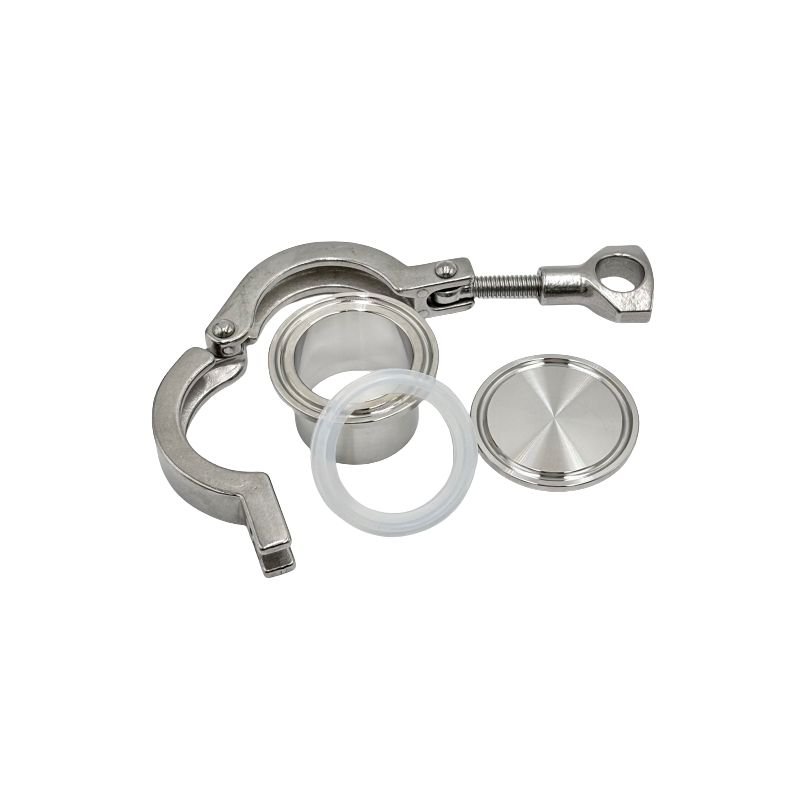

Wrap around two ferrules and a gasket to provide the necessary compression and ensure the connection is secure, tool-free, and highly hygienic.
Features of Stainless Steel Clamp Fitting
Made of 304,304L, and 316L stainless steel, our clamp fittings can greatly resist corrosion and high temperature, and keep stable in long-term use and harsh production environments.
Our products strictly follow international hygiene standards, such as 3A, DIN, SMS, ISO, etc. They can meet strict safety requirements when used by high-standard industries.
Our products are precisely machined and use a high-precision internal polishing process. The Ra is less than 0.8μm, which makes fittings not easy to accumulating dirt.
We offer a wide range of sizes and configurations to meet different pipe connection needs, and support customized services to flexibly deal with various pipe specifications.
The connection design is standardized and simple. Our products can be installed or removed without tools. It improves the maintenance efficiency of and reduces downtime and costs.
Products designed for high-pressure systems are designed with reinforced wall thickness and heavy-duty geometry to withstand extreme pressures and ensure the safety of the entire system.
Our passivation process enhances the natural protective oxide layer of the stainless steel. This treatment method maximizes corrosion resistance
The components of our clamp fittings can be evenly compressed and form a stable and reliable seal, which prevents leakage and outside contamination.

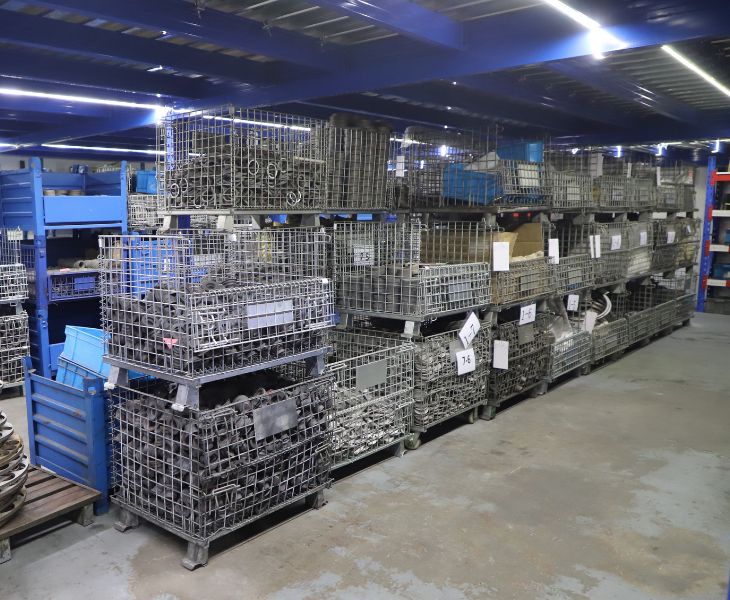

Excellent Product Quality
Each of our stainless steel clamp fittings is made of high-quality 304,304L and 316L stainless steel, and carefully crafted with advanced CNC technology. We have a strict quality control process, and our products are strictly tested before shipment to ensure they are of good quality. The stainless steel material increases the corrosion resistance, and the smooth surface minimizes bacterial growth to keep the system hygienic and make it more efficient. The characteristics make our fittings ideal for production with more demands for safety and production precision.

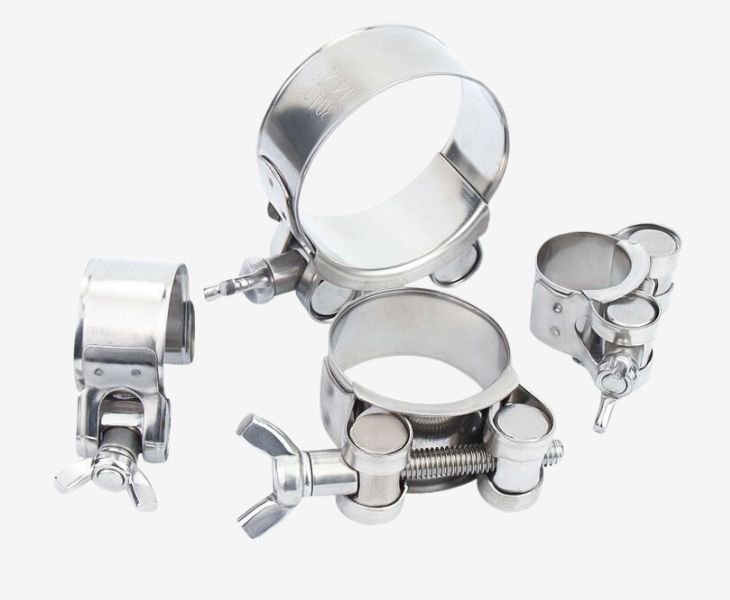

Customized Solutions
All of our stainless steel clamp fittings come from our factory in China, so we have the ability to customize stainless steel clamp fittings to your special requirements and provide very affordable prices.No matter how special or complex your plumbing system is, whether you need non-standard dimensions, a special multi-port design, or other unique configurations, we can design and change the product based on your actual needs, and utilize our own factory to produce products quickly and deliver them on time.
Fast Delivery Speed
We have a large stock of different kinds of stainless steel clamp fittings. If you need a common type, we can ship them directly to save time. Even if not, our strong production capacity will guarantee that your order can be completed on time. Besides, we have a reliable global supply chain and a well-developed export process. No matter where you are, whether you are a large distributor or an equipment manufacturer, we can process your order in time.
Applications of Stainless Steel Clamp Fitting

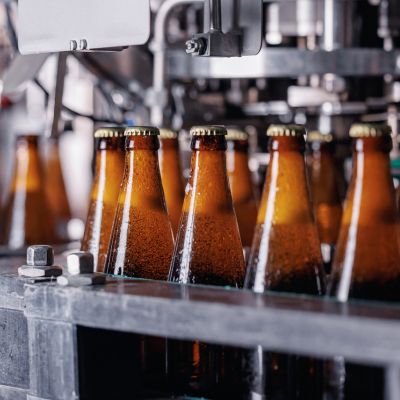

Our heavy-duty sanitary grade fittings can easily withstand the heat shock and strong cleaning agent of food production and meet strict industry hygiene standards. Whether you’re producing beers or jams, our fittings keep pipes tight without leakage. There will be little waste, and the flavor can be kept. Whether the fluids are high-temperature fluids or delicate, our fittings can be installed and maintained simply and fast to reduce downtime. The production line can remain at its best efficiency.

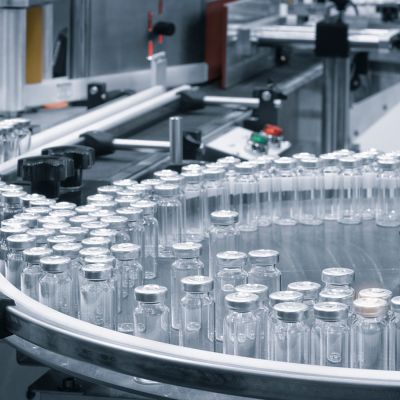

The risks are extremely high in the pharmaceutical and biotechnology industries, where even a small gap can contaminate the whole batch. Our stainless steel clamp fittings ensure safe connections in sensitive production situations, such as drug production and biotechnology research. These fittings meet the highest hygiene standards, with a smooth surface that effectively inhibits bacterial growth, which is very important for clinical trials, bioreactor systems, and the production of drugs. The high quality can protect your invested money and ensure regulatory approval.

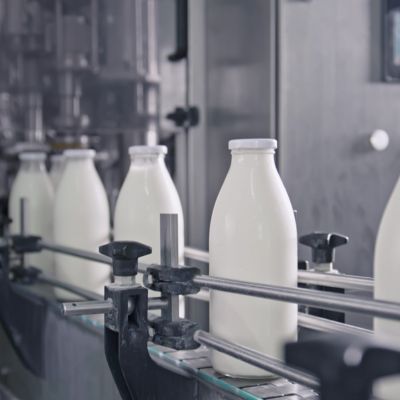

Dairy products are high in protein and are easy to grow bacteria, so they have high hygiene requirements. Our stainless steel clamp fittings are the ideal solution for handling milk, cream, and other dairy products. These fittings meet 3A standards and are durable in harsh environments and high-yield production. The inner wall is smooth without dead angles and can prevent dairy products from being contaminated by pipe residues. They are essential for all processes of dairy production and packaging.

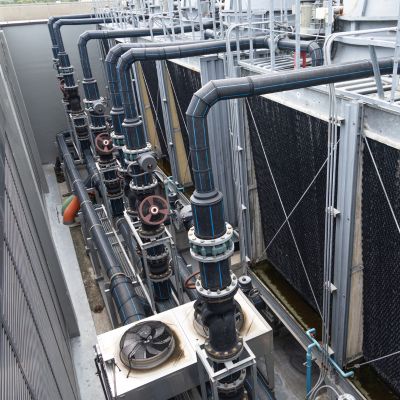

Our stainless steel clamp fittings can withstand extreme environments in chemical and industrial production, such as when handling corrosive chemicals or ultrapure water used in the production of semiconductors. The advanced passivation treatment improves the stainless steel’s ability of resisting corrosion and prevents metal ions from affecting fluids that are sensitive. These fittings are strong and durable and can easily cope with high-pressure fluctuations, prevent leakage, and keep the operation safe. In an industrial environment with strict requirements, choosing our fittings can greatly improve your production system’s reliability.
- Certificate of Compliance
Customer Reviews
We have strict requirements for surface finish and hygiene standards in pharmaceutical equipment. OMSS stainless steel fittings showed excellent workmanship, with smooth surfaces and precise machining. Their products helped us meet our equipment assembly requirements and maintain reliable production performance.
MichaelOMSS supported our custom stainless steel fitting project from drawing confirmation to final production. Their engineers provided useful suggestions on material selection and processing details. The finished components matched our requirements well and performed reliably in our food equipment applications.
JohnWe purchased sanitary tri clamp fittings and stainless steel ferrules from OMSS for our beverage processing system. The dimensions were accurate, the polishing was clean, and the fittings connected smoothly with our existing pipes without additional adjustment. The consistent quality helped us improve installation efficiency.
Emily
The pressure resistance capacity of stainless steel clamp fittings depends on the material grade, wall thickness, and the type of pipes being fitted. In most industrial applications, stainless steel clamp fittings with reliable quality are capable of withstanding fluid delivery with medium to high pressure.
But in real production, the overall pressure resistance is usually limited by the pipeline itself. Therefore, when selecting the type of clamp fittings, engineers need to confirm the system pressure requirements and select clamp fittings that match the specifications of the pipeline system.
The main difference between 304 and 316L stainless steel clamp fittings is in corrosion resistance. 316L has a higher resistance to corrosive environments, particularly to environments containing chlorides or acids. Therefore, it is an ideal choice for the pharmaceutical and chemical industries.
304 is more suitable for general use, such as food processing and beverage production. Although beverages and other foods have different acidity and alkalinity levels, in these applications, the stainless steel clamp fittings are exposed to less aggressive substances. Choosing between 304 and 316L stainless steel clamp fittings depends on the specific requirements of production.
Stainless steel clamp fittings are durable, especially when they are made of 316L stainless steel, which is more resistant to acid, base, and chloride ions. The service life depends on working conditions, such as pressure, temperature, and chemical exposure. Being exposed to high-pressure or high-temperature steam will accelerate the wear.
Aggressive chemicals can slowly attack metal surfaces. Frequent disassembly and assembly or pipeline vibration may cause deformation of the clamp threads. Under ideal conditions and with proper maintenance, these fittings can maintain integrity for more than 10 years. The life of high-quality 316L fittings can reach more than 20 years.
The stainless steel clamp fittings are usually made of 304, 304L, or 316L stainless steel. They are not easy to rust and corrode due to frequent exposure to moisture, chemicals, and high-temperature cleaning agents. Its surface is smooth and free of dead spots, which can effectively prevent bacterial growth and is easy to clean and sterilize.
The connection provided by stainless steel clamp fittings with gaskets is firm and leak-free. In addition, it meets the strict rules for industries with a strict sanitary environment, such as 3A and ISO, which can ensure the safety of production and quality of products.
Stainless steel clamp fittings are safe in environments with high pressure, with their reliable mechanical structure and material strength. Unlike standard fittings, some high-pressure models with double bolts or multiple bolts to apply a more uniform and higher compressive force on the gasket, thereby preventing separation under pressure and maintaining seal integrity.
Many designs use a safety factor of about 3:1 to 4:1 and are equipped with structures to prevent accidental loosening in vibration or dangerous environments. The rated pressure that the fitting can withstand can usually reach hundreds of psi, or even exceed 1000 psi.
Stainless steel clamp fittings are easy to maintain. Operators only need to visually inspect regularly to check whether there are any signs of damage, such as cracks and rust. Whether the sealing gasket remains intact and elastic without hardening or deformation should be ensured. The clamp should be locked with a suitable force to prevent loosening and leakage caused by vibration.
The fitting should be removed, washed with a suitable detergent, and rinsed with clean water during washing. The maintenance process can not only keep the system hygiene but also extend the service life of the fitting.
Stainless steel clamp fittings are easier to install and remove, thereby reducing downtime during maintenance. Unlike welded fittings that need specialized welding equipment and certified experts, clamp fittings can be quickly removed and installed with just a few tools, such as a screwdriver or hex wrench.
This makes them ideal for systems that require frequent cleaning and reconfiguration. Although costs may be higher, clamp fittings are generally more cost-effective due to reduced labor costs and production losses. In addition, the stainless steel clamp fittings can be disassembled and assembled repeatedly without damage, so they have a higher recycling value.

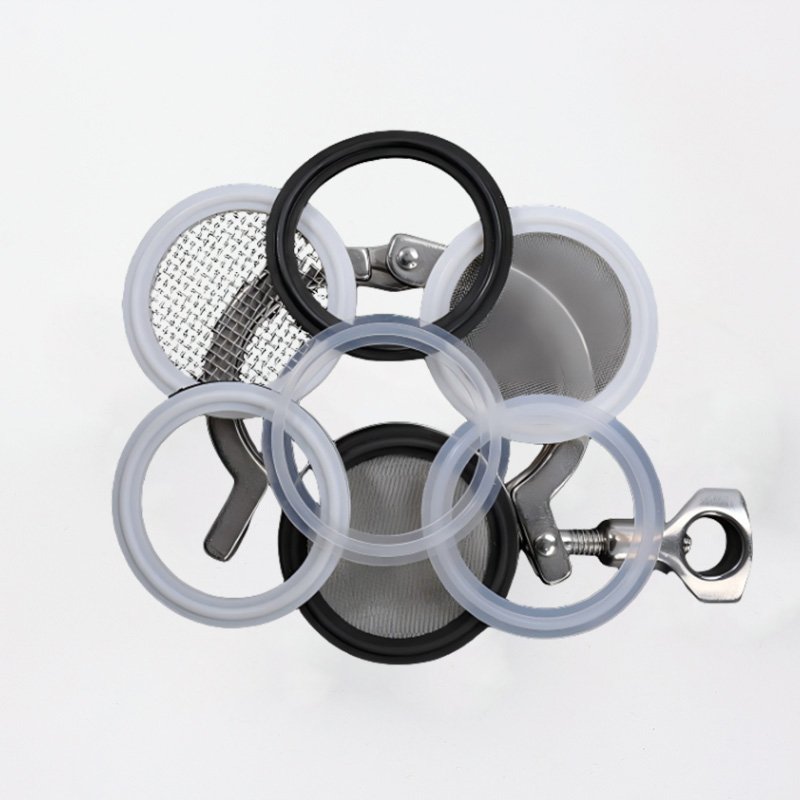

Stainless steel clamp fittings rely on gaskets to create a tight seal between two ferrules. The commonly used gasket materials include EPDM, silicone, PTFE, etc., each of which is designed for different working conditions. EPDM gaskets are widely used in the production of water-based foods and beverages due to their excellent heat and steam resistance.
PTFE gaskets have the highest chemical compatibility with corrosive fluids. Silicone gaskets are the best choice for pharmaceutical applications due to their flexibility and chemical stability. Choosing the right gasket material ensures a good seal, prevents contamination, and helps meet the required production hygiene standards.
What Is A Stainless Steel Clamp Fitting

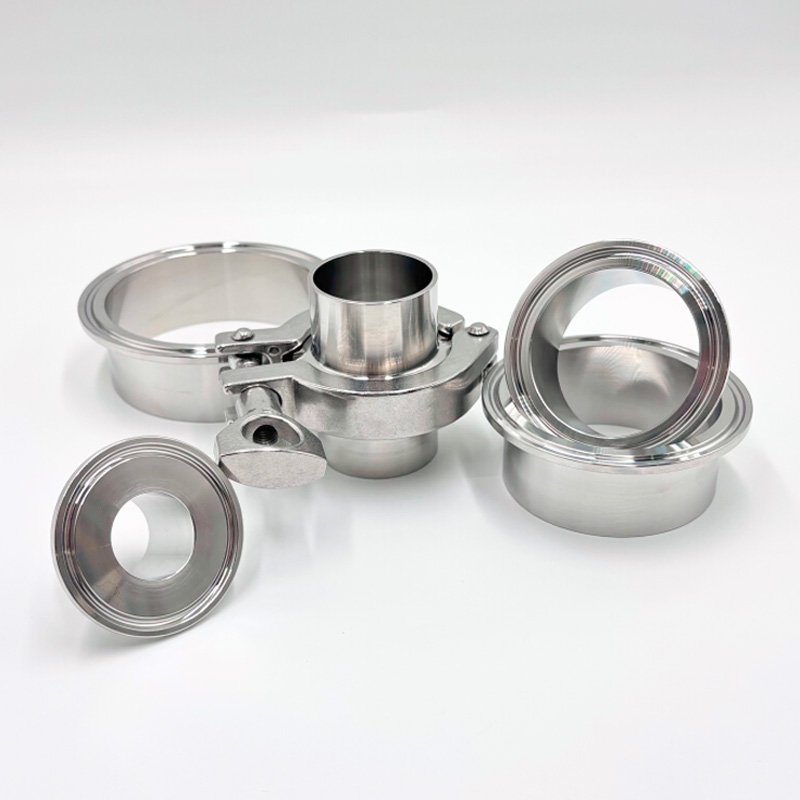

A stainless steel clamp fitting is a device used in sanitary piping systems, typically manufactured by forging or precision machining 304,304L or 316L stainless steel. Its structure consists mainly of three core components: a clamp, two ferrules, and a sealing gasket in the middle.
The stainless steel clamp fitting is widely used in industries with extremely high hygiene requirements, such as food, dairy products, pharmaceuticals, and bioengineering.
The Connection Method of Stainless Steel Clamp Fitting
When forming a connection, the butterfly nuts on the clamp are tightened to press the end faces of the two fittings against the elastic gasket in the middle, thereby forming a reliable seal and preventing the pipeline system from leakage. The connection structure is suitable for pressure and high-temperature sterilization environments.
More importantly, its quick-install design enables the equipment to be quickly disassembled and cleaned. It can be maintained without special tools, and effectively avoids the problem that traditional welding or threaded connections are difficult to clean thoroughly, thereby ensuring the hygiene and safety of the production system.
Factors to Consider When Choosing Clamp Fittings
Material Grade
Select the suitable stainless steel grade based on the working environment. 304 stainless steel is suitable for general food and beverage production, while 316L stainless steel has better corrosion resistance.
Size Compatibility
Clamp fittings must match the pipeline size and follow the correct industry standard. Ensuring size compatibility prevents leakage and ensures the proper sealing between ferrules.
Surface Finish
For sanitary industries, surface finish is critical. Polished interiors can reduce bacterial adhesion and improve the cleanliness of the whole system. Pharmaceutical and biotechnology industries often choose electropolished surfaces.
Gasket Material
The gasket provides the actual seal between the ferrules. Choose gasket materials according to material characteristics and production environments, such as temperature, pressure, and chemical exposure.
Pressure and Temperature
Confirm that the clamp fittings can withstand the operating pressure and temperature of the pipeline. High-temperature cleaning processes, such as CIP and SIP sterilization, are a great challenge.
Application Environment
Different industries have different requirements. For example, pharmaceuticals have very high requirements for hygiene, and the chemical industry attaches great importance to corrosion resistance.
