Why Choose OMSS ’s Vacuum Flange Fittings
- OMSS uses CNC equipment to produce vacuum flange fittings with low tolerance.
- All vacuum flange fittings dimensions are measured with precision instruments.
- Helium leak testing can be provided for your vacuum flanges.
- Comprehensive quality control system from the raw materials to products.
Professional Vacuum Flange Fittings Supplier in China
OMSS is a factory from China, specializing in vacuum flanges for more than 15 years. We are able to provide you with vacuum flanges in various materials (304/304L/316L) and types (ISO/KF/CF) to ensure that our products can meet your various requirements and provide reliable sealing performance to ensure that your process is carried out in a smooth and orderly manner.
Types of Vacuum Flange Fittings

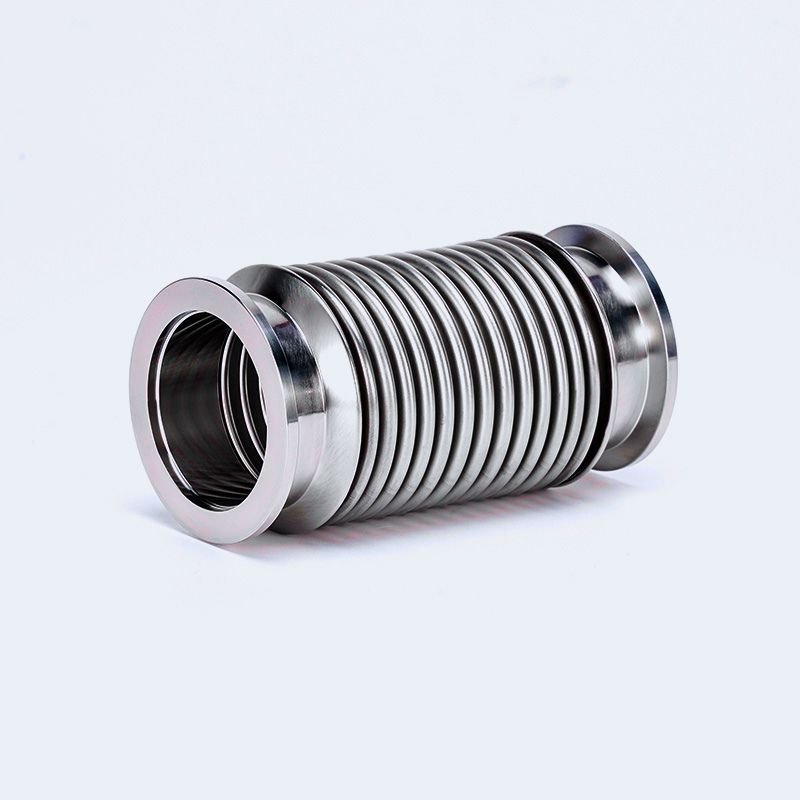

They can be used in rough and medium vacuum environments.
They are with gasket and cutter flange connection for ultra-high vacuum sealing.
They have larger caliber, O-ring seals for your medium vacuum piping systems.
Features of Vacuum Flange Fittings
304, 304L and 316L stainless steel raw materials are tested by spectrometer for reliable quality.
All vacuum flanges are produced by machining centers, CNC lathes with strict tolerance control.
Our vacuum flanges are manufactured in strict accordance with ISO,DIN and other global vacuum standards.
The finished products will go through a strict helium sealing test, roughness test, etc. to ensure that the quality is satisfactory to you.

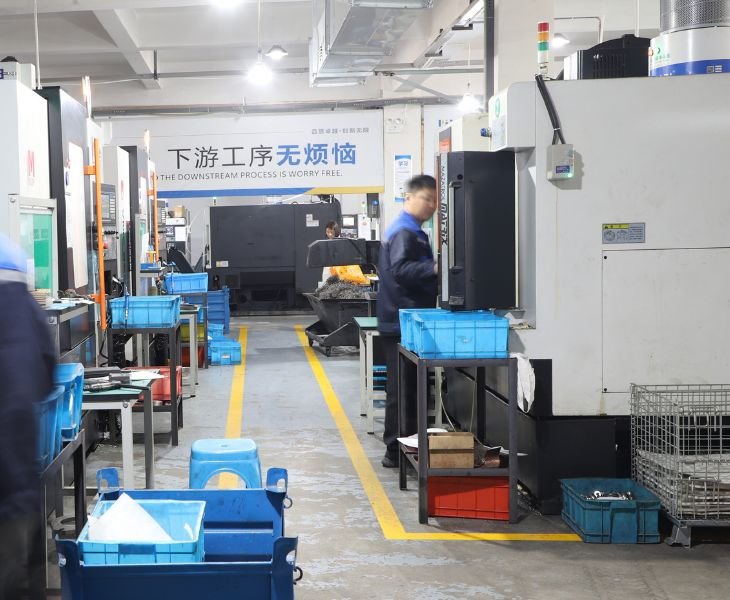

Stable Sealing
OMSS employs precision machining to control the manufacturing accuracy of vacuum flange fittings. This ensures excellent microscopic material conformity and maintains uniform stress distribution on metal gaskets and O-rings during sealing. The result is reliable sealing performance during operation, minimizing leaks and other incidents that compromise vacuum system stability.

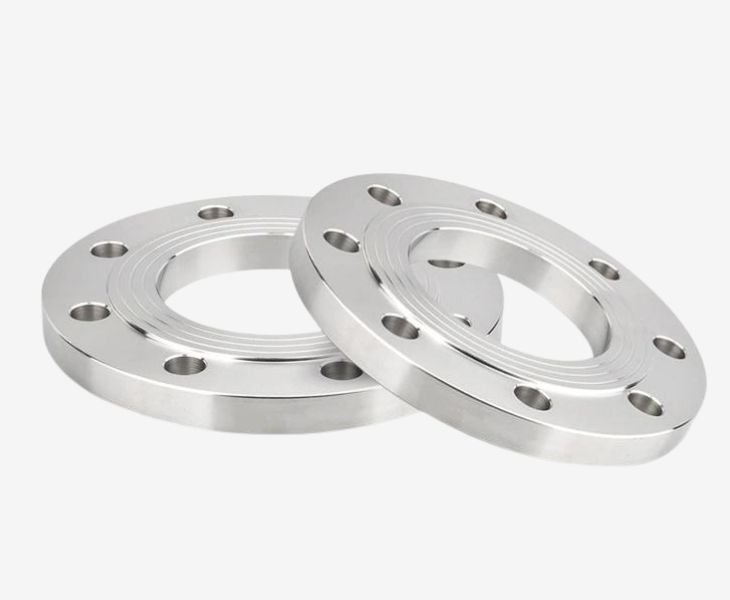

Matches The Needs Of Different Vacuum Levels
OMSS vacuum flange fittings are compatible with diverse vacuum systems, including rough vacuum (103-100 Pa), medium vacuum(100-10-3 Pa) , high vacuum (10-3-10-7 Pa), and ultra high vacuum (<10-7 Pa). Select corresponding vacuum flanges from the CF, KF, or ISO series based on specific vacuum requirements, ensuring optimal compatibility for varied application needs.

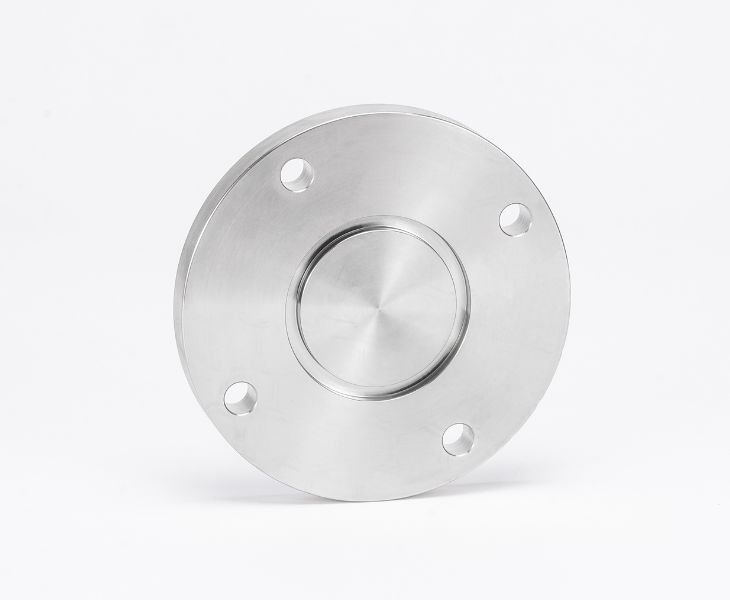

High Quality Surface Treatment Process
OMSS employs electrolytic polishing for surface treatment of your vacuum flange fittings. This can achieve surface roughness as low as Ra ≤ 0.8 um or even lower, maintaining sealing integrity. In the meantime, it effectively prevents dust retention, meets clean process requirements for surface finish, and reduces contamination risks.
Applications of Vacuum Flange Fittings

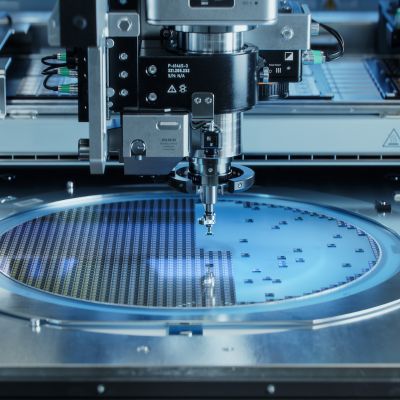

In semiconductor manufacturing, vacuum environments are critical for ensuring process cleanliness and production stability. Processes such as ion implantation and thin-film deposition must be conducted in contamination-free vacuum conditions. CF vacuum flange fittings are suitable for high vacuum and ultra high vacuum environments in this field.

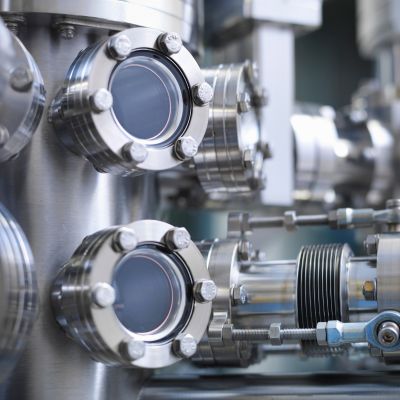

Laboratories often require varying degrees of vacuum environments for experiments like materials research and surface analysis. KF vacuum flange fittings offer flexible application in laboratories due to their ease of installation.

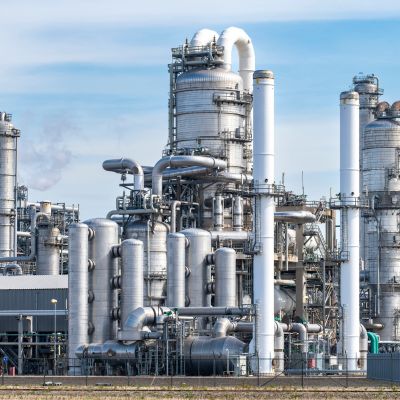

Vacuum flange fittings are suitable for vacuum systems in pharmaceutical and chemical applications. They play a vital role in processes like vacuum distillation and drying. 316L stainless steel, with its excellent corrosion resistance, is widely used in these fields.

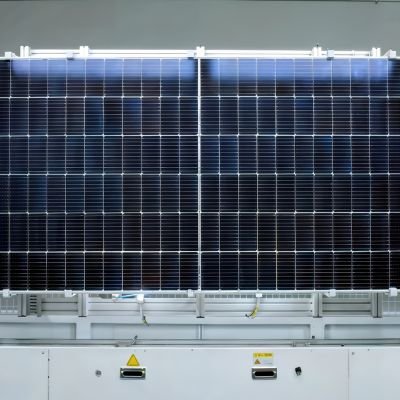

Solar cell production also requires medium or high vacuum environments for processes like thin-film deposition. Vacuum flange fittings ensure the maintenance of vacuum conditions, sustaining process stability and product quality.
- Certificate of Compliance
Customer Reviews
We ordered stainless steel tank accessories and pipe fittings from OMSS for industrial fluid handling applications. The products arrived on time with proper protection, and the installation process was smooth. Their team was responsive whenever we needed technical information before and after delivery.
ThomasOMSS has become one of our trusted stainless steel component suppliers. We appreciate their fast communication, clear order updates, and careful packaging. Even for customized parts with different specifications, they maintain good consistency between samples and mass production.
SarahWe have strict requirements for surface finish and hygiene standards in pharmaceutical equipment. OMSS stainless steel fittings showed excellent workmanship, with smooth surfaces and precise machining. Their products helped us meet our equipment assembly requirements and maintain reliable production performance.
Michael
The main difference between these vacuum flanges lies in the different sealing methods used to maintain vacuum. And these sealing mechanisms result in different sealing performances.
KF meets the rough vacuum and medium vacuum requirements of laboratories or small vacuum pumps, while ISO is more suitable for the medium vacuum requirements of industrial large-aperture systems. For higher vacuum requirements in semiconductor and scientific research fields, CF can meet their needs for high vacuum and ultra-high vacuum.
Different vacuum environments have different requirements for the leakage rate of flanges. The permissible leakage rate is 10-5 mbar-L/s for rough vacuum, 10-8 mbar-L/s for high vacuum, and ≤10-10 mbar-L/s for ultra-high vacuum (UHV).
In areas such as the semiconductor and electronics industries that require vacuum environments, the presence of even the smallest leak can have a very negative impact on the production process.
For example, it can reduce the vacuum level in the environment, increase the load on the vacuum pump, and even cause process contamination that can lead to downtime and wasted costs.
In order to achieve a tight seal on the finished flange part and to reduce the risk of leakage more effectively at a micro level, vacuum flanges generally undergo turning to achieve extremely low tolerance surfaces and details.
Moreover, they are then polished to reduce surface roughness and degraded to further minimize the risk of subsequent contamination due to outgassing of the material.
Generally speaking, CF, FK, ISO vacuum flanges are reusable materials. However, it should be noted that before the reuse, you need to replace their O ring or copper gaskets, to avoid the problem of poor sealing performance of these materials in the reuse.
CF is usually sealed by metal, such as copper gaskets or indium wire gaskets, while KF and ISO optional o-rings are made of rubber, such as nitrile, silicone, FPM or PTFE.
What is a Vacuum Flange Fitting?
Vacuum flange fittings are components used to connect vacuum chambers, vacuum piping and vacuum pumps. They are mainly used to form seals to maintain vacuum conditions and the normal operation of vacuum systems. Depending on the structure and sealing method, flanges are categorized into KF, CF and ISO.
Why Do You Need a Vacuum Flange Fitting?
It is true that the vacuum flange piece is an unassuming part of a piece of equipment. But its role is actually quite critical. The slightest error can cause the entire system to break down, leading to costly and more serious problems such as equipment damage in your factory.
Providing a Tight Hermetic Seal Between Components
Vacuum flange fittings can form a complete seal at the microscopic level through extremely low tolerance structural machining, as well as extremely low surface roughness control.
As the slightest contamination can affect the entire batch in semiconductor production. The vacuum flange fittings are able to meet the needs of semiconductors and laboratories for clean environments.
Ensure the Efficient Operation of the Vacuum System
From the point of view of reducing material outgassing, vacuum flanges are usually produced using low carbon stainless steel. The materials chosen further reduce the risk of releasing gases inside the material, avoiding possible material outgassing to destroy the vacuum environment, and ensure that the vacuum system can be operated efficiently and stably.
The 3 Core Systems of Vacuum Flange Fittings You Need to Know About

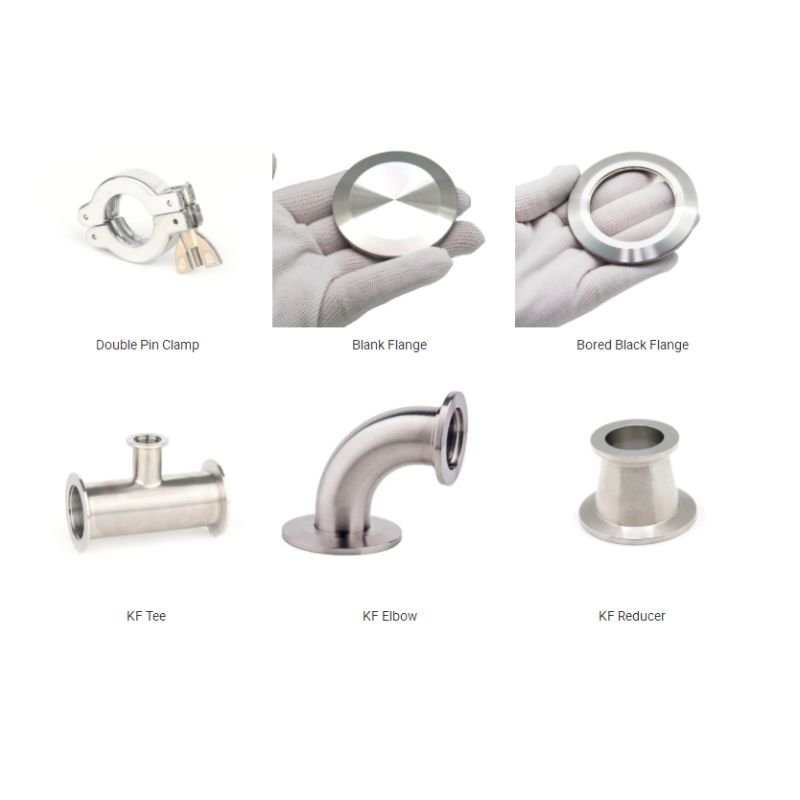

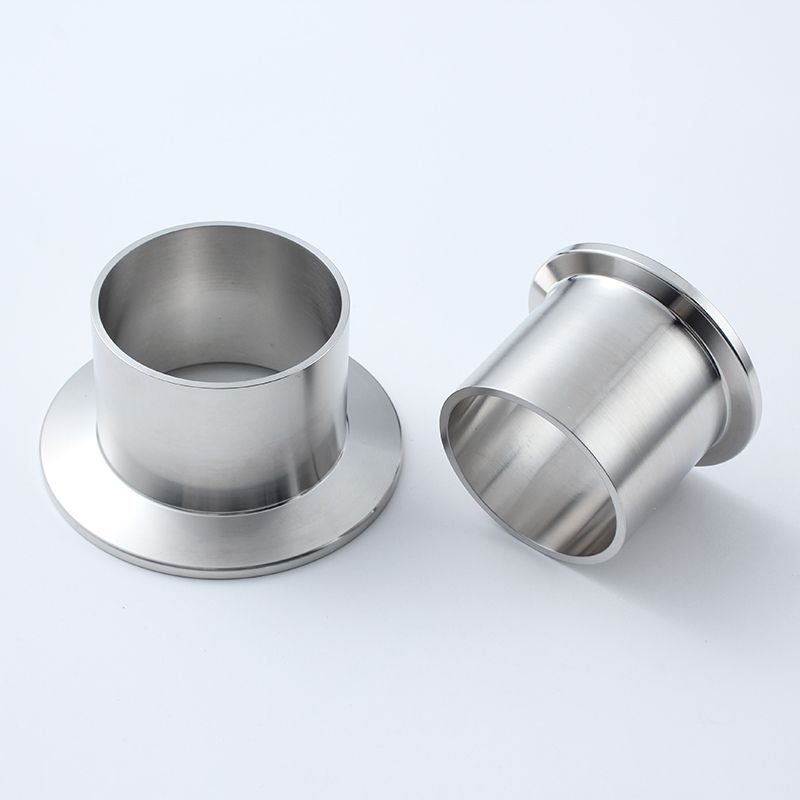

KF Vacuum Flange Fittings
KF vacuum flange fittings are usually supplied with a 15° chamfer on the backside and are sealed by means of an elastic O-ring in conjunction with a locating ring. Manufactured according to DIN 28403 and ISO 2861 in sizes KF10, KF16, KF25, KF40 and KF50, they are characterized by low cost and easy handling.

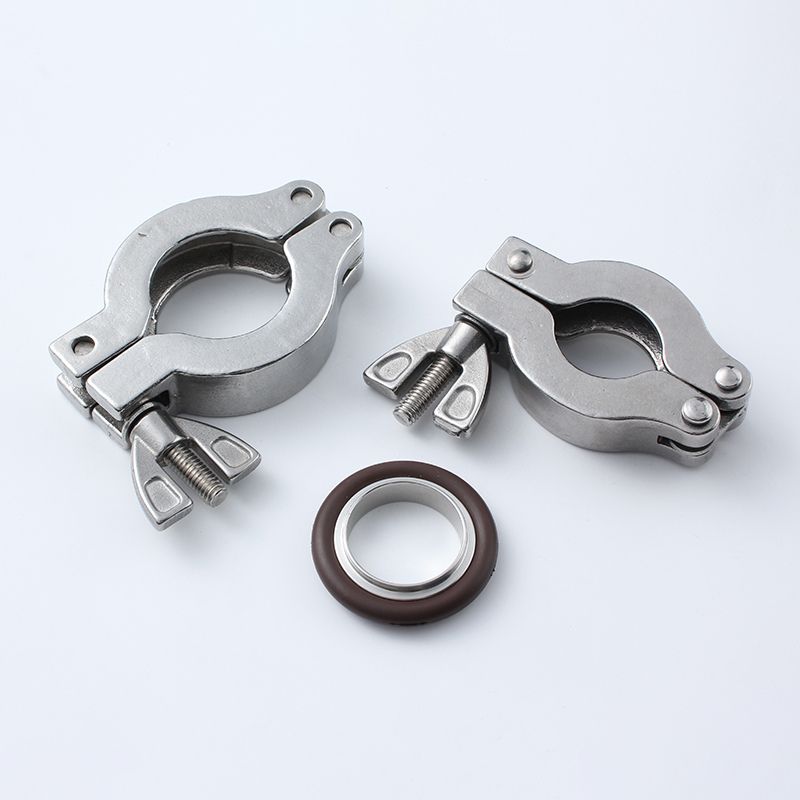

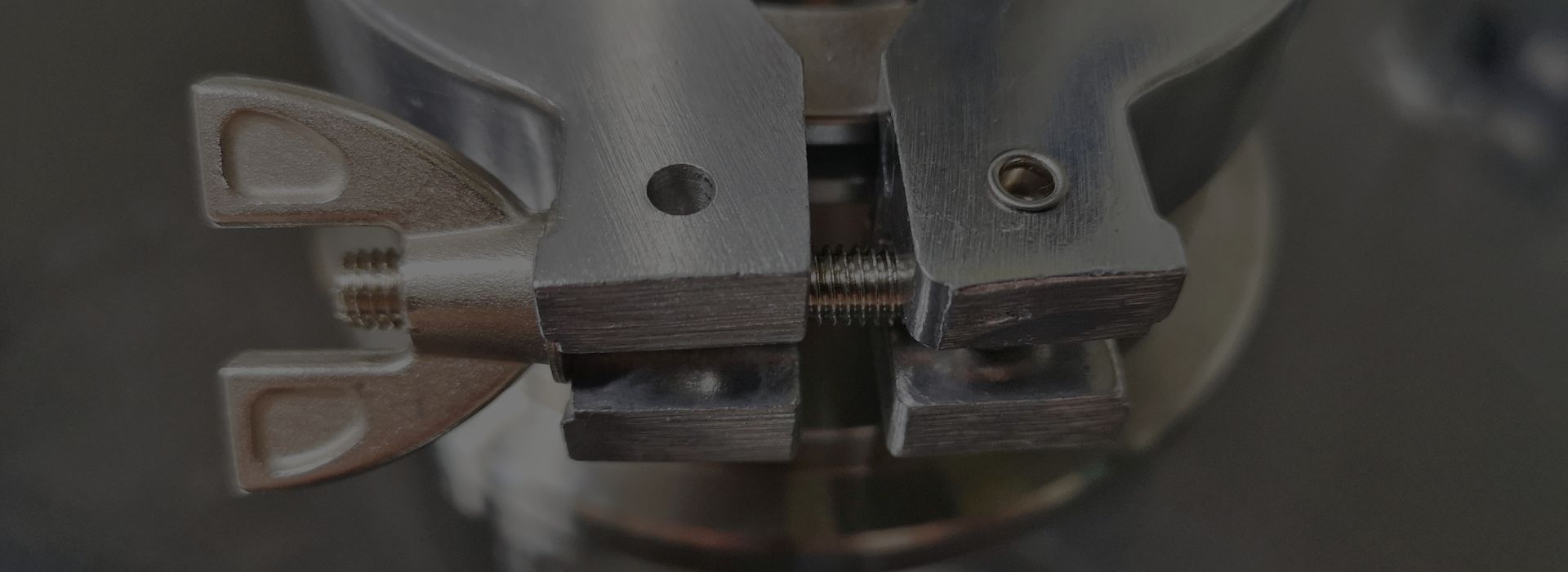

When it comes to actual use, KF vacuum flange fittings are easy to install. You first need to place the O-ring between the two flanges and align the flanges. Then, you can put the clamp on the flange and tighten it to squeeze the flange and press the O-ring to form a seal.

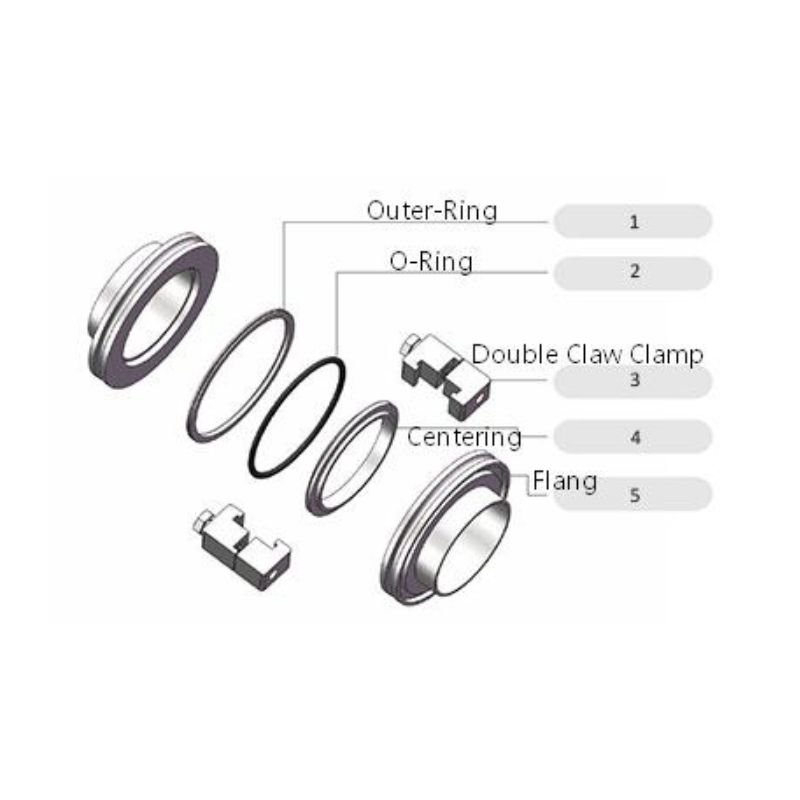

ISO Vacuum Flange Fittings
ISO vacuum flange fittings will have a larger inside diameter than the KF and will also seal with the O-ring. They can be bolted or clamped together and are suitable for larger diameter industrial vacuum pipes.
ISO vacuum flange fittings operate in a similar way to KF vacuum flange fittings in that the elastomeric sealing mechanism is not suitable for high vacuum applications, but rather for medium vacuum environments at pressures up to 100-10-3 Pa.

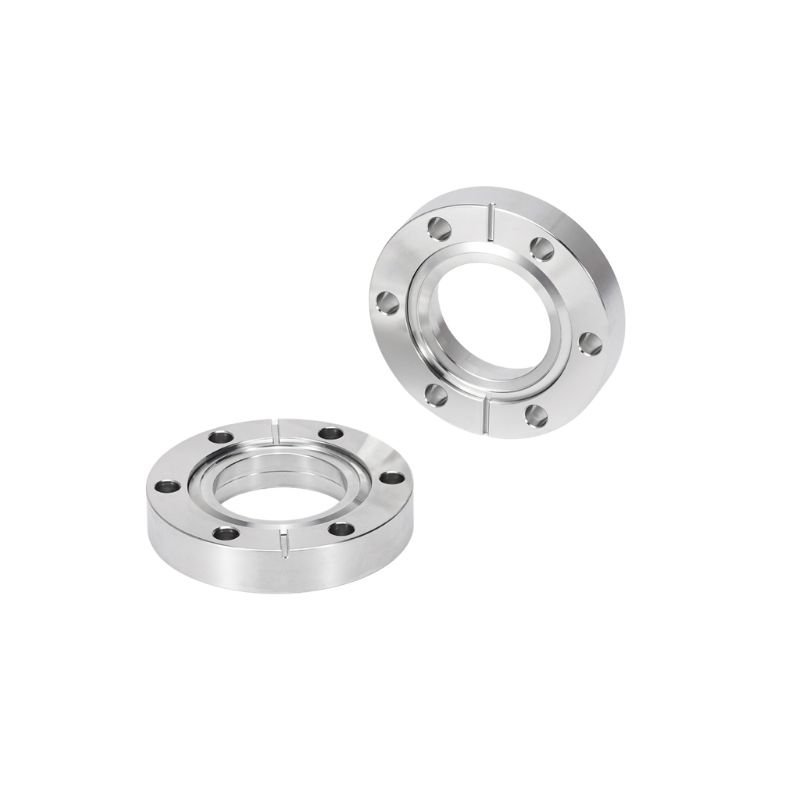

CF Vacuum Flange Fittings
CF vacuum flange fittings are flanges in which a sealing effect is created by the combined action of a cutter and a metal gasket, typically made of copper. When the bolts are tightened, the cutters are embedded in the metal gaskets on both sides to form a tighter fit and minimize the microscopic gaps between the flanges.
Since no rubber is involved, CF vacuum flange fittings can achieve lower outgassing rates and are suitable for more demanding particle gas pedal manufacturing and semiconductor applications.
Common Materials Used for Vacuum Flange Fittings
| Features/ Materials | 304 | 304L | 316L |
| Ingredients | Chromium：18% Nickel：8% | Chromium：18% Nickel：8% With lower content of carbon | Chromium：16% to 18% Nickel：10% to 14% Molybdenum： 2% to 3% |
| Carbon Content | ≤0.08% | ≤0.03% | ≤0.03% |
| Material Relinquishment Rate | Low | Lower than 304 | Lower than 304 |
| Applicable Vacuum Type | Rough Vacuum, Medium Vacuum | Medium vacuum, high vacuum | High Vacuum, UHV |
| Typical Applications | Laboratories | Vacuum pipeline | Semiconductor/ Medicine |
Vacuum Flange Fittings vs Sanitary Flanges Fittings, What are The Differences?
| Features/ Types | Vacuum Flange Fittings | Sanitary Flanges |
| Sealing methods | O-ring or metal gasket | Food grade EPDM, PTFE, FPM |
| Sealing effect | Much Better | Good |
| Working pressure | Vacuum(Negative pressure) | Normal pressure |
| Common materials | 304/304L/316L | 304/304L/316L |
| Connecting methods | Bolts, Clamps, Metal Compression | Weld, blind, slip |
| Applications | Semiconductor, Research equipment | Food processing, Bioengineering |
How to Find the Right Vacuum Flange Fittings?
Confirm that the Flange Material Match The Vacuum Level
In the actual selection, you have to make sure that the material of the vacuum flange can be matched to the vacuum system you need to apply. The choice is based on the vacuum level as well as the temperature.
For example, for higher vacuum levels, 304L or 316L with lower carbon content are usually used, as they ensure less gas emission during use and maintain a stable high vacuum environment.
For ultra high vacuum environments involving high-temperature baking processes, you also need to pay attention to the high-temperature resistance of the stainless steel or sealing material to ensure that flanges are selected for consistent performance.
Ensure the Dimensional Accuracy
Vacuum systems are also demanding the flange accuracy, you must make sure that the dimensions of the vacuum flanges you select comply with strict international standards. Parameters you need to check include inside diameter, outside diameter, surface roughness and O-ring dimensions.
This is also one of the key reasons why we recommend you to work with regular factories, which usually produce flanges in accordance with international standards (DIN/ISO, etc.). They ensure stable product delivery and after sales service for you, reducing the risk of your purchase from the source.
